Welding Fumes Extracted by Used Kemper Equipment

Today, KEMPER is a successful family business. Neither its growth nor its international focus have changed this important aspect of its identity.

KEMPER doesn't fall behind. The innovations in filter devices and extraction equipment are geared to the needs of customers and regularly exceed the specified legal requirements. This results in absolute legal certainty for occupational safety and environmental requirements for users.

1977 - Gerd Kemper founded KEMPER GmbH
The danger of the eyes suffering from conjunctivitis during welding is well known. However, welding fumes were not considered harmful to health. At that time, no one was yet considering statutory limit values, just as no one was considering effective extraction technology.

In Sweden, Gerd Kemper discovered his first extraction units after his business vocational training period at a company with a technical background. There, the hazards caused by welding fumes were actually known - even if this was rudimentary compared with today's knowledge.

Gerd Kemper brought this knowledge back to Germany. In the garage at his home, he constructed the first spot extraction system in the German-speaking countries - a filter unit which collected and extracted the welding fumes directly where they were created.

To this day this principle of welding fume extraction is being recommended by the employers liability insurance associations. The company is still considered to be a pioneer in welding fume extraction.

1983 - First production building in Vreden
Thanks to the success of the company products, KEMPER grew in both contract volume and number of employees - the company had 10 employees by as early as 1979. The capacities were too small at the old location.
Six years after its founding, KEMPER expanded to a major extent for the first time. The manufacturer invested in a new location.
The company set up its first production building covering 3600 square metres.
This provided more space for an extended range. In addition to welding fume extraction, KEMPER started producing extraction solutions for cutting applications using thermal cutting tables.

KEMPER Flexible Exhaust Arm 2m, 3m & 4m
KEMPER exhaust arms are extremely suitable for extracting welding smoke, gases, damps, slight dusts and solvents. The exhaust arm consists of an interior parallelogram which is spring supported, a fibre glass hose with a PVC coating and an internal steel wire spiral. The exhaust hood with a damper is rotatable by 360° and can therefore be swivelled in all directions. Due to its interior parallelogram the exhaust arm can be brought into any desired position within its reach without any additional support.

KEMPER exhaust arms can be connected to fans or to a ducting of a central filtration system

These videos show Kemper Extractors on site and in the working environment. Often you will find Kemper in use with gas and plasma profile cutting systems, extracting cutting fumes.

KEMPER Flexible Exhaust Arms - 5m, 6m & 7m
KEMPER exhaust arms with a length of 5 m, 6 m and 7 m are equipped with a ball-bearing swivelling wall extension boom. A standard swivelling exhaust arm with a length of 2 m, 3 m, or 4 m is fastened to this wall boom. The special way of fastening the arm to the boom allows to swivel the exhaust arm by 360°. A C-profile is fastened to the bottom of the wallboom so that equipment or a wire feed unit up to 50 kg can be fixed to the included travellers. This makes work easier, helps to protect expensive material and prevents accidents being caused by tools and cables on the floor. KEMPER exhaust arms can be connected to fans or a ducting system

KEMPER Telescopic Exhaust Arm
The telescopic arm has been designed especially for welding schools where small welding tables are in use. In these places it is difficult to use the standard exhaust arm, which would disturb the trainee with its wide swivel range. The telescopic arm allows a smooth vertical movement and can also be swiveled to the left and right. The exhaust hood is fitted with an universal joint and allows also to be directed into any position. These features make this arm the ideal solution for all applications with restricted space.

Kemper M-Series Centrifugal Fan Unit < 2000m3/hr
These fans have especially been designed for the use with exhaust arms, telescopic arms and exhaust cranes. The impeller wheel and the powder coated housing consist of spark proved aluminium casting. The impeller wheel is balanced statically and dynamically. Therefore, excellent operating characteristics are achieved and the fan produces a very low noise level. The fan is supplied with toggle tip fasteners for an easy and fast installation to the wall bracket without any additional accessories. The air flow can be directed according to the requirements. The KEMPER fans are also suitable for transporting bulk solids, dusts or the like. An extra wall bracket for the KEMPER fan will be required if being used together with the KEMPER exhaust cranes

Kemper H-Series Centrifugal Fan Unit < 3000m3/hr
These fans have especially been designed for the use with exhaust arms, telescopic arms and exhaust cranes. The impeller wheel and the powder coated housing consist of spark proved aluminium casting. The impeller wheel is balanced statically and dynamically. Therefore, excellent operating characteristics are achieved and the fan produces a very low noise level. The fan is supplied with toggle tip fasteners for an easy and fast installation to the wall bracket without any additional accessories. The air flow can be directed according to the requirements. The KEMPER fans are also suitable for transporting bulk solids, dusts or the like. An extra wall bracket for the KEMPER fan will be required if being used together with the KEMPER exhaust cranes

Kemper Portable Extraction Fan - 2000m3/hr performance
The exhaust fan 2,000 has a variety of multiple uses. It can either be used for the extraction of welding fumes, dust, car exhaust gases or for the transport of packaging. Other applications include the ventilation of containers or pipes. The exhaust fan has been designed for tough industrial conditions. The housing and impeller wheel are made of aluminium casting. The rigid fan housing and trolley are epoxy powder coated. A variety of different extraction and pressure hoses are available. The exhaust fan comes as a complete kit with all necessary parts for mobile and portable applications

KEMPER Portable Extraction Fan - 3000m3/hr performance
The mobile exhaust fan 3,000 is perfect for moving large amounts of air, dusts, welding fumes or the like.
The housing consists of spark proof aluminium casting and the impeller wheel is made of steel.
The unit includes a 5.0 m mains cable and a motor protection switch.
Different hoses of 250 mm are available and can be connected with a hose clamp either to the inlet and outlet opening of the mobile fan

KEMPER Filtermaster - Mobile Fume Extraction Unit
The Filter-Master, a mobile mechanical filter, is designed and ideally suitable for use at various welding workplaces and conditions. Built of rigid a sheet metal construction and finished with incorporating anti corrosive powder coating the Filter-Master is designed for every day use. Four heavy duty rubber castors allow ease of movement within the factory and the extraction arm can be swiveled by 360°. It is therefore very easy to direct the arm into any desired position. The Filter-Master is the ideal solution to your extraction problems. The contaminated air captured by the extraction hood is separated from rough particles by a prefilter. Thus, the prefiltered air is directed through the subsequent main filter with a filter efficiency of more than 99.9 % and the clean air is fed back to the workshop by two lateral blow-grids integrated in the machine. A control light indicates a necessary replacement of the filter insert. To replace the filter, the top cover is folded back. The life expectance of the filter is subject to the application of the Filter-Master

KEMPER Filtermaster XL - Self-cleaning Fume & Dust Extraction Unit
The Filter-Master XL is the basic type of filter units with high efficient KemTex® ePTFE membrane filter cartridges.
A great advantage of KemTex® ePTFE membrane filter cartridges - in addition to its high separation efficiency - is the possibility of cleaning them.
The control of the Filter-Master XL monitors the collected dust on the surface of the filter media and activates the neccesary cleaning cycle.
The unit can be equipped with a 2 m, 3 m or 4 m exhaust arm. Within its range, it can easily be brought in every position, which remains self-supporting.
The included KEMPER exhaust hood is rotatable by 360° and can be adapted to the welding joint because of its rectangular shape.

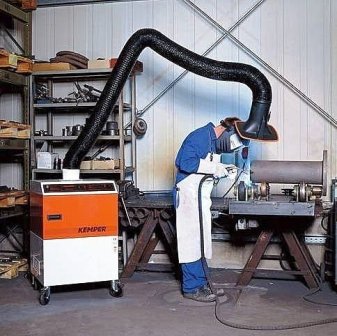

KEMPER Mobile Mechanical Welding Smoke Filter
This mobile welding smoke filter with one exhaust arm offers many advantages for use at changing welding workstations.
The flexible exhaust arms are swivelling by 360° and guarantee easy handling. The flexible exhaust arm can be supplied in lengths of 2 m, 3 m and 4 m with a diameter of 150 mm.
Either the flexible exhaust arm or the rigid metal tube arm can be chosen for a welding smoke filter. First the extracted air is fed to the prefilter where larger particles are captured. The main filter guarantees an effective cleaning of the welding smoke with a filter efficiency above 99.9 %.
This means that even the smallest particles down to a size of 0.3 micron are filtered. Depending to the number of working hours and the substances to be captured the filter needs to be replaced once or twice a year. The unit is equipped with a control panel featuring:

- On/Off switch
- Operating control light
- Filter monitor
- Fan rotation direction indicator
- Plug for automatic start-stop

KEMPER Mobile Electrostatic Fume Filter Unit
The KEMPER electrostatic filter unit is suitable for use at changing workplaces.
Bigger particles are captured in a prefilter. The main filter works according to a two step-system of ionisation and purification.
With the airflow the remaining particles are carried to the ionisation wires where they are charged positive.
The collecting sheets in the main filter are negatively charged and separate the particles from the air.
All operation functions as well as the control lights for monitoring the high voltages operating control and the on/off switch are clearly arranged on the display. A connection port for the automatic start stop and lighting kit is also integrated into the display.
One exhaust arm with 2 m, 3 m or 4 m length can be installed. Both, a rigid metal tube arm or a flexible exhaust arm is available.

KEMPER Mobile Cartridge - Fume & Dust Filter Unit
Contrary to mechanical or electrostatical filter units, where the filters have to be replaced periodically, this work is not necessary when using a cartridge filter unit equipped with KemTex® ePTFE membrane filter cartridges.
The filter cartridge works according to the principle of surface filtration. The harmful substances are separated at the KemTex® ePTFE membrane. The unit is therefore especially suitable for the extraction of welding fumes.
The control of the cartridge filter unit monitors the collected dust on the surface of the filter media and a cleaning cycle will be started automatically.
The unit can be equipped with a 2 m, 3 m or 4 m exhaust arm. Within its range, it can easily be brought in every position, which remains self-supporting.

KEMPER Wall Mounted Welding Fume Filter with Flexible Exhaust Arm
Stationary welding smoke filters have been developed to be used at fixed welding stations, in welding cabins or training workshops. They can be mounted to a wall, a column or a free-standing pillar.
The stationary welding smoke filter can be equipped with flexible exhaust arms or rigid metal tube arms. In addition to the 2 m, 3 m and 4 m exhaust arms, also 5 m, 6 m, or 7 m exhaust arms can be connected. Those will be fixed with an additional console and consist of a 3 m long extension and a standard flexible exhaust arm or a standard rigid metal tube arm.
The stationary unit comes with a control-box that can be mounted at a comfortable height. The control of the machine is located inside the box, so that it can be switched on from there. The display for the filter monitor and the connecting plug for the clamp of the optional automatic start-stop is also located there.
A preliminary filter cleans the polluted air from coarse particles, before the main filter seperates the finest dust particles. The filter insert of the welding smoke filter works according to the principle of depth filtration and will be replaced after saturation by a new one.

KEMPER Electrostatic Fume Filter with Flexible Exhaust Arm
Stationary electostatic filter units, as well as the stationary welding smoke filter, have been developed for the use at fixed welding workstations, welding cabins or training workshops. They can be mounted to the wall, a column or a freestanding pillar.
The electostatic filter can be connected to exhaust arms, either flexible or rigid metal tube arms with a length of 2 m, 3 m or 4 m, 5 m, 6 m or 7 m long exhaust arms will be fixed with an additional console and consist of a 3 m long extension and a standard flexible exhaust arm or rather a standard rigid metal tube arm.
The stationary unit comes with a control-box that can be mounted at a comfortable height. The control of the machine is located inside the box, so that it can be switched on from there. The display for the filter monitor and the connecting plug for the clamp of the optional automatic start-stop is also located there.
The filter unit filters the polluted air according to the principle of electrical charging. A preliminary filter cleans the polluted air from coarse particles, before they will be charged by the ionisation wire of the filter cell and deposit on the charged collector plates. The filter cell can be taken out for cleaning.

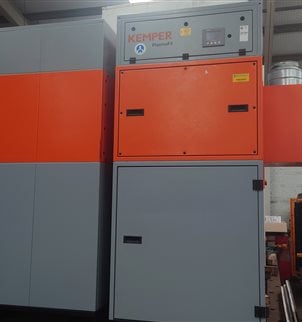

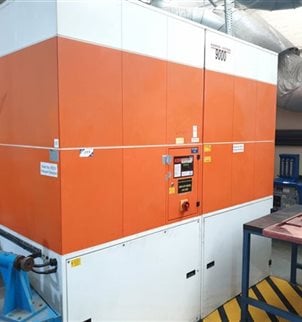

KEMPER Cartridge Filter Unit with Flexible Exhaust Arm
Stationary welding smoke extraction units with two KemTex® ePTFE filter cartridges are developed for industrial use. Due to self-cleaning filter cartridges it is suitable for the frequent use at heavy duty applications. It can be mounted to the wall, a column or a free-standing pillar.
The filter cartridges work according to the principle of surface filtration, the captured dust particles cannot penetrate the filter media. This is achieved by an KemTex® ePTFE membrane which is laminated onto the actual cartridge filter material.
The unique microstructure of the KemTex® ePTFE-membrane consists of millions of fine fibres, which hold back even the smallest particles. Especially during the welding and cutting process superfine particles are generated, which are averaged between 0,1 µm and 1,0 µm. They are therefore alveole exchangeable. Especially those particles deposit on the alveole (pulmonary alveoli), reach the bloodstream, could diffuse through the vascular wall and then deposit in the body.
The filter status, as well as all the other functions will be controlled by the integrated control. Reaching a certain limit value, the filter cartridges will gently be cleaned one after another and the collected dust can easily be disposed by the dust collecting bin. The stationary cartridge filter could directly be equipped with a flexible exhaust or a rigid metal tube arm with a length of 2 m, 3 m and 4 m or by means of a console with 5 m, 6 m and 7 m long arms.

KEMPER Dusty - Mobile High Vacuum Fume & Dust Extraction Unit
Ultra light, flexible and powerful.
These are only some properties of this small power pack. Two strong turbines provide an excellent extraction efficiency and high static pressing. The minimum weight makes it very flexible and universal for many different applications.
A KemTex® ePTFE membrane filter cartridge provides the filtration of superfine dust below 0.1 µm. Thereby this unit is suitable for the separation of alveole exchangeable dusts. The advantage of surface filtration is that the filter cartridge can be cleaned.
In case of the Dusty, this happens manually in that minute when an essential cleaning will be indicated by the instrument itself. The collected dust can be removed easily from the lower part of the unit.
Different nozzles, welding torches with integrated extraction or mini exhaust arms of the extensive accessory programme can be connected to the two lugs of this extraction and filter unit. The extraction performance can be controlled steplessly and electronically.

KEMPER Mini-Weldmaster High Vacuum Fume Extraction Unit
This easy to transport high vacuum extraction and filter unit is ideal for the extraction of welding fumes at frequently changing work places.
Extraction hoses with a diameter of 45 mm guarantee application at locations difficult to access.
Various extraction nozzles with a magnetic foot are available. It is also possible to connect one or two welding torches with integrated extraction.
The Mini-Weldmaster is equipped with a two stage filter and has a filter efficiency of 99.9 %. It is also possible to retrofit the unit with an activated charcoal filter. Cleaning of the filter inserts is not necessary.
Depending on the actual operating time and the substances to be captured the filter has to be changed once or twice a year. A filter monitor indicates a necessary filter change.
For more convenient handling a trolley with castor wheels and an automatic start-stop is available.

KEMPER 4-Port High Vacuum Fume & Dust Filter Unit
With four suction ports, this extraction and filter unit offers a flexible way of extracting the contaminated air directly at the source. The system is equipped with a side channel compressor that remains effective even under extreme conditions. It can be used in almost any metalworking application. It is especially flexible when used with welding torches with integrated extraction and makes filter changes unnecessary. Naturally, all sorts of nozzles, high vacuum exhaust arms or suction shields from the extensive
range of accessories can be attached.
The rugged device has a 10 m² KemTex® ePTFE membrane filter cartridge, monitored by the electronic control system and, depending on the saturation level; it is automatically cleaned during operation. This is carried out by means of compressed air using a rotating nozzle.
The compressed air tank for this is also built-in, as is a large 40-liter dust collector.
The KEMPER high-vacuum extraction and filter unit is equipped with an automatic start / stop. With optional start / stop clamps, the high-vacuum extraction and filter unit can be switched on or off at four different locations.

KEMPER Central High Vacuum Fume & Dust Extraction Unit 100mmØ
This extraction and filter unit with a Ø100 mm connector provides the possibility of centrally extracting the contaminated air directly from where it is generated. Different workstations
can be connected and exhausted centrally using piping systems.
The system is equipped with a side channel compressor that remains effective even under extreme conditions.
The system can be used in almost any metalworking application. It is especially flexible when used with welding torches with integrated extraction and makes an updating of the extraction elements unnecessary. Naturally, all sorts of nozzles, highvacuum exhaust arms or suction shields from the extensive range of accessories can be attached.
The rugged device has a 10 m² KemTex® ePTFE membrane filter cartridge, monitored by the electronic control system and, depending on the saturation level; it is automatically cleaned during operation. This is carried out by means of compressed air using a rotating nozzle.
The compressed air tank for this is also built-in, as is a large 40-liter dust collector.
The KEMPER high-vacuum extraction and filter unit is equipped with an automatic start / stop. With optional start / stop clamps, the high-vacuum extraction and filter unit can be switched on or off at four different locations.
