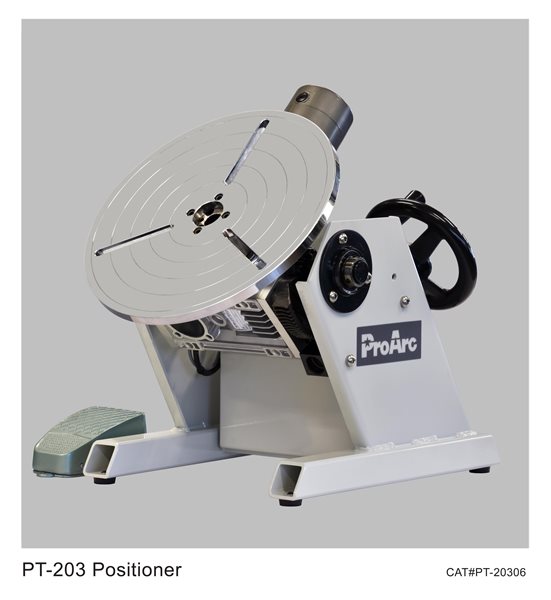

ProArc 200kg Welding Positioners, Bench Type

Product: 13668

Brand: ProArc

Model: PT

Condition: New

In Stock Now

Precision speed controls that are suitable for automation welding application. This Machine incorporates a rotating table with forward/stop/reverse functions
Variable speed models: A for 0.3 - 4rpm, B for 0.6 - 8rpm, C for 0.8 - 12rpm, D for 1.0 - 16rpm
Allows for input voltage hookup 110-220/240Volts dual voltage, single phase VAC without manual linking
Standard 22mm diameter through- hole for gas purge applications
All units are high frequency protected

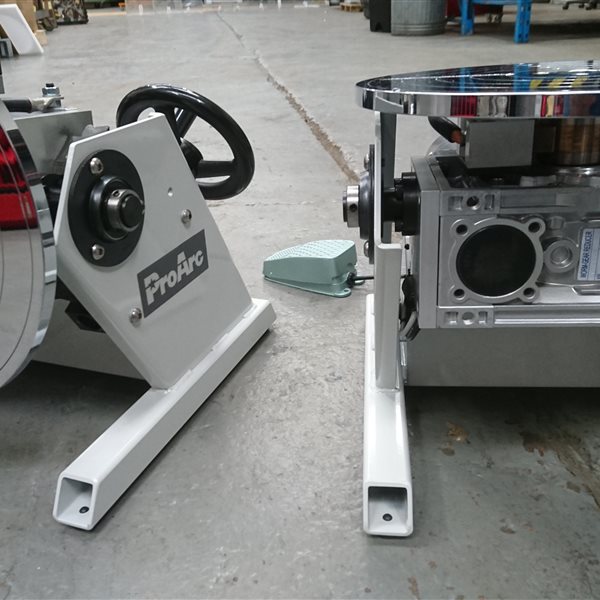

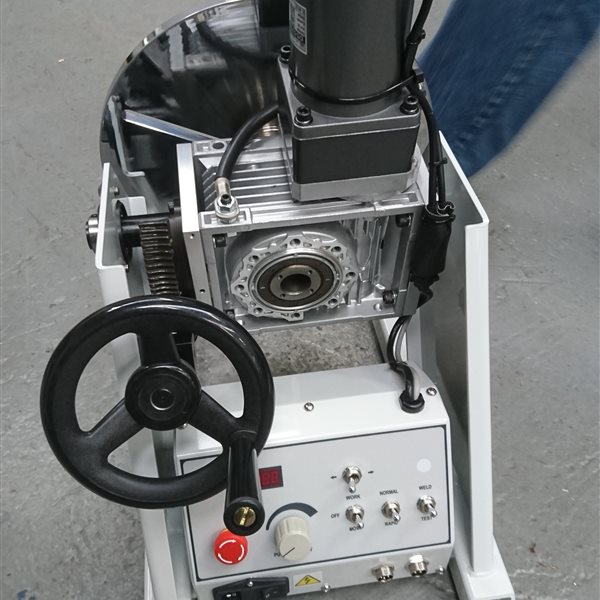

Tilting angle ranges from 0-120° with a tilting hand wheel and worm reducer

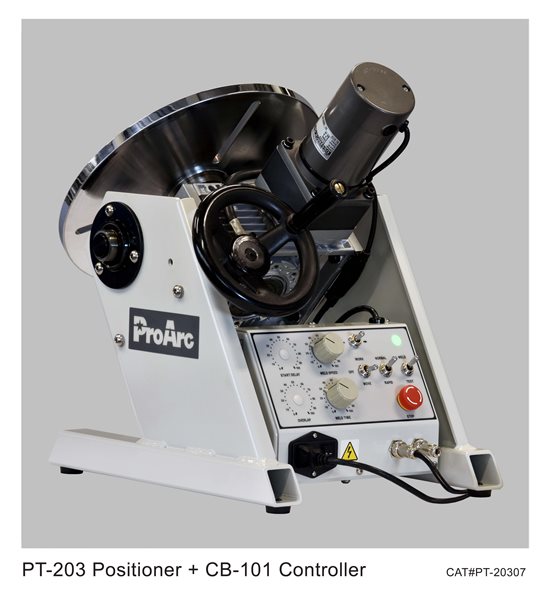

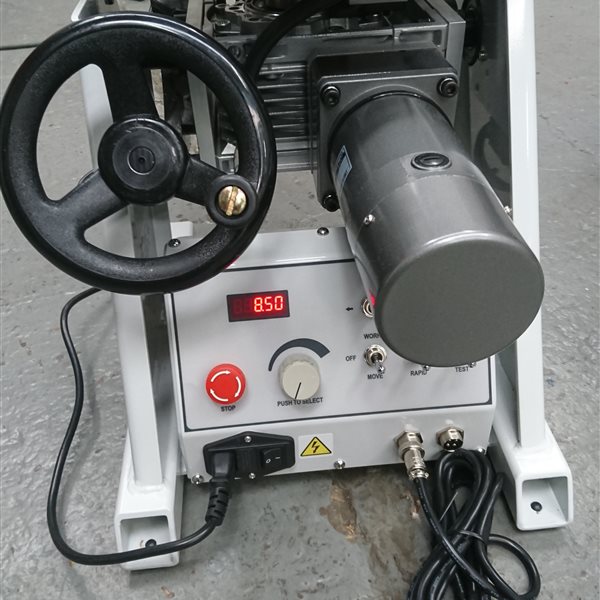

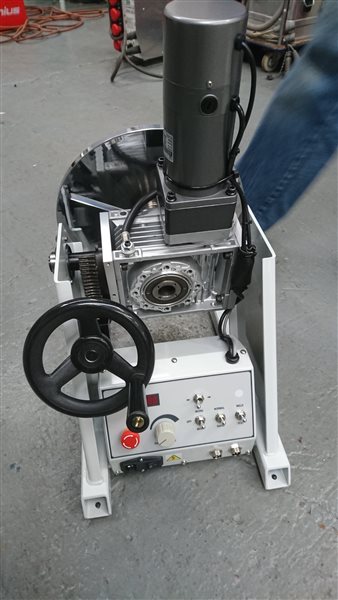

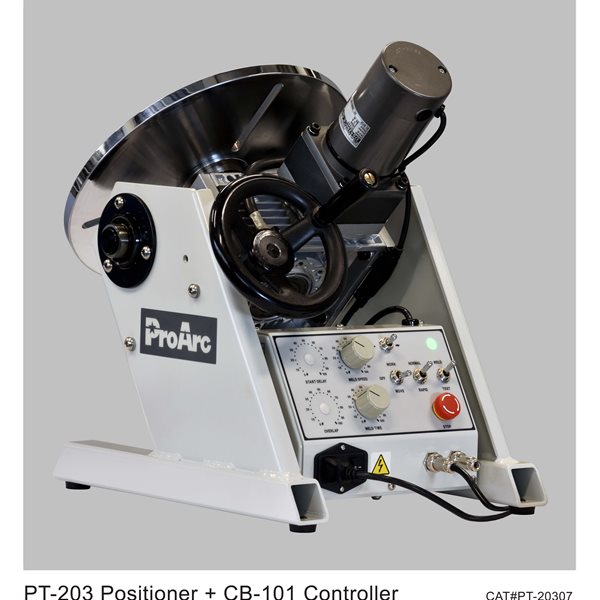

CB101 controls as standard: Speed adjuster/welding timer

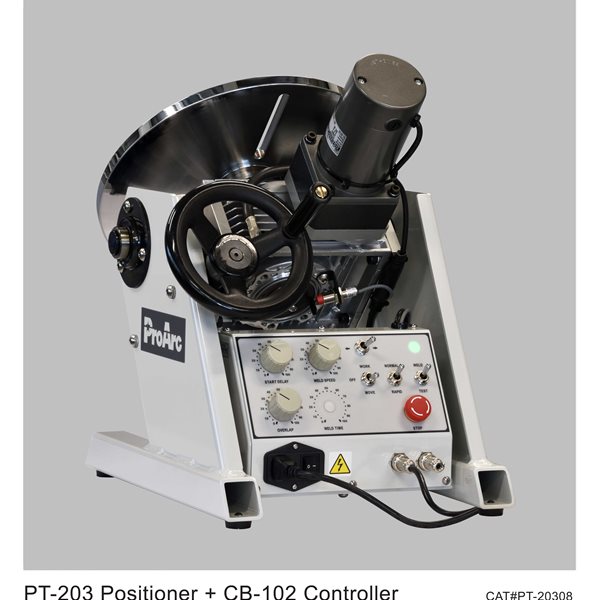

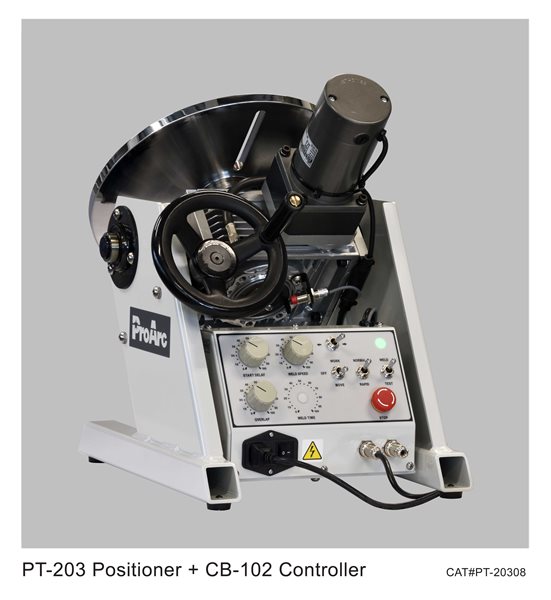

Also available: CB102 advanced controller: speed adjuster/start delay/overlap timer and home sensor; CB107 Multi-function controller: PLC with HMI process control

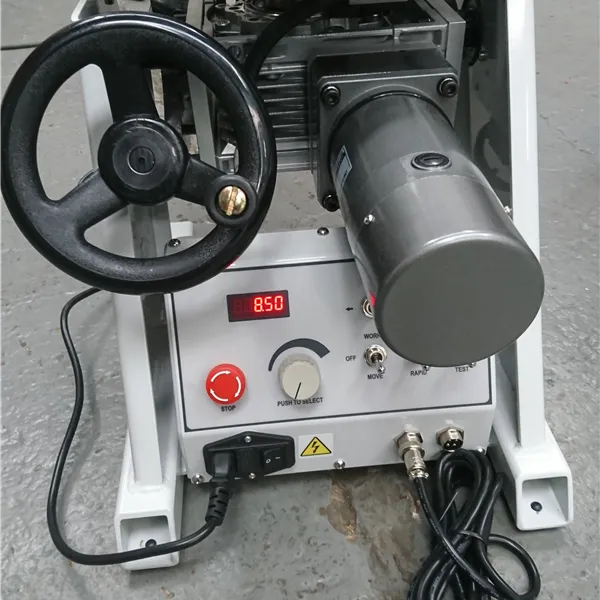

Options: Quick Release Chucks and Digital display

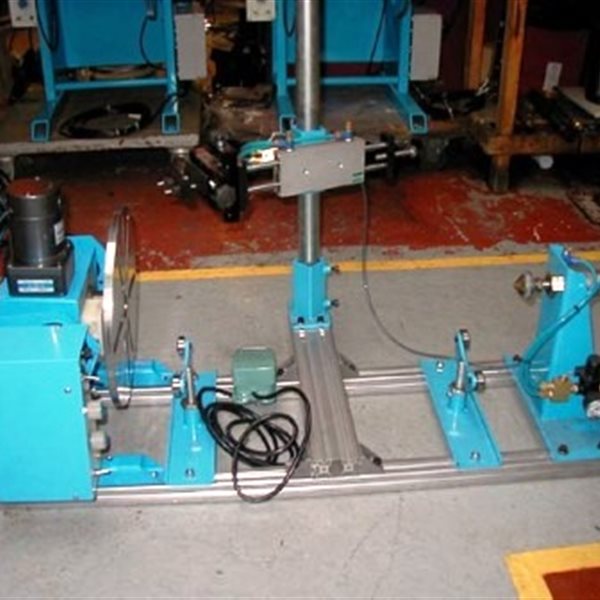

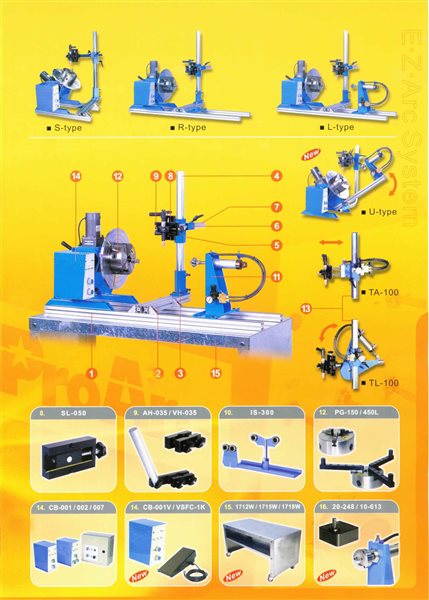

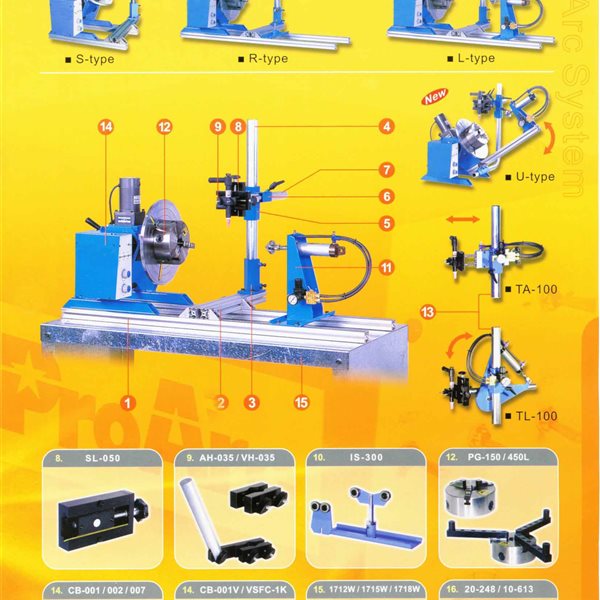

Compatible with E.Z.Arc automatic welding lathe type system

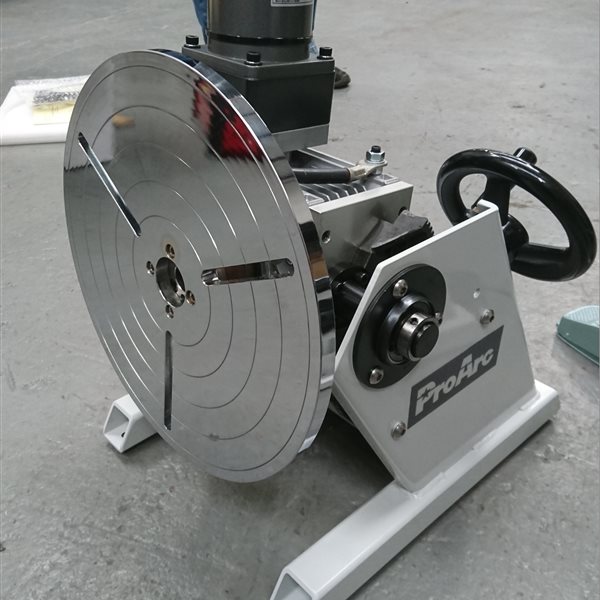

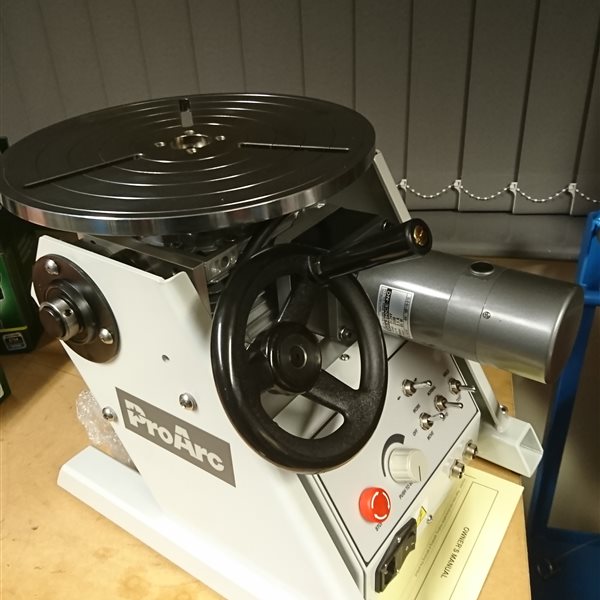

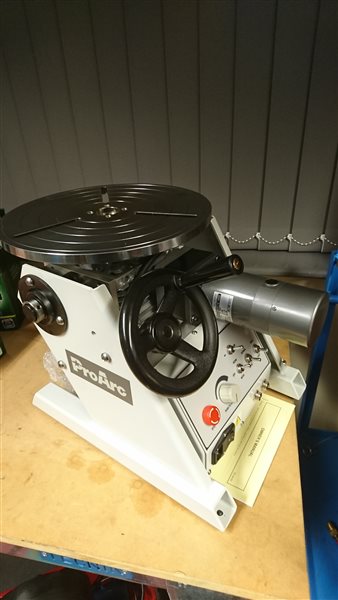

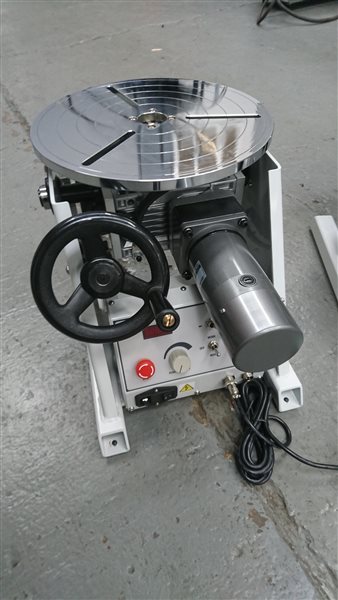

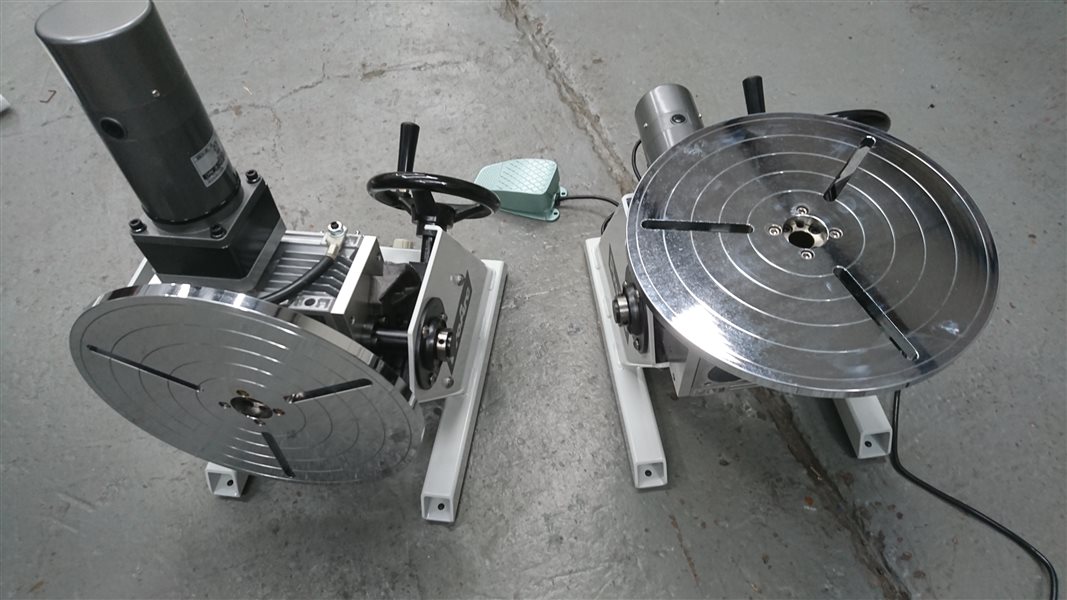

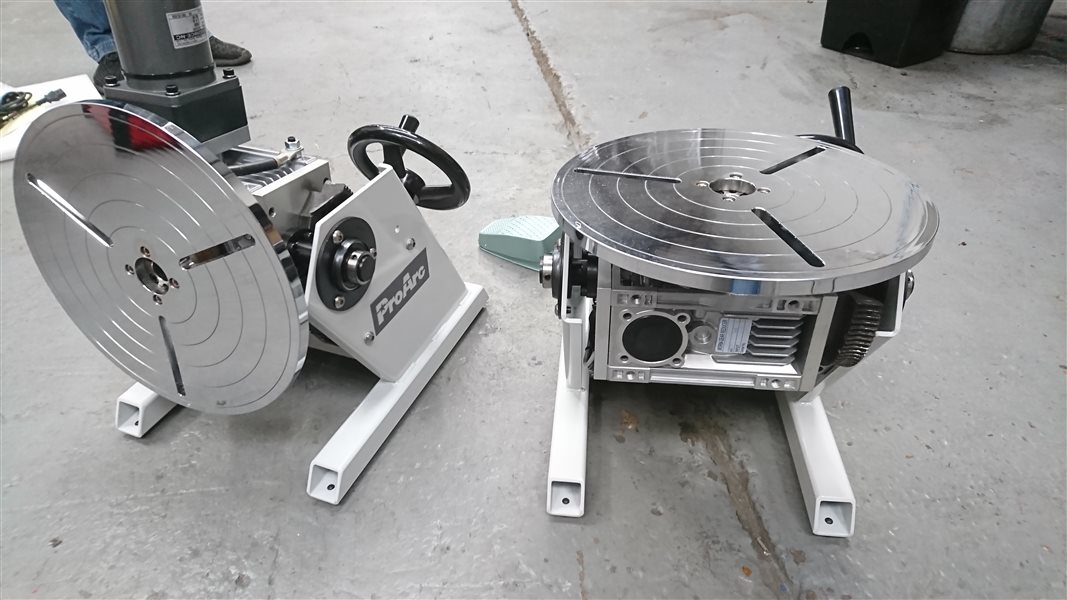

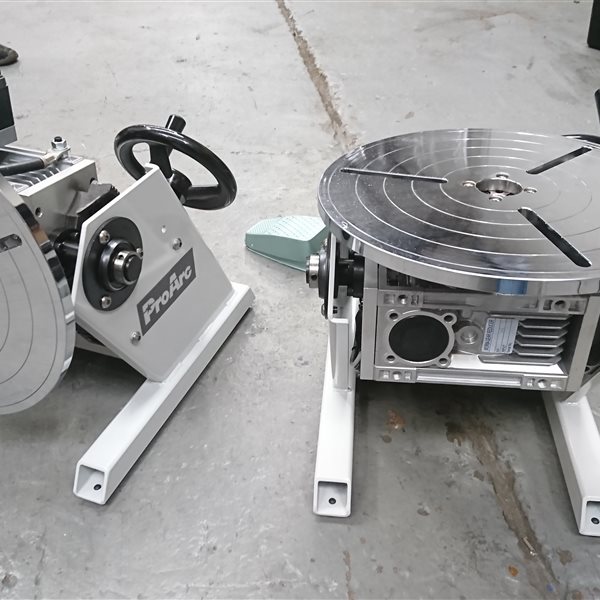

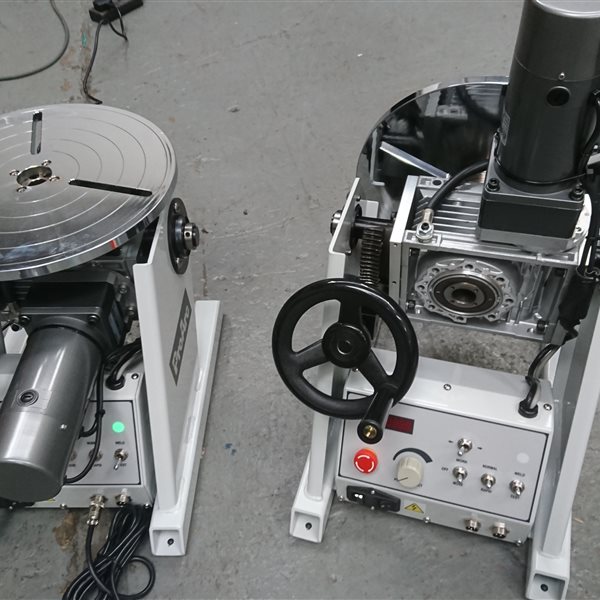

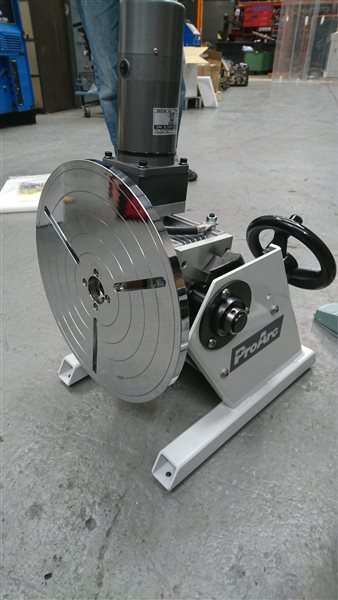

The 200kg bench positioner is small and compact and can be placed onto a bench to allow the operator to weld small and light weight components at a workable height with a tilting hand wheel and worm reducer

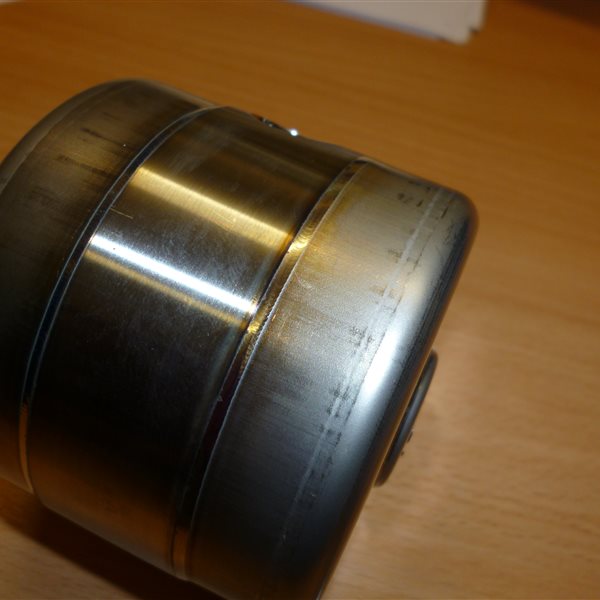

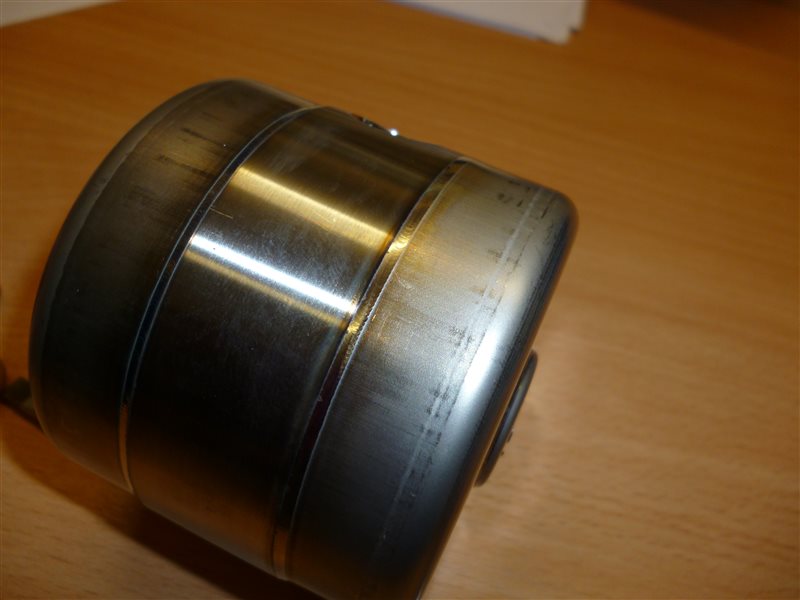

The machine is ideal for use in production lines, welding pipe work ie lighting towers and lamp posts, hand rails and a variety of small tubular applications.
Though more expensive than the Chinese machines flooding the marketplace, the quality of workmanship and reliability of these units cannot be beaten.
Shipping Dimensions: L800mm, W600mm, H530mm, Weight 45KG
(Not made in China)

Package Includes:
