Axxair DC65 Orbital tube face dressing machine ø3 - ø63.5mm AS NEW

Product: 18759

Brand: Axxair

Model: DC65

Condition: Used

In Stock Now

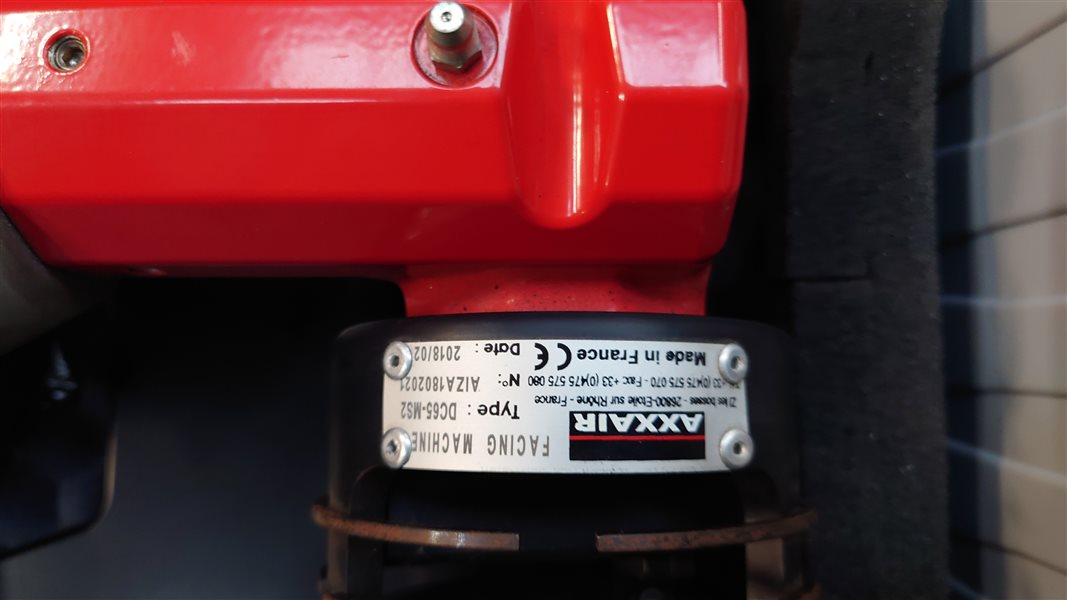

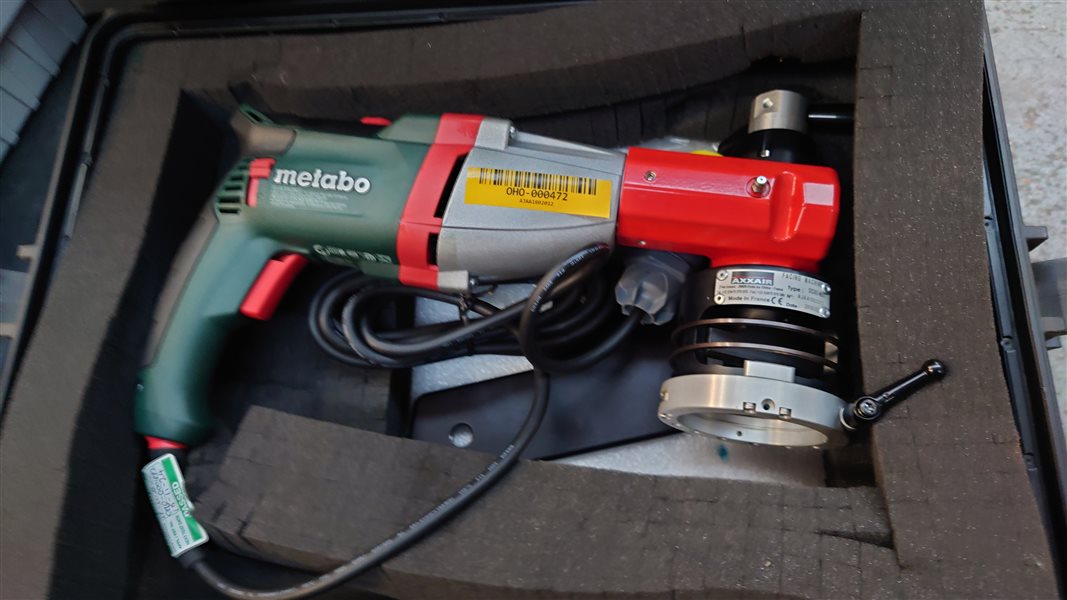

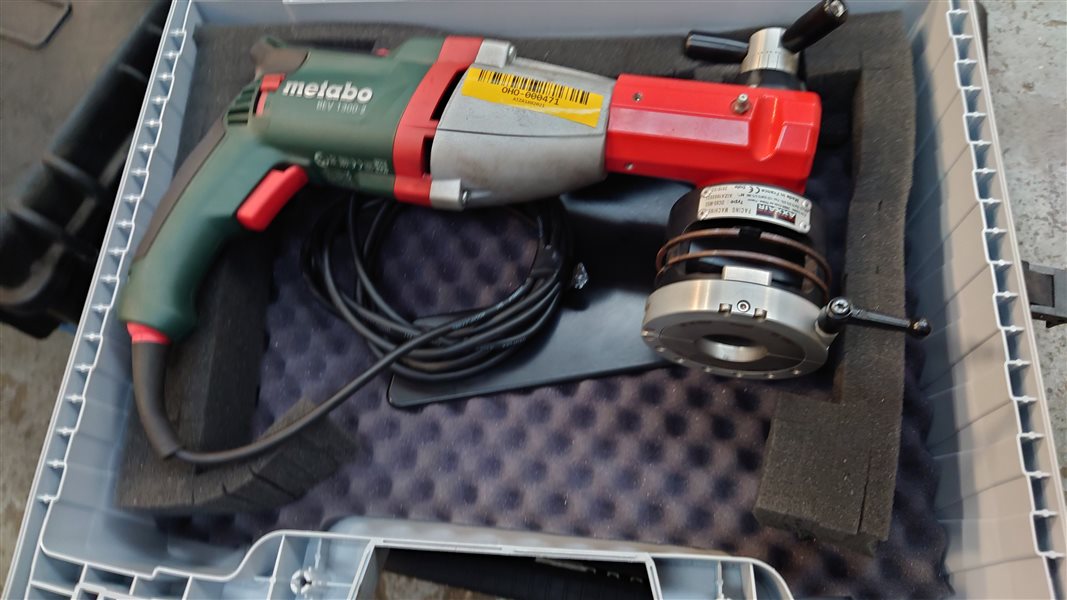

An ex-demo condition Axxair DC65-MS2 orbital facing machine with to suit tube diameter ø3 - ø63.5mm
Tube facing is used on thin tubes with a thickness of less than 3 mm. It consists in bringing into conformity the end of a tube or an accessory.
This conformity acts on three aspects: the perpendicularity of the face of the tube – the surface state of the face – potentially a length adjustment.
After the facing process, the face will be perpendicular to the axis of the tube, without burrs, with a low RA and the desired length.
Facing machines are used when the cutting process is not sufficiently precise for the application or when the cutting process generates burrs.
To give an example: abrasive cutting disc, band saw or cutter.
Tube with small diameters <25.4 mm are particularly concerned by the facing process. They are often cut with tube cutters or abrasive cutting machines. Generally speaking, tube must be faced before welding in order to obtain quality welds.
One category of tube is particularly concerned: electro-polished tube used in semiconductor or pharmaceutical industries.
It is forbidden to scratch the polished surface inside the tubes: the cuts are therefore only done with a cutting wheel.
The result of this cut is not exploitable without a facing operation which unrolls the chip towards the outside of the tube.
Mains supply 110/220 volts

Package Includes:
