New & Used Stud Welders & Stud Welding Equipment With Warranty

Make high-quality, secure welds every single time!

Look no further for the best stud welding machinery. We offer a wide range of stud welders for sale at competitive prices — from new to used — and with quick delivery. Choose from a variety of models to suit your individual needs, and take advantage of our extensive technical support team.

Save money and speed up production with the most reliable stud welding machines on the market. Enjoy easy operation and precise performance for consistent results. Get your job done quickly and accurately with a professional stud welder from our selection!

Boost your production levels now with the perfect stud welder. Shop our full range of new and used machines in stock for quick delivery today!

What is Stud Welding and its Benefits

Stud welding is a process that involves the use of an electric arc or resistance to join metal studs and fasteners to the base material. It is a fast and effective way of joining metal components together, and it has many advantages over traditional welding methods. It is used in many industries, including automotive, aerospace, construction and manufacturing.
Stud welding provides a strong bond between two pieces of metal without the need for additional fasteners or adhesives. The process also eliminates the need for pre-drilling holes in the base material, which can save time and money. Additionally, stud welding produces clean welds with minimal distortion or discoloration on the base material surface. This makes it ideal for applications where aesthetics are important.

Types of Stud Welding

Stud welding is a process that uses a specialized type of fastener to join two pieces of metal together. This process can be used for a variety of applications, from industrial manufacturing to construction. There are three main types of stud welding: capacitor discharge (CD) stud welding, drawn arc welding (DAW), and short cycle stud welding (SCSW). Each type has its own advantages and disadvantages, so it’s important to understand the different types in order to choose the best one for your project. Capacitor discharge stud welding is the most common type, as it requires no additional equipment and can be done quickly. Drawn arc welding requires an additional power source and takes longer than CD, but offers greater strength in the welded joint. Finally, short cycle stud welding is ideal for high-volume production as it is extremely fast and efficient.

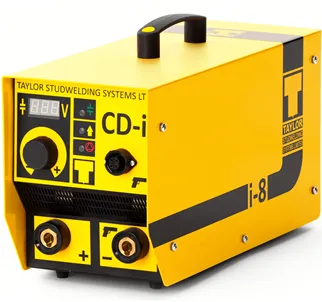

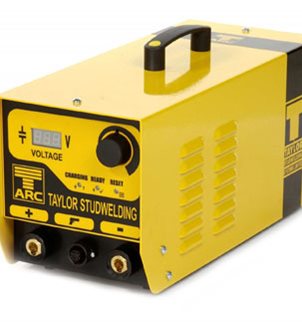

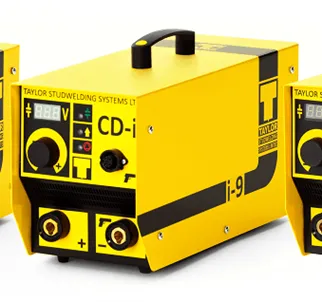

The Capacitor Discharge Welding Process

The capacitor discharge (CD) process needs a weld gun and a capacitor storage system to produce a rapid electrical discharge. Ferrules and flux are not needed, but the stud must have a special projection on the end for welding.

There are two techniques for capacitor discharge welding; contact and gap. In contact welding, the stud loads into the gun, and positioned in contact with the workpiece. Energy is then discharged from the capacitors through the stud’s projection. The projection vaporizes, creating a gap that allows formation of the arc. As the stud and workpiece begin to melt, they are forced together, forming the weld. In gap welding, the stud fires from above the workpiece, rather than on it.

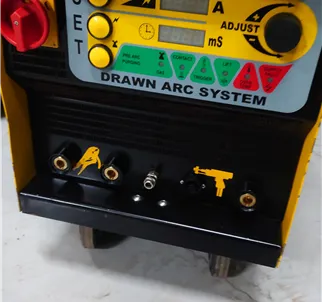

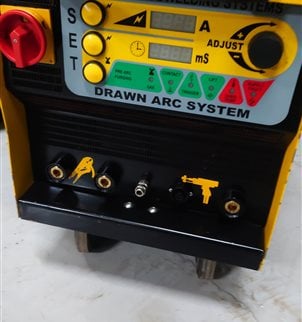

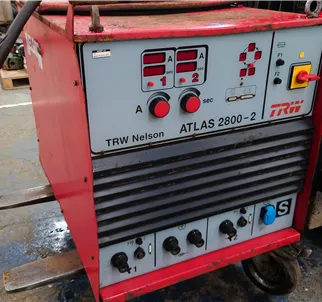

The Drawn Arc Welding Process

The drawn arc stud welding process needs a DC power supply to create the arc. As well as a weld gun, and a disposable ceramic ferrule, which concentrates the heat and contains the molten pool of metal. The stud loads into the gun’s chuck, followed by a ferrule grip over the end. The gun is then placed against the workpiece.
On pulling the trigger, the power supply sends a signal that energizes the gun’s internal lift mechanism. This lifts the stud, drawing a pilot arc. This arc establishes a path for the weld current, which follows immediately after.
After enough arcing time, a weld pool forms and the lift mechanism is de-energized. This causes the stud to plunge into the molten metal. As the stud and the base metal join, the metal cools, forming the weld. Flux embedded in the stud vaporizes during the operation to keep the weld zone clean.

CD is a very quick process. Weld times range from 2 to 12 milliseconds, and penetration depth into the base material is low—0.002 to 0.004 inch. With arc welding, you can have weld times from 50 milliseconds to 1.5 seconds. Penetration into the base material could be as high as 0.125 inch. Capacitor discharge is best for applications requiring a cosmetic appearance. Drawn arc welding is more for structural applications.

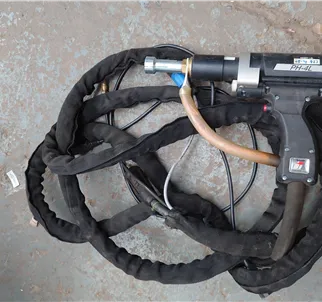

Stud Welding Machines and Tools

This process requires specialized equipment such as a stud welder, power source, and stud welding gun. Depending on the type of metal being welded, different types of studs are used. The power source is used to create the electric arc that melts the stud and joins it to the base metal. The welding gun holds the stud in place while heat and pressure are applied. Stud welders need to be aware of safety protocols when using this equipment in order to avoid any accidents or injuries.

A variety of fasteners are suitable for stud welding. These include threaded studs, pins, tabs, tapped sockets, and hooks. As well as loops, brackets, hydraulic fittings, and hardware adapted to a specific task, like securing hoses or wire harnesses.

Applications of Stud Welding in Different Industries

Stud welding is a process of joining two pieces of metal together by melting the ends of the stud and the base material. It is a fast, reliable, and cost-effective way to join metals in different industries.

Stud welding has found its applications in various industries such as automotive, construction, and aerospace. In the automotive industry, it is used for attaching body panels, brackets, and other components to a vehicle's frame. In the construction industry, it is used for attaching steel studs to concrete walls or floors. It can also be used in aerospace applications for joining lightweight materials together without compromising their structural integrity.

Stud welding offers many advantages over traditional welding techniques. These include speed of execution, and accuracy in joining pieces of metal together. This makes it an ideal choice for different industrial applications where speed and precision are important factors for success.

Techniques Used in Resistance & Arc Stud Welding

Resistance and arc stud welding are two of the most commonly used methods of welding. Both techniques require specialized equipment and expertise to ensure a successful weld. Resistance welding is a technique that uses electrical current to create heat, while arc stud welding uses an electric arc to melt the metal being welded.

Arc stud welding is a more complex process than resistance spot welding, but it can produce stronger welds in less time than traditional methods. The process involves using high-frequency electrical current to create an electric arc between two pieces of metal which then melts them together. This technique requires special tools and safety measures such as protective gear and shielding gas to protect those working with it from potential hazards.

The Advantages & Disadvantages Of Using A Stud Welder

There are advantages and disadvantages to using a stud welder, depending on the application. You can take the below list into consideration when deciding if a stud welder is right for you:

  • It is an efficient and cost-effective way of welding, as it does not need any extra tools or materials.
  • Weld time is minimal, making it an ideal process for attaching lots of fasteners in a short time.
  • The price of weld studs is low, particularly when buying large quantities.
  • It's cosmetically a good choice, putting the parent metal at minimal risk of damage, and only visible from one side.
  • Resulting welds are very strong, leak proof, and tamper proof. Corrosion is also reduced, since no holes are punched.
  • Pre-coated or painted materials can also be stud welded.
  • An ideal solution if access is only possible from one side, due to the gun-style welding torch.
  • It can be a hazardous process due to the heat and molten metal produced.
  • Mainly suited to carbon and low alloy steels.
  • Planning and inspection is needed before welding.
  • Penetration is dependent on the material, surface, and thickness.

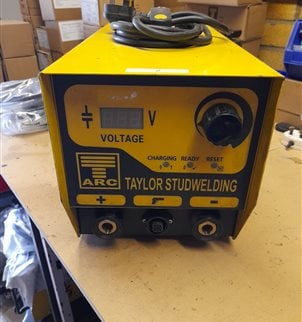

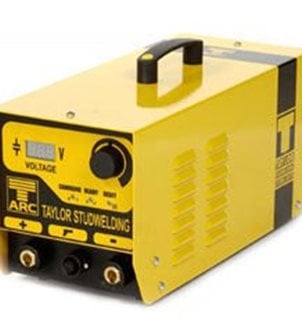

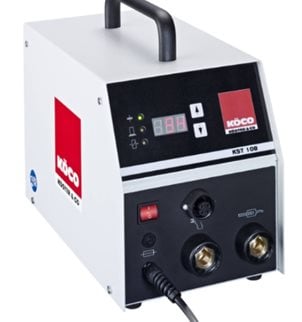

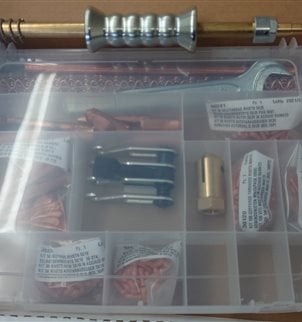

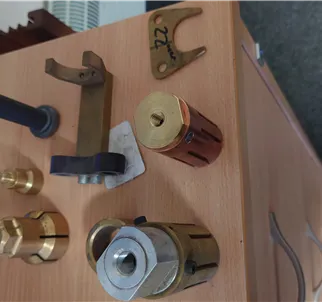

We buy and sell reputable, Worldwide brands of stud welding systems from the likes of Studfast, Cromparc, and Cutlass. As well as Taylor Stud WeldingNelson StudKoco and Soyer. We can supply ferrules, studs, collets and other stud welding consumables or ancillary equipment for your project. Click here to contact us and discuss your requirements.
