ESAB A2 Sub Arc Welding Packages with PEH Controls SAW

Product: 13331

Brand: ESAB

Model: LAF

Condition: Used

In Stock Now

PDF 1

PDF 2

PDF 3

PDF 4

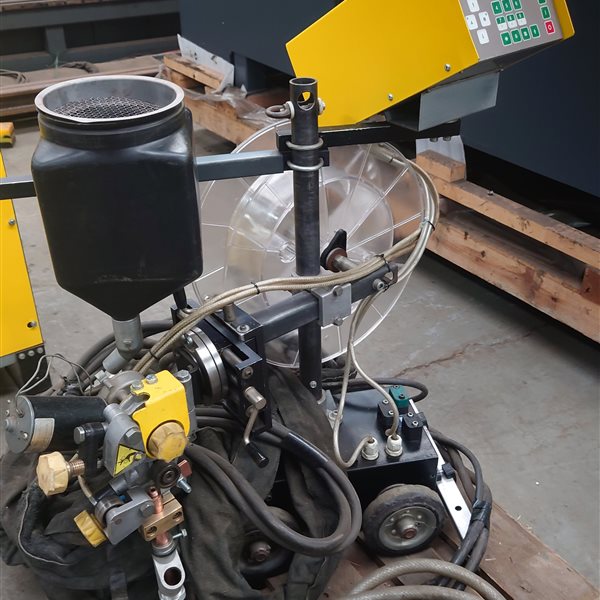

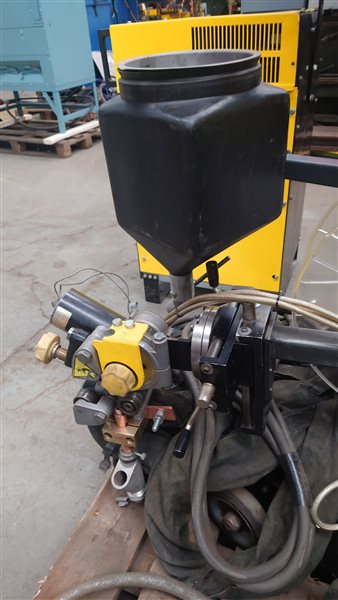

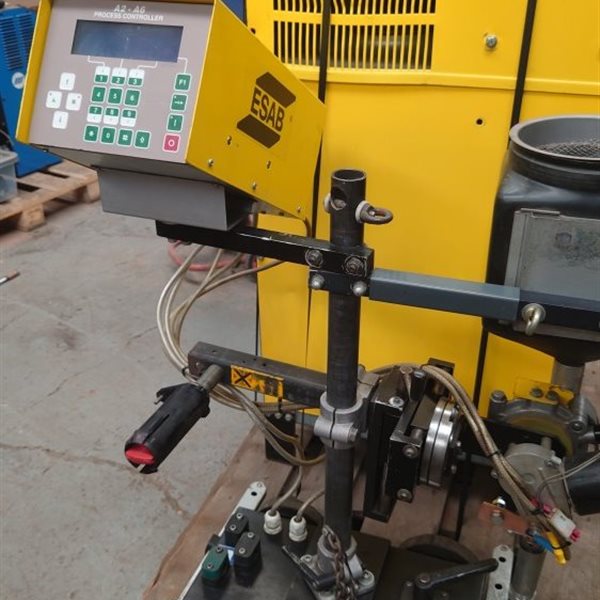

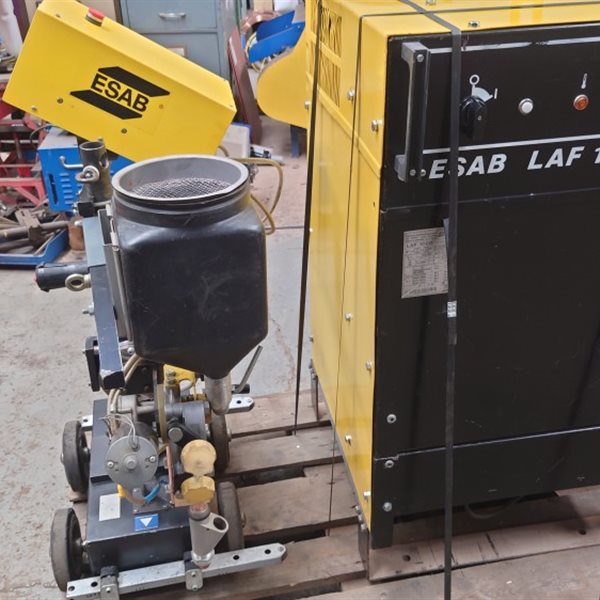

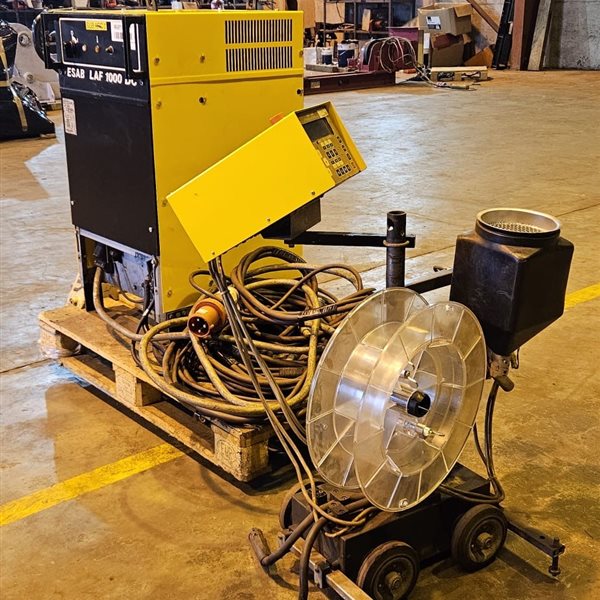

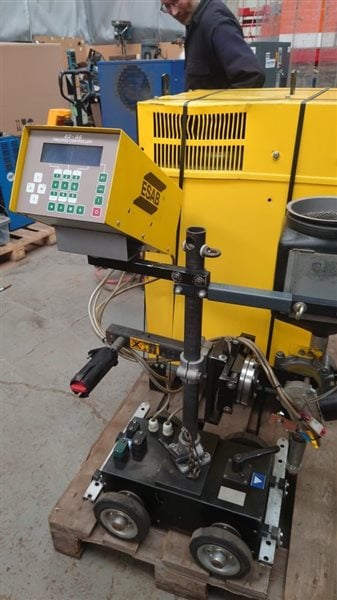

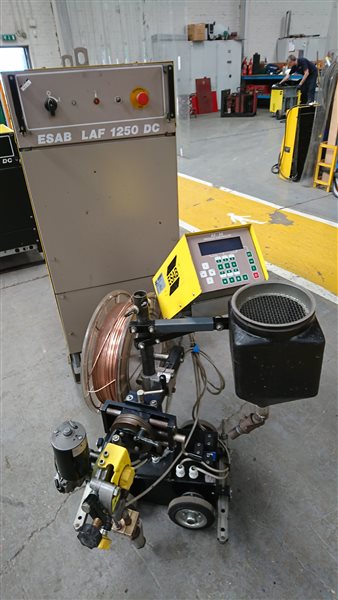

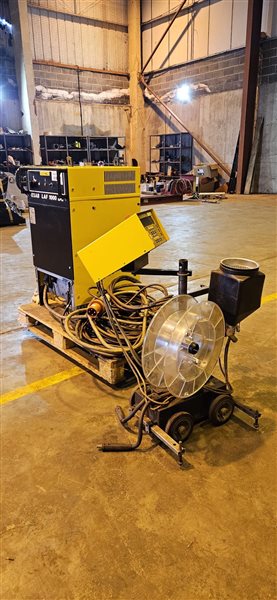

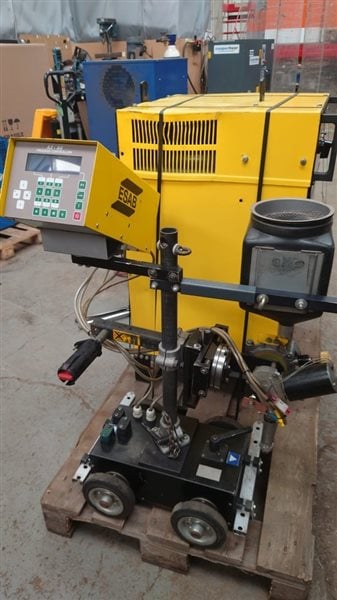

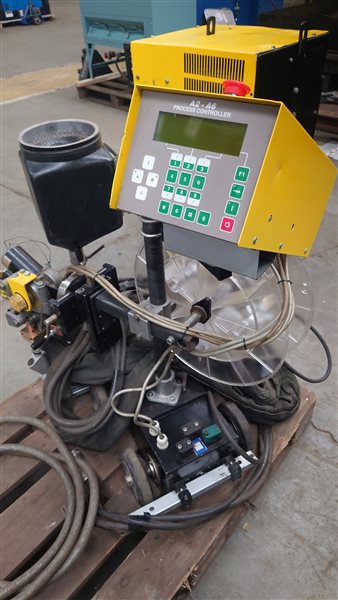

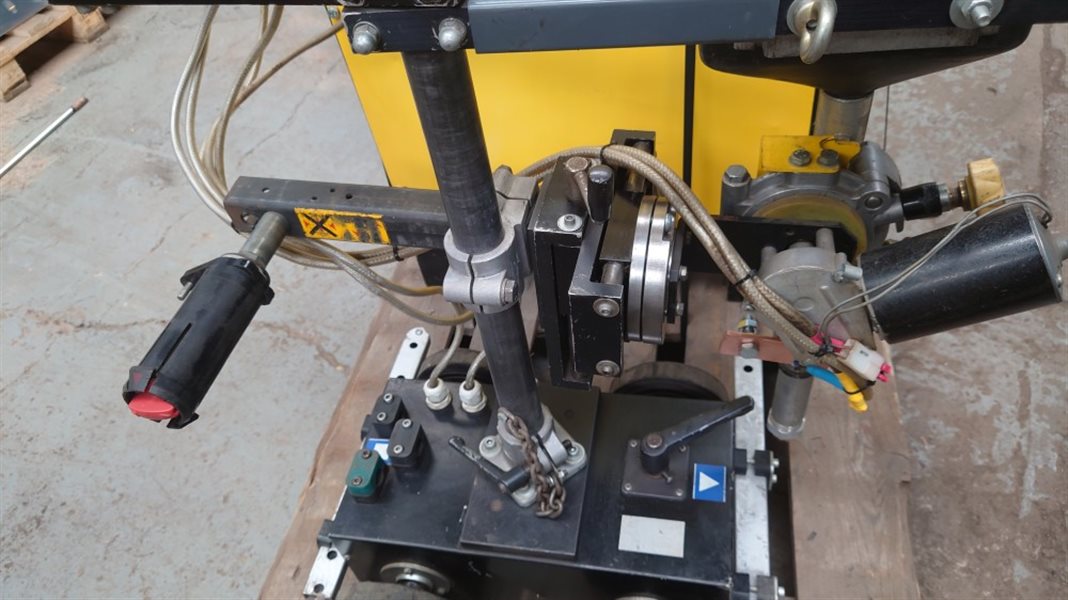

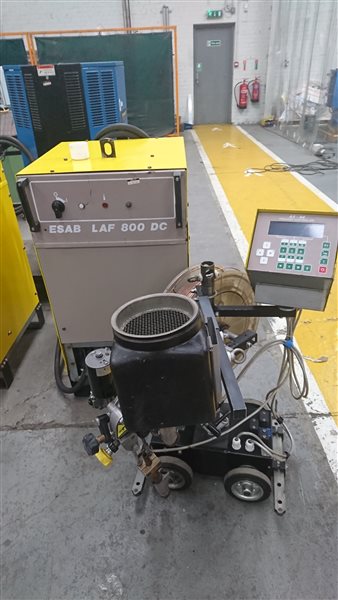

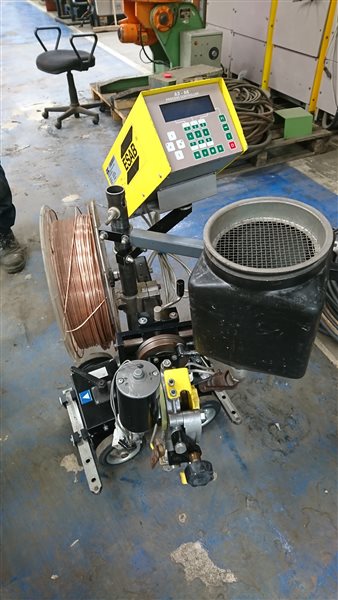

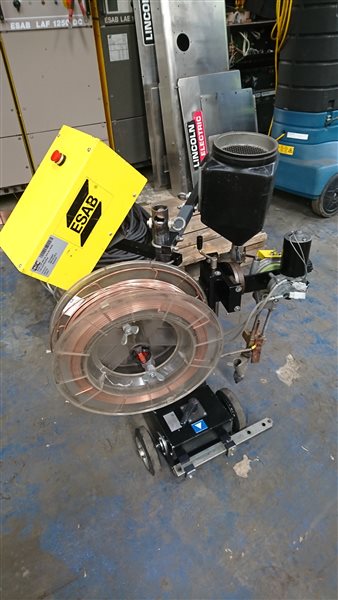

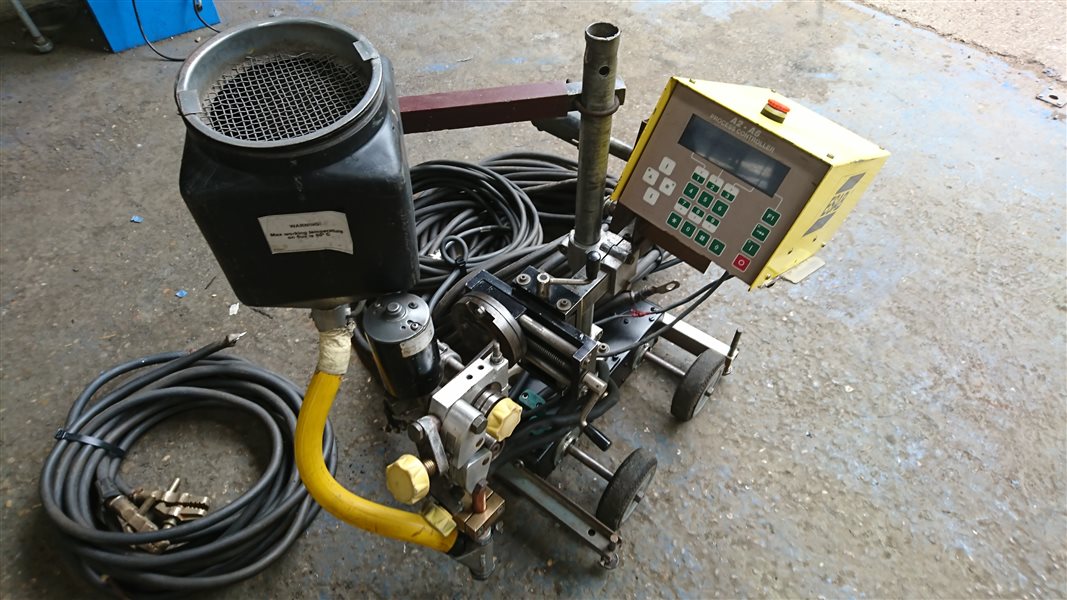

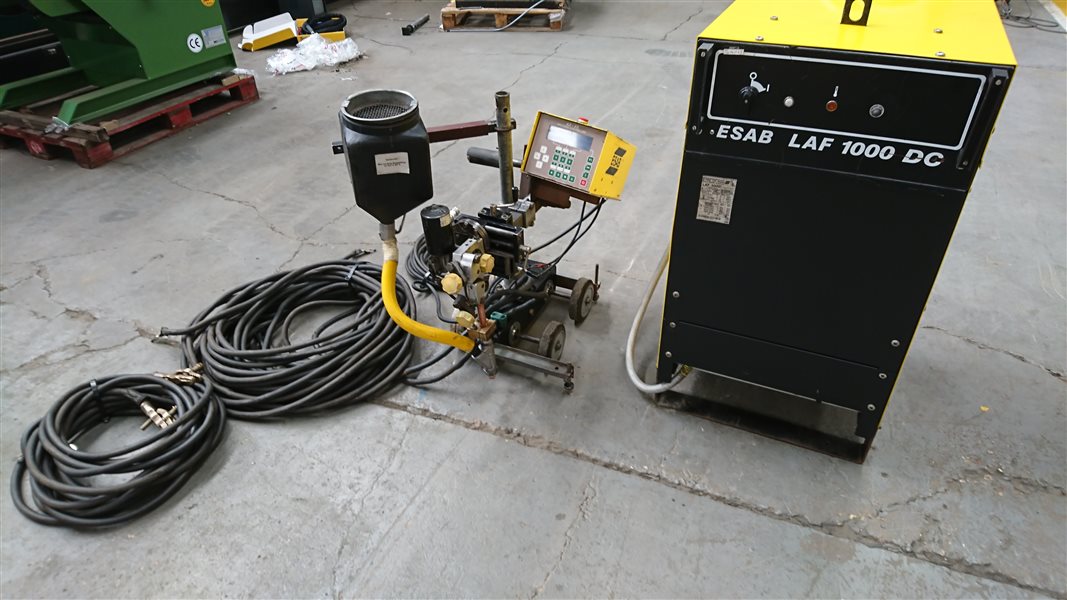

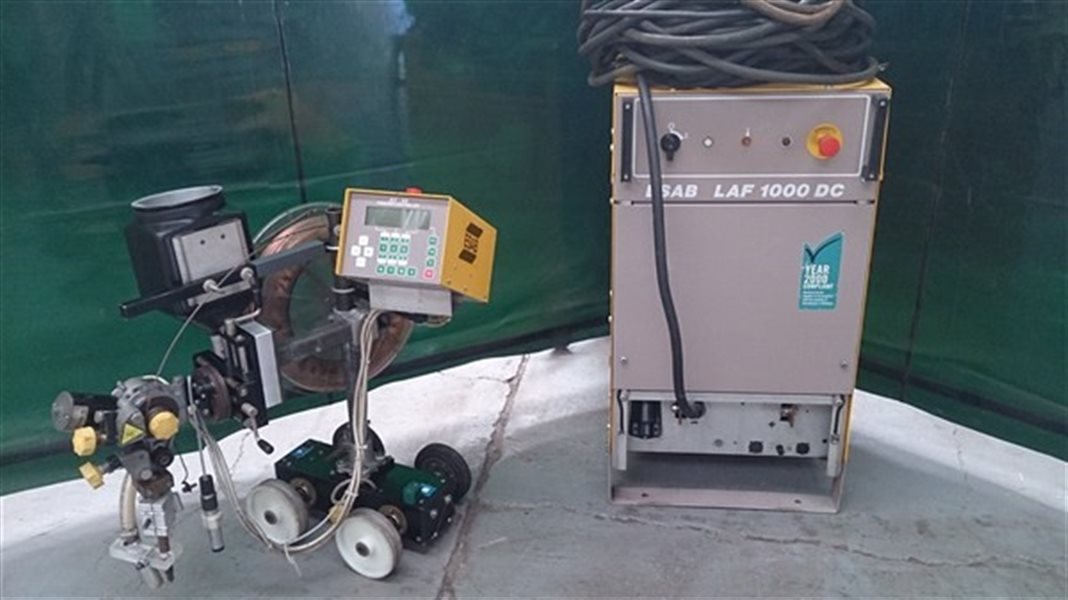

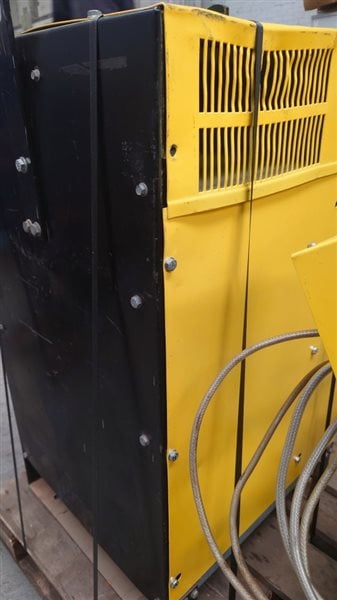

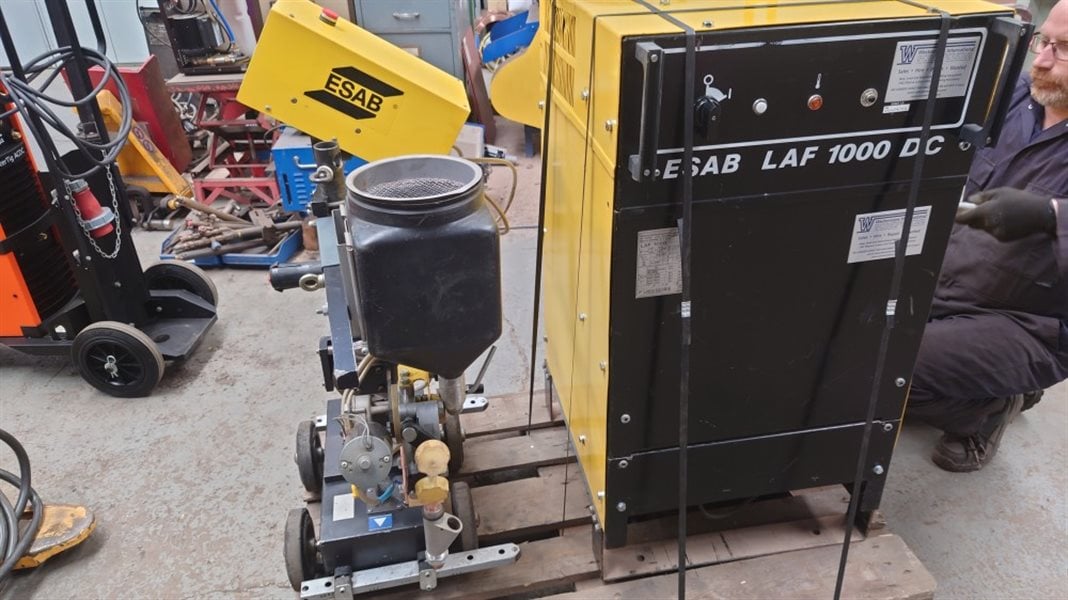

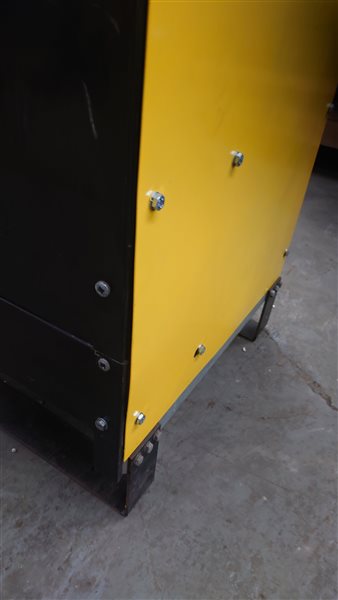

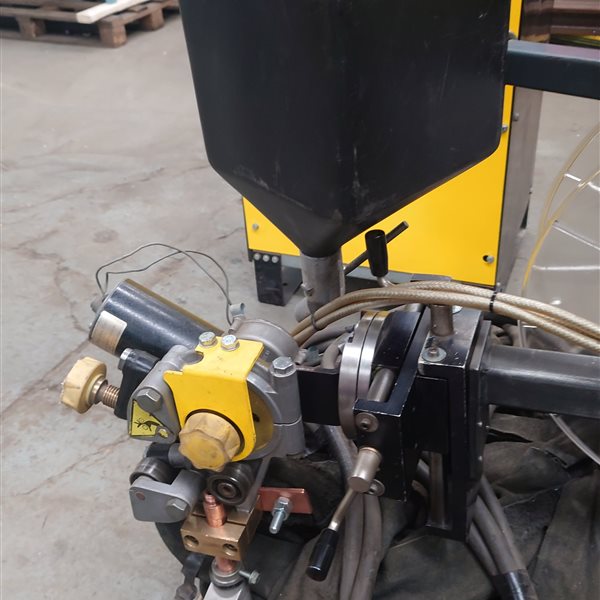

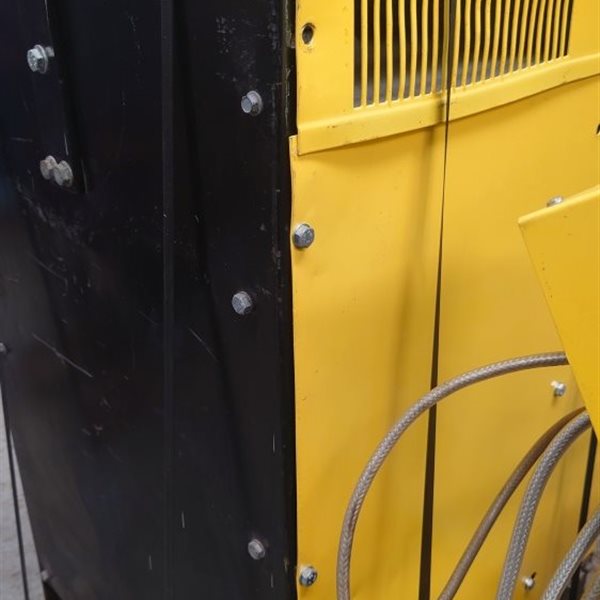

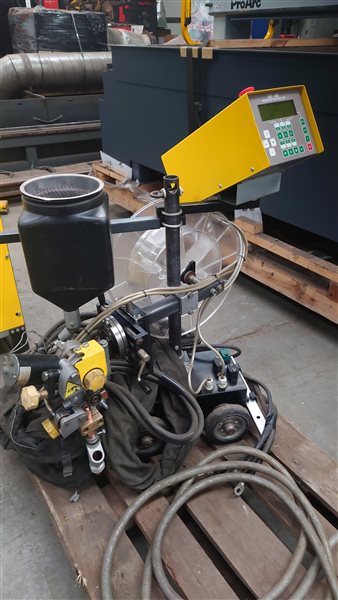

• ESAB A2 Sub Arc Welding Tractor with PEH Controls, LAF 1000 option for LAF 1250 DC

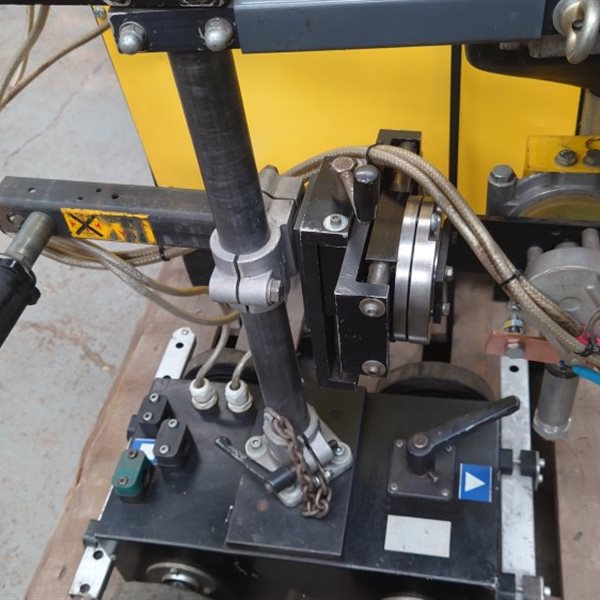

• Manual X and Y slides, designed for use with LAF (DC) and TAF (AC) power sources

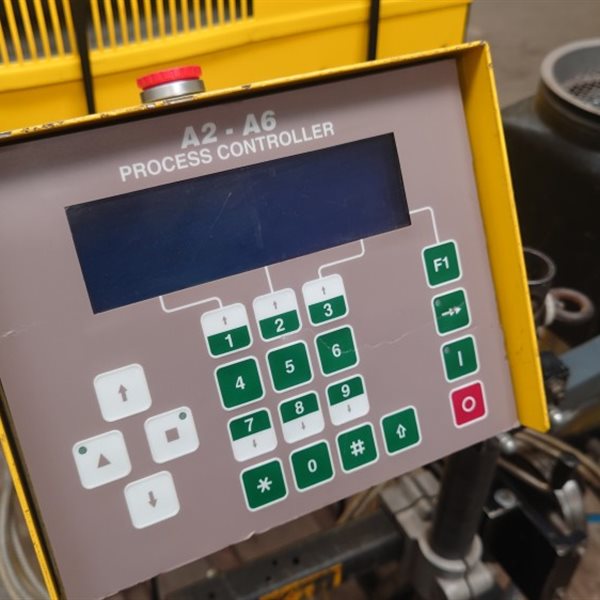

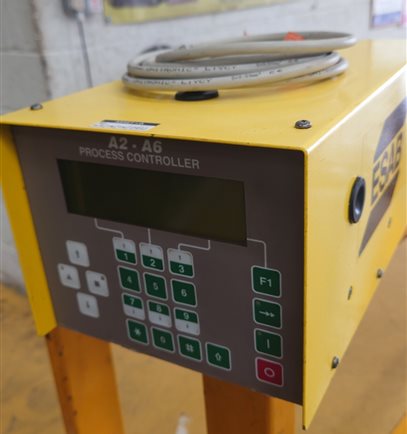

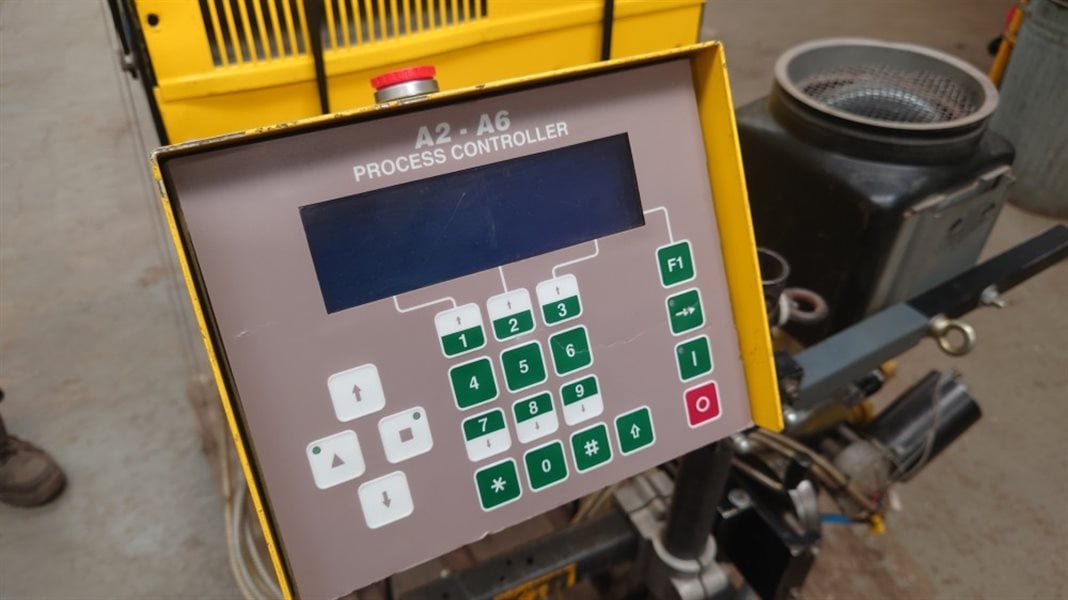

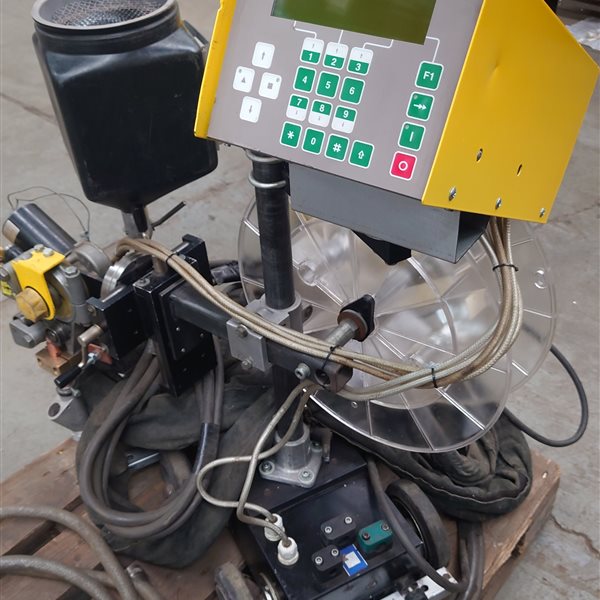

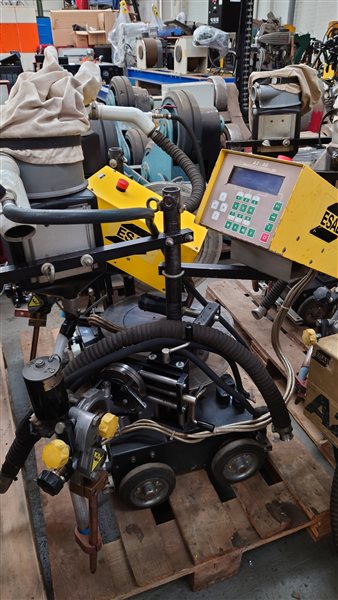

• Suitable for MIG or SAW processes Preset all welding parameters by keying values on front panel - can store up to 10 different data sets in memory for easy recall during welding
• Choose between 12 different languages and view heat input on display
• Connection voltage from the power source, 50/60 Hz,VAC 42 Connection Power, VA max. 900
• Motor connection adjusted for ESAB’s A2 and A6 motors, Motor current 5A continuous max. 10A Speed Control Internal EMK-adjustment, alt. with AC-tacho
• Welding Speed, m/min (ipm) 0.1-2 (4-80) Min. - Max. Man. Travel Speed, m/min (ipm) (depending on travel unit) 0.1-2 (4-80)
• Consumable Wire Feed Speed, m/min (ipm) 30-250 (12-984)
• Gas Valve/Auxiliary, VAC, A 42, 0.5 Inputs For connection of sensors or limit switch (2 pcs. NC)
• Connection to power source through operating cable max 100 m (328’) Burndy contact, 12-poles
• Max. Ambient Temperature, oC (oF) 45 (113) Min. Ambient Temperature, oC (oF) -15 (5) Relative air humidity 98%

Package Includes:

• 4 month warranty
