Hypertherm Max 100 Plasma Cutter 32mm Severance Cut

Product: 583

Brand: Hypertherm

Model: Max 100

Condition: Used

In Stock Now

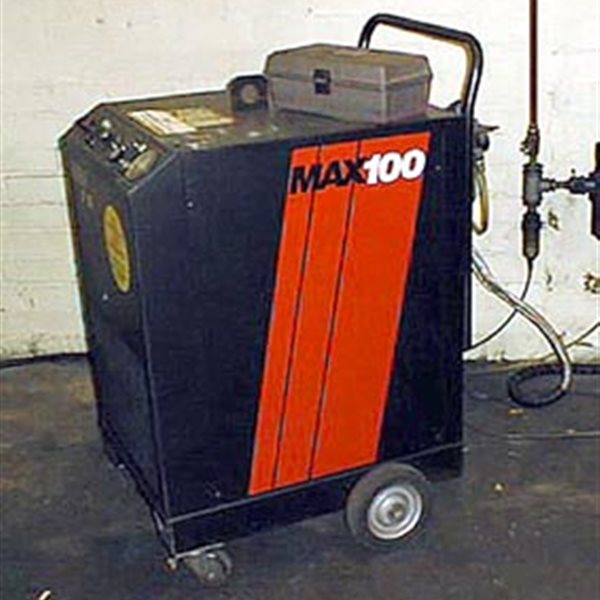

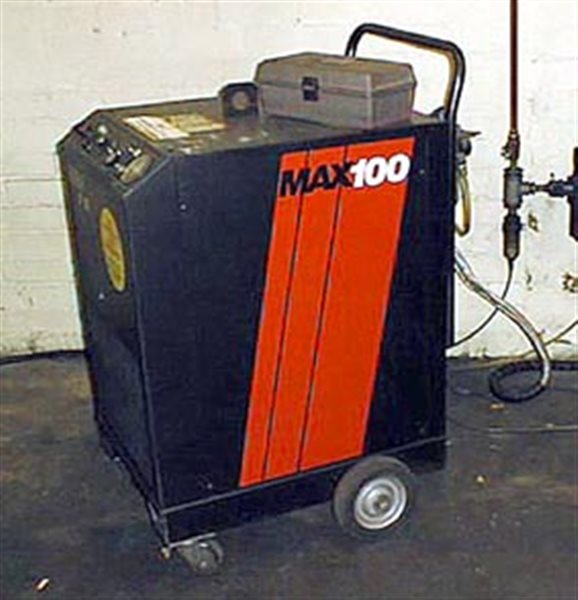

Hypertherm’s MAX100 plasma cutting system is designed for cutting most metals from gauge to 1-1/4 inch (32 mm) thick. In addition to hand cutting,
it can be used with a machine torch and a THC-2 Torch Height Control system (Instruction manual IM-20) for high-speed mechanized cutting.
The MAX 100 provides contiously variable current output from 30 to 100 amps for optimum performance on all thicknesses of metal up to 1-1/4 inch (32 mm) thick.
This allows the operator wide variations in cutting speeds on the same thickness of metal. Three nozzle sizes (40-amp, 80-amp and 100-amp) are provided to produce high quality cuts throughout its range of cut thicknesses.
The system provides a continuous pilot arc which alows high quality cutting of perforated or expanded metal without any appreciable deterioration in parts life. This feature is only available for use with the small nozzle up to 40 amps of output.
Cut quality is superior and torch parts life is several times longer than any other air plasma cutting system. The unique MAX100 power supply design uses transistor technology to produce a very smooth constant current DC output.
Operational Manuals
Air or Nitrogen Gas
Dual Voltage 3 Phase
Weight 197kg
L 749mm W 670mm H 1111mm inc handle
Sold fully working and refurbished to order

Package Includes:
