Sheet Metal Cutting Methods Compared: Flame, Plasma, Waterjet, Laser & Guillotine Shearing

Which Cutting Method Is Best for Sheet Metal?

Flame (oxy-fuel) cutting suits thick steel and low up-front cost; plasma cutting offers faster, more precise cuts on conductive metals, including stainless and aluminium; waterjet cutting handles almost any material with no heat distortion; laser cutting delivers the finest edge finish and tightest tolerances at a higher price point; and guillotine shearing offers a fast, mechanical, heat-free alternative for straight cuts in thinner material.

Below, we break down how each one works, what it's good at, and how they compare head-to-head.

Flame Cutting vs Plasma Cutting: Which Is Better?

Plasma cutting has become more prevalent in recent years thanks to its precision and cut quality, but traditional oxy-fuel (flame) cutting still has a firm place in fabrication, particularly for thick steel and jobs that need portability. Here’s how the two compare.

What Is Oxy-Fuel (Flame) Cutting?

With oxy-fuel cutting, an oxygen/fuel gas flame preheats the steel to its ignition temperature. A high-powered oxygen jet is then directed at the metal, creating a chemical reaction between the oxygen and the metal that forms iron oxide (slag), which the oxygen jet blows clear of the kerf.

Cut quality, preheating time and achievable thickness are all influenced by the fuel gas used. The four most common are acetylene, propane, propylene and natural gas.

Gas profile cutting systems typically offer rapid preheating and clean cuts, even on rusty, scaled, or painted material. Oxy-acetylene in particular cuts steel plate from 0.5mm up to 250mm thick, with around a 3mm kerf depending on material. It produces a steadier, smoother cut than other fuel gases, with sharp edges and slag that’s easy to remove.

It is labour-intensive (80–90% of running costs are labour and equipment), and the cut leaves a heat-affected zone (HAZ) that may need machining away, along with some edge burring. Edge squareness is fair but not perfect; expect a thick, striated cut surface and occasional non-parallel edges.

What is oxy-fuel cutting used for?

Flame cutting is highly effective on thicker steel and other ferrous (iron-based) materials. Many oxy-fuel systems are multi-purpose and can also be used for welding, brazing and soldering. Useful in fabrication shops running mixed processes.

Main benefits of oxy-fuel cutting:

• Lower up-front cost than plasma
• Highly portable, ideal for site work and maintenance
• Cuts thick steel quickly and effectively
• Versatile beyond cutting (welding, brazing, soldering)

Browse oxy-fuel cutting systems for sale →

What Is Plasma Cutting?

Plasma cutting uses a high-velocity jet of ionised gas (the plasma) delivered through a constricting nozzle orifice. This conducts electricity from the torch to the workpiece, heating and melting the material, while the high-velocity gas stream mechanically blows the molten metal away to sever it.

Plasma cutting works on any conductive metal; mild steel, stainless steel and aluminium are the most common. With mild steel, you’ll see faster, thicker cuts than with alloys. It’s generally best suited to material under 1 inch (25mm) thick, though CNC plasma systems can cut up to 50mm with a 90mm edge start, and it’s typically much faster than mechanical cutting methods, with the ability to make non-linear cuts easily, something flame cutting struggles with.

One niche strength worth noting: plasma can cut expanded metal cleanly, which is practically impossible with oxy-fuel.

What is plasma cutting used for?

Plasma cutting shines in repair and maintenance work, as well as projects needing large cutting volumes across mixed materials. Especially anywhere you need to cut aluminium or stainless steel, since plasma doesn’t rely on oxidation to work.

Main benefits of plasma cutting:

• Faster travel speeds and higher quality cuts than flame
• Cuts aluminium, stainless steel and other conductive non-ferrous metals
• Easier to use, with less post-cut cleanup
• Ideal for high-volume and mixed-material cutting

Browse plasma cutting systems for sale →

Flame vs Plasma: Quick Comparison

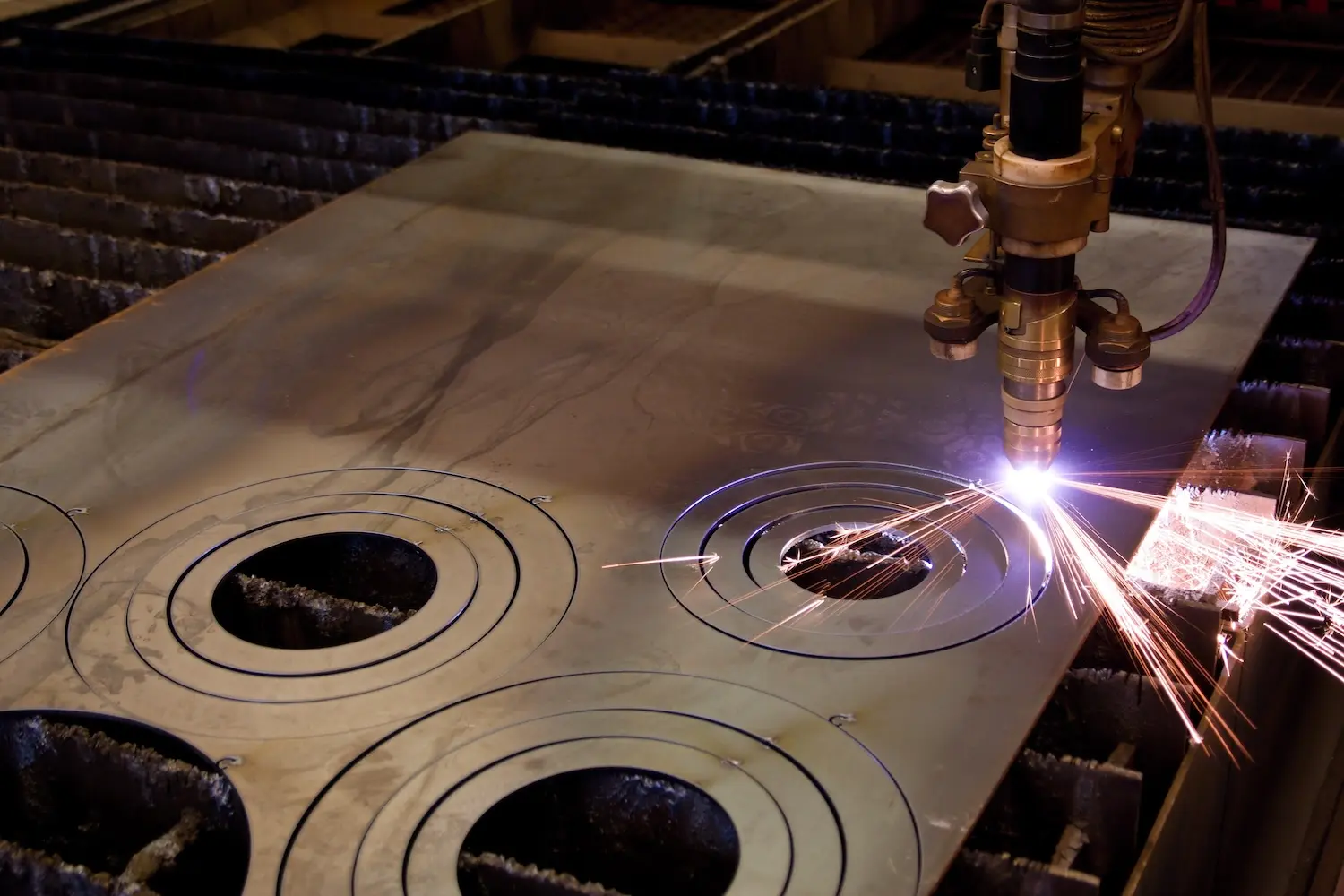

What About CNC Plasma Cutting?

The next step up from a manual or gas profile cutting setup is a CNC plasma cutter, a carriage with an X-Y bed and a plasma power source instead of (or alongside) a gas torch. CNC plasma tables offer faster, more accurate and repeatable cuts than manual oxy-fuel. At a fraction of the cost of laser systems, they’re a popular step-up choice for growing fabrication businesses.

The difference between manual and CNC (automated) plasma cutting is the addition of a CNC control unit, which manages the carriage and torch head movement and programming. Some CNC plasma systems also support plasma marking, where the arc only marks the surface without fully penetrating the sheet, which is useful for part identification or bend lines.

As laser cutting technology has improved, CNC plasma manufacturers like Hypertherm and Thermal Dynamics have pushed plasma cut quality closer to “laser-like” results, while keeping the cost/benefit ratio firmly in plasma’s favour.

Read more about plasma cutting in our complete process guide >

What About Waterjet and Laser Cutting?

Flame and plasma aren’t the only options for cutting sheet metal. Waterjet and laser cutting are worth considering, particularly where heat distortion, material variety or edge finish are priorities.

What Is Waterjet Cutting?

Waterjet cutting uses a high-velocity, pressurised jet of water, often mixed with an abrasive, to cut through material. It’s broadly similar to natural water erosion, just hugely accelerated and concentrated.

Waterjet can cut, shape, ream, and carve almost any material: mild, carbon and stainless steels, wood, laminates, aluminium, carbon fibre, plastics and acrylics. It’s also one of the few processes that can cleanly cut reflective materials such as brass, which CO2 lasers struggle with.

Because it’s heat- and gas-free, waterjet cutting produces no thermal stress or burring on the cut edge, and the kerf width can be adjusted simply by changing the nozzle. Non-abrasive cuts can be as fine as 0.003" (roughly the width of a human hair), allowing very fine detail work.

What is waterjet cutting used for?

Waterjet is used across a wide range of industries, from mining to aerospace, particularly if heat-sensitive materials or mixed-material cutting are involved.

Main benefits of waterjet cutting:

• No heat distortion or thermal stress
• Cuts an exceptionally wide range of materials, including reflective metals
• Very fine kerf and detail capability
• Cost-effective across a wide range of material thicknesses

What Is Laser Cutting?

Laser cutting uses a focused laser beam to melt material in a localised area, minimising heat distortion. High-pressure nitrogen is then used to blow the molten material clear.

Laser cutting offers a superior edge finish that typically doesn’t need deburring, so complex shapes can be cut without expensive secondary tooling. Tolerances of +/- 0.1mm are achievable across many thicknesses, with fast, high-quality cuts on material up to around 5mm and a very small kerf width.

The most common metals cut with lasers are mild steel, stainless steel and aluminium. Fibre laser, an advanced alternative to CO2 laser, can also cut reflective materials such as aluminium, copper and brass. Beyond metal, laser cutting handles acrylic, cardboard, textiles, wood and leather.

What is laser cutting used for?

Laser cutting is best suited to precision parts where edge finish and tight tolerances matter more than raw cutting speed on thicker material.

Main benefits of laser cutting:

• Best-in-class edge finish, usually no deburring required
• Very tight tolerances
• Minimal heat distortion
• No expensive tooling needed for complex shapes

The trade-off with laser cutting is cost; it’s an expensive outlay compared with flame, plasma or waterjet. But for high-precision parts, it can be an extremely effective and profitable process once in place.

What Is Guillotine Shearing?

Unlike flame, plasma, waterjet and laser cutting, guillotine shearing involves no heat at all. A guillotine shear cuts sheet metal mechanically, using a fixed lower blade and a moving upper blade that comes down with significant force to shear the material. The same basic principle as a pair of scissors, scaled up to industrial capacity.

The sheet sits on a flat bed, is clamped in place by a hold-down bar, and the blade is lowered (manually, mechanically, hydraulically, or via CNC control) to make a single straight cut along the full width of the blade. Most industrial guillotines handle working lengths from around 1.3m up to 4m or more, with cutting capacities typically up to 4–6mm on standard machines and up to around 12mm on heavy-duty hydraulic units.

Because there’s no heat involved, guillotine shearing leaves no heat-affected zone (HAZ) at all; one of its biggest advantages over plasma or flame cutting. Cut tolerances are typically in the region of ±0.25mm to ±0.5mm, with a clean, largely burr-free edge straight off the machine.

What is guillotine shearing used for?

Guillotine shears are the go-to choice for cutting sheets down to size before folding, bending or welding, and for repetitive, straight-line production cuts like HVAC ducting panels, signage blanks, cladding and architectural panels are common applications. They’re best suited to straight cuts only; anything curved or contoured needs a throatless shear, plasma or laser instead.

Main benefits of guillotine shearing:

• No heat-affected zone or thermal distortion
• Very fast for straight, repetitive cuts; often faster than thermal methods for this specific job
• Clean, largely burr-free edge with minimal secondary finishing
• Lower running cost than thermal cutting (no gas, no consumables, no power source wear)

Limitations:

• Straight-line cuts only. No curves, holes or complex profiles
• Thickness capacity is lower than flame or CNC plasma (typically 4–6mm standard, up to ~12mm on heavy hydraulic models)

Browse machine tools and shearing equipment for sale →

Sheet Metal Cutting Methods at a Glance

Frequently Asked Questions

Is plasma cutting better than flame cutting?

Not universally, it depends on the job. Plasma cutting is faster and more precise, and it’s the only one of the two that can cut aluminium and stainless steel. Flame cutting remains better for very thick steel and for jobs that need portability and lower up-front cost.

Can you cut stainless steel with flame/oxy-fuel cutting?

No, oxy-fuel cutting relies on oxidation, which doesn’t work effectively on stainless steel or aluminium. For these materials, plasma, waterjet or laser cutting is the right choice.

What thickness of steel can a plasma cutter handle?

Manual plasma cutters typically handle material under 25mm (1 inch) effectively, while CNC plasma systems can cut up to around 50mm with a 90mm edge start, depending on the machine and power source.

Is waterjet cutting better than laser cutting?

They suit different jobs. Waterjet causes no heat distortion and can cut a wider range of materials (including reflective metals and non-metals), while laser cutting offers a finer edge finish and tighter tolerances on metals up to around 5mm thick.

What’s the cheapest way to cut sheet metal?

Oxy-fuel (flame) cutting has the lowest up-front equipment cost and is the most portable option, making it the most accessible entry point. Though labour costs are higher relative to automated processes.

Can CNC plasma cutting achieve laser-quality cuts?

Modern CNC plasma systems, particularly from manufacturers like Hypertherm and Thermal Dynamics, have closed much of the quality gap and can produce “laser-like” cut quality at a significantly lower cost than true laser cutting. Though lasers still lead in tolerance and edge finish for thin material.

Is a guillotine shear faster than plasma or laser cutting?

For straight, repetitive cuts on material within its thickness range, yes, a guillotine shear can outpace thermal cutting methods, since it makes a full-length cut in a single stroke with no heat-up or burn-through time. It can’t cut curves, holes or complex shapes, though, so it’s only faster for the jobs it’s actually suited to.
