Welding Automation: A Complete Guide to Systems, Benefits and Choosing the Right Setup

What Is Welding Automation?

Welding automation refers to any system that mechanises or fully controls part of the welding process. Removing or reducing the reliance on manual torch manipulation to improve consistency, speed, and quality.

Automation exists on a spectrum. At one end, a simple welding positioner rotates a part so a welder can work in the flat position rather than overhead. At the other end, a fully robotic cell with a cobot arm and integrated positioner can run unattended through an entire production shift.

For most fabrication shops, semi-automated and mechanised systems deliver the best return. They empower your existing welders to produce more, with less fatigue and fewer defects, without the complexity and capital cost of full robotics.

Why Welding Automation Matters Now

Two trends are making automation more urgent for fabricators of all sizes.

The first is the skills shortage. Fewer people are entering the welding trade than are retiring from it. Shops that once relied on large teams of experienced manual welders are finding it increasingly difficult to recruit. Automation helps existing staff produce more, while lowering the skill ceiling on repetitive or high-volume work.

The second is quality and compliance pressures. As welding standards tighten across industries like pressure vessels, pipework, aerospace, and food processing, the tolerance for rework and weld defects has shrunk. A defect on a thick-walled pressure vessel can mean days of re-inspection, involving inspectors, metallurgists, engineers, and project managers. Getting the weld right first time is not just better for quality; it protects both cash flow and project timelines.

Automated systems address both problems simultaneously.

Key Benefits of Welding Automation

Types of Welding Automation Systems

Welding Positioners and Turntables

A welding positioner tilts and rotates the workpiece so that the weld joint is always presented in the most favourable position (typically flat or horizontal), regardless of the part’s natural geometry.

The most common application is pipe and round-section welding. With a stationary welding head and a positioner rotating the part at a controlled speed, you get consistent heat input and a uniform weld profile on every pass, part after part. Positioners range in capacity from around 50 kg for light fabrication up to several hundred tonnes for heavy vessel and structural work.

Positioners are also a natural pairing with cobots. A cobot arm handles the torch movement while the positioner rotates the part, for example, welding structural supports on a cylindrical component. Without the positioner, the cobot would need to compensate for the geometry itself, which introduces complexity and error. Together, the two systems complement each other perfectly.

Best for: Pipe welding, round-section work, pressure-vessel ends, cobot integration, repetitive high-volume fabrication.

View welding positioners in stock →

Pipe Rotators and Turning Rolls

Turning rolls support cylindrical vessels, pipes, or tanks and rotate them on driven rollers during welding, coating, or inspection. Keeping the operator stationary and the work moving.

They are the practical solution for large pressure vessels and storage tanks that would be impractical and unsafe to rotate manually or with a forklift. The driven rollers (usually polyurethane-coated to protect the workpiece surface) grip the vessel and rotate it at a controlled speed through the weld cycle.

Turning rolls are also used for controlled spraying and surface treatment, since they allow uniform access to the full circumference of a vessel without manual repositioning.

Best for: Pressure vessel fabrication, large-bore pipe welding, tank fabrication, NDT and surface treatment of cylindrical parts.

View pipe rotators in stock →

Column and Boom Welding Manipulators

A column and boom manipulator holds the welding head (MIG, TIG, SAW, or cladding torch) and positions it precisely at the weld joint. Rather than the welder guiding the torch, the manipulator does it: either holding the head stationary while a positioner or rotator moves the work, or travelling along a beam to track a stationary part.

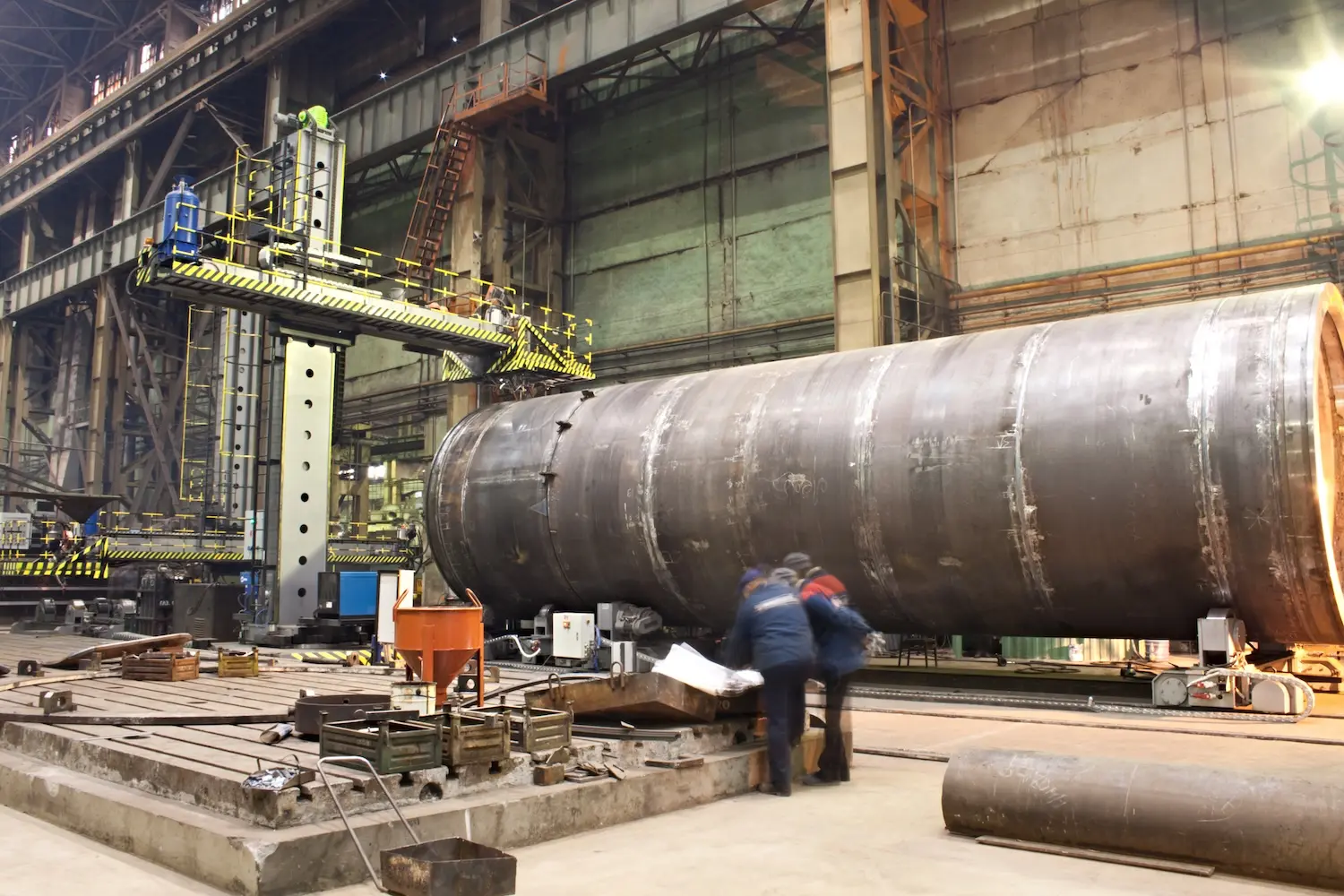

This arrangement is the foundation of most heavy fabrication automation. Large vessels and cylindrical structures are typically welded with the vessel on turning rolls and the welding head held by a column and boom, producing long, uniform circumferential welds without operator fatigue.

Column and boom systems are also widely used for weld cladding. Overlaying pipes, valves, and process equipment with corrosion-resistant alloys such as Inconel or stainless steel. The precise, consistent travel speed of the manipulator is critical for cladding quality.

Best for: Pressure vessel and tank fabrication, longitudinal and circumferential seam welding, submerged arc welding, weld overlay and cladding.

View column and boom systems in stock →

Welding Tractors and Carriages

Welding tractors carry the torch along a track that follows the joint, whether on flat plates, curved surfaces, vertical plates, or even ship hulls. They are the go-to solution for automating welds on large components that cannot be moved to the welding head.

Track systems can be straight or curved, and advanced tractors offer programmable oscillation control, adjusting the width, speed, and dwell time at each side of the weave. Ideal for multi-pass welds on thick material. They are inherently portable, making them practical for both site work and shop fabrication.

For components too large for orbital equipment, like large-bore pipes and circular sections, a tractor with a circular track system achieves a comparable result, with the torch travelling around the stationary pipe rather than the pipe rotating.

Best for: Storage tank fabrication, ship hull welding, structural steel, thick-section plate, and large-bore circumferential welding on-site.

View welding tractors in stock →

Orbital Welding Equipment

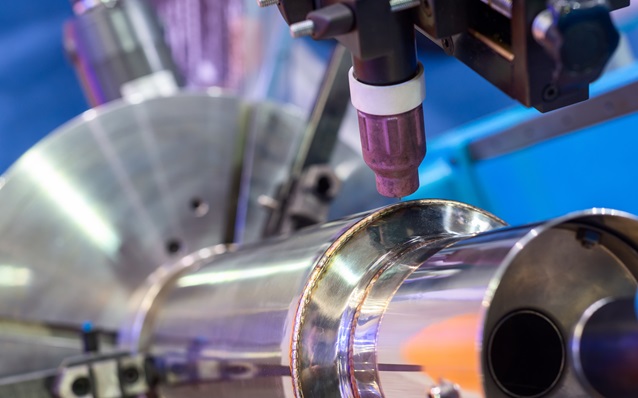

Orbital welding systems rotate the welding torch around a stationary pipe or tube in a closed, controlled arc. The process is highly automated; once the parameters are set for a given pipe specification, the system delivers the same weld to the same certified quality, every time.

This makes orbital welding the standard in industries where weld consistency must be documented and certified: pharmaceutical, food and beverage, semiconductor, petrochemical, and nuclear. It is also far less physically demanding than manual pipe welding, which requires welders to hold awkward positions for extended periods. With orbital equipment, the operator sets the program and monitors, while the machine does the welding.

The skill barrier to producing high-quality welds with orbital equipment is significantly lower than with manual pipe welding, which is an important consideration given the current skills shortage.

Best for: High-purity tube and pipe welding, pharmaceutical and food-processing pipework, petrochemical and power generation, and any application requiring weld traceability and certification.

View orbital welding systems in stock →

Welding Lathes

Welding lathes operate on a similar principle to orbital systems in that they produce circumferential welds, but use a different mechanical arrangement. The lathe rotates the workpiece while the welding head remains stationary. Single or multiple torches can be mounted, giving flexibility across different part sizes and weld configurations.

Welding lathes are used for precision work on small-to-medium cylindrical components: vacuum vessels, instrumentation parts, nuclear components, and defence and aerospace applications where weld accuracy must be absolute and fully documented.

Best for: Small-to-medium cylindrical parts, nuclear and defence fabrication, vacuum vessels, aerospace components, and high-precision multi-pass circumferential welding.

View welding lathes in stock →

Seam Welding Machines

Longitudinal seam welders are designed specifically to produce straight seam welds on tanks, pipes, and sheet metal fabrications. The workpiece is clamped, and the welding head travels the full length of the seam in a single, controlled pass. Delivering precision and consistency that manual welding on long seam joints cannot match.

Resistance seam welding operates on a different principle: circular electrodes clamp and roll two sheets of metal together, fusing them by resistance heat. This is the standard process for gas tanks, ventilation ducting, fluid containers, and other sheet metal-manufactured products that require an airtight seam.

Best for: Tank and vessel fabrication, longitudinal pipe seams, sheet metal enclosures, gas and fluid containers requiring air or liquid-tight seams.

View seam welders in stock →

Submerged Arc Welding (SAW) Systems

Submerged arc welding is one of the highest-deposition welding processes available. It’s inherently mechanised as the arc runs beneath a blanket of granular flux, making it unsuitable for manual operation. SAW is the process of choice for thick-section, high-volume work where weld quality and deposition rate are both critical.

Typical applications include wind turbine tower sections (long circumferential and longitudinal seams on thick steel), pressure vessel shells, structural beams, and offshore structural components. Column and boom manipulators are typically used to deliver the SAW head to the joint.

Best for: Heavy structural fabrication, wind turbine towers, pressure vessel shells, large-bore pipe spools, offshore and energy infrastructure.

View submerged arc welding equipment in stock →

Cobots and Robotic Welding Cells

Collaborative robots (cobots) have made robotic welding accessible to smaller fabrication shops. Unlike traditional industrial robots that require safety caging, specialist programming, and substantial capital investment, cobots are designed to work alongside operators and can be retrained for different parts quickly.

A cobot does not replace skilled welders; it is a tool that a welder programs and oversees. For repetitive work on consistent part geometries, the quality and throughput benefits are significant. The combination of a cobot arm with a welding positioner is particularly effective, giving the system rotational control of the part as well as torch movement.

Full robotic welding cells (with offline programming, vision systems, and multi-robot arrangements) remain more suited to high-volume production environments with consistent part designs.

Best for (cobots): Medium-volume repetitive fabrication in smaller shops, consistent geometries, short-to-medium batch runs, and cylindrical part welding when paired with a positioner.
Best for (full robotics): High-volume production, automotive and structural component manufacturing, and environments with specialist programming resources.

View all specialised and robotic welding equipment in stock →

Which System Is Right for Your Shop?

The right starting point depends on the type of work you do, your current bottlenecks, and your team’s skill level.

If your bottleneck is pipe and round-section welding, a positioner is usually the first step. It is the lowest-complexity, highest-return investment for most fabrication shops. Add orbital equipment if you are working to strict quality standards or in regulated industries.

If you are fabricating large vessels or structural components, turning rolls and a column and boom manipulator will have the most impact. These systems work together and can be combined with SAW for maximum productivity on thick-section work.

If you need to weld long seams on tanks or plates, a welding tractor or seam welder is the appropriate tool. Tractors offer more flexibility across different joint configurations; seam welders are the more productive choice for high-volume repetitive seam work.

If you are looking at robotics, start with a cobot rather than a full robotic cell unless your volumes justify it. Pair it with a positioner for maximum versatility.

If weld traceability and certification are required, orbital welding equipment is the standard for tube and pipe in pharmaceutical, food, and nuclear applications. Welding lathes cover similar ground for small cylindrical components.

Not sure which system fits your application? Westermans’ team has decades of experience across all these systems. Contact us, and we can talk you through the options without the sales pressure.

Frequently Asked Questions

What is the difference between automated welding and robotic welding?

Robotic welding is only one type of welding automation; it uses a robot arm to move the torch. But most welding automation does not involve robots at all. Positioners, tractors, orbital systems, column and boom manipulators, and turning rolls are all forms of automation that are operated and overseen by a welder, not a robot.

Is welding automation only viable for large manufacturers?

No. Many of the most cost-effective automation systems, like positioners, welding tractors, and orbital welding equipment, are designed specifically for small to medium-sized fabrication shops. The capital cost of used equipment is a fraction of new, and the productivity and quality gains typically justify the investment quickly.

Can automated welding systems be used for one-off jobs?

Yes. The consistency and quality benefits of automation apply even for one-off and low-volume work, particularly in high-spec industries where a weld defect on a single part is costly. Orbital welding, for example, is routinely used for single joints in pharmaceutical or nuclear applications, where the certification needs make manual welding impractical.

What processes can be automated?

MIG, TIG, submerged arc (SAW), plasma, and resistance welding can all be automated. The choice of process depends on the material, thickness, joint type, and quality requirement. SAW is the highest-deposition option for thick-section work; TIG orbital is the standard for high-purity tube and pipe.

Does automation eliminate the need for skilled welders?

No, it just changes the nature of the skill required. Operators need to understand welding parameters, weld quality, and how to set up and maintain the equipment. For complex applications, a strong welding background remains essential. What automation does is allow skilled welders to produce significantly more and reduce the physical toll of repetitive manual welding.
