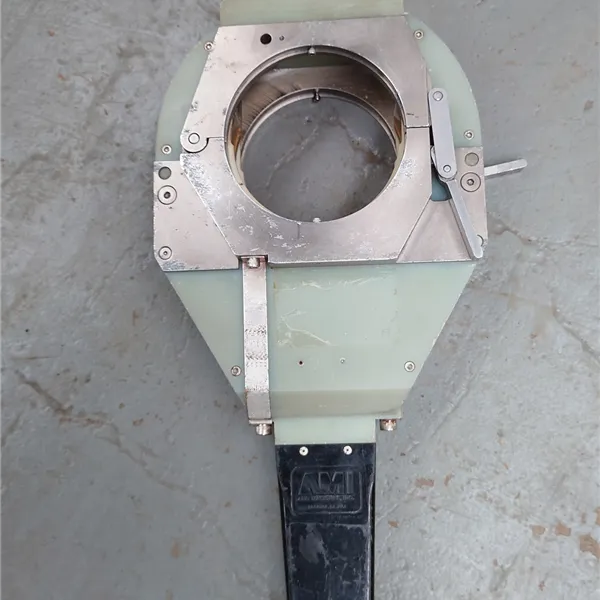

AMI 9-4500 & 4500E Orbital Weld Heads - New and Used

This equipment is available for delivery to United States

Enquire Now

Get a Quote for Hire

Both Orbital weld heads can be changed to double clamp if required 9-2500 and 9-4500
The Model 9E series weld heads are designed for fusion (TIG) welding of tube or thin-wall pipe
through the range of 0.25” (6,3 mm) to 6.625” (168,3 mm) OD.
It’s available in five sizes to weld components that do not provide enough stick-out for a doubleclamp set up
An off-set electrode, single-sided clamp and gas seal make the Model 9E series weld heads adaptable to a wide variety of applications
To enhance versatility, many Model 9 series weld heads may be converted to an alternate configuration by installing a conversion kit.
The conversion takes 5 to 10 minutes, using only a screwdriver and a hex wrench.

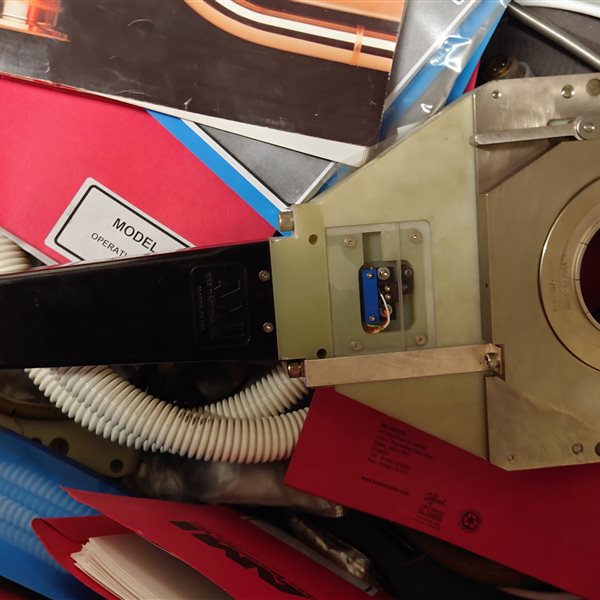

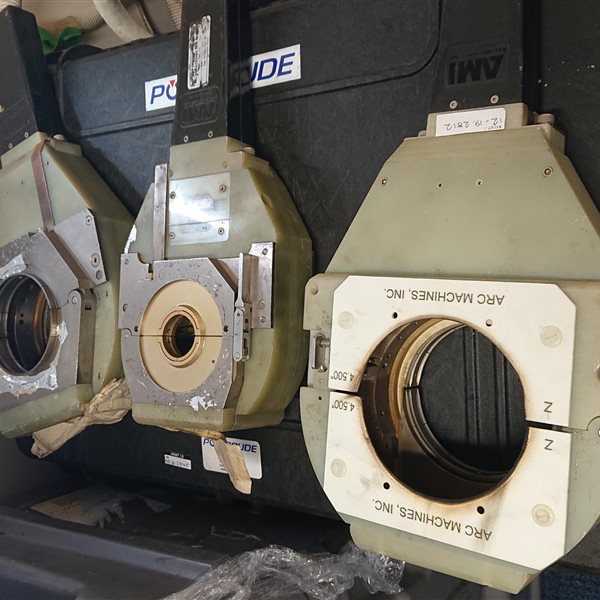

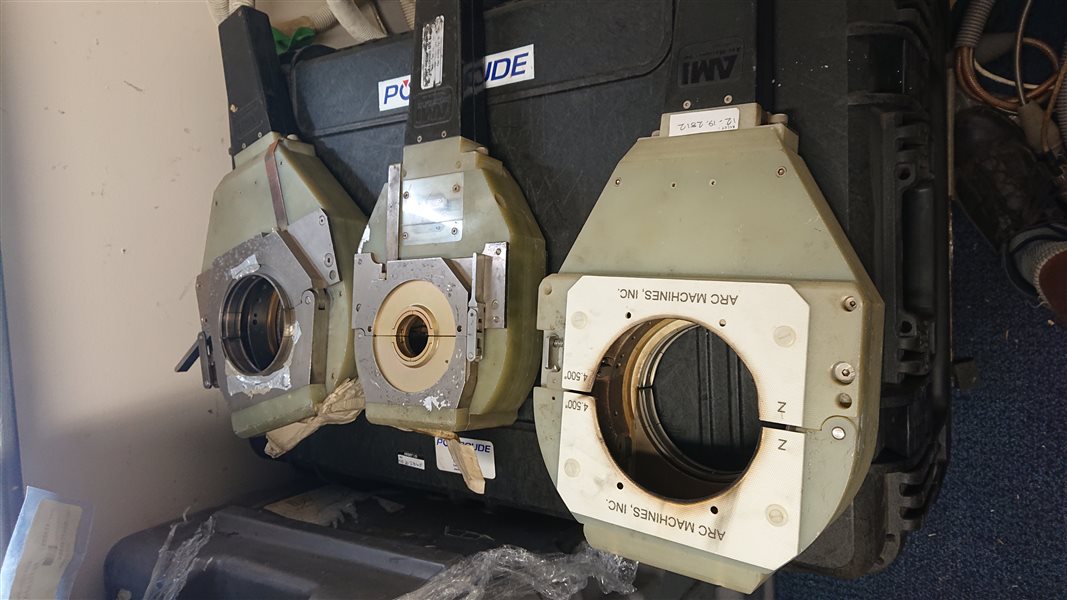

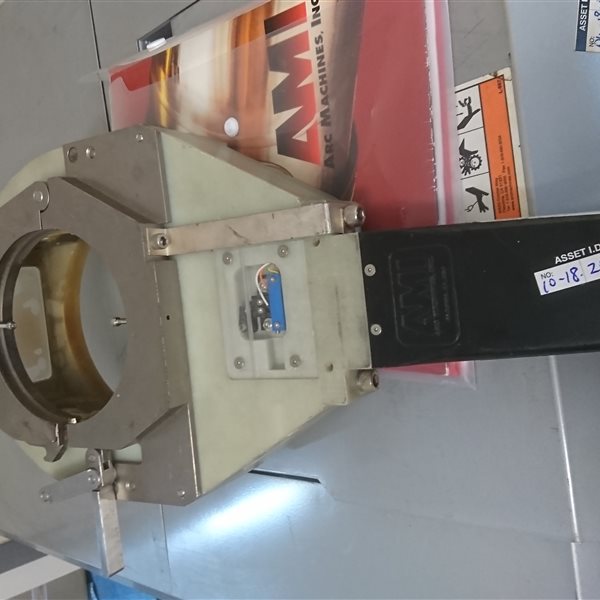

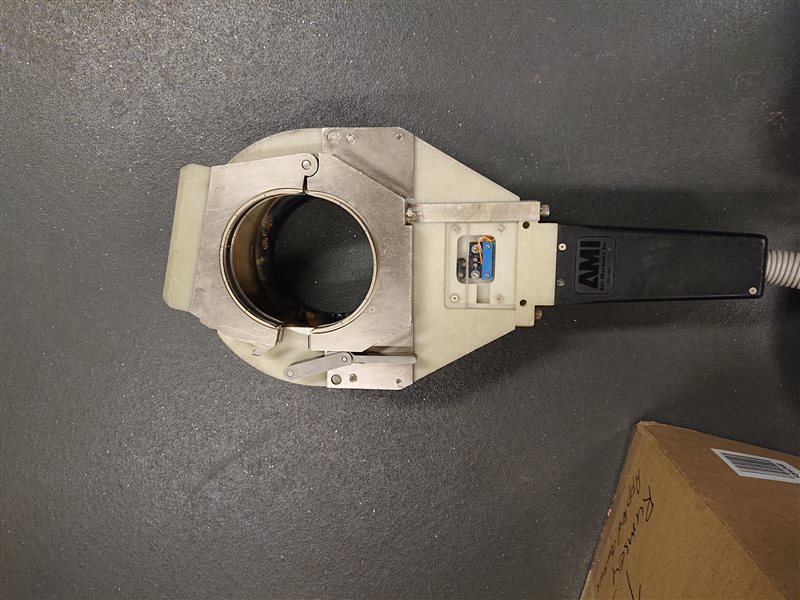

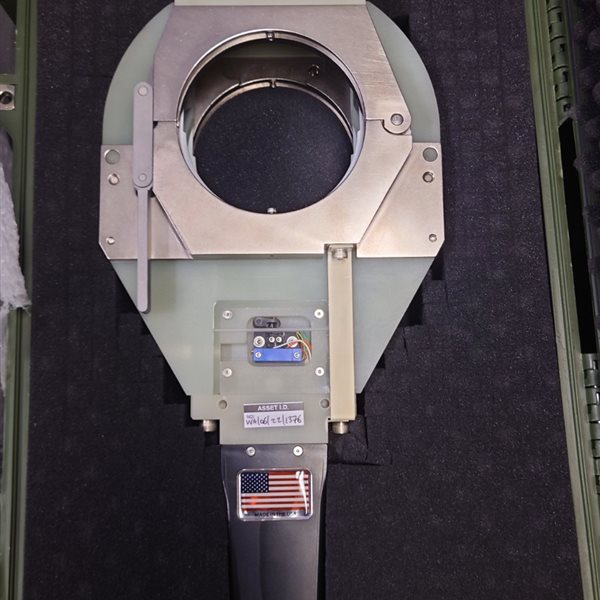

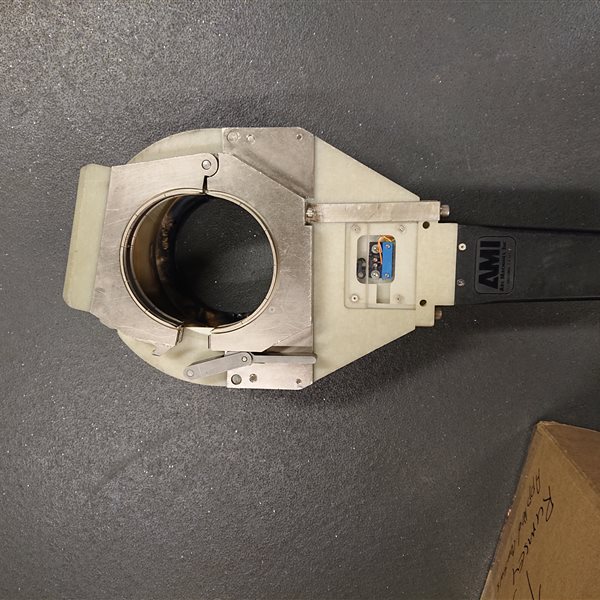

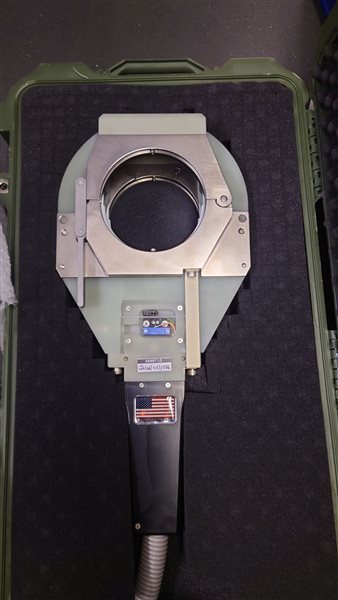

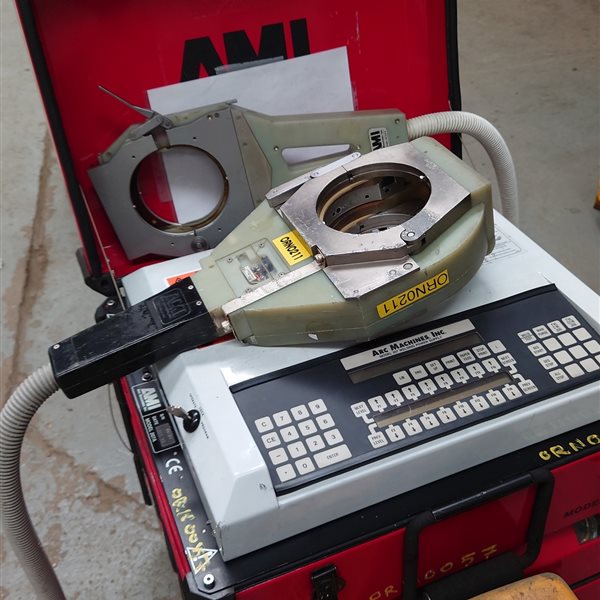

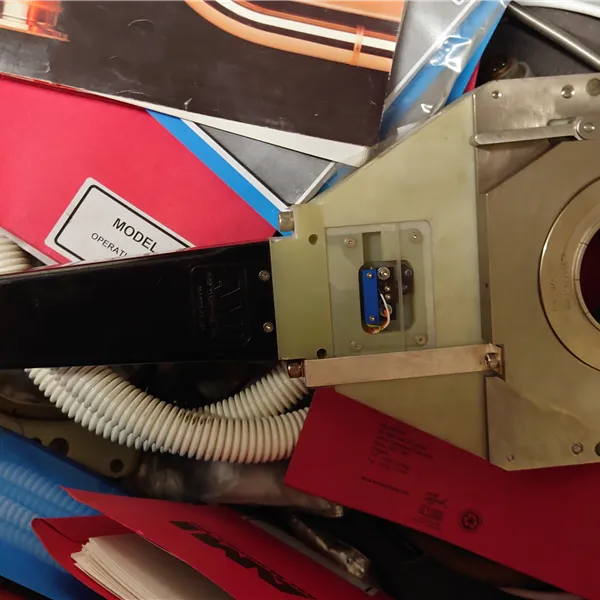

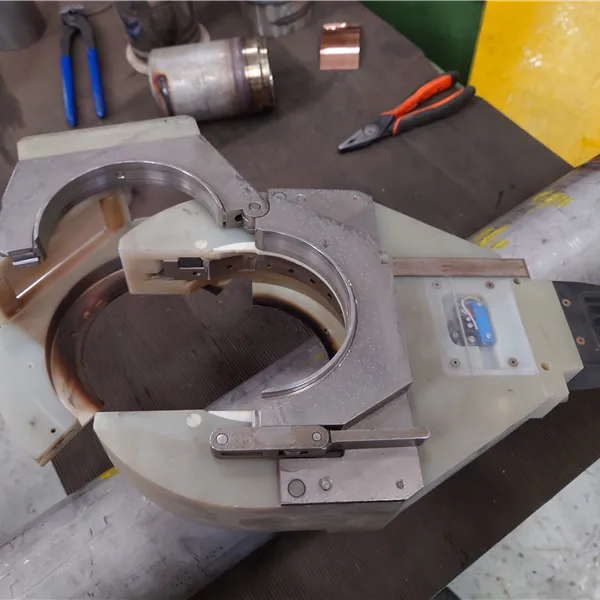

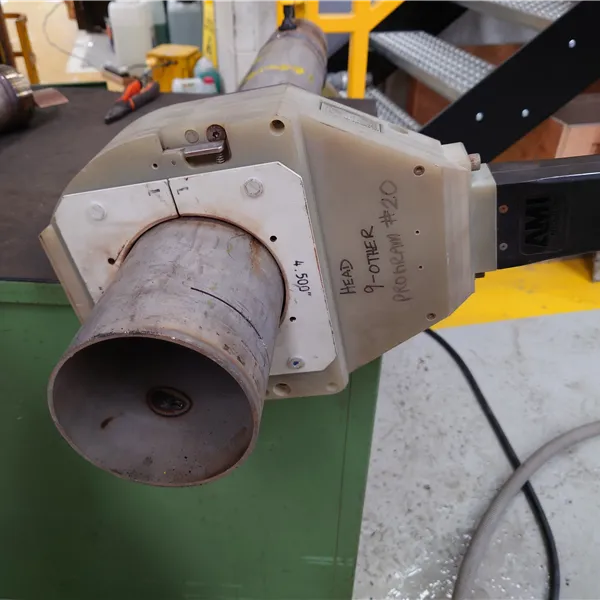

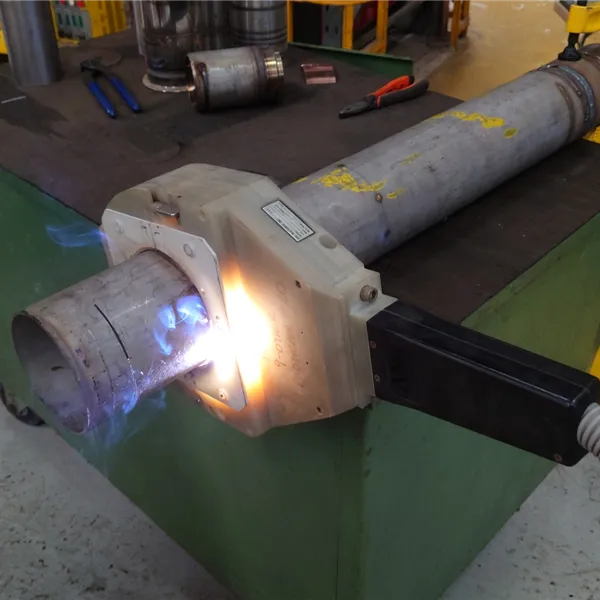

9-4500 shown in photo with AMI

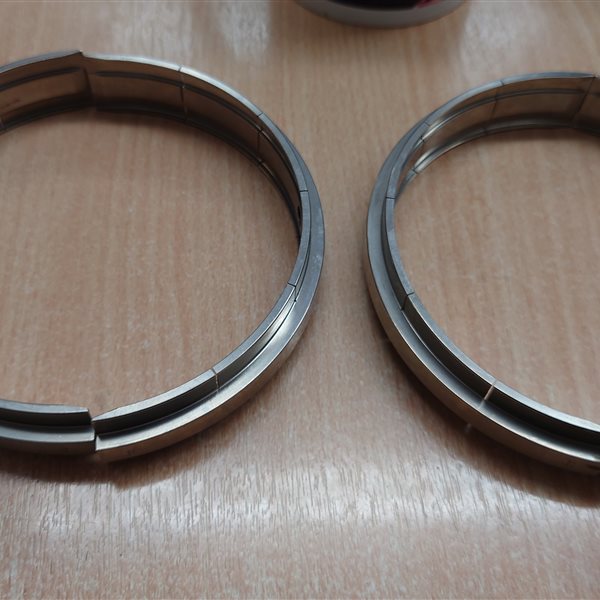

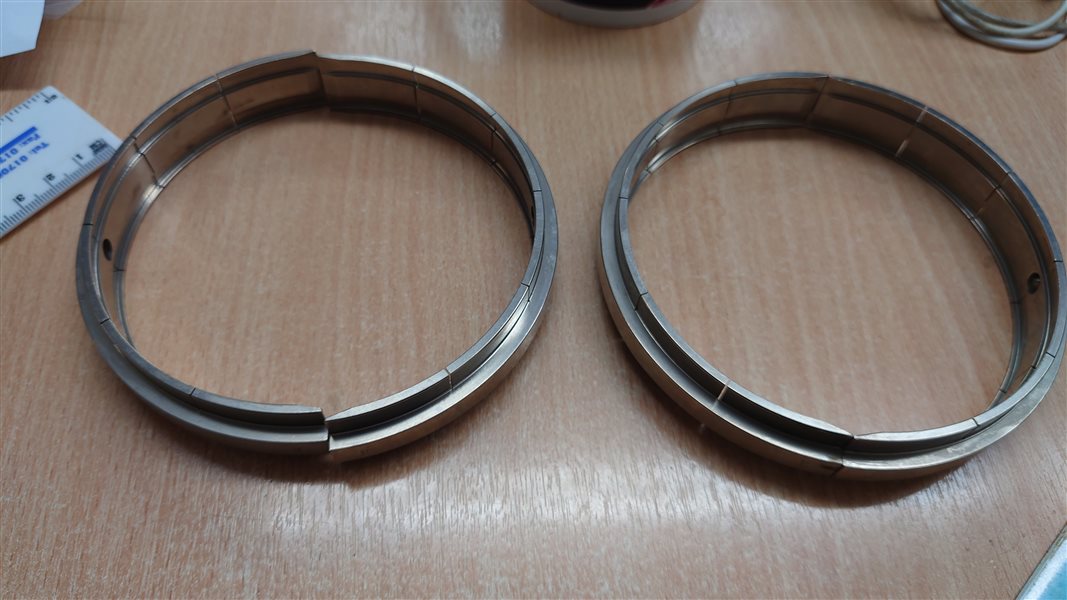

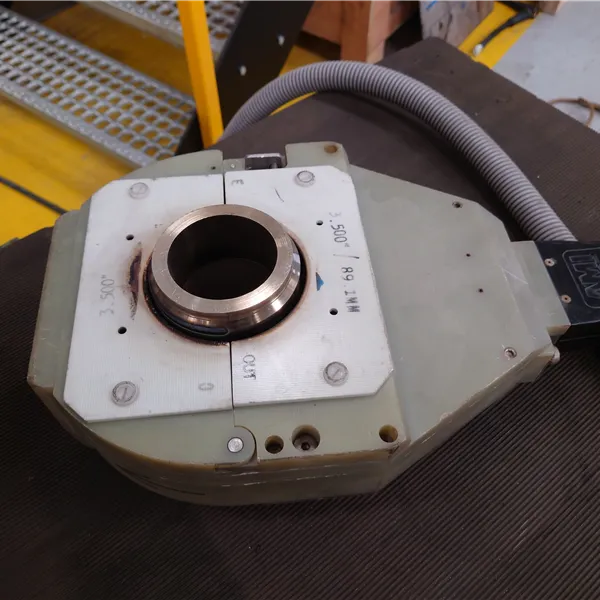

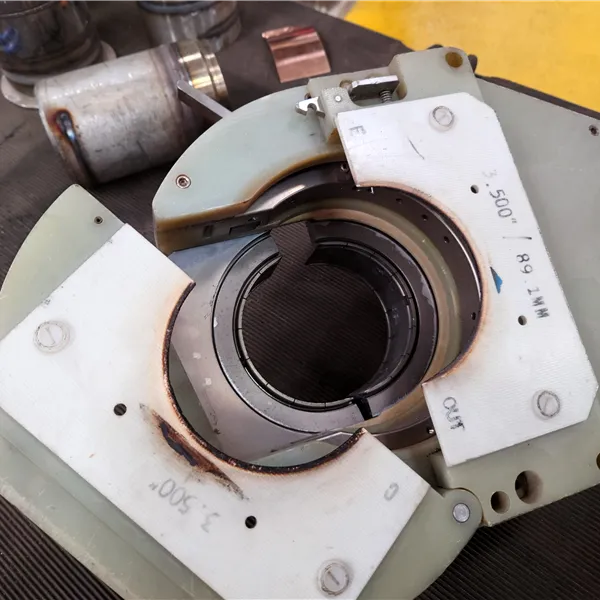

9-4500 collets 4.500"

Package Includes:

4 month warranty

PDF 1

PDF 2

Lead Times

All used machines are serviced/refurbished to order, and lead times are dependant on current workload and machine type. The below can be used as a guide only, and is subject to change. If you have a deadline you need the equipment by, please contact us prior to ordering. We will always do what we can to try and work with your timescales where possible.

“As Is” machines: 2-3 working days.
“Serviced” machines: 7 working days.
“Refurbished” machines: 2-3 weeks.
“New” machines: subject to stock and supplier lead times where applicable.
