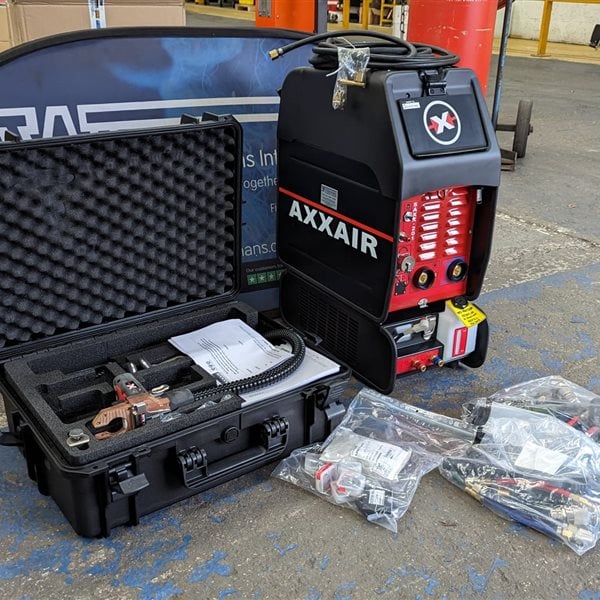

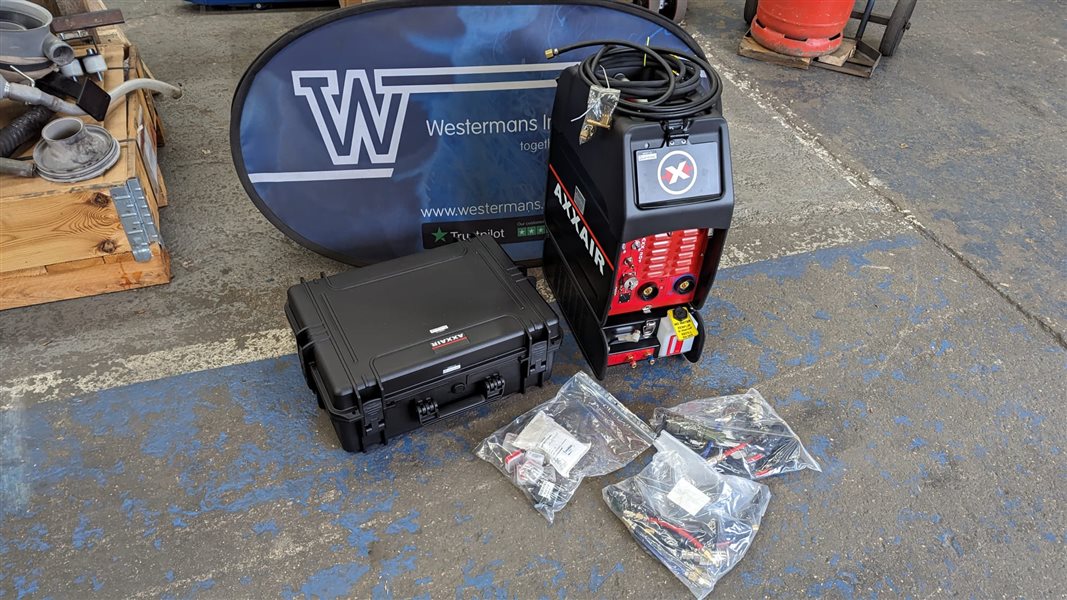

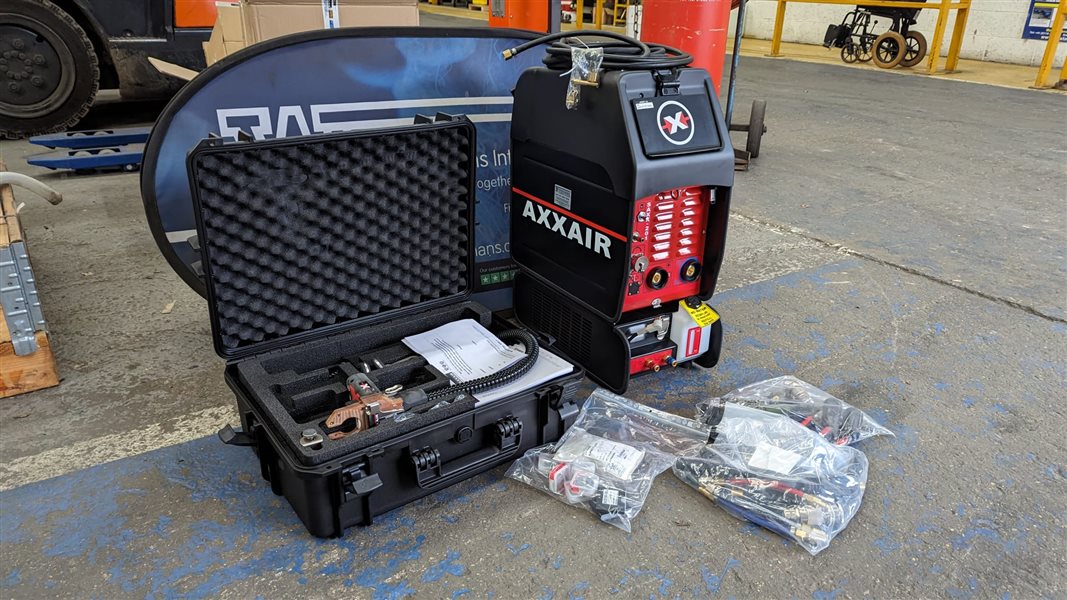

Axxair SAXX-201 Obital welder Swagelok fitting with SAMX-17/ 5 Series

Product: 18648

Brand: Axxair

Model: SAXX-201

Condition: New

In Stock Now

PDF 1 PDF 1

PDF 2 PDF 2

PDF 3 PDF 3

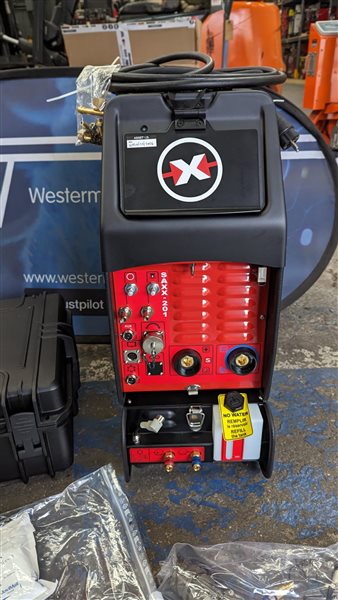

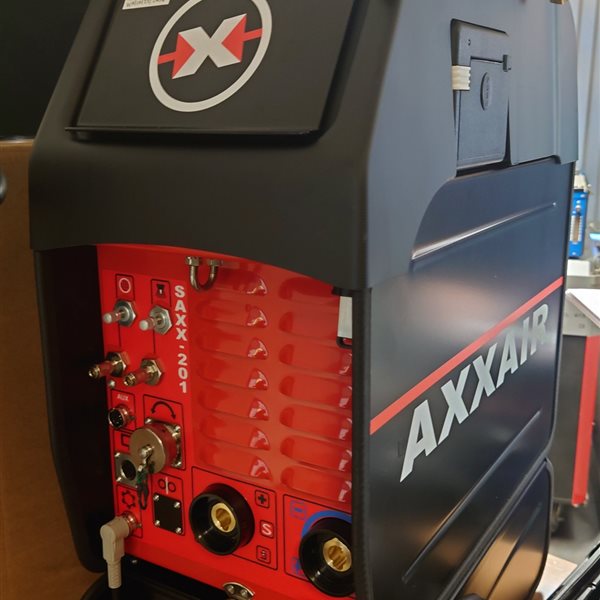

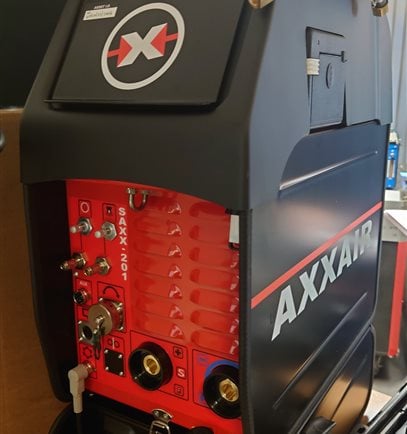

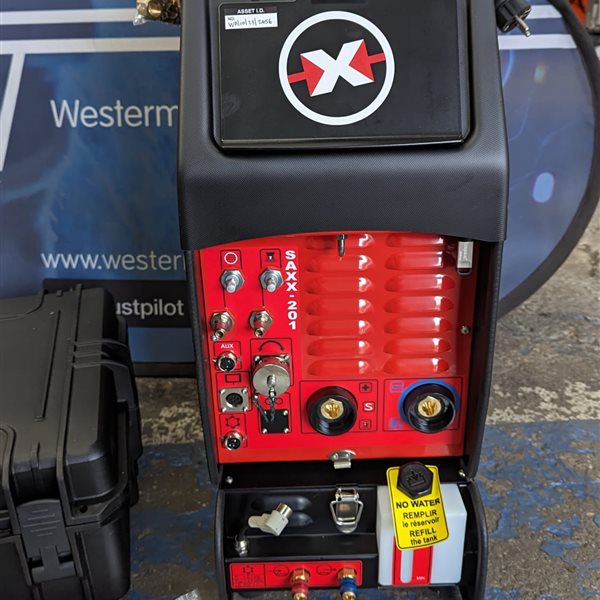

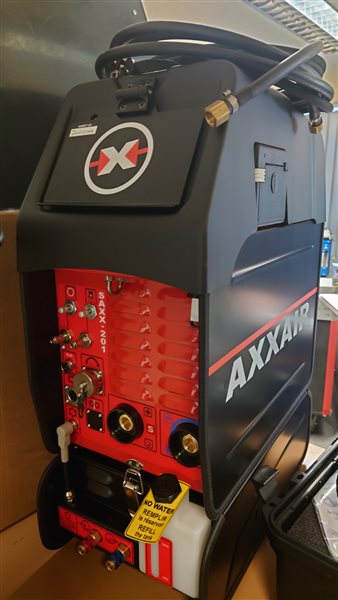

The GTAW orbital tube welding power source from Axxair is easy to use, with simple and intuitive so it's easy to generate programs. Works on Swagelok fitting using the SAMX-17 weld head similar to the 5 Series head
You can retrieve full data of the weld head and internal gas flows. With automatic parameter calculations with a 7" touch screen multi lingual controls
This SAXX-201 model compares to the Swagelok M200 but at a lower cost and with adapter kits available gives you masses of flexibility to use other brands
Making it compatible with all AXXAIR closed head and most Closed Weld heads on the market from AMI, Polysoude, ESAB, Orbitec, Orbitalum and MK porducts.
By using the adapter kit for connecting other brands of weld heads
Axxair SAXX Power Source Adaptor Kit - AMI 8 & 9 initially connected to 205, 207 & 217
Axxair SAXX Power Source Adapter Cable for AMI 8 & 9 initially connected to 307
A big plus of these new units is the adapter kit for connecting other brands of weld heads so
The DC TIG welding power supply is 200A and completely portable

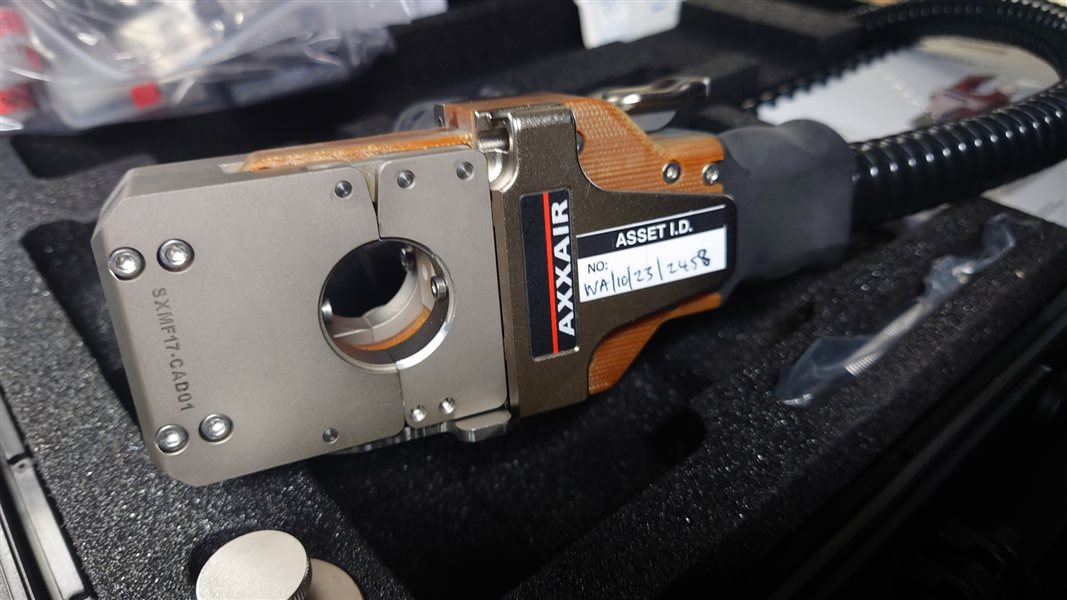

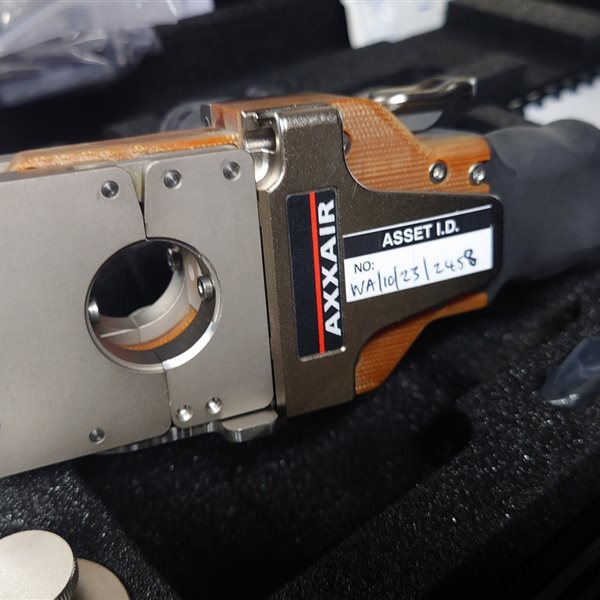

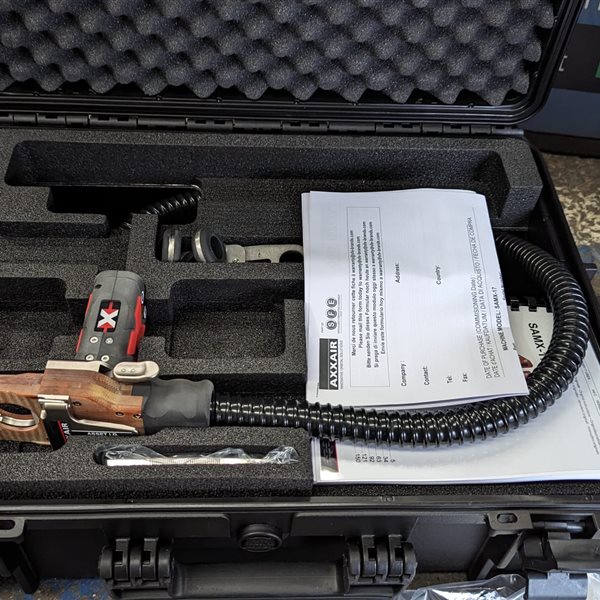

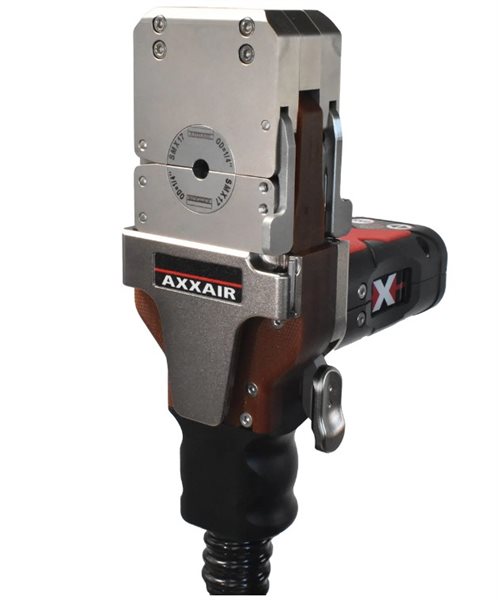

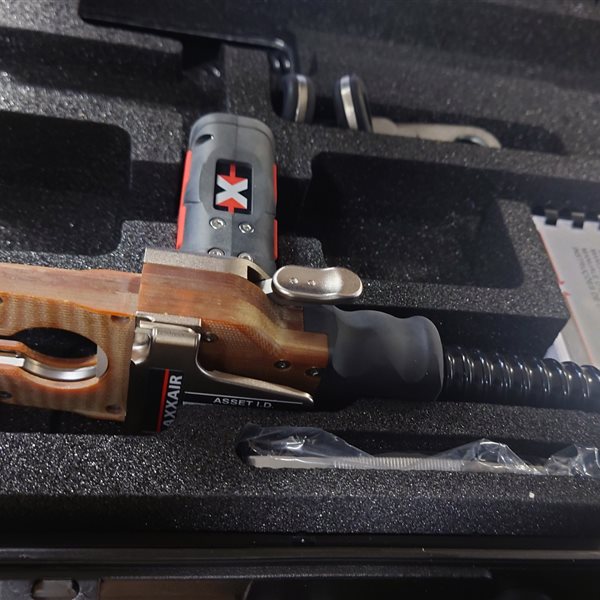

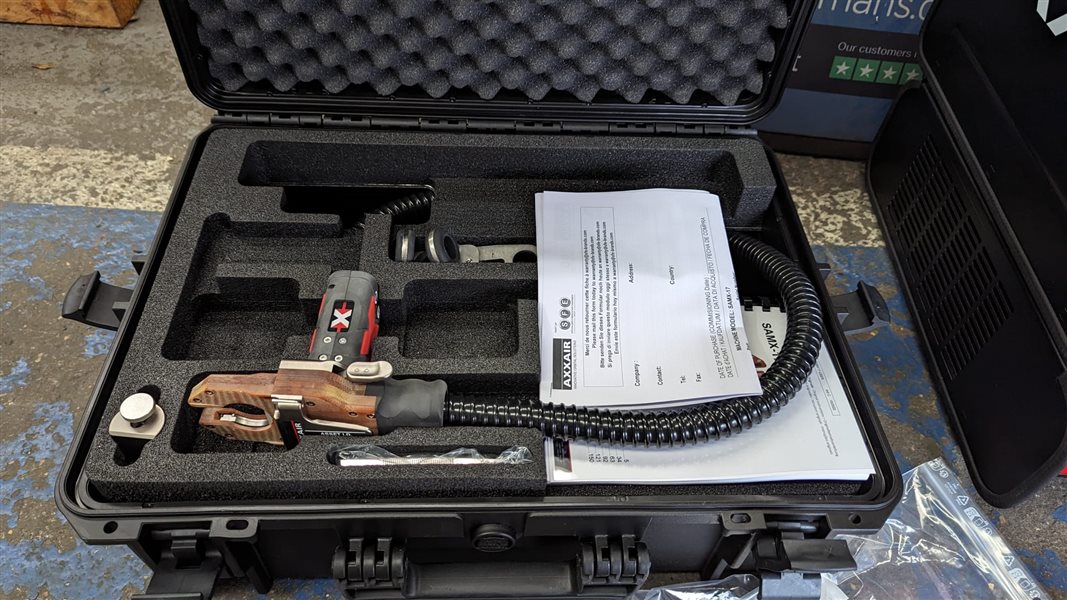

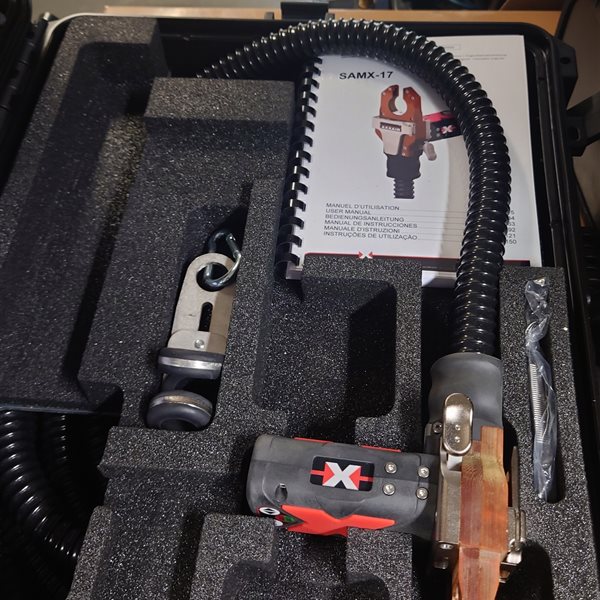

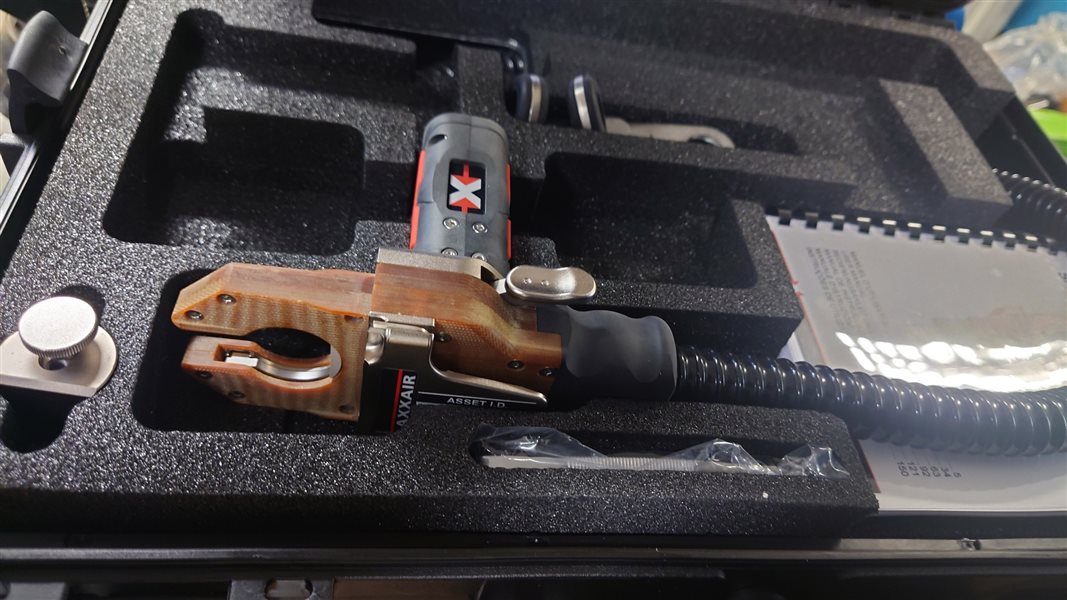

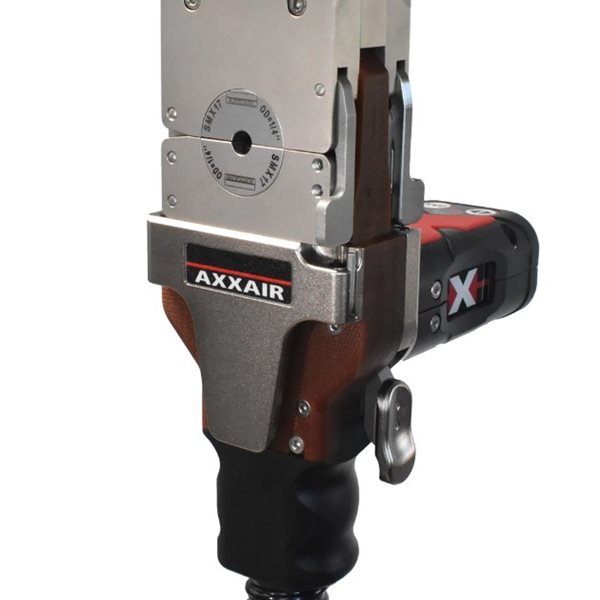

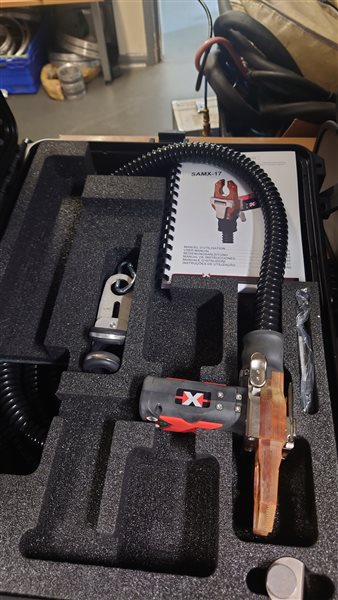

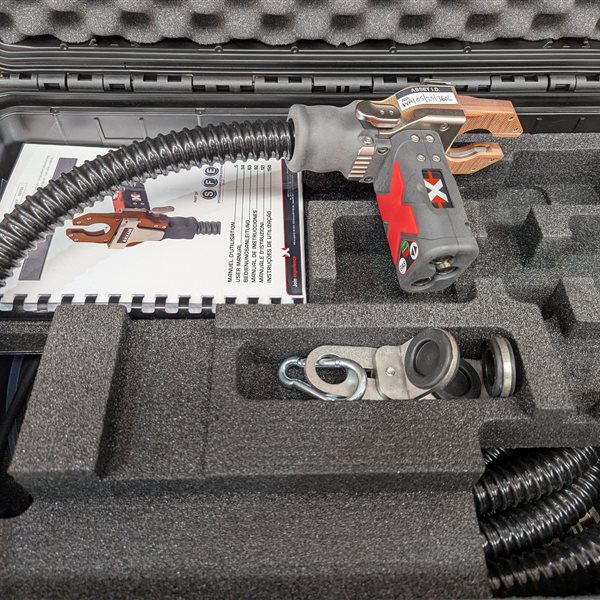

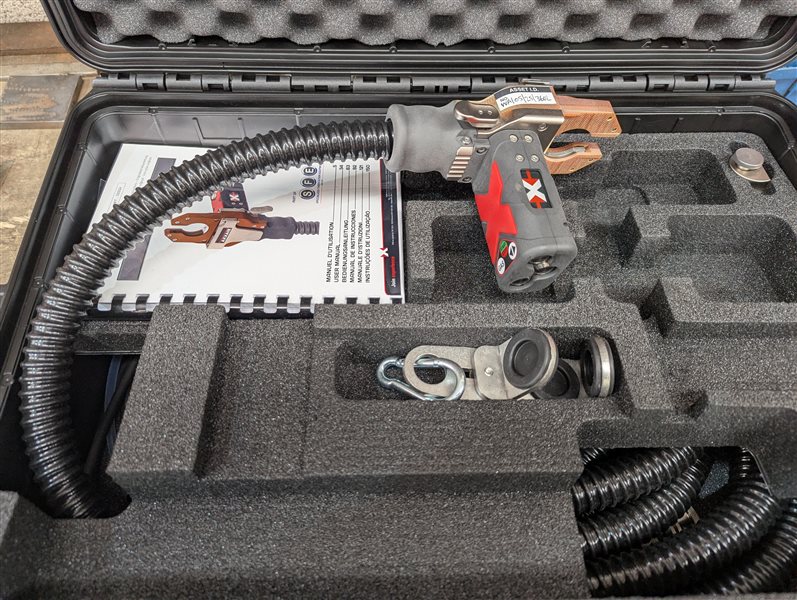

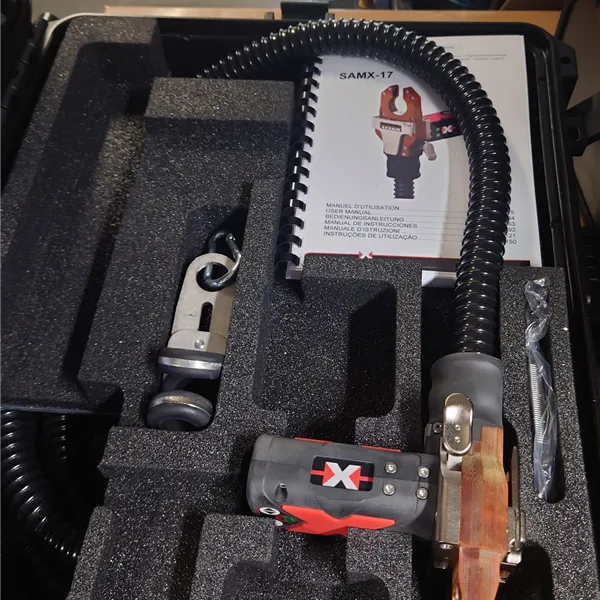

SAMX-17 Closed Weld Head. Similar to SWAGELOK Series 5 Weld Head

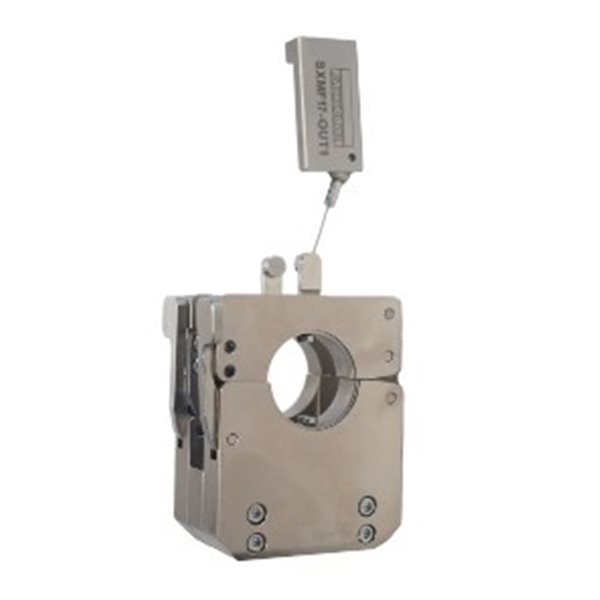

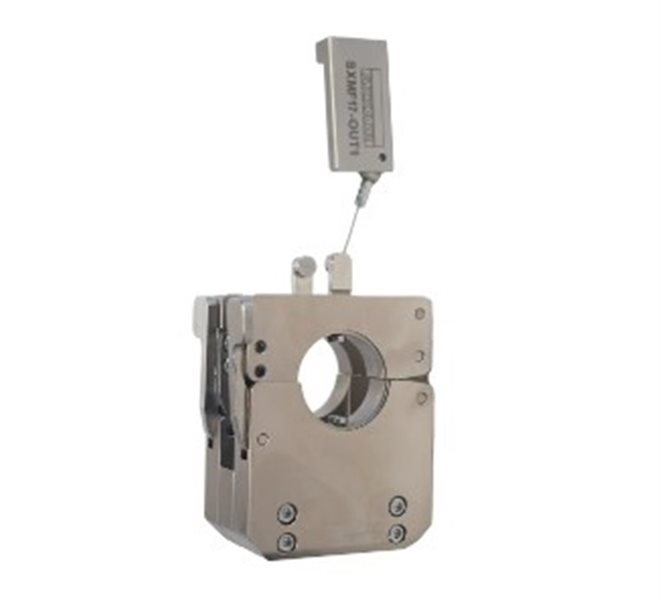

Axxair SAMX-17 Microfit Closed Weld Head - ø3 (1/8") - ø17.2mm (5/8") Axxair SAMX17-CA01 Standard Cassette, Tube-Tube ideal for tubes and fittings 3mm and up in
diameter mainly used in the semiconductor industry. Parts can be welded tube/tube, tube/fitting, fitting/fitting etc with certain configurations

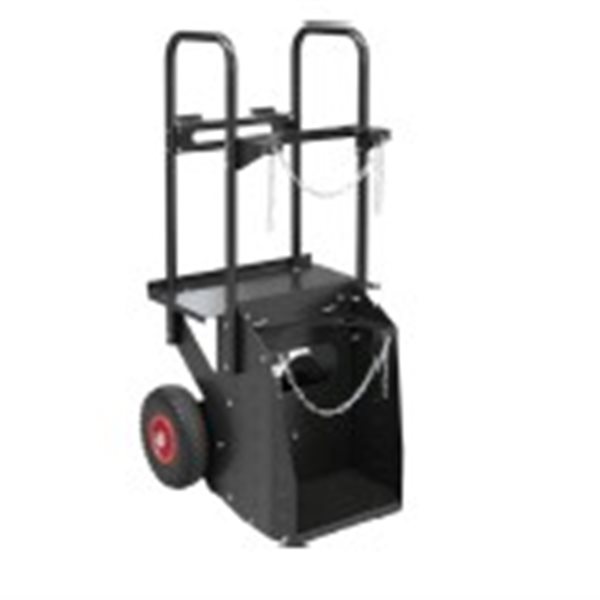

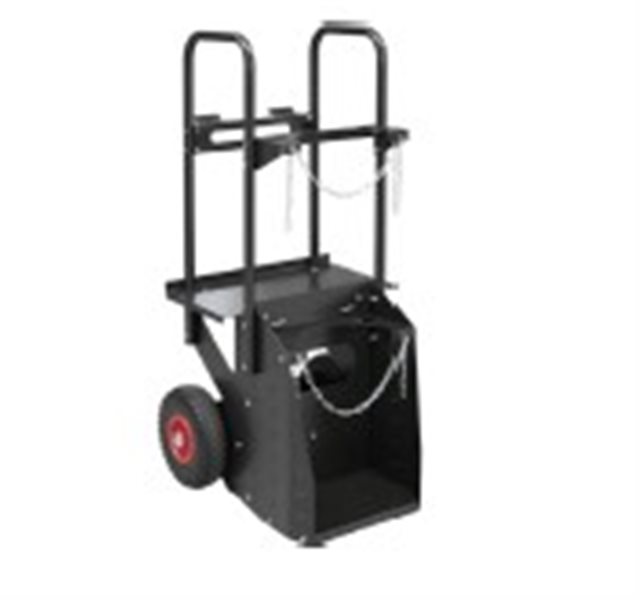

Accessories available include: Wire remote control, Trolley, Gas splitter pipe, Switchbox, TIG manual torch, Wire Feeder

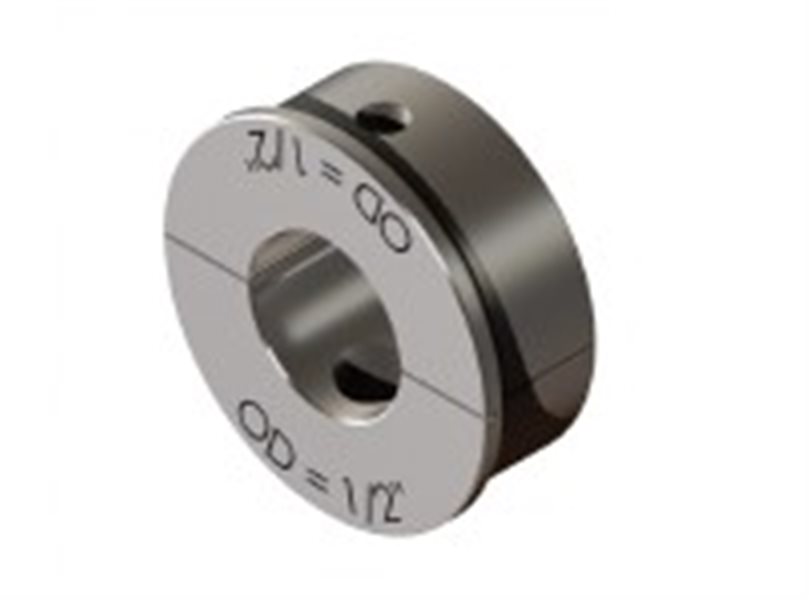

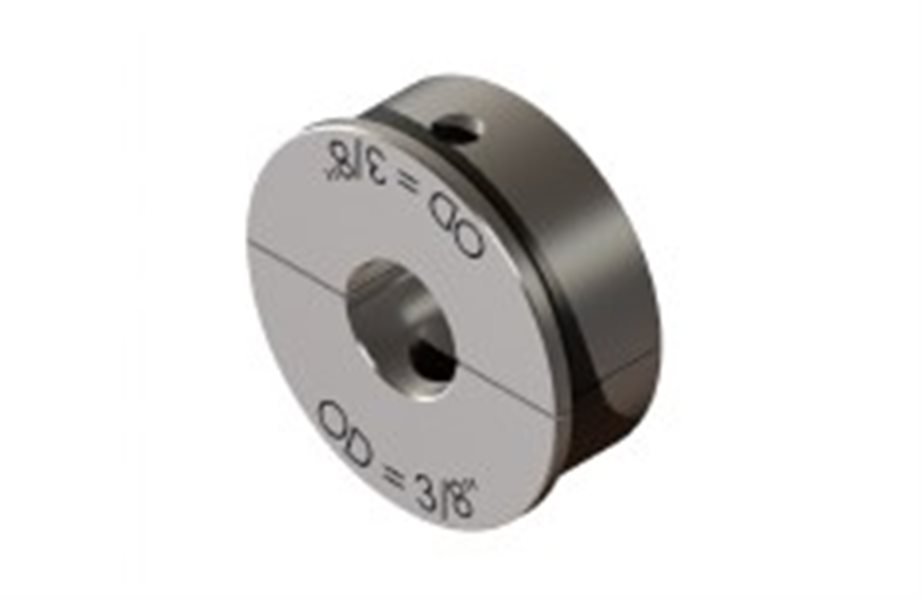

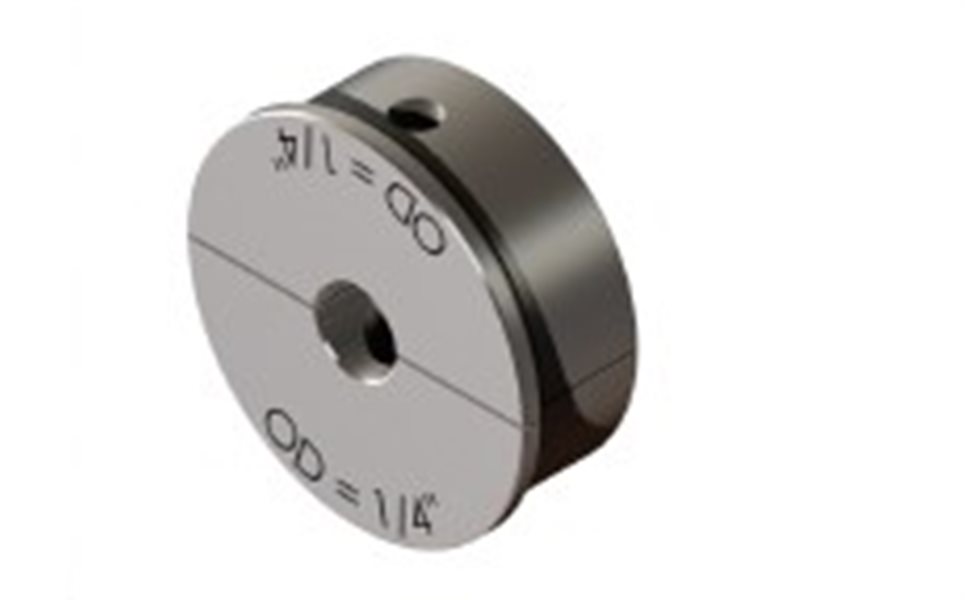

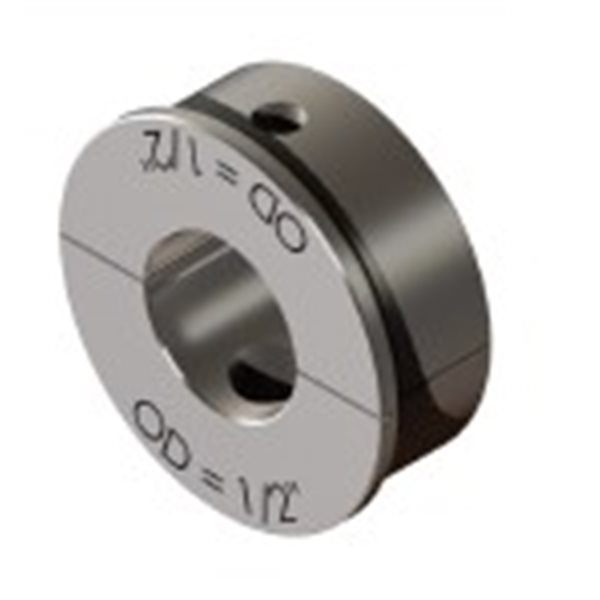

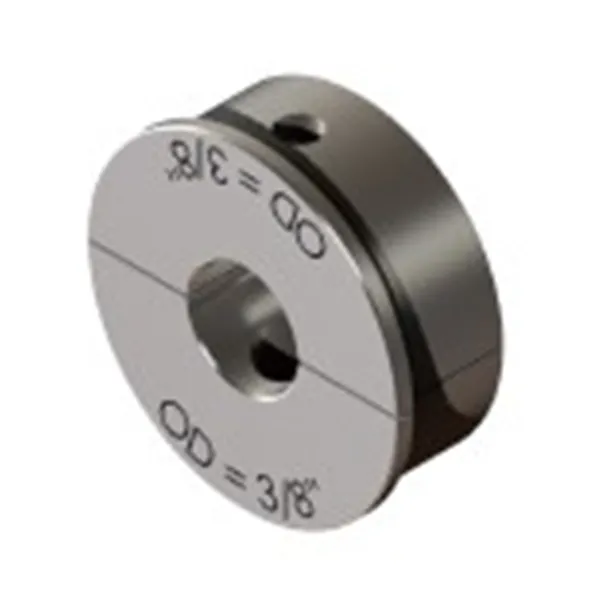

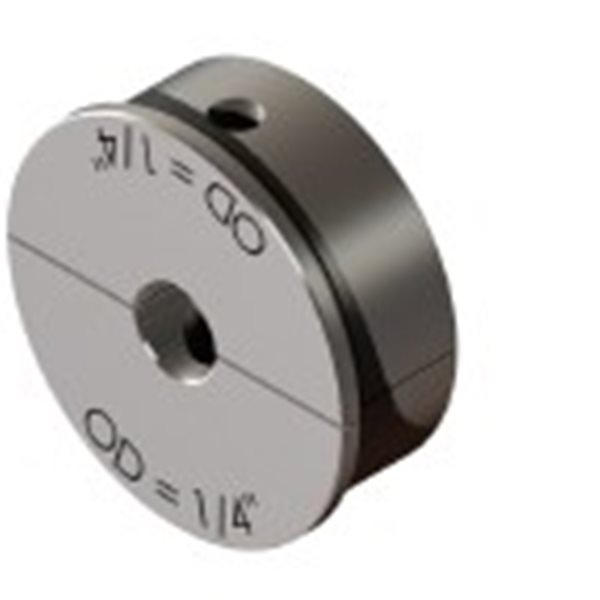

1/4" (6.35mm) Collets Set of 2. 1/2" (12.70mm) Collets Set of 2. 3/8" (9.525mm) Collets Set of 2.
Single phase 110 to 230 V, this is an affordable orbital TIG welding solution for tube to tube that has been introduced to the marketplace

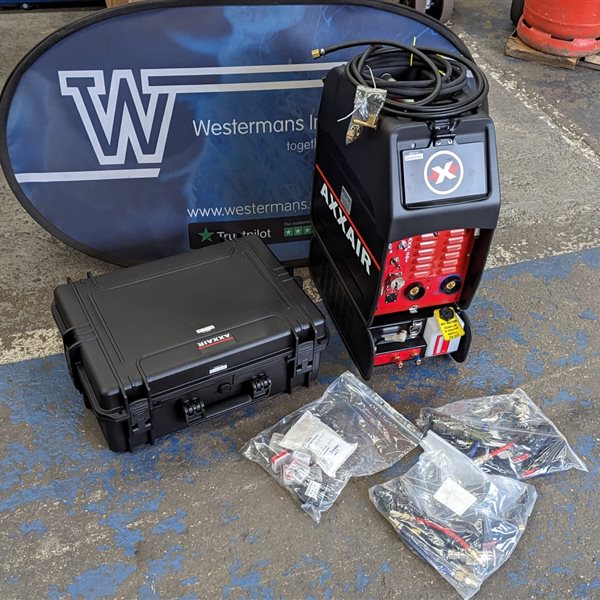

Package Includes:
