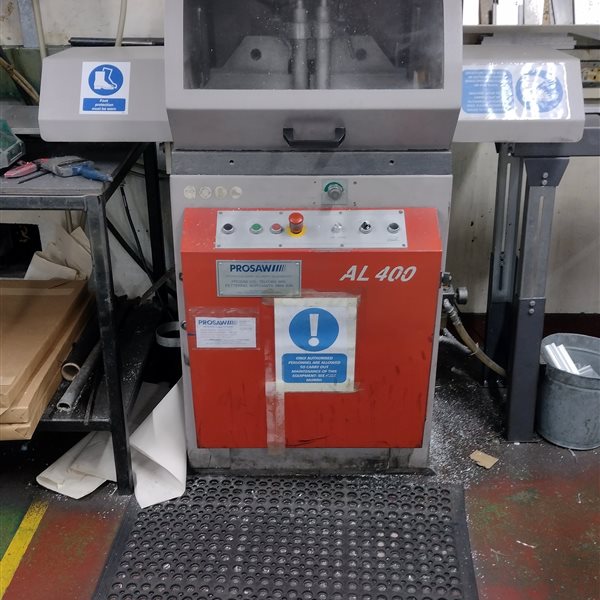

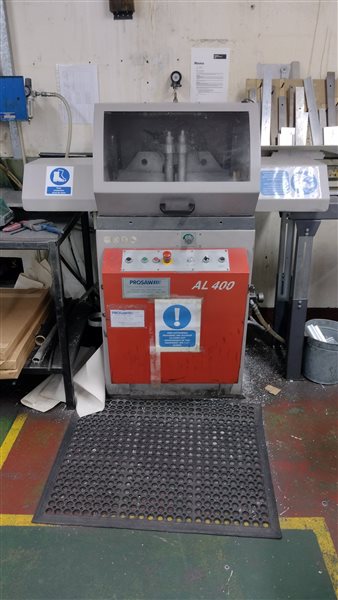

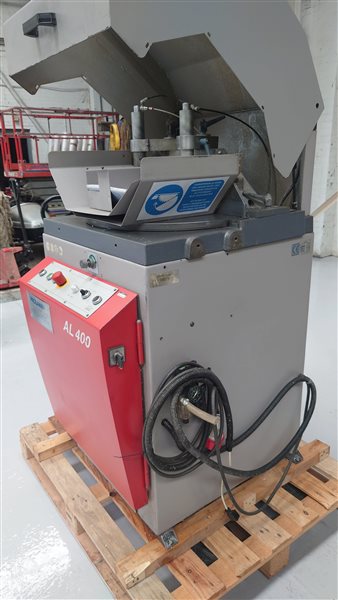

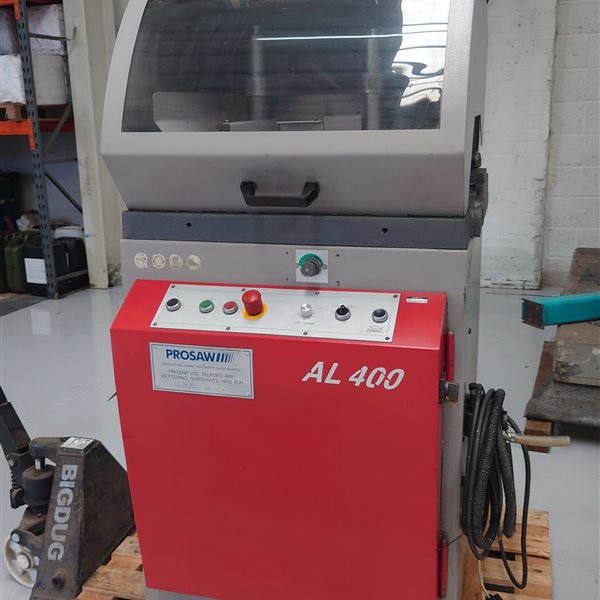

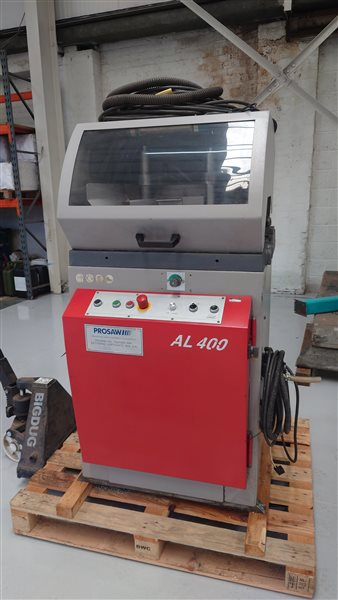

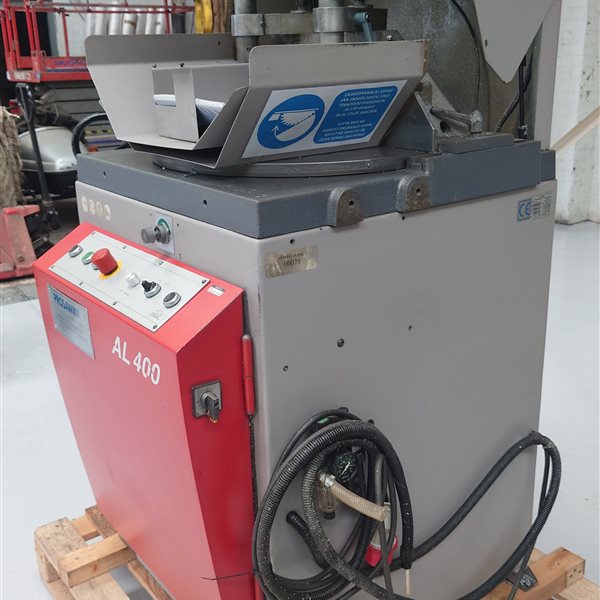

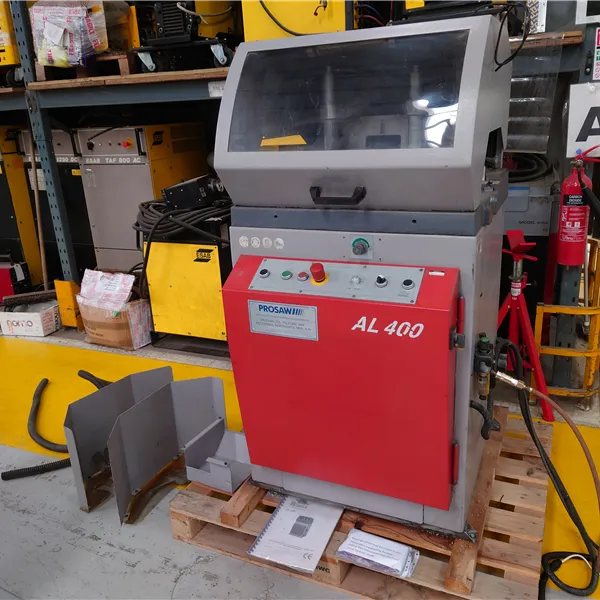

Bomar AL400 Semi-Auto Circular Saw

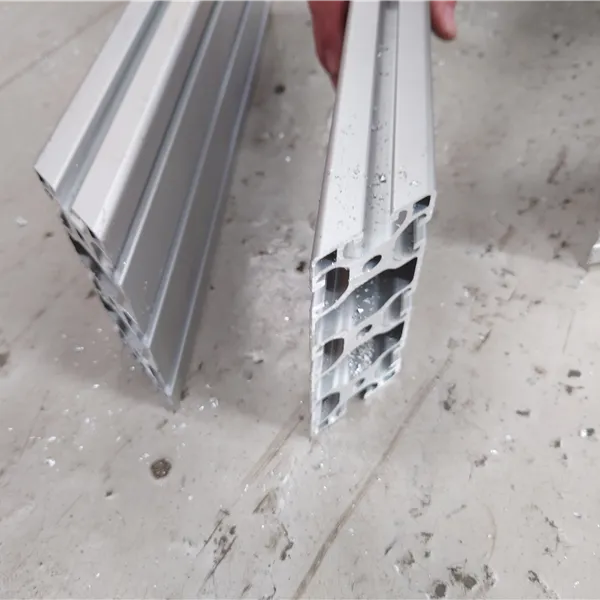

- The Bomar AL400 is a semi-automatic circular Mitre saw designed for cutting profiles as well as full materials from aluminium alloys, copper and hard plastics.

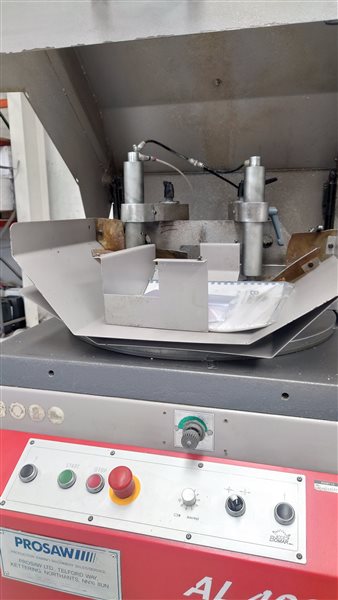

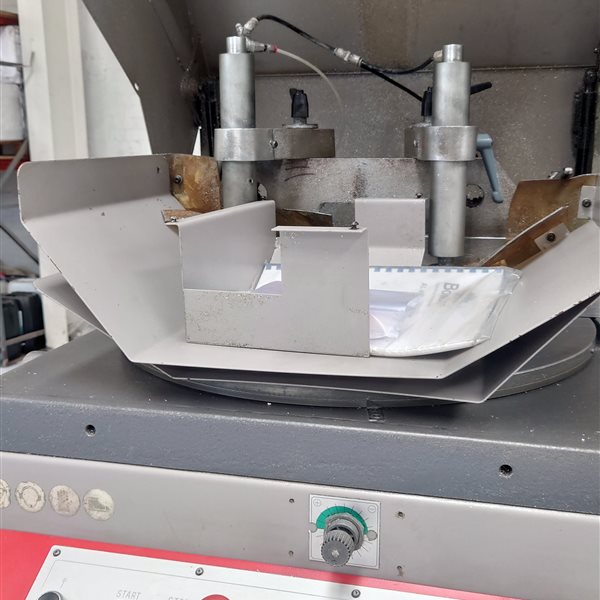

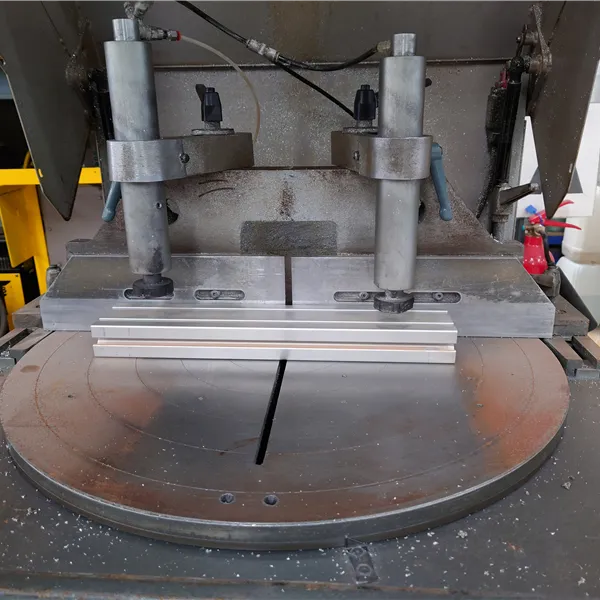

- With vertical pneumatic clamping devices for safe clamping of the processed material. Smooth adjustment of cutting angles
- The circular blade downfeed is controlled pneumatic-hydraulically. Ergonomic construction of the machine with easy control

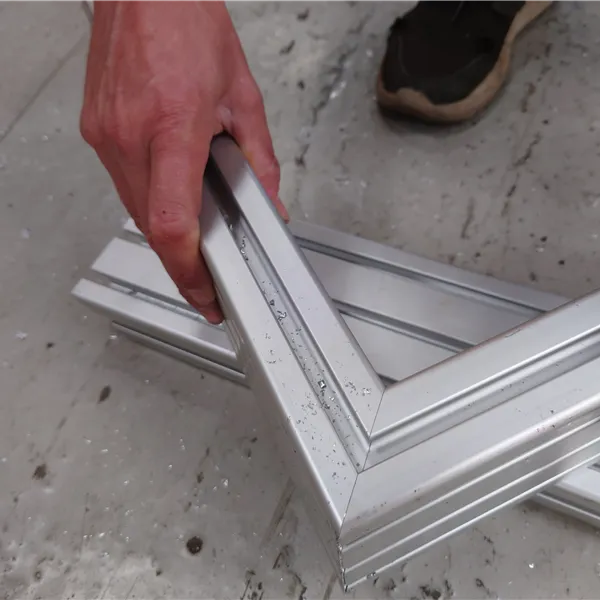

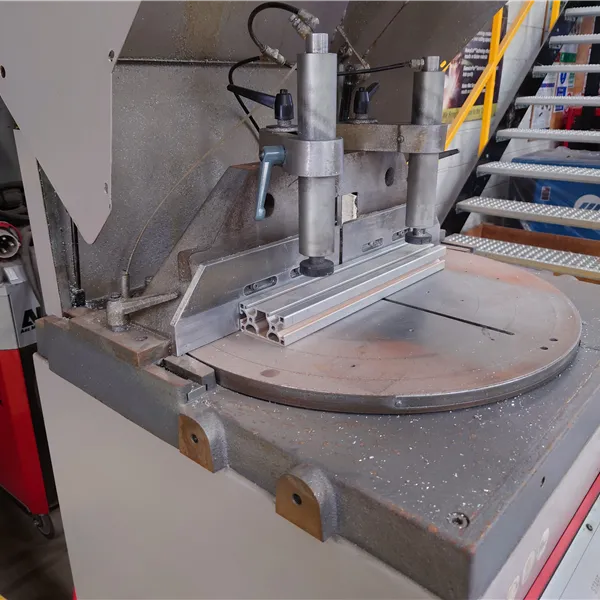

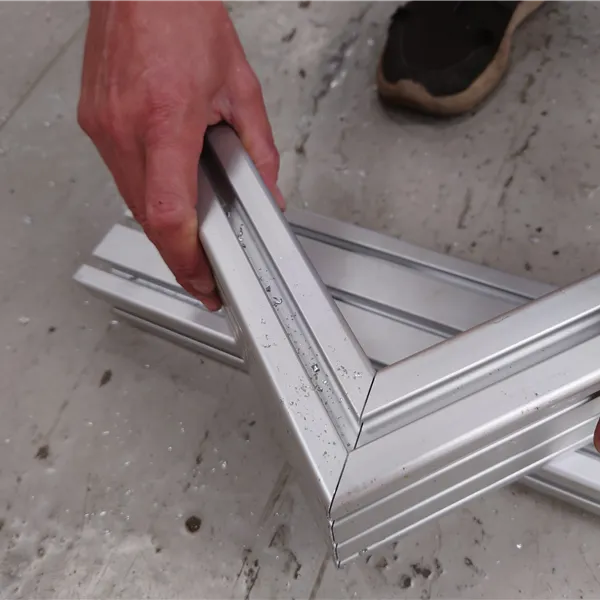

- The machine is equipped with a rotary table which turns synchronously with the circular blade, allowing the material to be cut both-sided within the 60° range left and from 0° to 60° range right

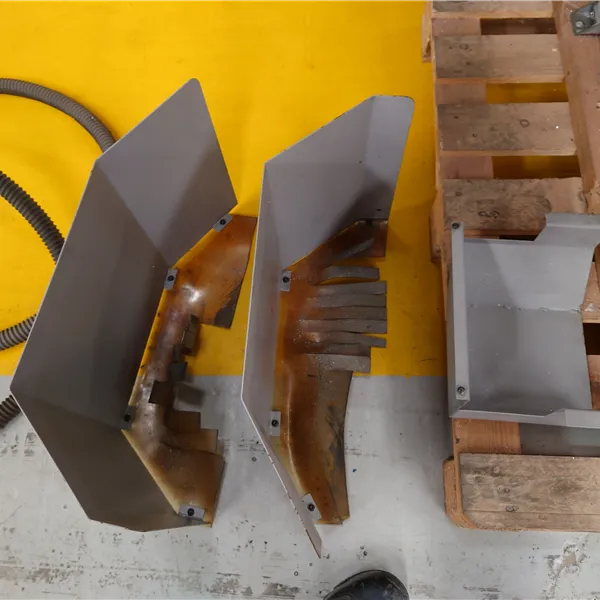

- Manual turning of the table with the circular blade may be done easily directly from the operator’s post. Electronic control of cover opening

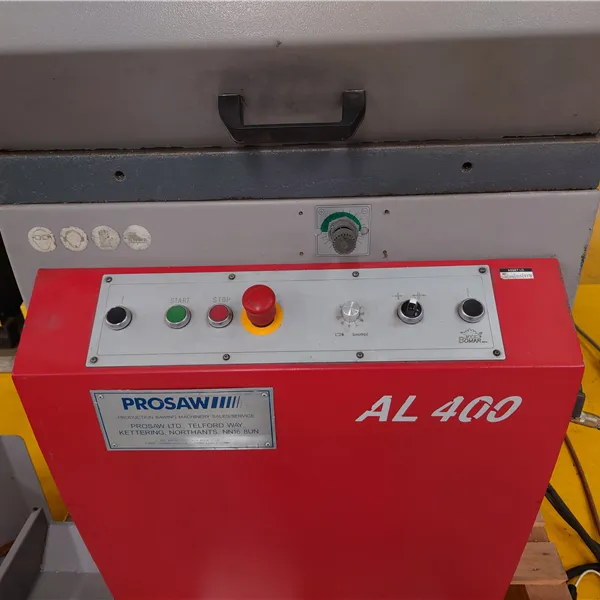

- The circular blade cutting height is set from the main control panel. The table board is equipped with rear adjustable support jaws.
- The saw can be easily connected to an exhaust device to extract fumes and dust particle
- Saw blade speed:2070 m/min. Micronizer for lubrication of saw blade
- Saw blade dimensions: Ø 400 x 30 x 4,6
- Material loading height: 1115 mm
- Shortest remnant length: 50 mm
- Smallest sawing diameter: Ø 8 mm
Lead Times
All used machines are serviced/refurbished to order, and lead times are dependant on current workload and machine type. The below can be used as a guide only, and is subject to change. If you have a deadline you need the equipment by, please contact us prior to ordering. We will always do what we can to try and work with your timescales where possible.
- “As Is” machines: 2-3 working days.
- “Serviced” machines: 7 working days.
- “Refurbished” machines: 2-3 weeks.
- “New” machines: subject to stock and supplier lead times where applicable.
Shipping
All shipping costs include packing.
UK*
- Parcel delivery: from £15 next day courier
- Pallet delivery: from £75
- Large item delivery: TBC by quotation
Northern Ireland
- Pallet delivery: £120
- Parcel and large item delivery: TBC on quotation
Ireland
- Pallet delivery: £220
- Parcel and large item delivery: TBC by quotation
Europe and Overseas
All welding equipment and machinery is sold and supplied Ex-Works, unless otherwise stated. We can however provide full freight forwarding facilities via road, sea or air freight. We work with our reliable shipping partners for one off items, up to the loading of 40ft containers. For a quotation, please contact us with your destination address/port, along with any other specific documentation requirements.
* Rates for mainland UK, subject to change. If in doubt, please send us your delivery postcode for confirmation
