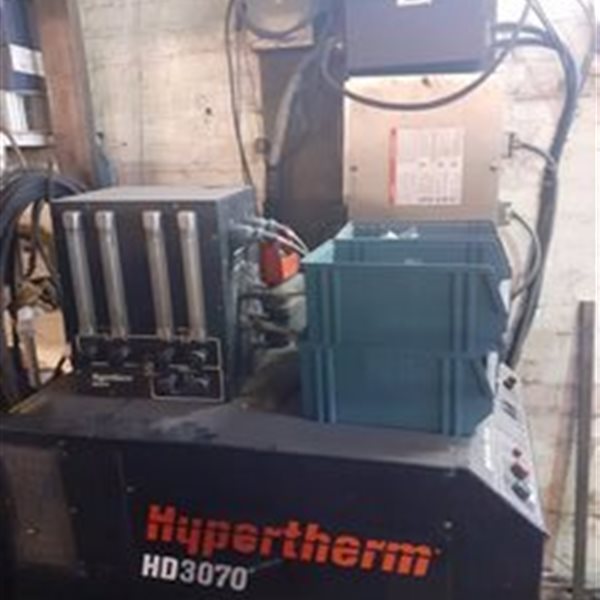

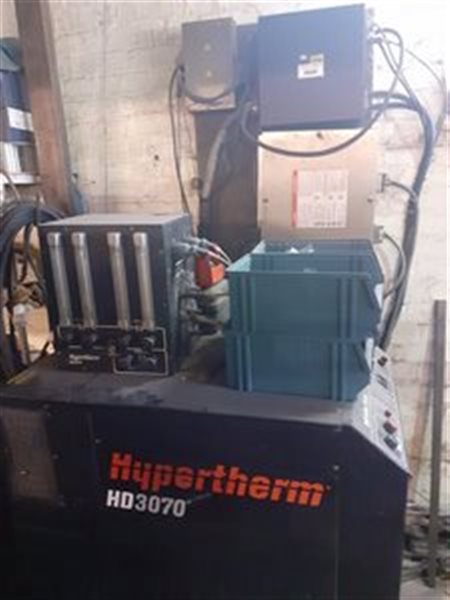

Hypertherm HD3070 HyDefinition at present fitted to a Esprit table
In Stock Now
- The HD3070 can be configured for different cutting applications by providing a selectable current output at 15, 30, 50, 70 or 100 amps
- for optimum performance cutting on materials up to 20mm
- This allows the operator wide variations in cutting speeds on the same thickness of metal.
- The gas console provides five inlets for the different plasma and shield gases required for different cutting applications.
- The HD3070 is designed to cut mild steel, stainless steel, copper and aluminum with the appropriate gases and consumables selected.
- Plasma gases required for cutting are either oxygen, air or an argon-hydrogen and nitrogen mixture depending on the application.
- The shield gas aids in assisting cut quality by providing an atmosphere around the plasma arc on the surface of the work piece. The shield gas also cools the shield at the front end of the torch.
- Film clip shows Hypertherm 3070 fitted to a Farley CNC cutting 25mm which we supplied previous to a client
