Lincoln Linc-Cut 1530D Plasma Cutting Machine with Downdraught Table

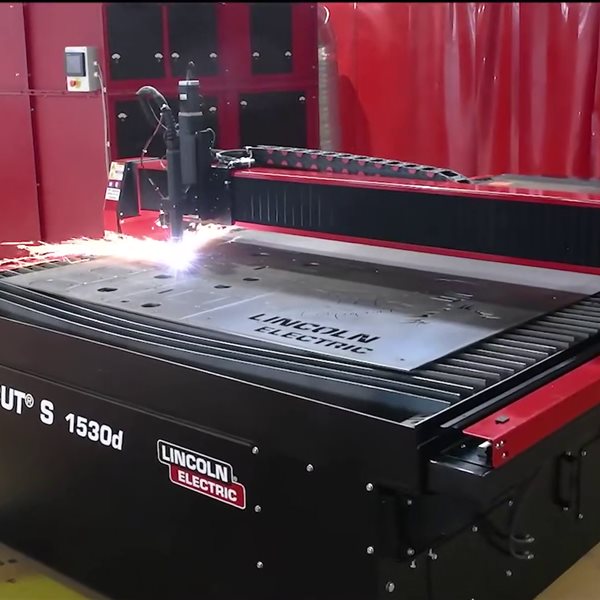

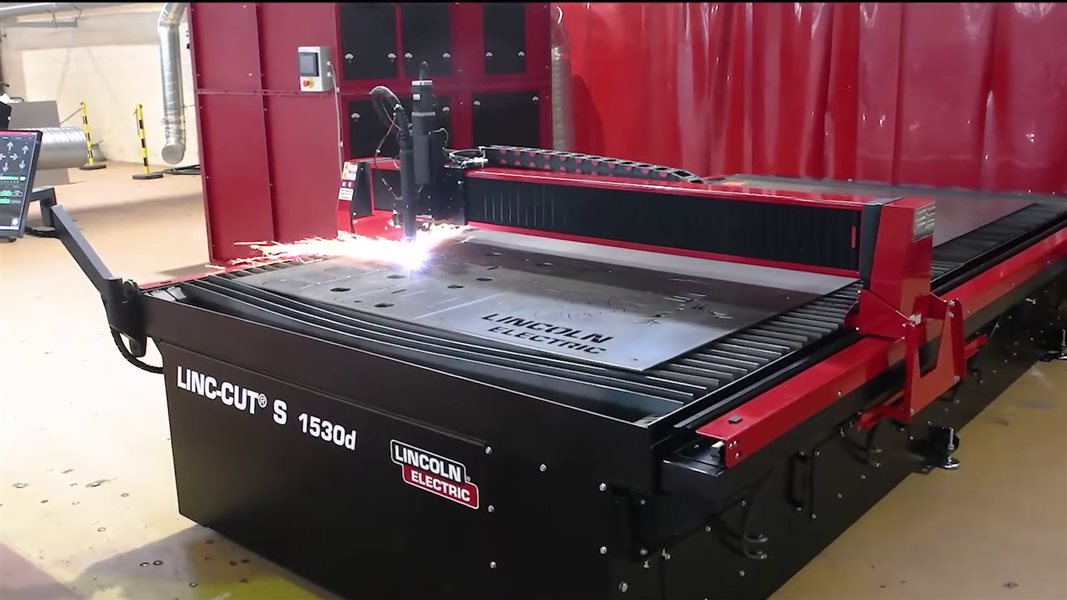

• Lincoln Electric Linc-Cut 1530d plasma cutting machine is a compact CNC plate cutter with downdraught cutting table for mild steel and stainless steel
• The Linc-Cut machine is very easy to set-up, install and operate.
• Plate cutting area of 3000mm x 1500mm
• The maximum material thickness is 25mm
• Fitted with a Lincoln Electric Flexcut 125 amp plasma cutting system (Power Supply Unit, Torch Assembly, Torch leads, IHS/AVC)
• Plasma Cutting Post. (Torch Height Control) The torch height control is a motorised control system that raises and lowers the torch assembly before during and after cutting.
• Low operating costs: Long life of consumables. Fast cutting speeds. Virtually dross-free cuts reducing the need for additional finishing
• Laser positioning mode for aligning the sheets, defining the starting point or in test mode. Plate alignment simplifies material loading, especially when dealing with thicker metal sheets.
• Complete with Taglio CADCAM and nesting software together with easy to follow training tutorials. 36 standard shapes comes pre-loaded into the software, and includes a set of adjustable shapes from a basic rectangle to complex circular flanges

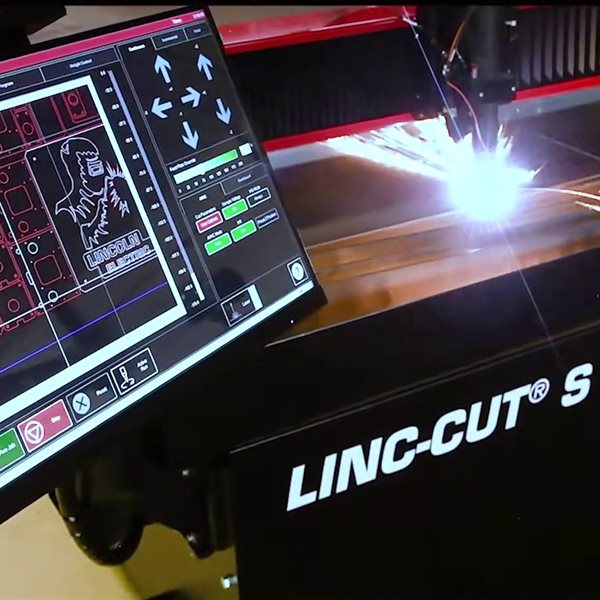

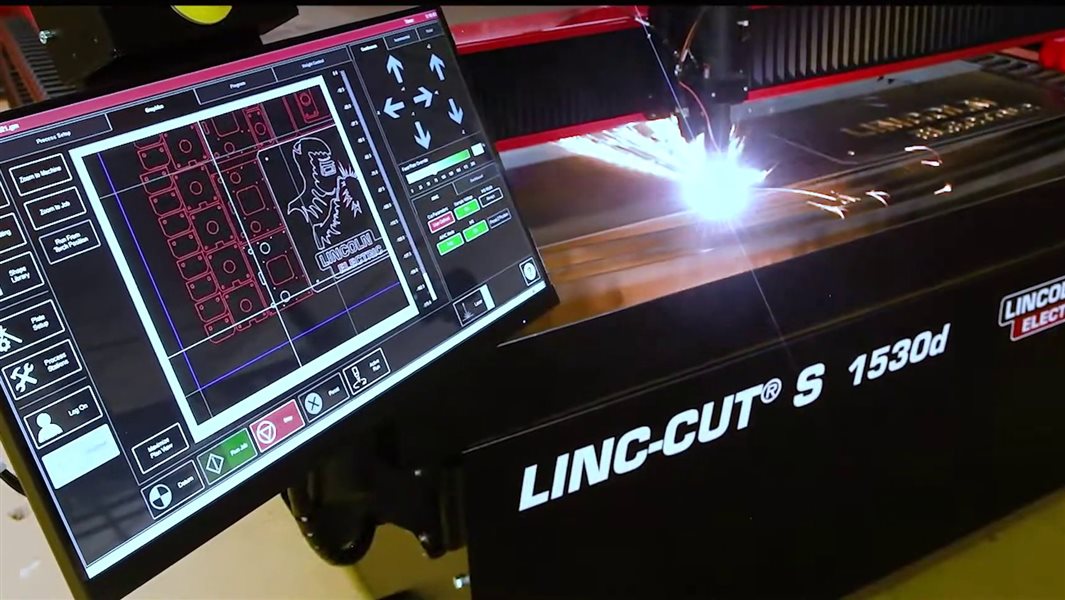

• Large and intuitive touch screen, the control system VMD is the human-machine interface (HMI) of all ACCUMOVE® CNC controllers. Its user-friendly design and appealing layout is very easy to learn.
• Supplied with a software package to be installed on your pc to: Draw pieces according to plans. Import standard formats .dxf, .dwg. Nest and generate machine programs
• Plasma cutting with the option for plasma marking
• This system only needs a clean dry compressed air supply
• Optional Extras: Fume extraction and filtration system.

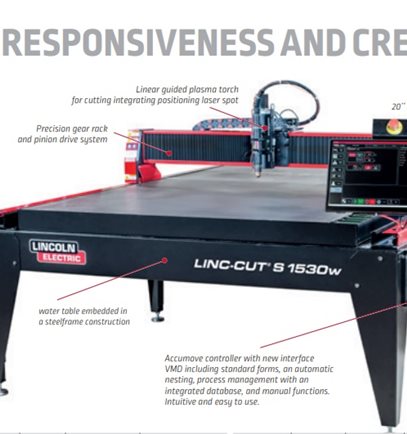

• Video shows model 1530w which has a water table embedded in the frame. See Product ID 16743

Package Includes:

• 12 month warranty
