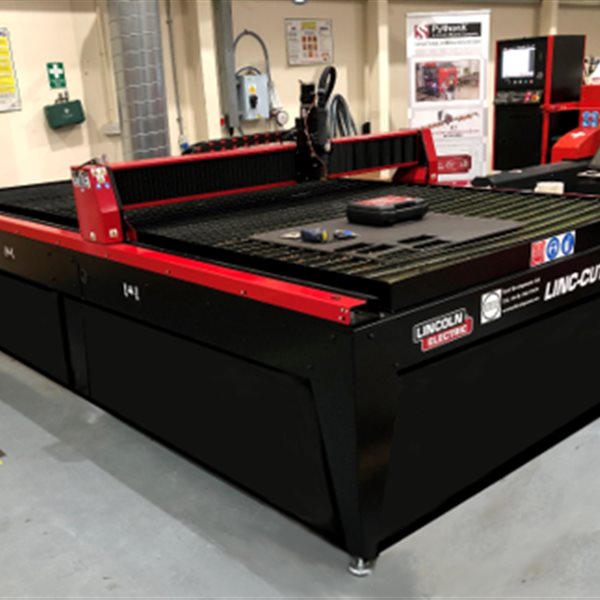

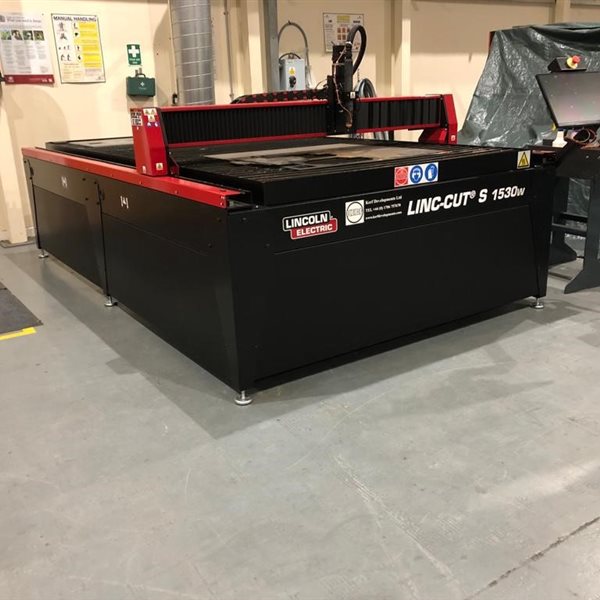

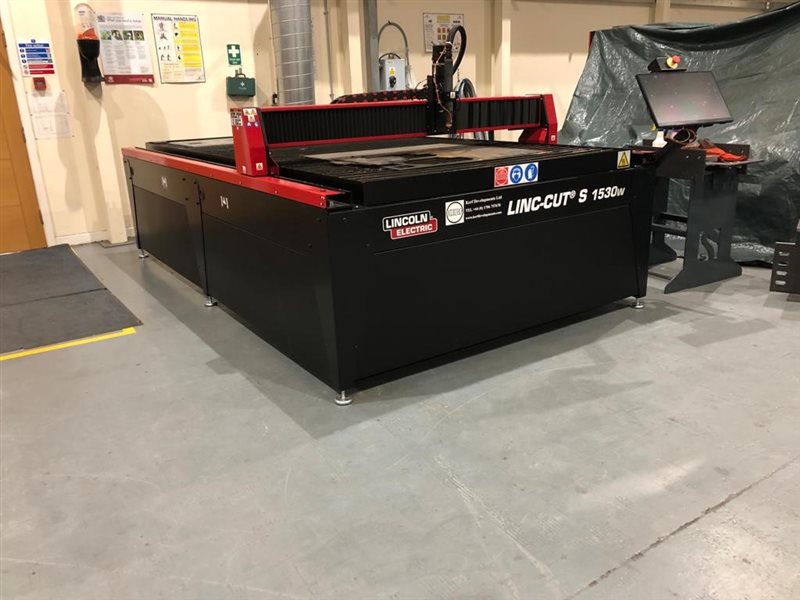

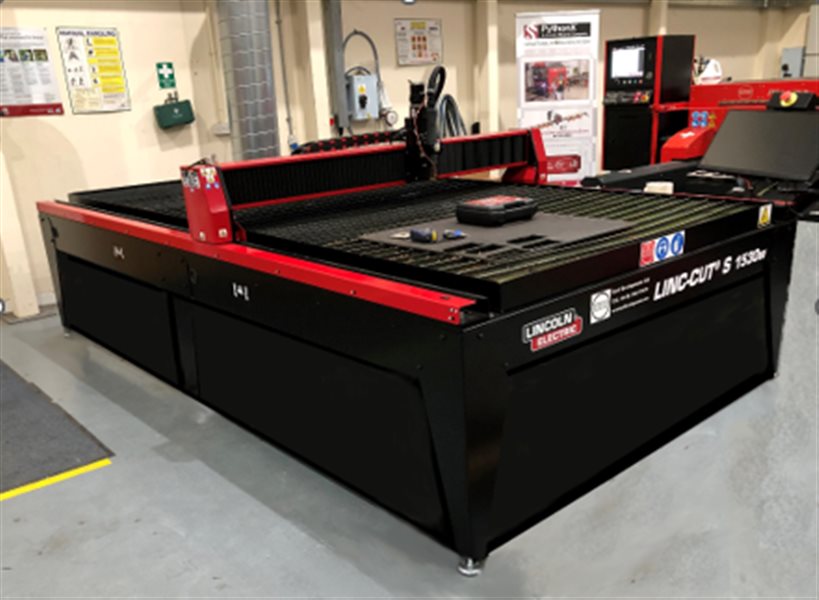

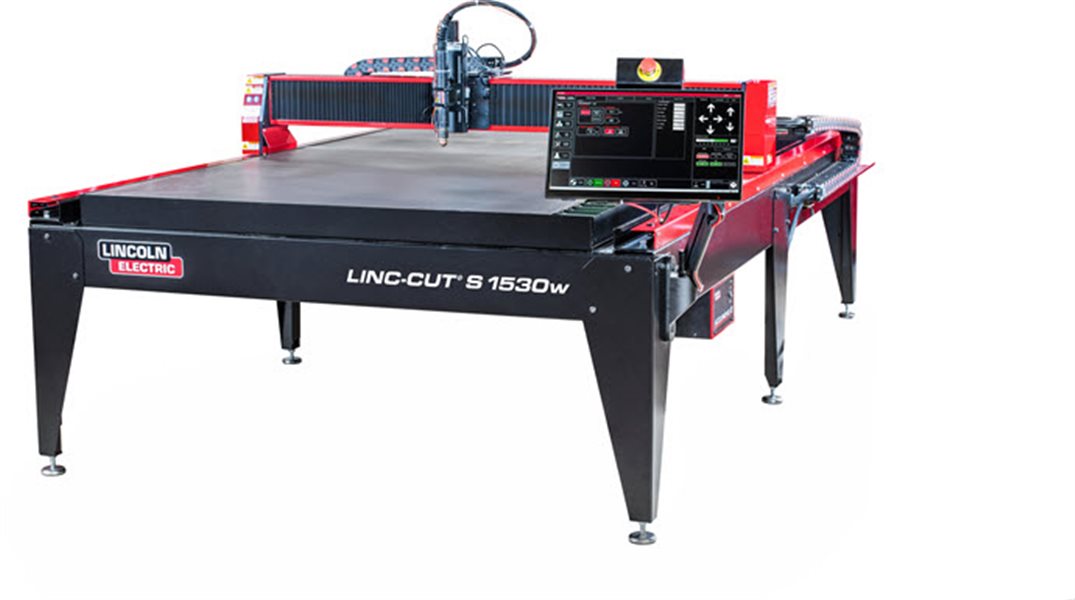

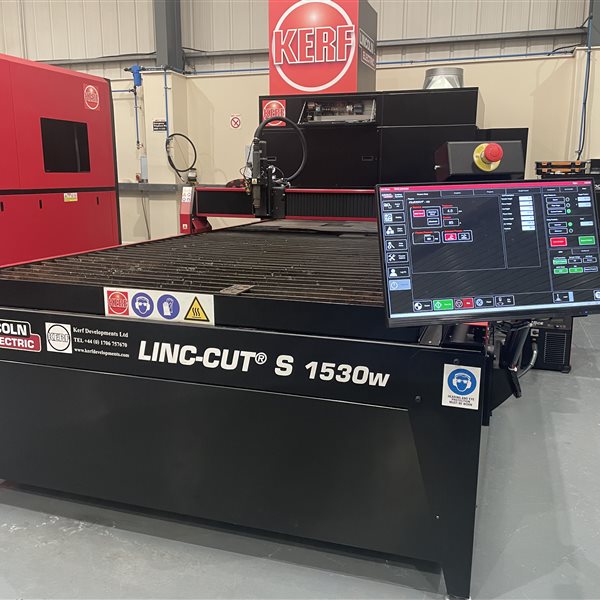

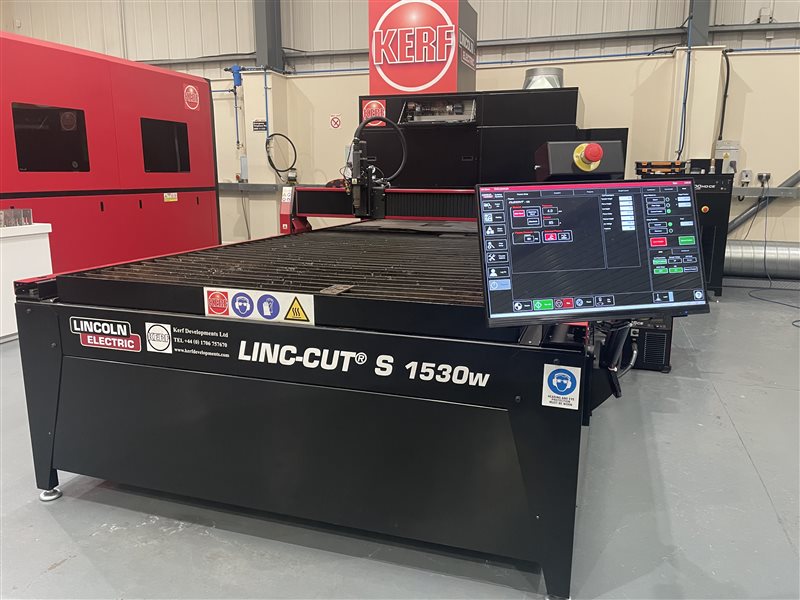

Lincoln LINC-CUT S 1530w CNC Plasma Cutting table

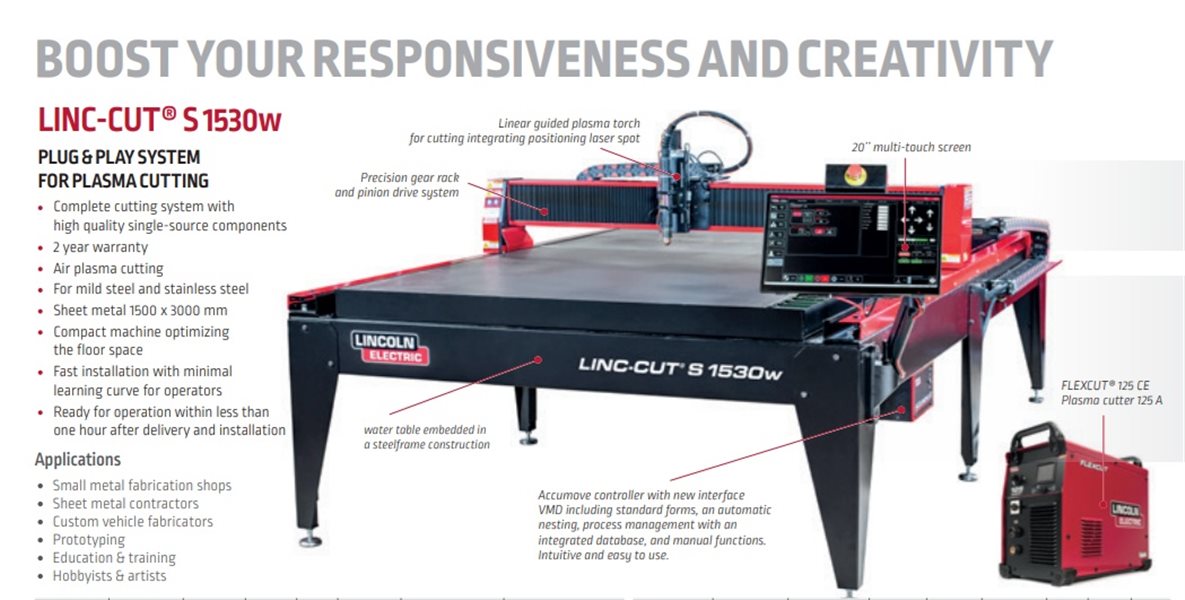

• The Linc-Cut S 1530W concept relies on fast and simple set up. The new Lincoln Electric is a plug and play CNC Plasma cutting system for cutting metal sheets up to 1.5m x 3m
• Optimising compact floor space this cutting table is perfect for mild steel and stainless

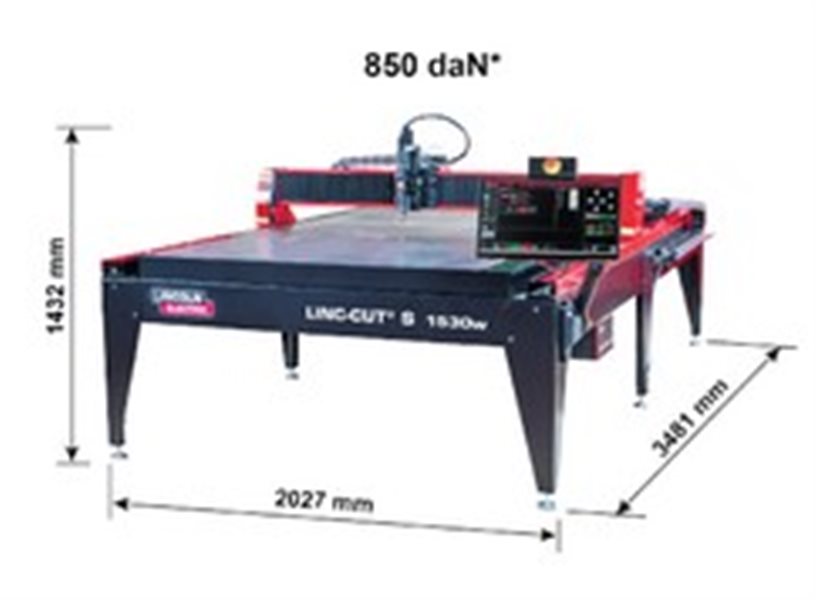

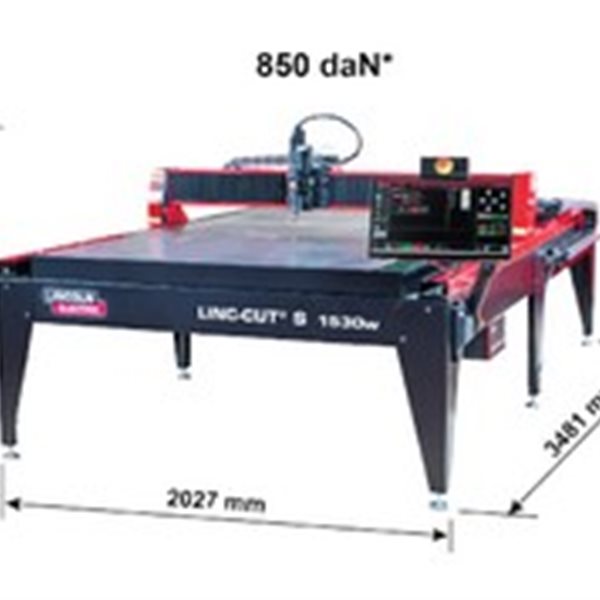

• Max cutting width 1500mm. Max cutting length 3000mm. 25mm cutting and piercing capacity using the powerful 125A Air Plasma FLEXCUT™ 125 CE Plasma cutter
• Through the FLEXCUT technology using compressed air, the plasma cutter produces a high level of quality for the cutting on carbon steel & stainless steel with cost efficiency.
• Reducing post process operations with less dross and better edge
• Design. Digitise. Nest
• The machine is supplied with a software package to be installed on your PC to import formats .dxf, .dwg, to draw pieces, to nest and generate machine programs.

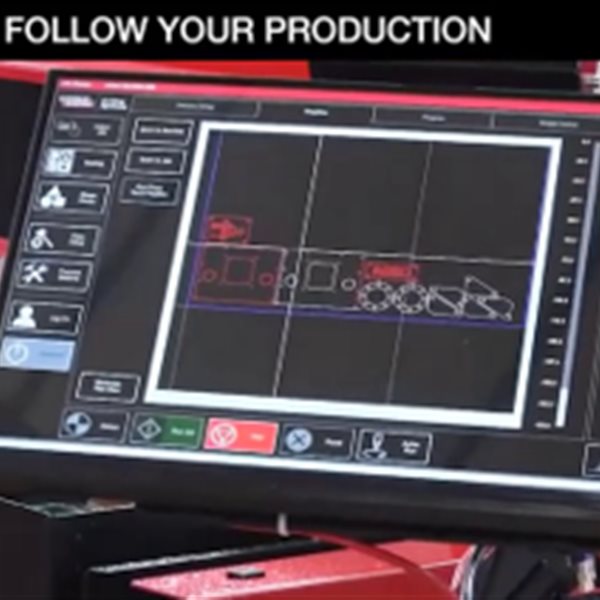

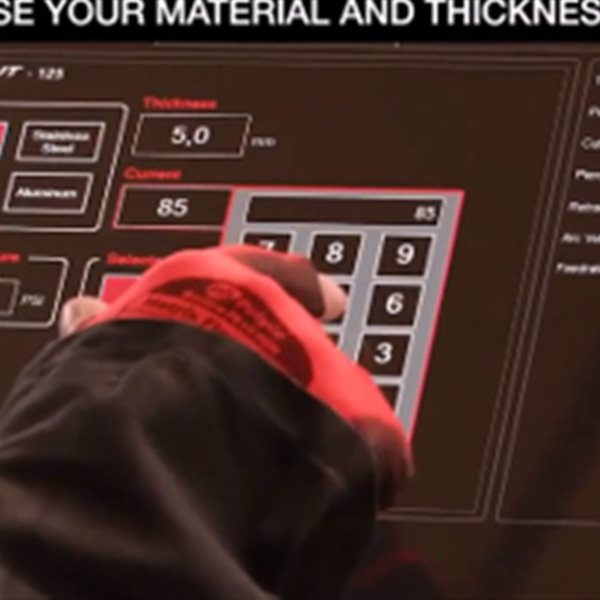

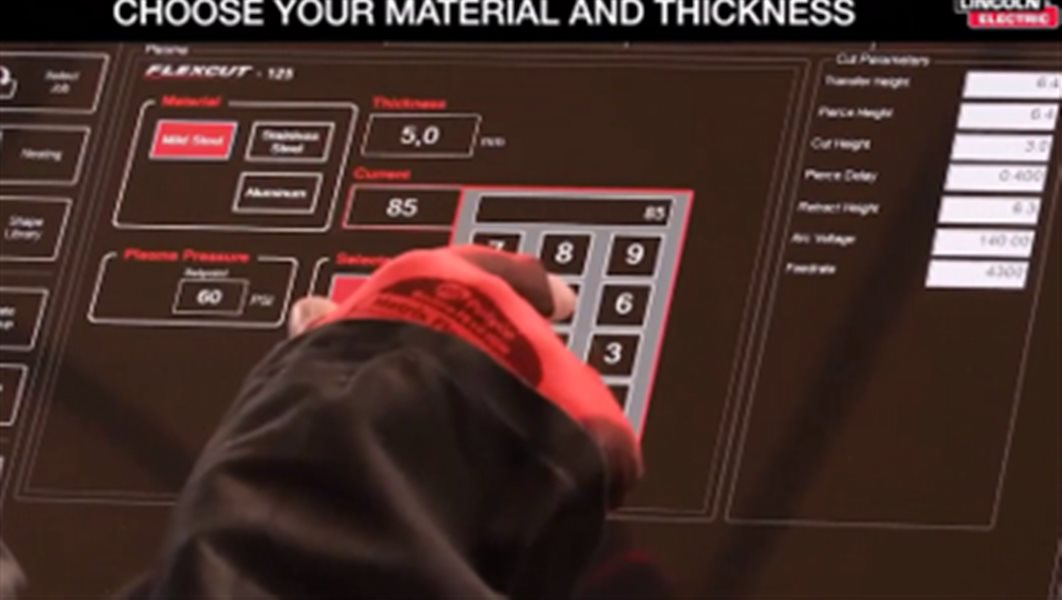

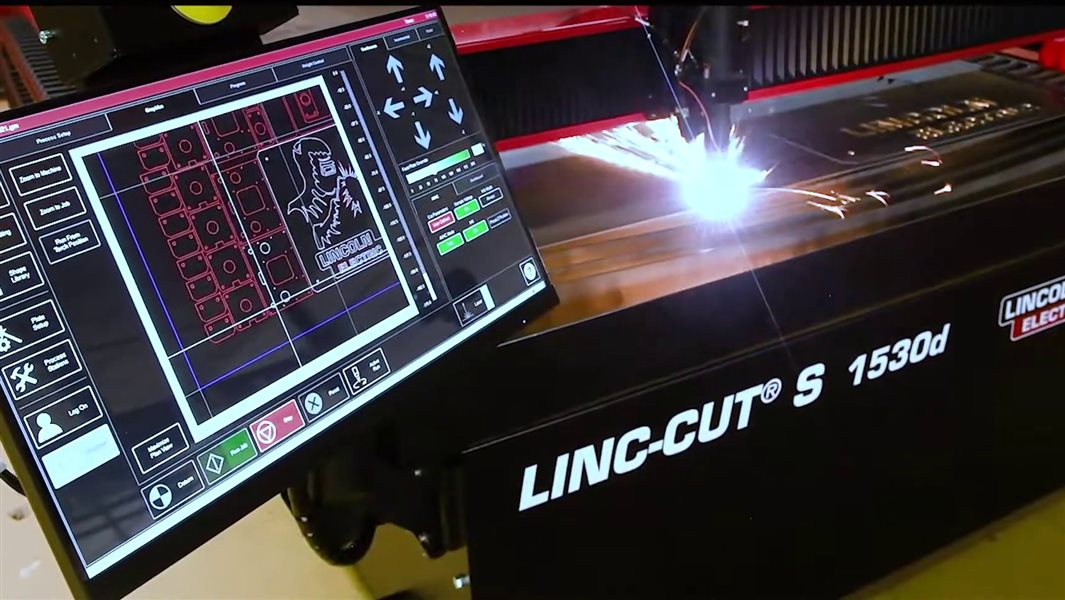

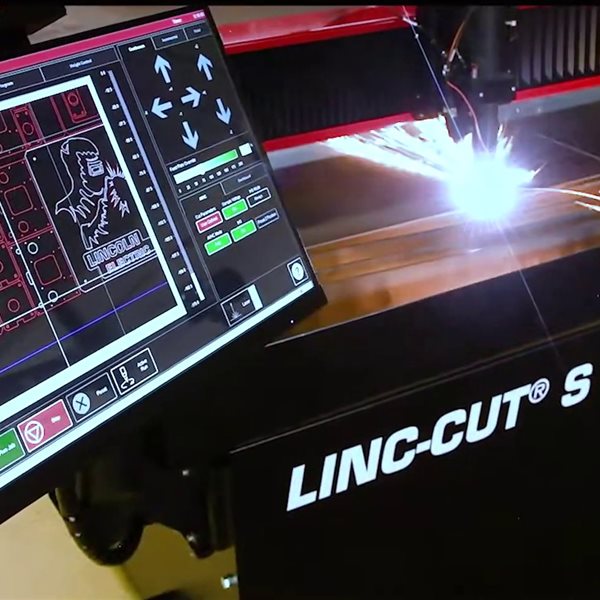

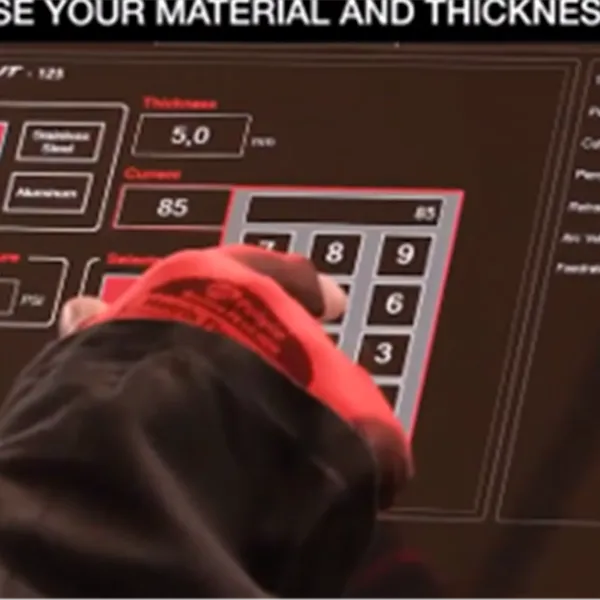

• An intuitive 20” touch screen HMI with an integrated 36-part shape library will get you cutting within the hour of delivery

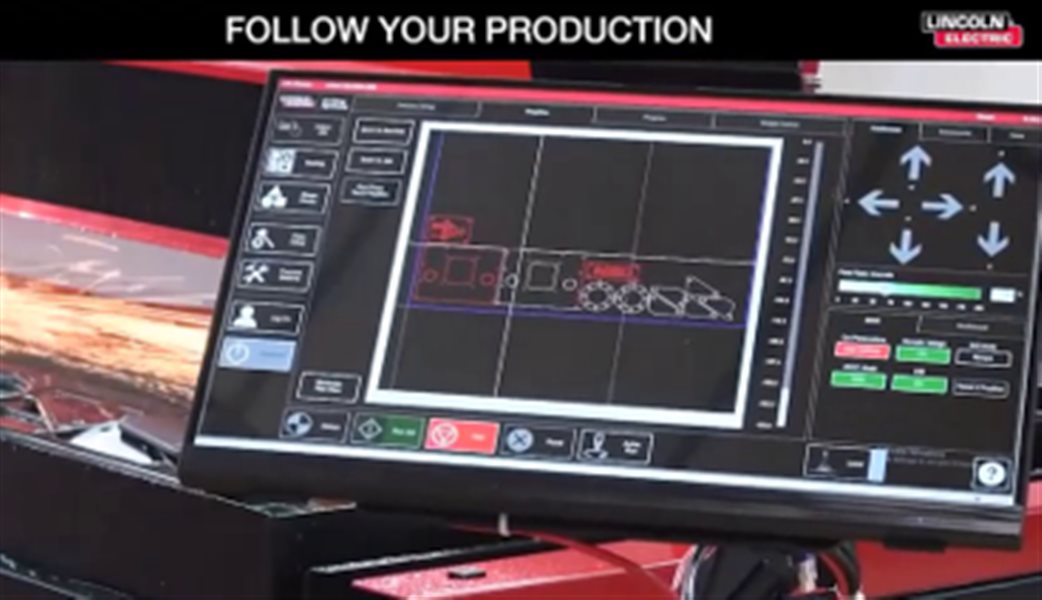

• VMD is the human-machine interface (HMI) of all ACCUMOVE® CNC controllers. Its user-friendly design and appealing layout is very easy to learn. The controller to simplify the cutting process:

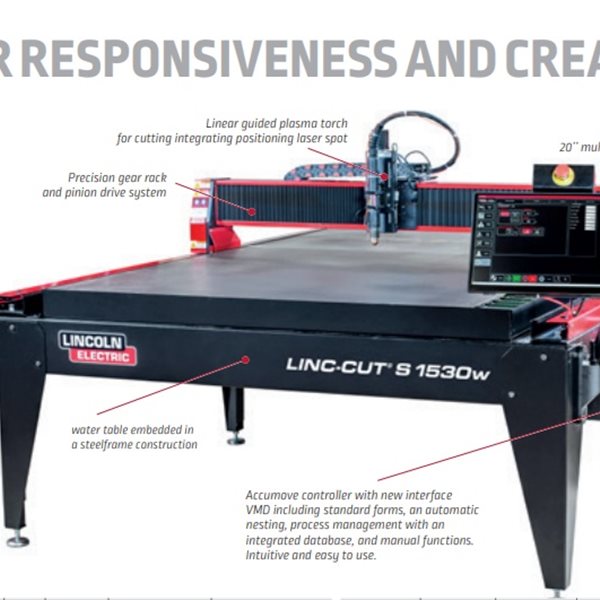

• Precision gear rack and pinion drive system and linear guided plasma torch. A laser spot simplifies the alignment of sheets

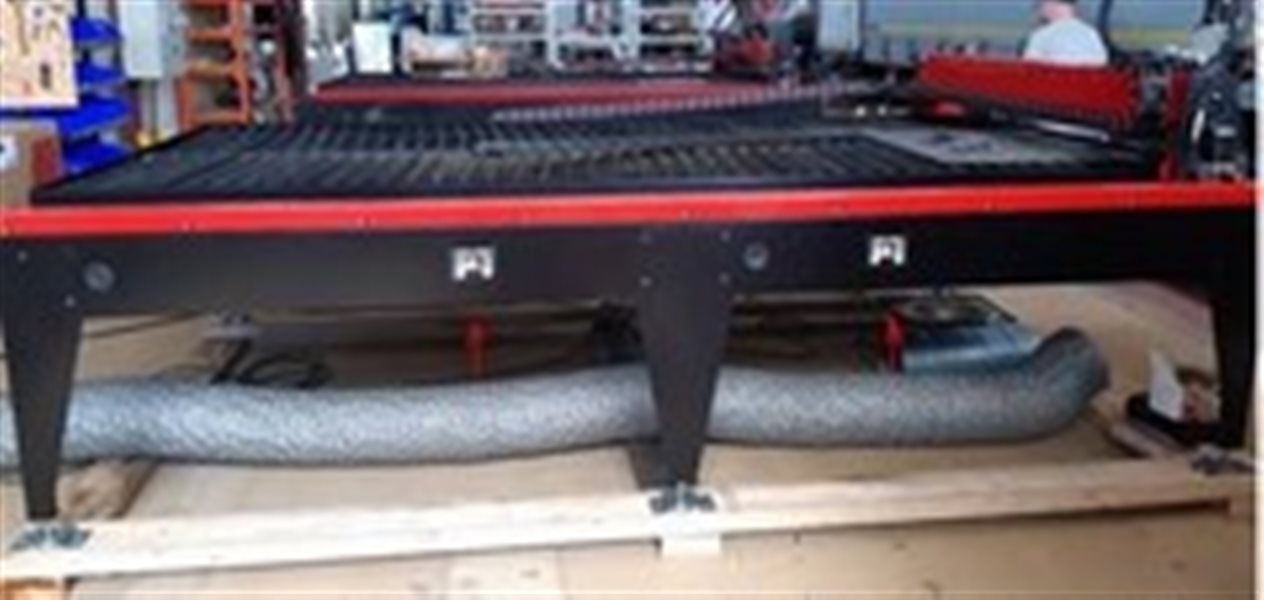

• The water table embedded in the frame consists of a strong table makes it possible to capture the dust released during cutting.
• This package is perfect for small metal fabrication shops, sheet metal contractors, prototyping, education and training centres.

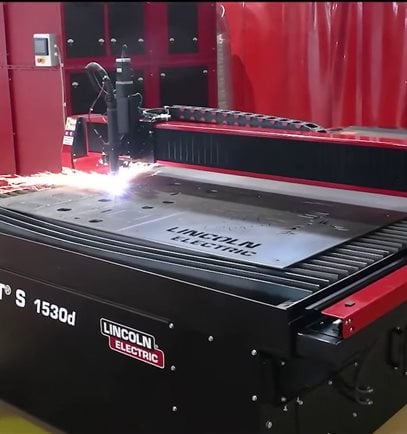

• Please note: We can supply the Linc-cut 1530D model with downdraught table. See Product ID 20364 for more information.

Package Includes:

• 12 month warranty
