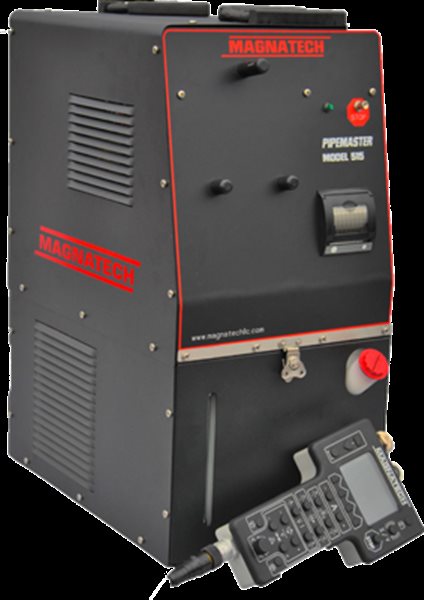

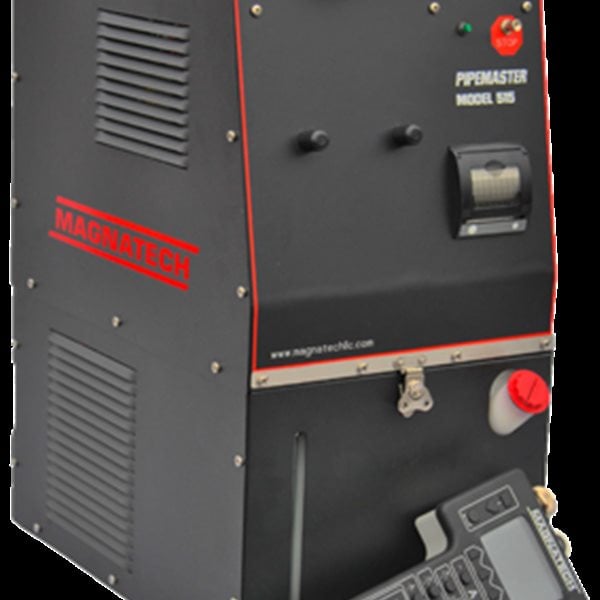

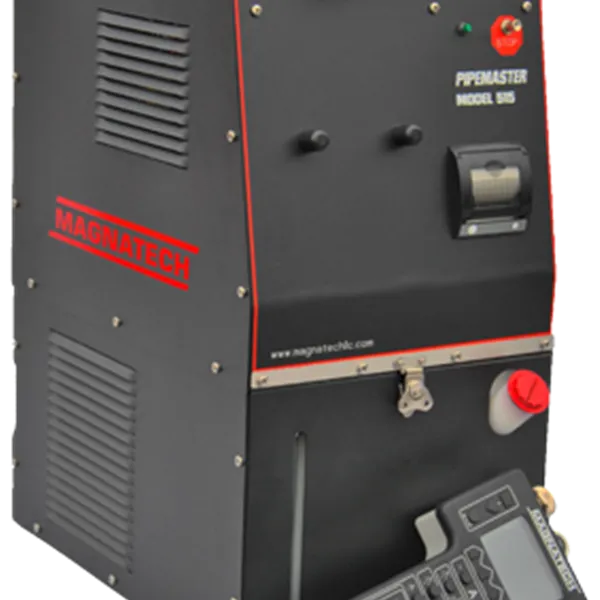

Magnatech Pipemaster 515 With T Head with options for Open heads

Product: 18663

Brand: Magnatech

Model: Pipemaster 515

Condition: New

In Stock Now

Magnatech Pipemaster 515 with open head for pipe-to-pipe and pipe-to-fitting welds for larger diameters open head (Quickclamp) 432 433 can also be used with wire feed and AVC

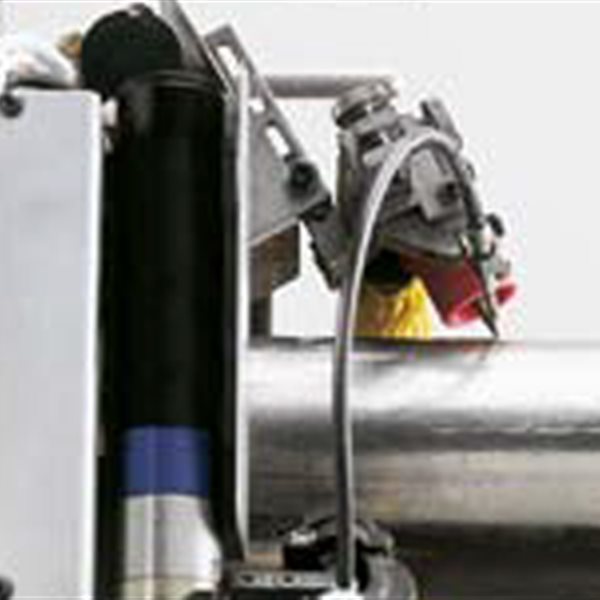

Weld current output/current pulsing, weld head rotation, weld head wire feed speed, electronic arc voltage
Output power 200 amps
Input power requirements (rated load) 230 50/60 Hz

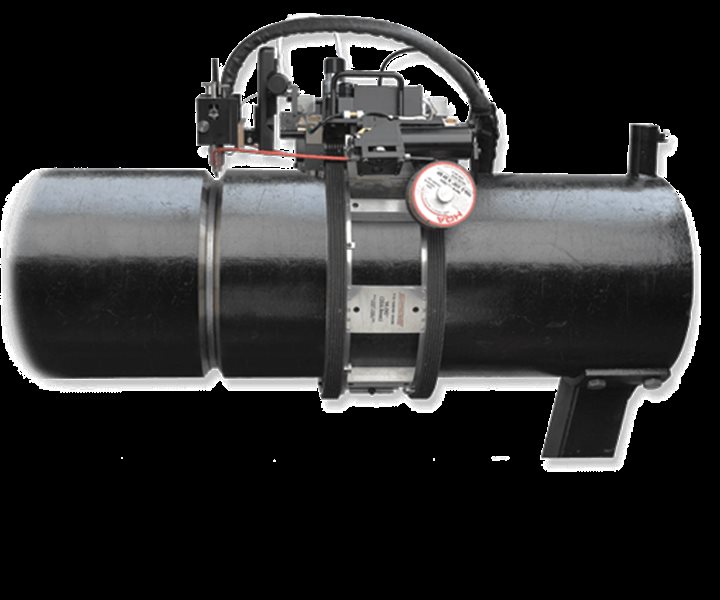

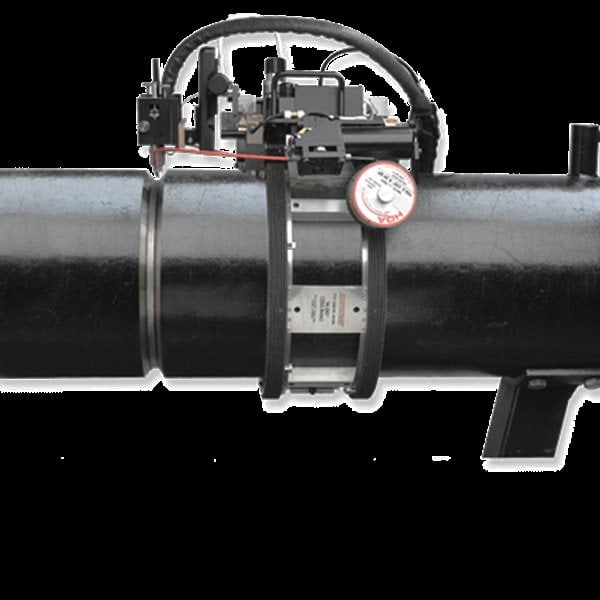

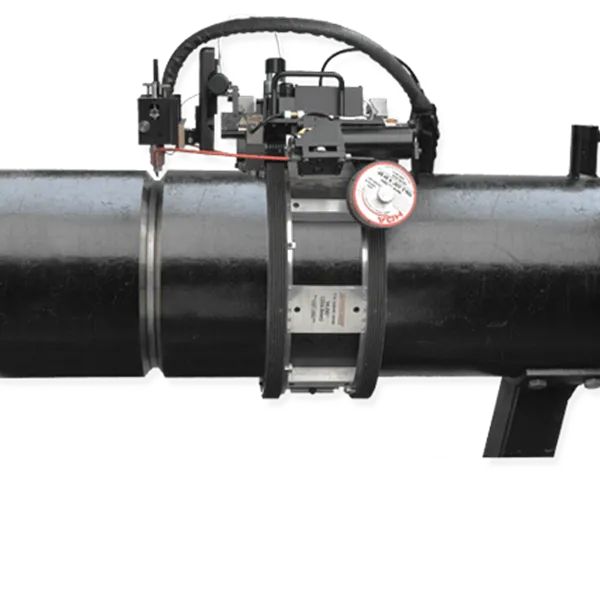

T Head 419 Orbital Weld Head For Multipass GTAW Pipe Welding
The Magnatech T model weld head is designed to make pipe-to-pipe and pipe-to-fitting welds. It is with the capability of reproducing all the motions of a skilled manual welder. The T Head is used for larger diameter
heavy wall applications, requiring the precise weld process control of gas tungsten arc welding. Interchangeable guide rings provide mounting on the pipe, and allow the T Head to cover a broad size range.
The T model weld head improves productivity by increasing duty cycle and reducing repair rates.

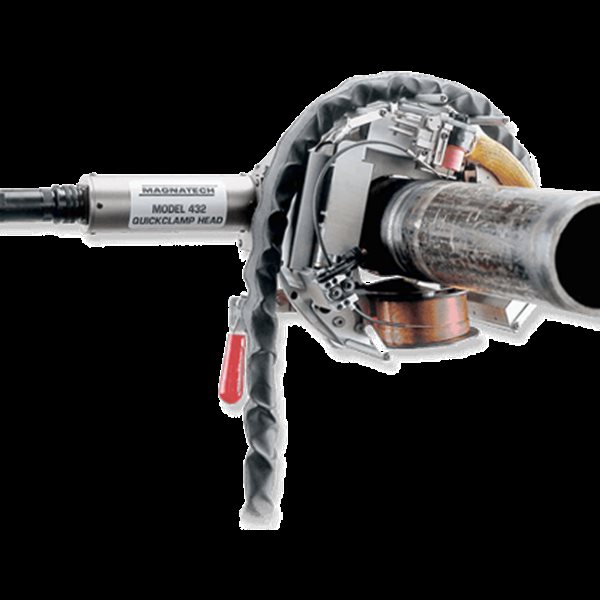

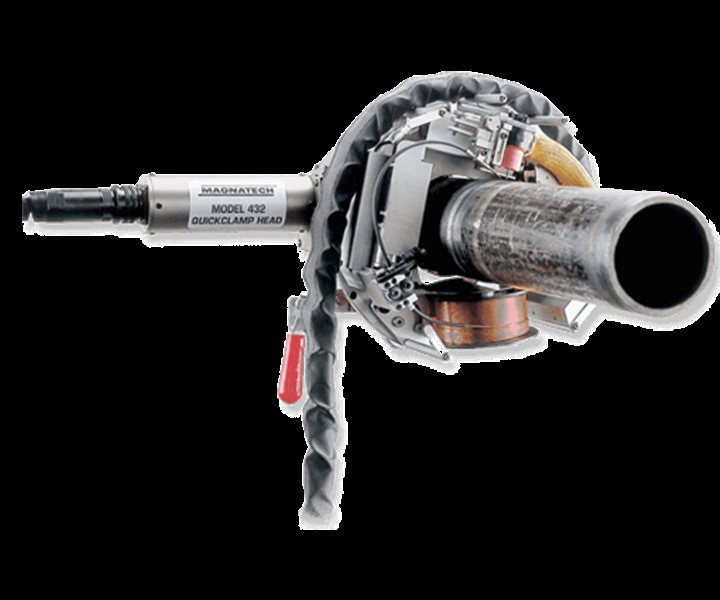

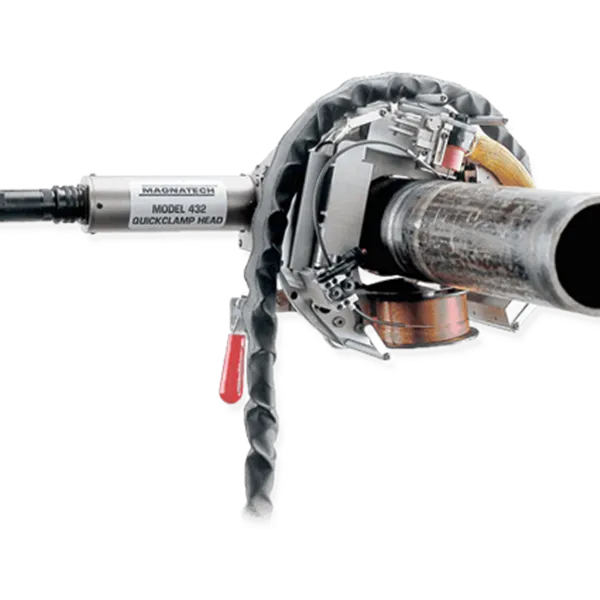

Open heads (Quickclamp) 432 433 are designed to make pipe-to-pipe and pipe-to-fitting welds. They are “full function” – with the capability of reproducing all the precise motions of a skilled welder.
A continuously adjustable clamp eliminates the need to interchange components when changing pipe sizes.
Oscillation module
Pipe (tube) OD size range 25 – 89 mm (1.0” – 3.5”) 60 – 168 mm (2.375” – 6.625”) Open heads (Quickclamp)
More details can be found on the PDF

Package Includes:
