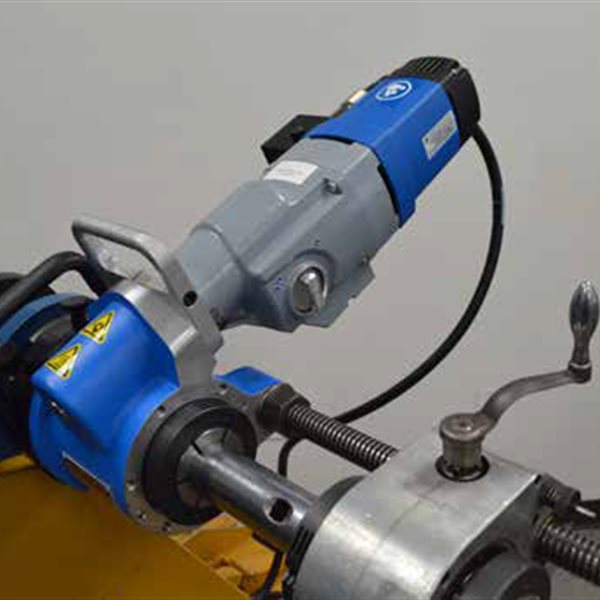

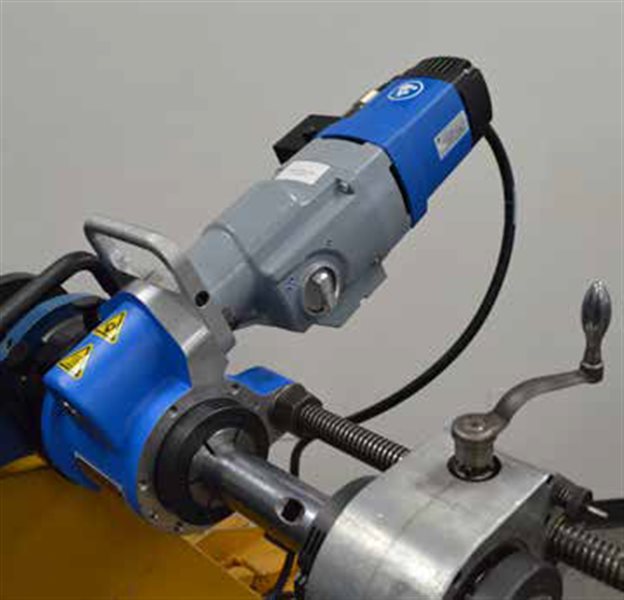

Climax Model BB4500 Portable Line Boring Machine

This equipment is available for delivery to United States

Enquire Now

The Climax BB4500 Line boring machine offers great value. Setup of modular components make setup quick and easy

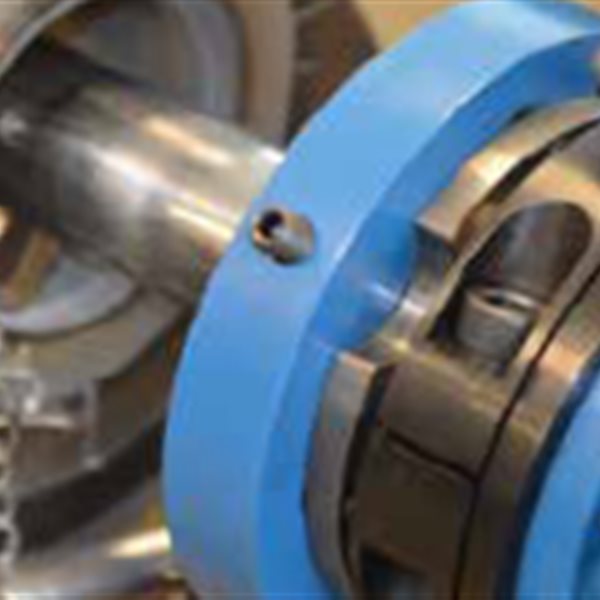

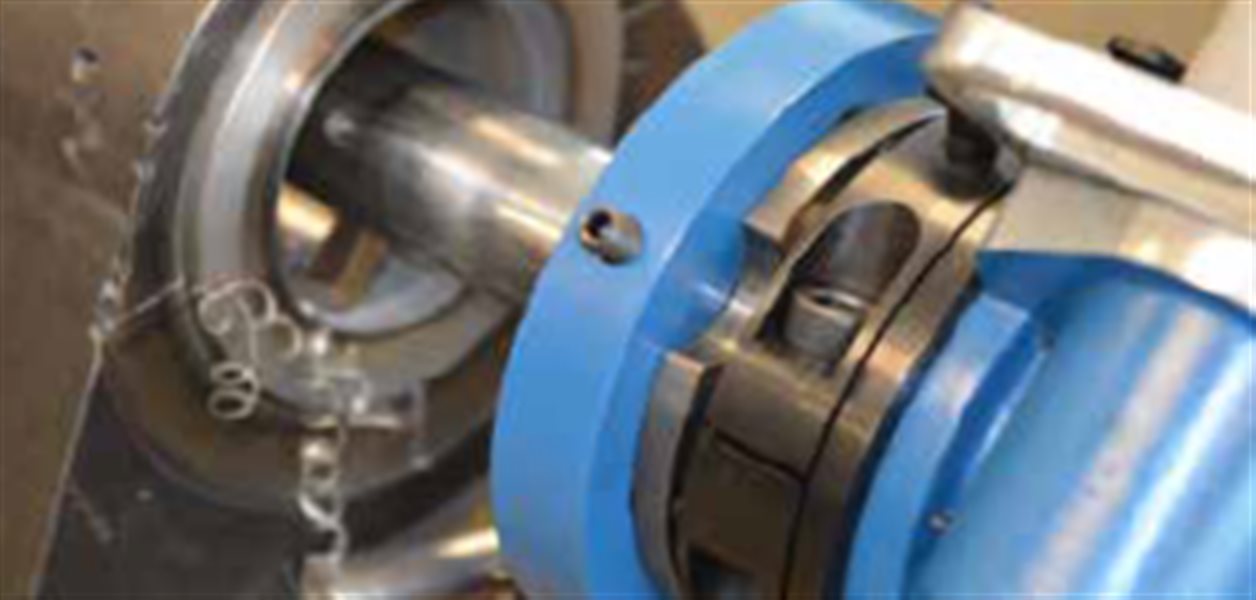

Using high quality cast-iron set-up cones and spherical bearing mounts with a typical set-up time for an experienced operator is 30 minutes or less

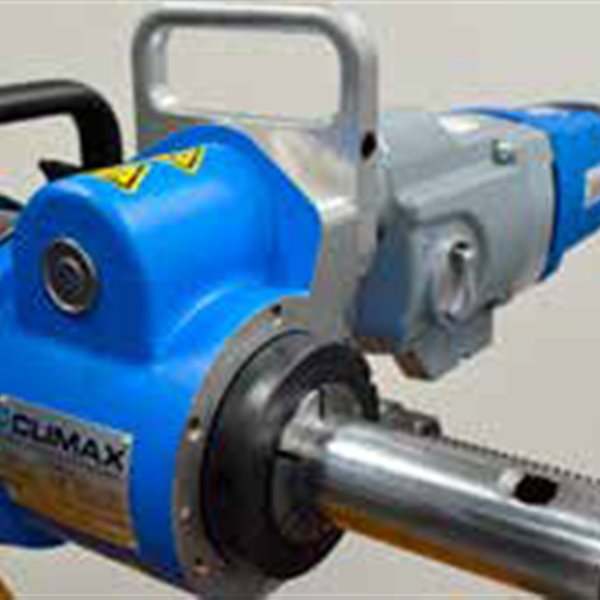

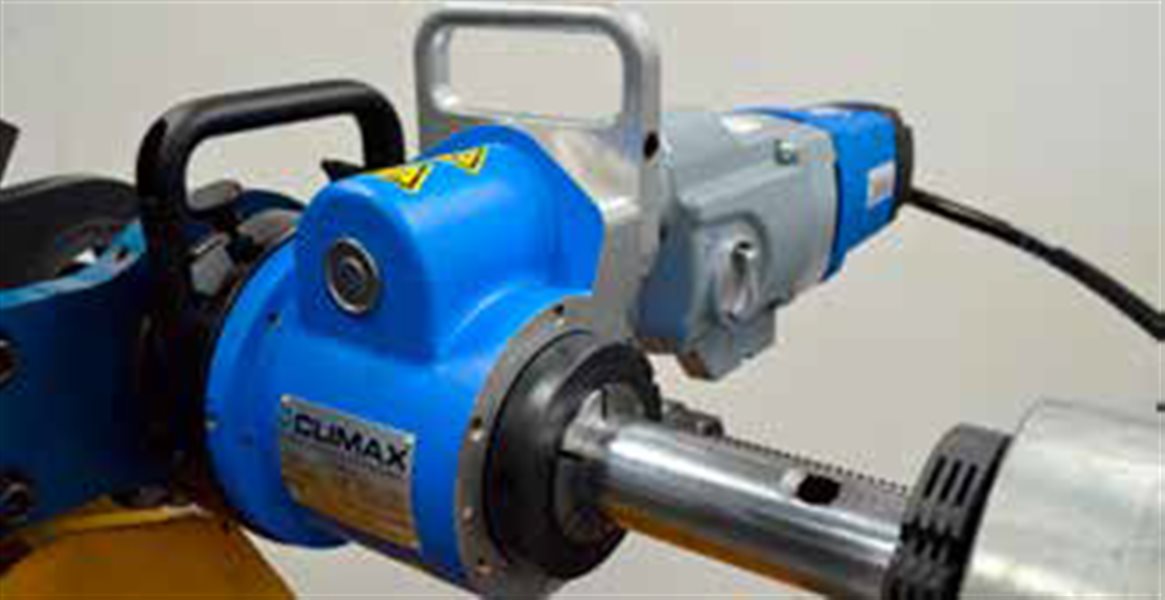

It's powerful with over 100 ft lbs (135 N•m) of torque at the bar with rotational drive unit providing a 4:1 worm gear reduction for increased torque at all speeds
Extremely compact, and can be used easily in cramped, tight work spaces and fits where others won't
This unit is suitable for conventional boring, line boring, facing/grooving
Basic package consists of components 28654 leadcrew 12in feed, 43262 mount single arm x 2, 49057 base unit, 49060 set of cones large and small 1-3/4 BAR
88008 motor electric assy, 88038 controller, 88966 BBAR 1-3/4 X 72 KCR 12MM TH M10 1X6, 46339 kit small bore
Option 35858 FACING HEAD / GROOVING TOOL 1-3/4 BAR 12 DIA with TOOL ALIGNMENT BW TO 1-1/4 BAR, WRENCH BRG REMOVAL BB3000 TO BW ADAPTER (KB)
Option 1-1/4'' SMALL BORE KIT BELOW FOR MACHINING BORES DOWN TO 35MM THE FACING AND GROOVING HEAD ASSEMBLY
Options: Available in bar lengths 4 to 20 feet (1219.2 to 6096 mm) Bars are straightened, and have ½ inch or 12 mm square-broached tooling holes

Package Includes:

12 month warranty

PDF 1

Lead Times

All used machines are serviced/refurbished to order, and lead times are dependant on current workload and machine type. The below can be used as a guide only, and is subject to change. If you have a deadline you need the equipment by, please contact us prior to ordering. We will always do what we can to try and work with your timescales where possible.

“As Is” machines: 2-3 working days.
“Serviced” machines: 7 working days.
“Refurbished” machines: 2-3 weeks.
“New” machines: subject to stock and supplier lead times where applicable.
