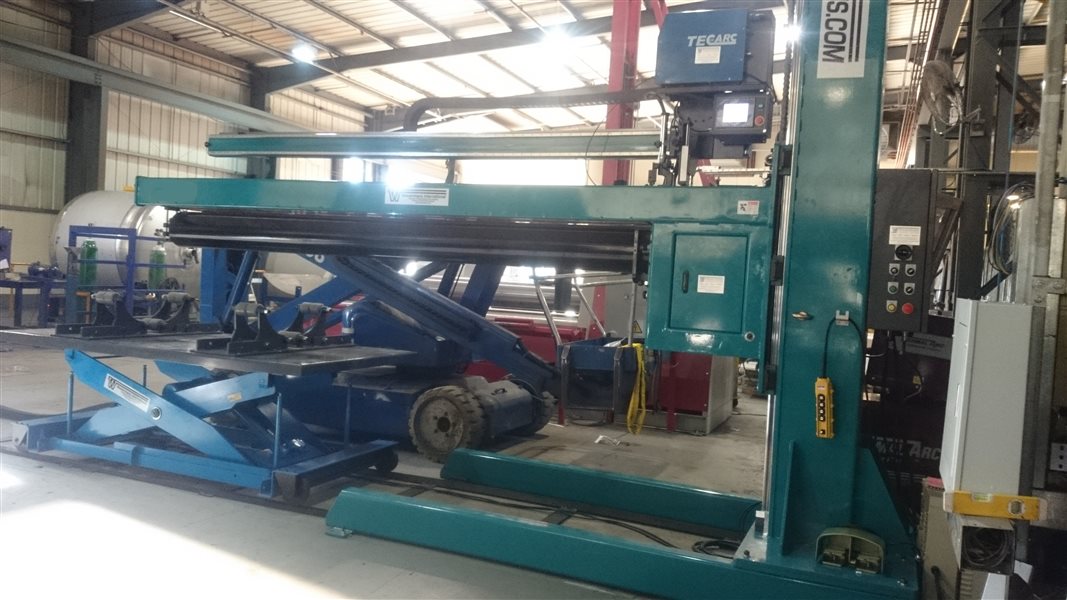

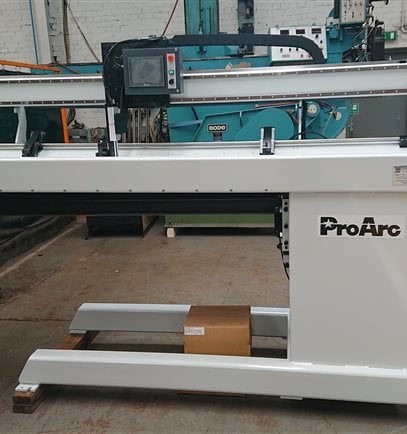

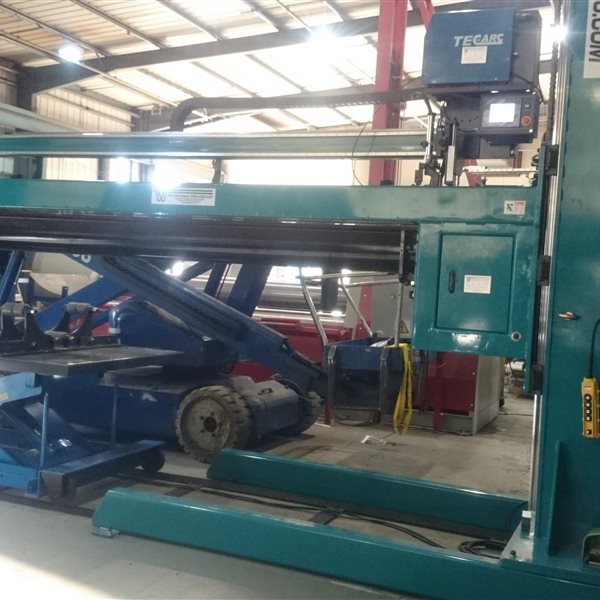

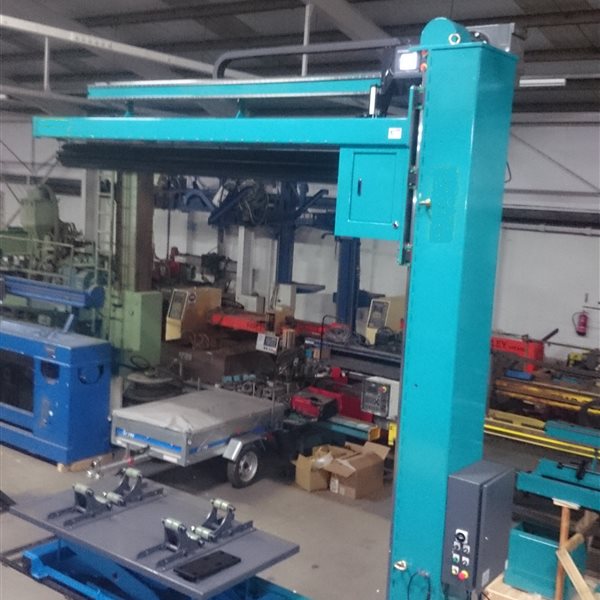

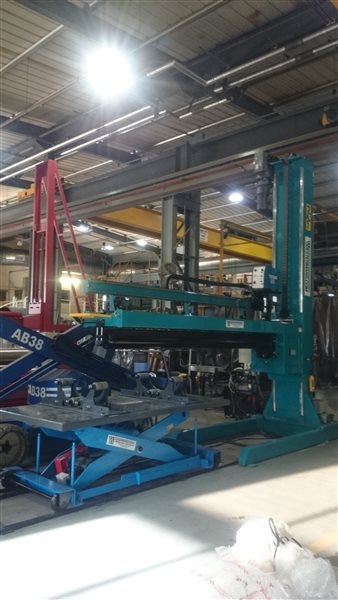

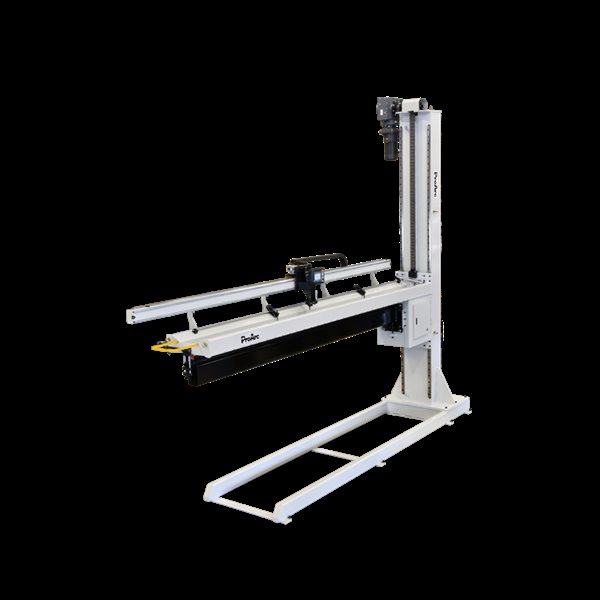

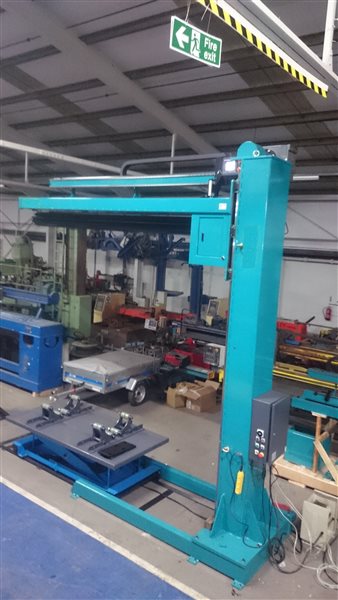

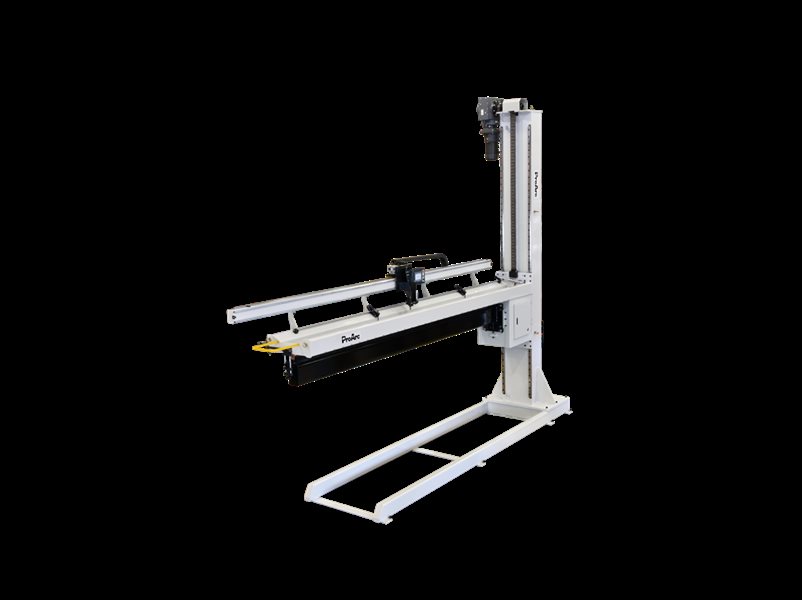

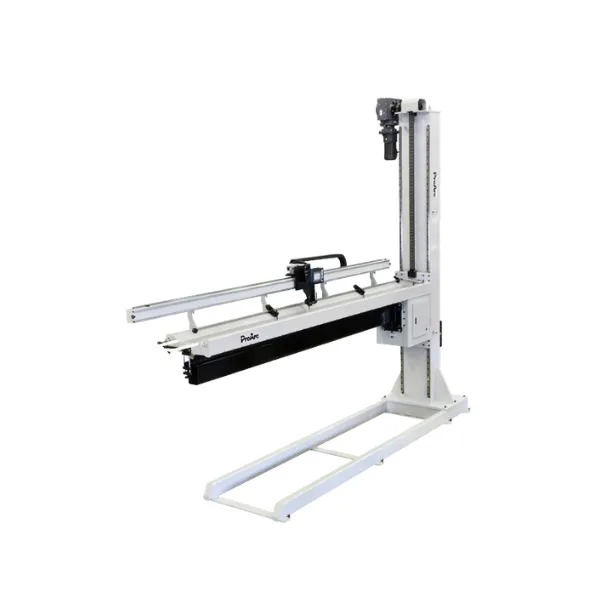

ProArc LS Lift Type Longitudinal Seam Welder

- This elevating longitudinal seam welding type system provides an automatic welding process for flat-plate or round tank and vessel seam welding.
- Plug and play with easy operation. Almost anyone without welding experience can operate the machine after a short training.

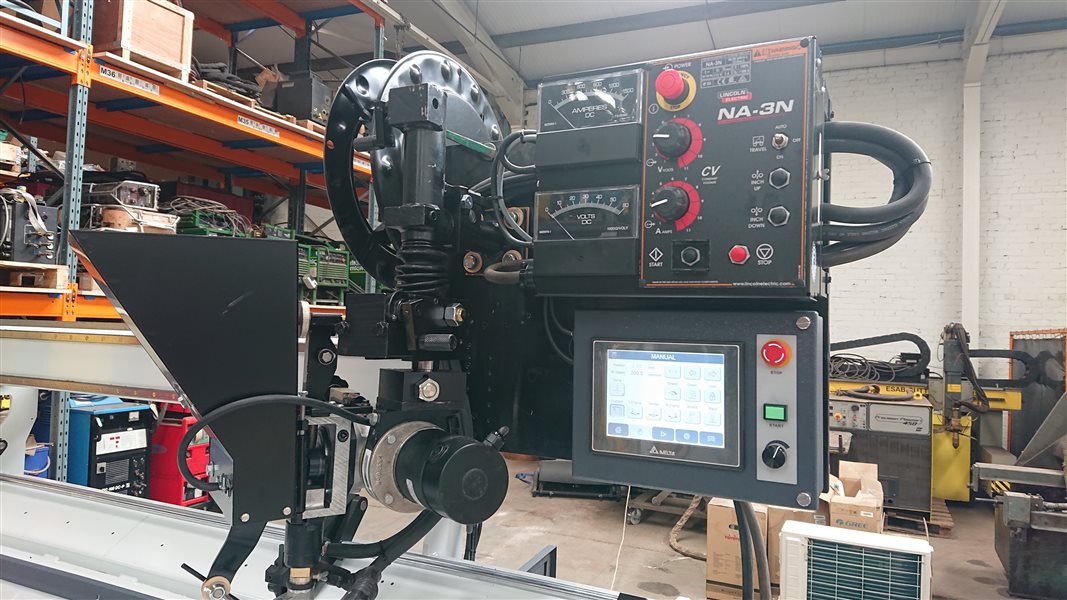

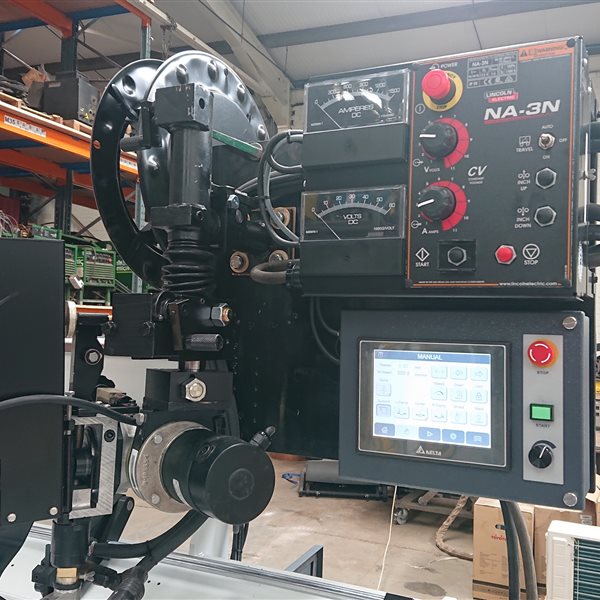

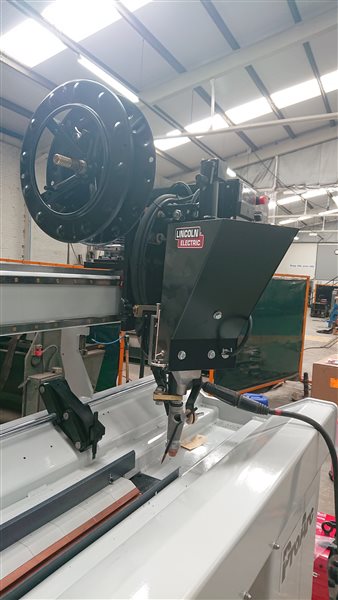

- The system can be integrated with equipment for either MIG / TIG / Plasma / Submerged Arc / Laser welding processes

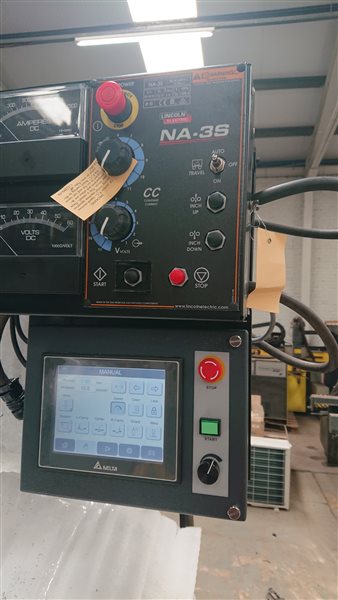

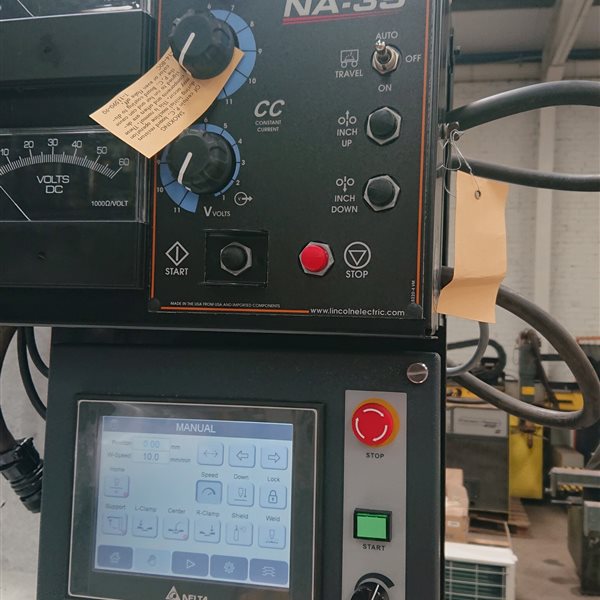

- For cyclic, conical and rectangular duct workpieces. With precision components, servo drive carriage and smart controller, it provides a engineered complete platform for longitudinal seam welding.
- Welding of weldable metals thickness from 0.1mm to 10mm
- The work clamp adopts keyboard design with air-bag. The combination provides average pressure on the work-pieces while welding
- The welding side beam is equipped with double linear guide way for high load capacity, high reliability, and high welding performance repeatability.

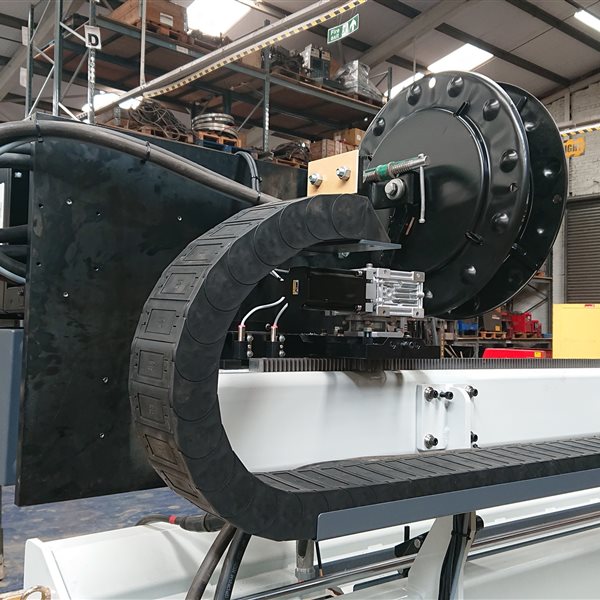

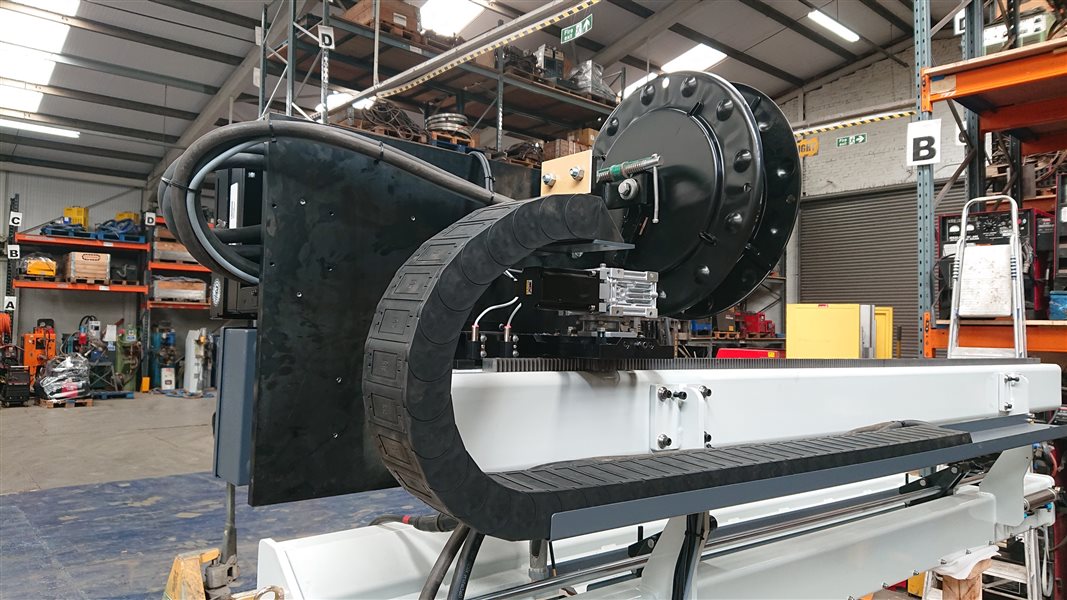

- the Side-Beam utilises precision rack and pinion with servo driving motor to achieve stable speed and precision.
- Mandrel adopts special design backing-bar (it would be changed according to different material or plate thickness).
- Standard seamer features includes :

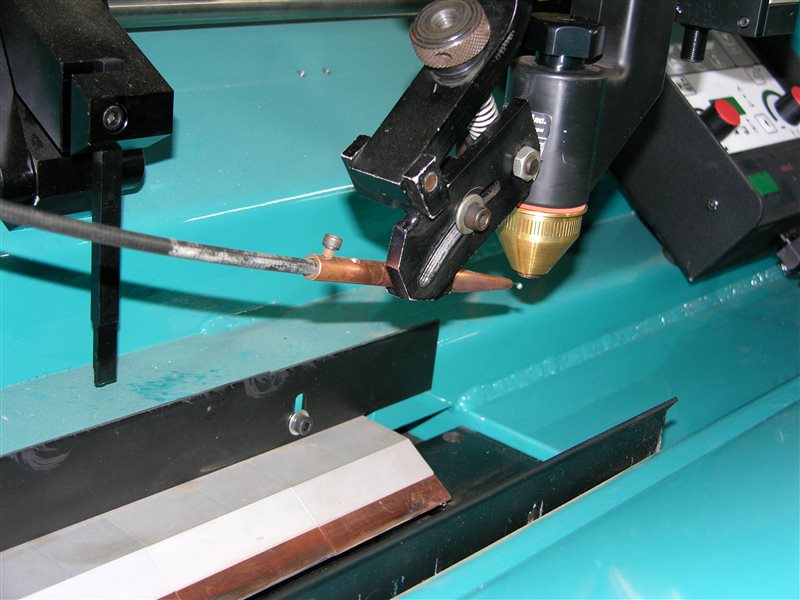

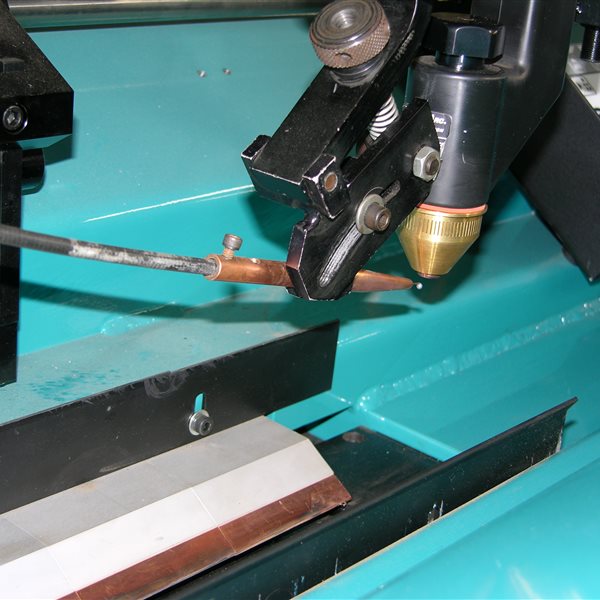

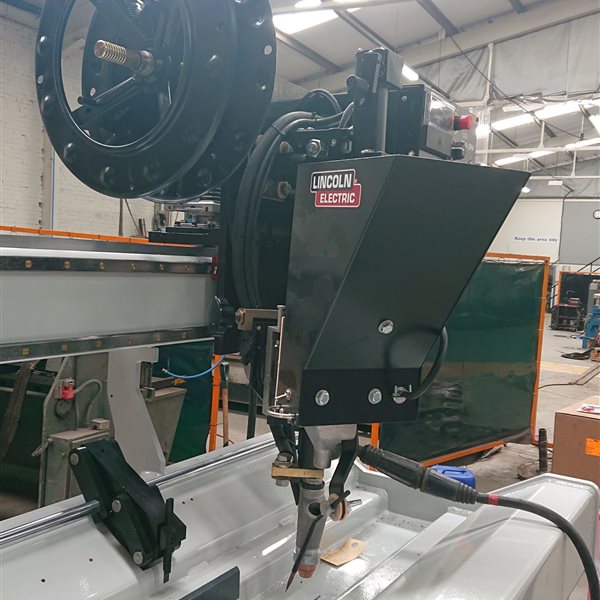

- raise and lower mandrel, air powered edge alignment device, mandrel spacer, pneumatic torch lift, automatic gas purge system,
- pneumatic mandrel clamping device, water cooled mandrel and cooling tank, automatic finger release, 2 x slide 50mm stroke

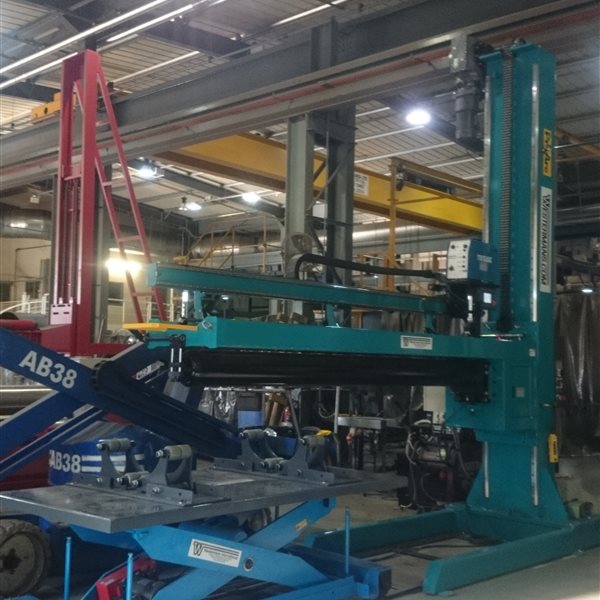

- Auto loading travel cartavailable for easy loading and unloading of the workpiece - manual or motorised

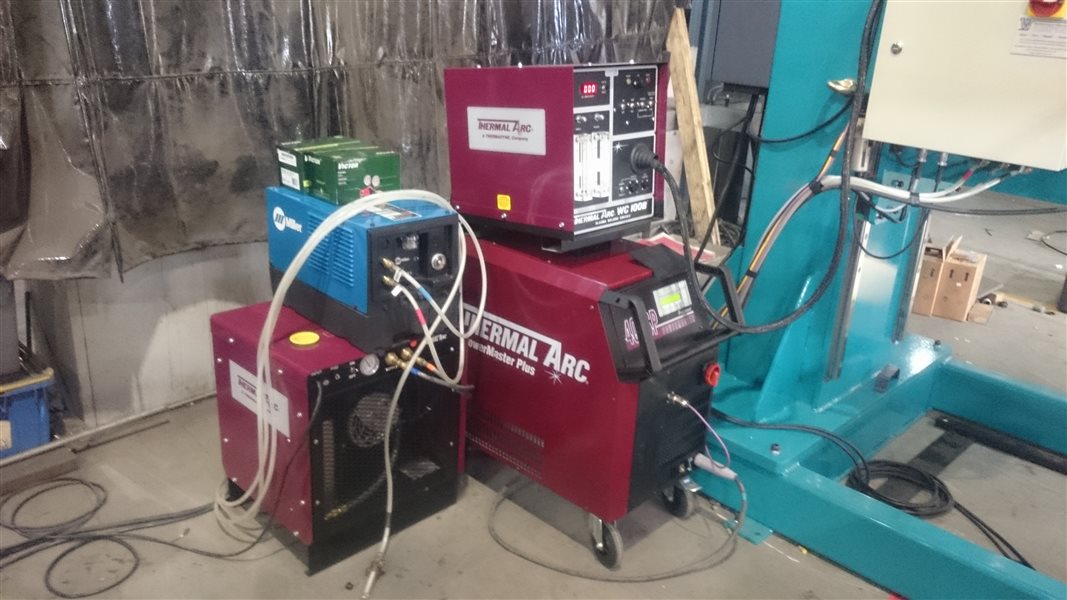

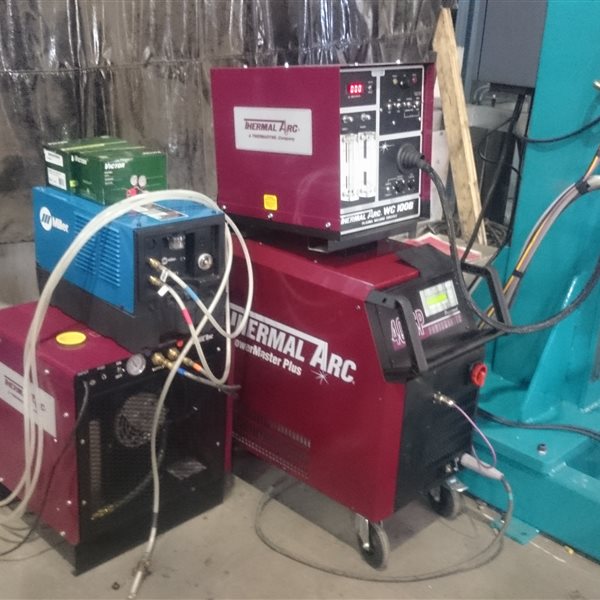

- We can supply the seam welder only integrated to your own welding equipment, or full packages with welding equipment added. POA
Package Includes:
- 12 month warranty
Lead Times
All used machines are serviced/refurbished to order, and lead times are dependant on current workload and machine type. The below can be used as a guide only, and is subject to change. If you have a deadline you need the equipment by, please contact us prior to ordering. We will always do what we can to try and work with your timescales where possible.
- “As Is” machines: 2-3 working days.
- “Serviced” machines: 7 working days.
- “Refurbished” machines: 2-3 weeks.
- “New” machines: subject to stock and supplier lead times where applicable.
