PEI PX1700ECO AC resistance welding control in cabinet 90/ 160 AMP

Product: 18787

Brand: Pei

Model: cbx px1700 eco

Condition: New

In Stock Now

PDF 1

PDF 2

PDF 3

• PX1700ECO welding control, with SCR 90A OR 160A in cabinet, water-cooled
• Equipped with: - Main switch
• Multipolar connector
• Predisposed for water-cooling
• 5 m connecting cable

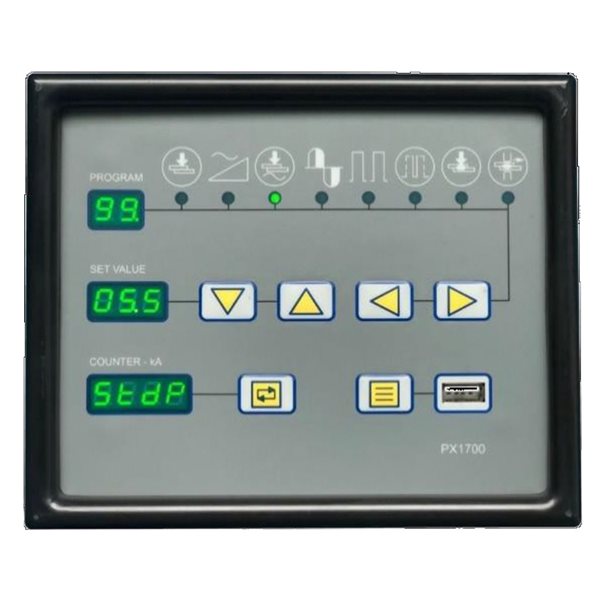

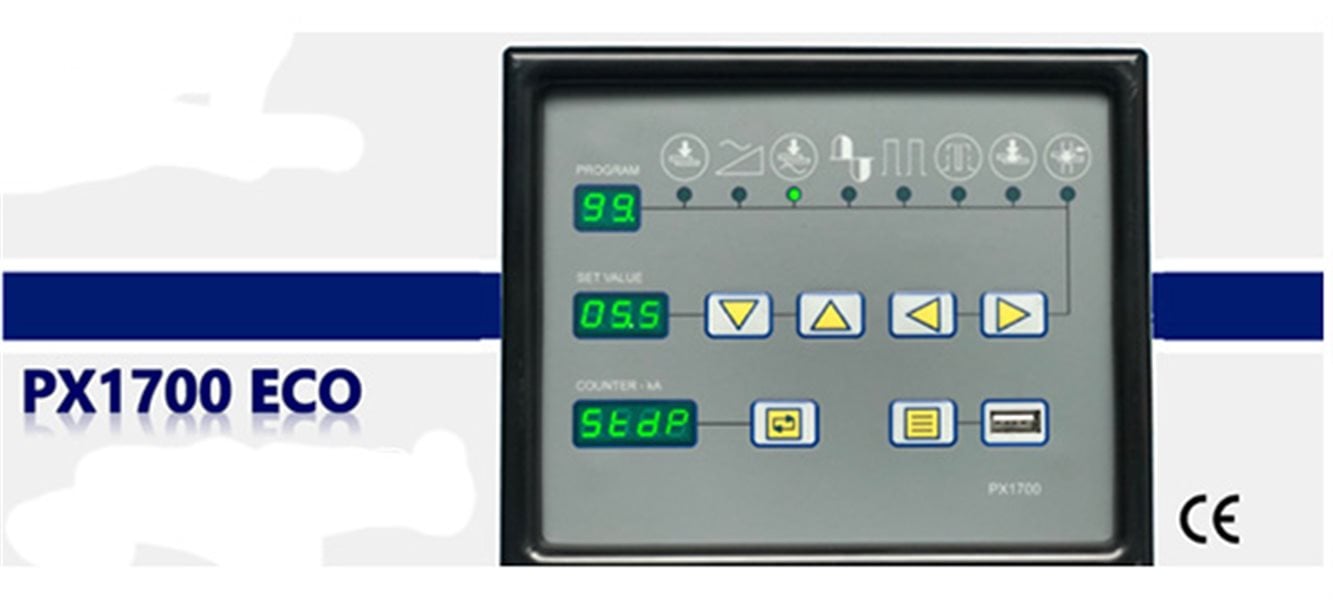

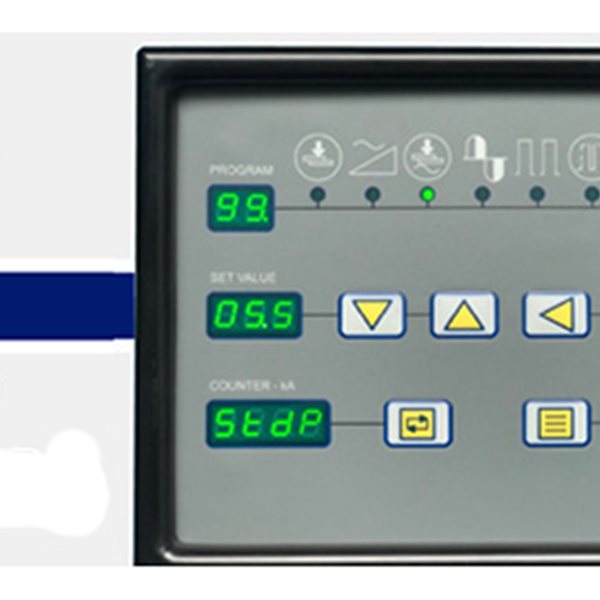

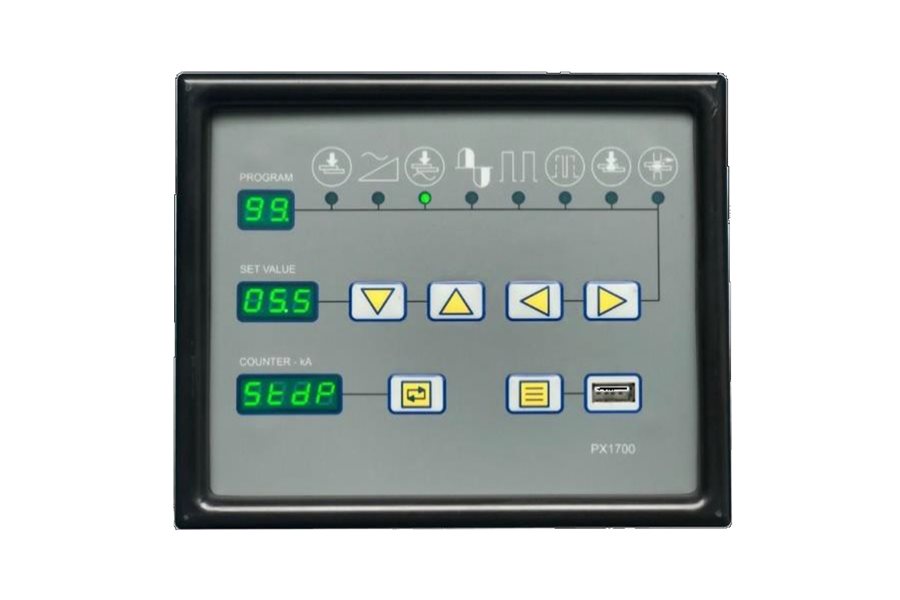

• Digital resistance welding control with three numeric displays. Control of nine time-parameters: Squeeze, pre-weld, slope-up, weld, impulses, downslope, post weld, hold time, pause time (with auto repeat function).
• Welding time adjustable in half periods (single-phase AC welding machines). 10 welding programs storable.
• Double cycle start input available for recalling two consecutive programs. Weld-No Weld input.
• Weld-No Weld input. Control of two solenoid valves with control circuit diagnostics.
• Two end sequence output signals.
• Error signal on display.
• Weld counter
• USB port for program backup or firmware updates on a USB stick. Integrated SCR trigger circuit. Pulses for switching on the external SCR ignition card.

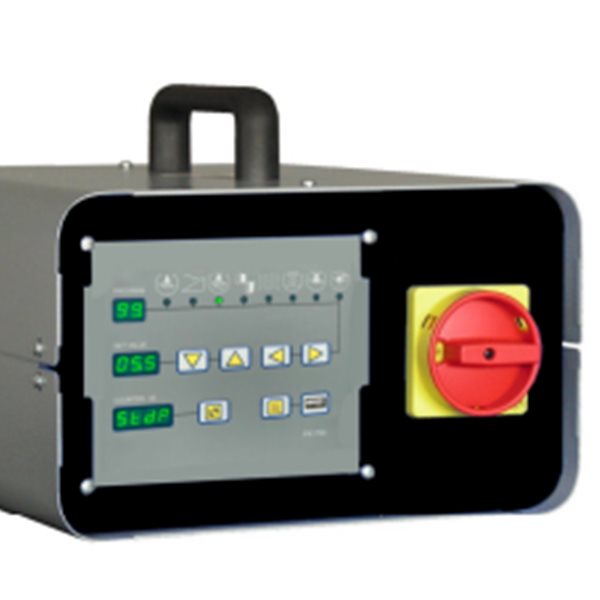

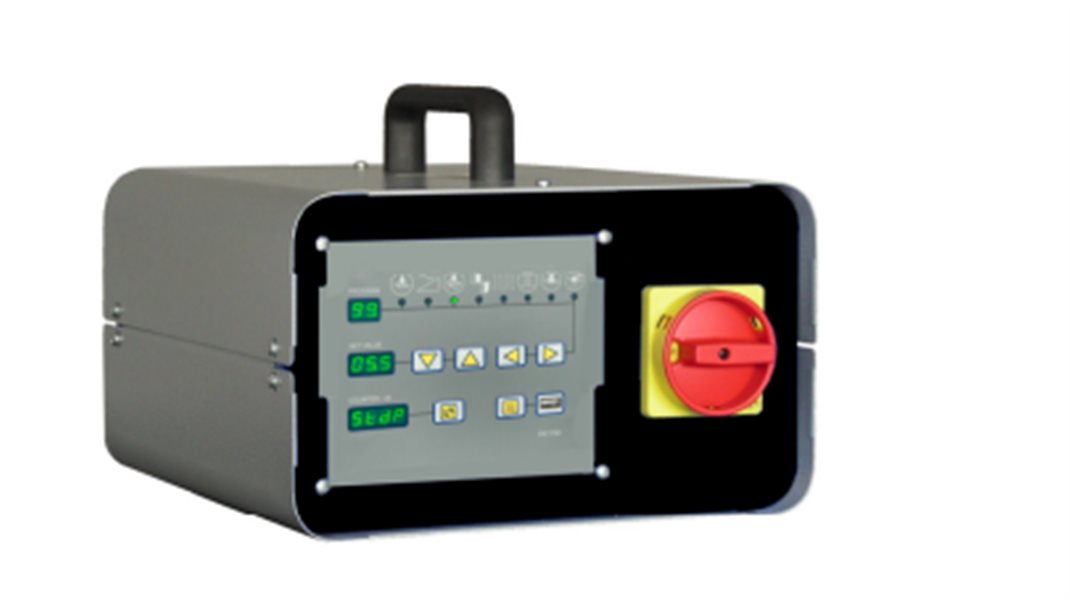

• Photo shows box version

Package Includes:

• 12 month warranty
