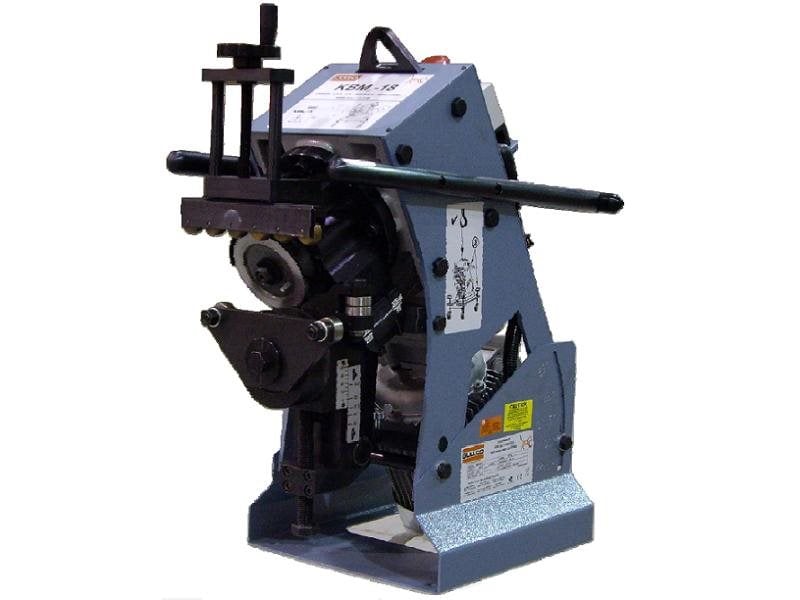

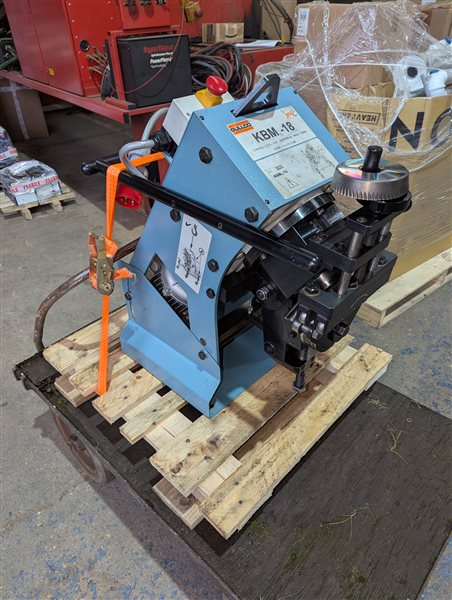

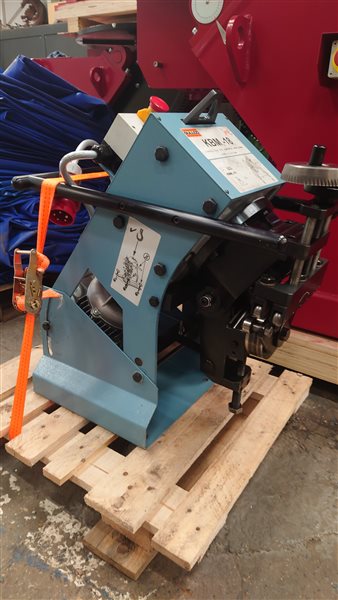

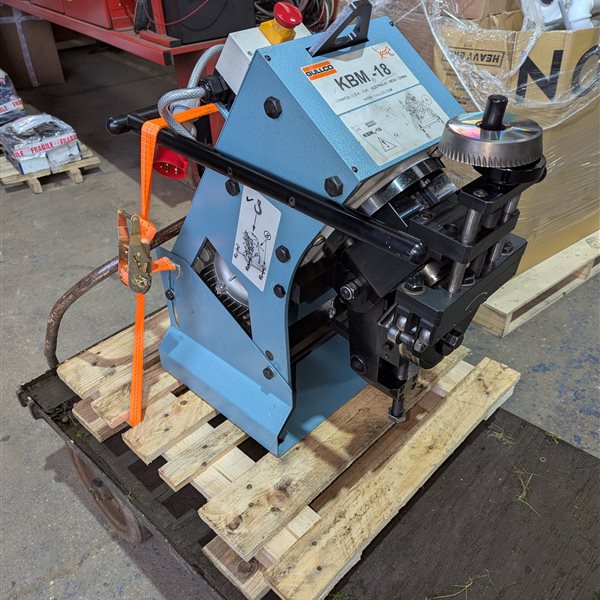

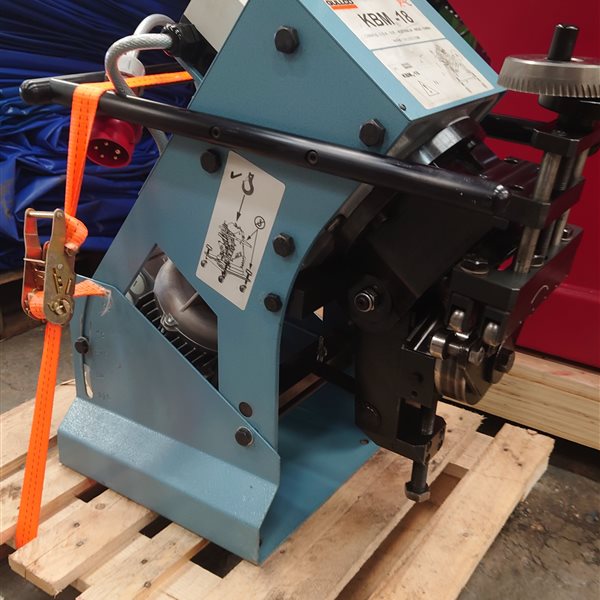

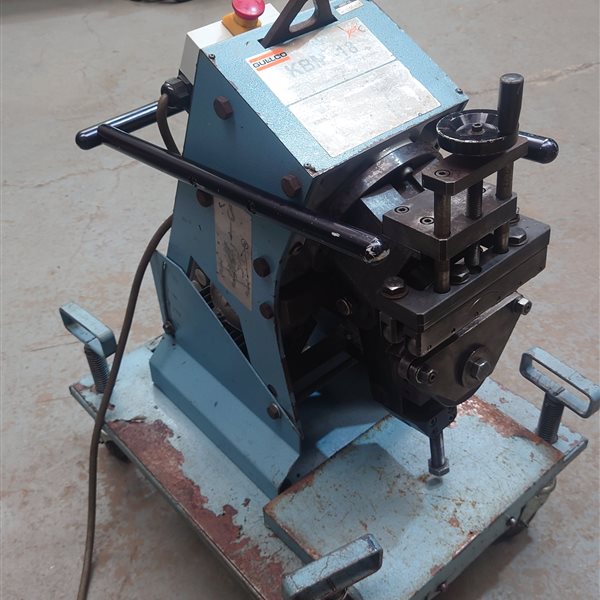

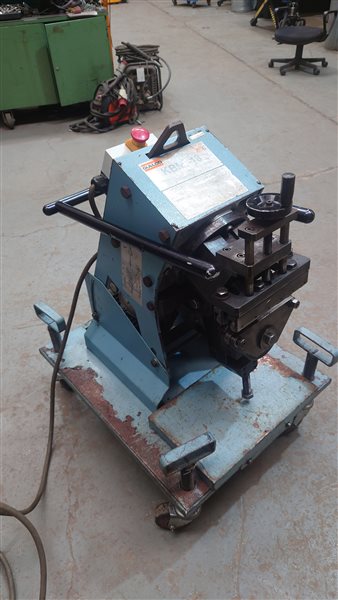

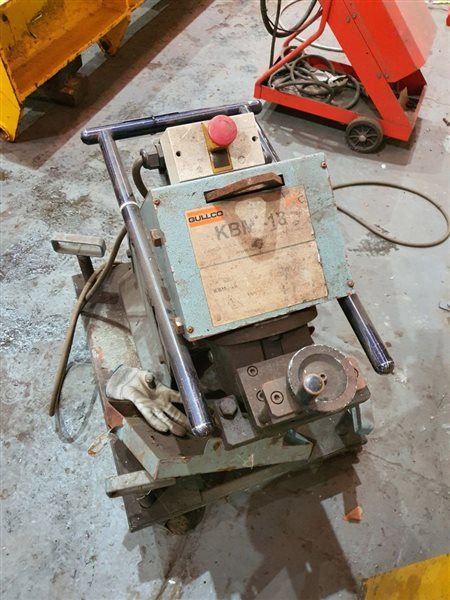

Gullco KBM-18 Plate Bevelling Machine

• The KBM 18 model of the Gullco range is a portable Plate Edge Beveler which is self propelled with adjustable bevel head
• It's for producing clean machined bevels with no thermal distortion on mild steel, stainless steel and aluminium plate from 1/4” (6.0 mm) to 1 1/2” (38.1 mm) thick.
• It bevel angles 22-1/2° to 55° with bevelling speed 120 IPM (305cm/min)
• The Gullco unit bevels the topside of plate reducing time and cost. This can be enhanced by use of the KBM-18U underside beveller in applications where both sides of the material require bevelling
• Bevel angles 22-1/2° to 55° with bevelling speed 120 IPM (305cm/min)
• Maximum Bevel Width: 0.71” (18.00 mm) at standard 30° bevel angle on material with a tensile strength of 64,000 lb/ in2 (45 Kg/mm2)
• Maximum Bevel Depth: 0.61” (15.6 mm) at standard 30° bevel angle on material with a tensile strength of 64,000 lb/ in2 (45 Kg/mm2)
• Min. Plate Thickness: 1/4’’ (6.0mm) Thinner material can be bevelled, ask for details
• Max. Plate Thickness: 1 1/2” (38.1 mm) Bevel Speed: 120 in. (304.8 cm) per minute*
• Optional Extra. The KBM-18U is perfect for bevelling the underside of the plate without need for flipping the work piece over. POA
• Package also consists of 1 x GBM-18-X1 Deep Tooth Cutter (medium cut), 1 x set Bevel Angle Pins for 22 1/2°, 30°, 37 1/2°, 45°, 55° and 1 x Tool Kit
• KBM-18 unit can be supplied with angle bevel pins for 22 1/2°, 30°, 37 1/2°, 45° and 55° bevels - other angles available on request
• Wheel assemblies and undercarriage available, other accessories available to tailor systems to meet your bevelling needs
• Tooth cutters available to suit

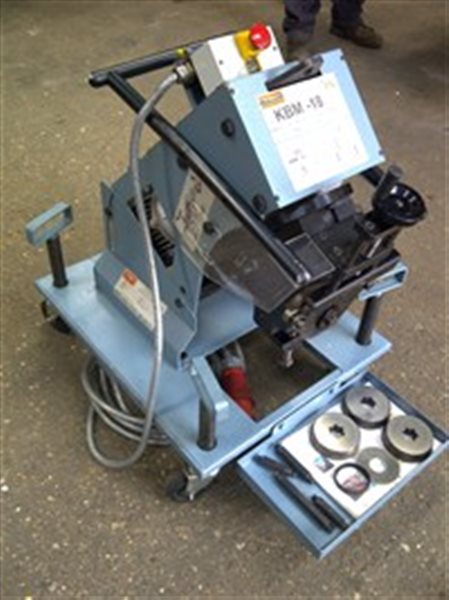

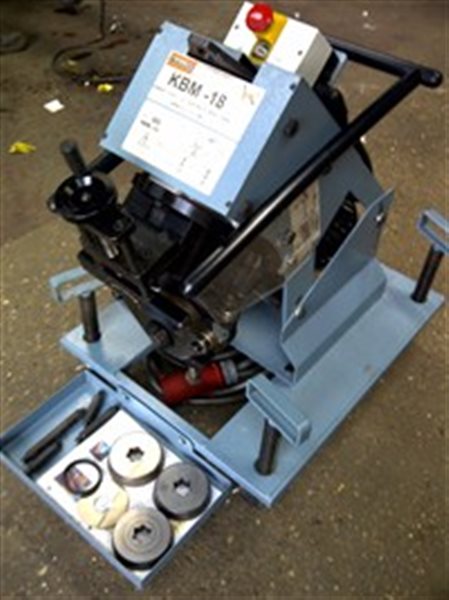

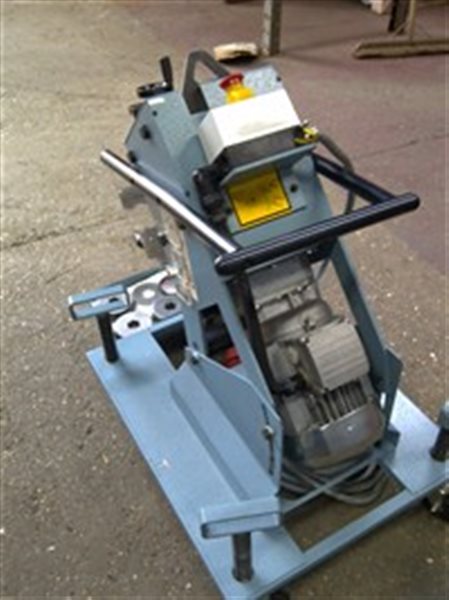

• HYDRAULIC ADJUSTABLE UNDERCARRIAGE 28 or CASTER WHEEL ADJUSTABLE UNDERCARRIAGE 28 can be offer with the 18 but larger foot print

Package Includes:

• 6 month warranty
