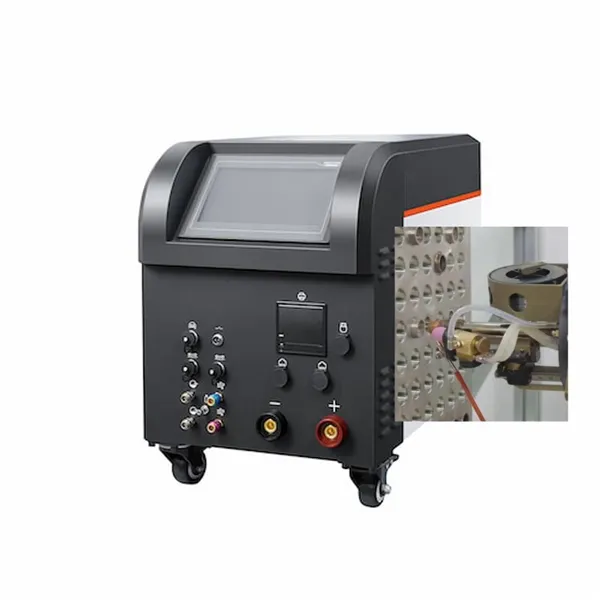

Kepuni G400 Tube sheet orbital with a choice of tube sheet weld heads
New Due Soon
This equipment is available for delivery to United States
- KEPUNI G400 Tube sheet orbital welder with a choice of tube sheet weld heads is a professional automatic orbital welding equipment for thin-walled tube sheets.
- The integrated expert database system automatically generates expert parameters which are more reliable, ensuring that each weld can achieve the best welding effect.
- Adapted weld head: TB-35/TB-65/TBM-65/TBS-65 Tube to sheet weld head with or without wire with rack or hanging version
- Welding material: Stainless steel, carbon steel, titanium, nickel .etc
- Adaptive Weld Heads: Equipped with XD-35/XD-65 models, the machine accommodates a wide range of tube sizes and configurations.
- Material Compatibility: Welds stainless steel, carbon steel, titanium, nickel alloys, and other specialty metals.
- Wall Thickness Capacity: Handles materials up to ≤5 mm with minimal heat input, reducing distortion risks.
- Expert Database: Simplifies programming by storing pre-verified parameters for quick recall, enhancing process repeatability.
- TB-35 tube head with out wire can also be used on the 200pro 13mm-35mm / 10mm-13mm hanging version or with Rack 4.5mm-35mm
- Working range TB65 with Rack 8mm-65mm
- Working range TB65 hanging version 22mm-65mm
- Working range TBS65 hanging version 8mm-32mm
- Working range TBM65 hanging version 13.5mm-65mm
- Working range TBK-65 hanging version 25mm-32mm
Package Includes:
- 12 month warranty
