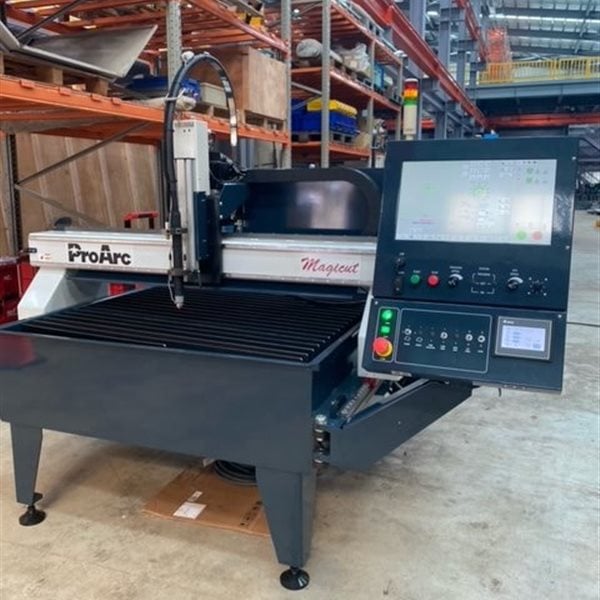

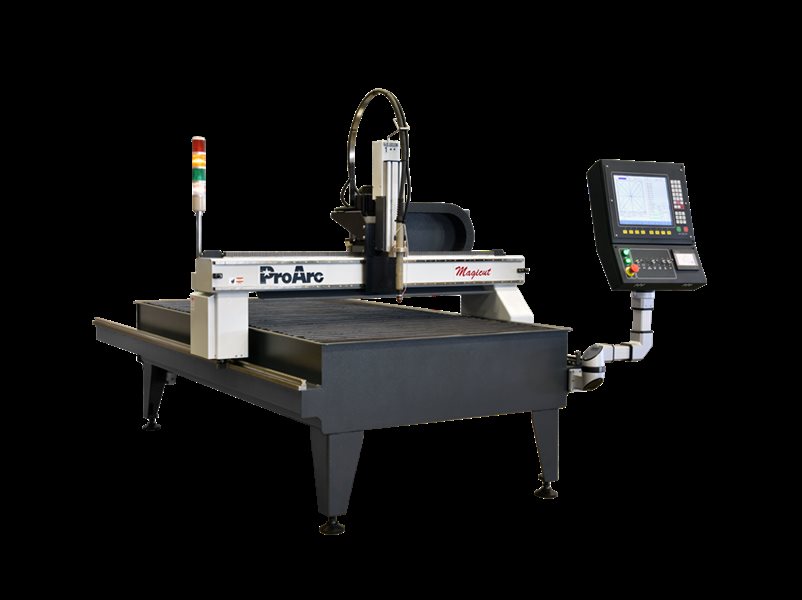

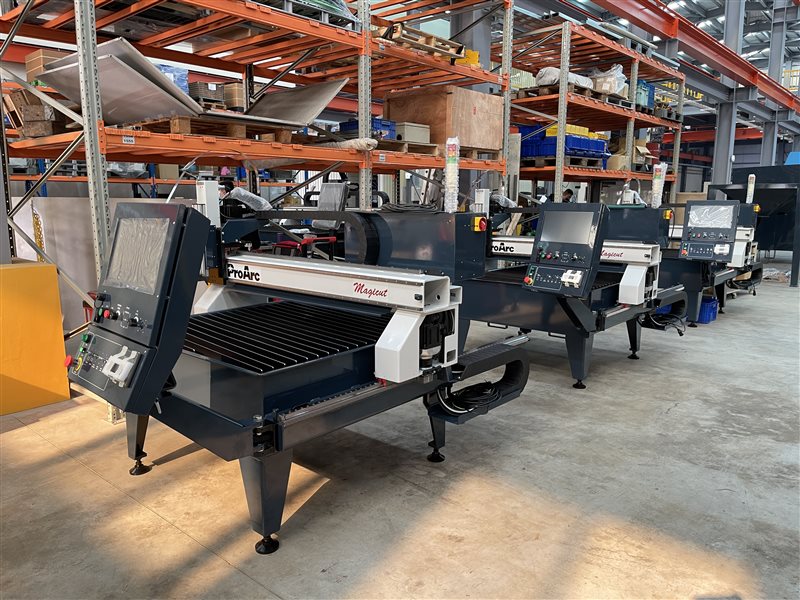

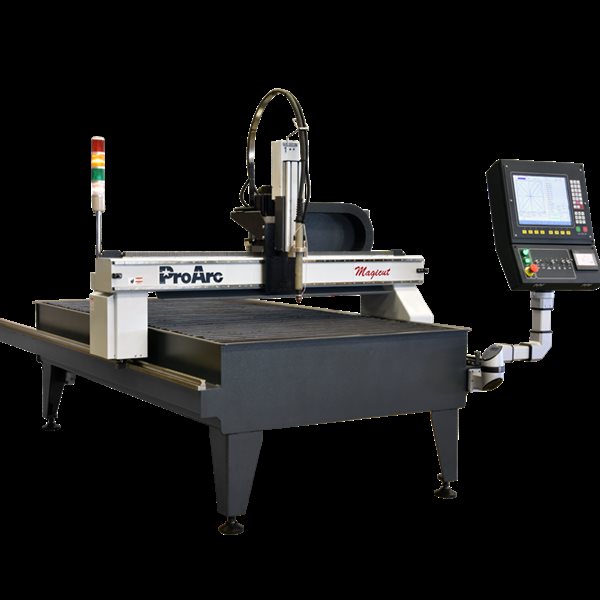

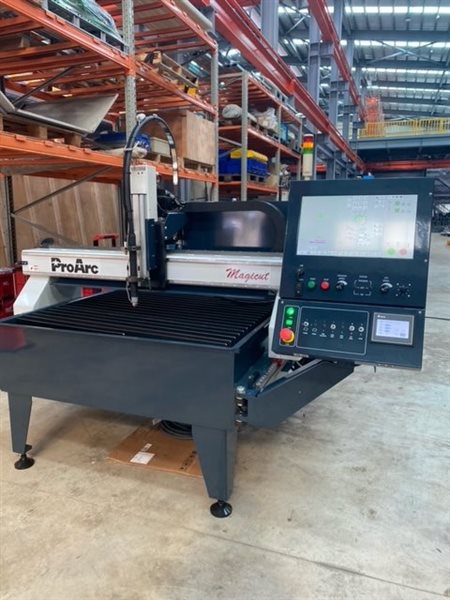

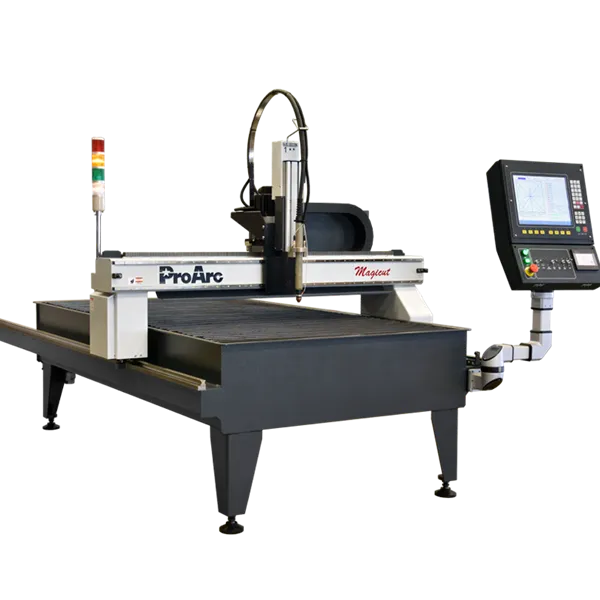

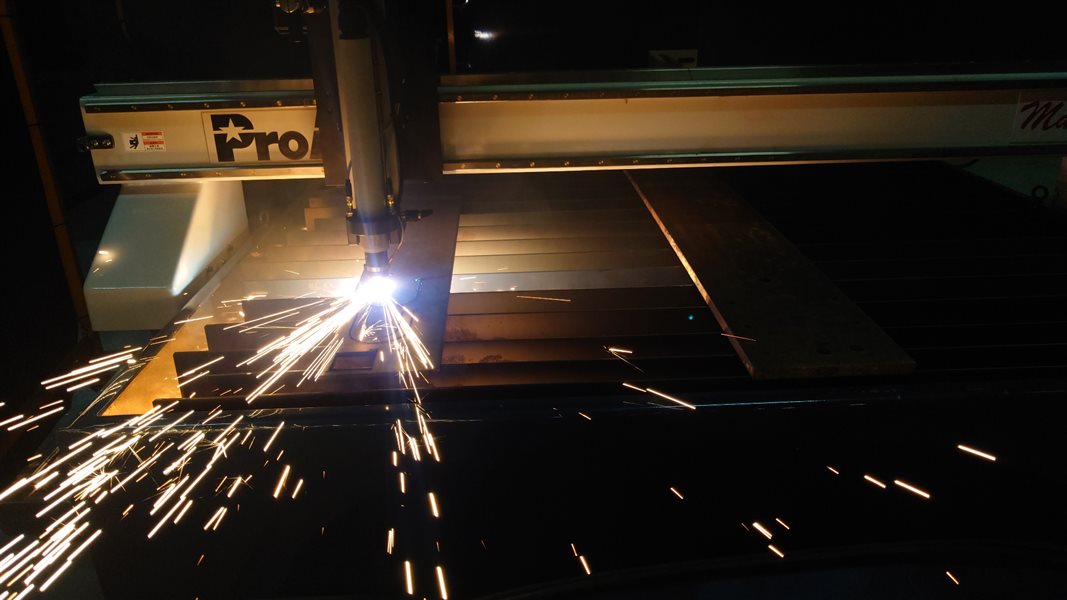

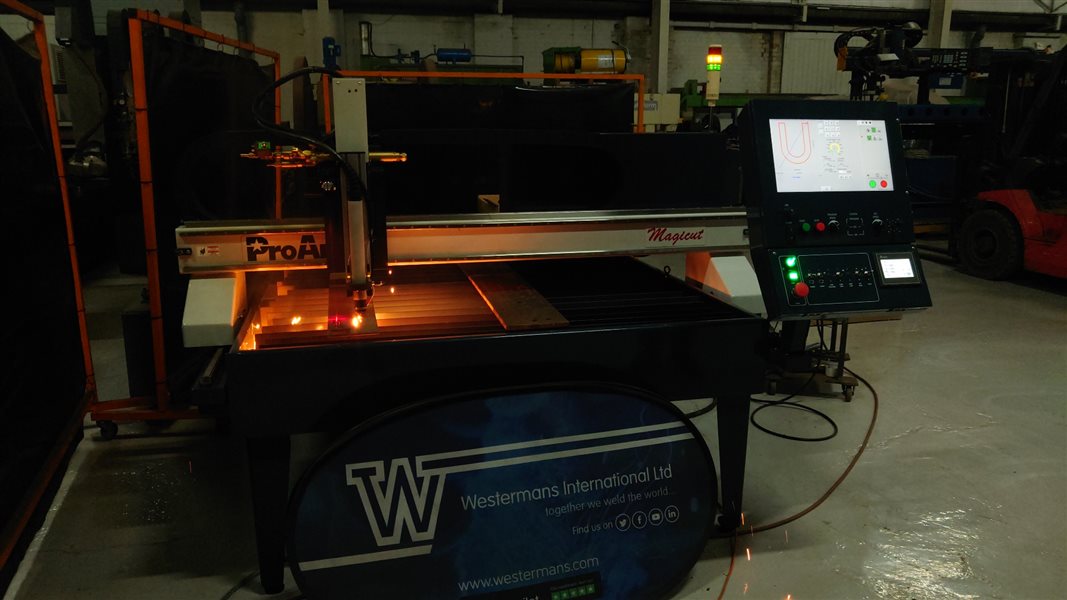

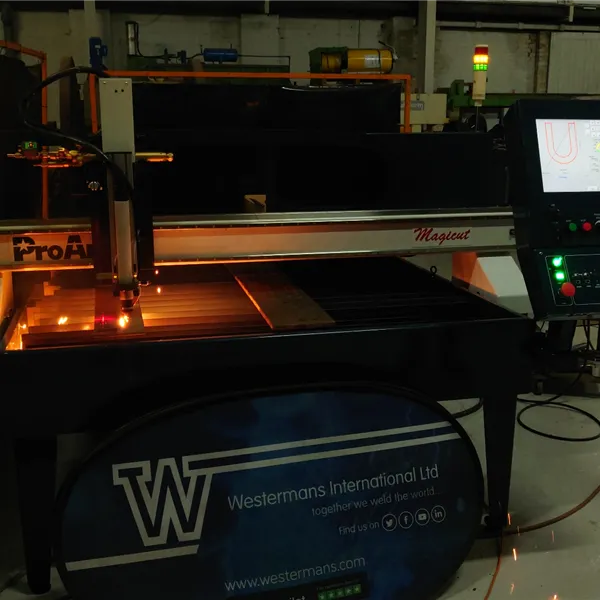

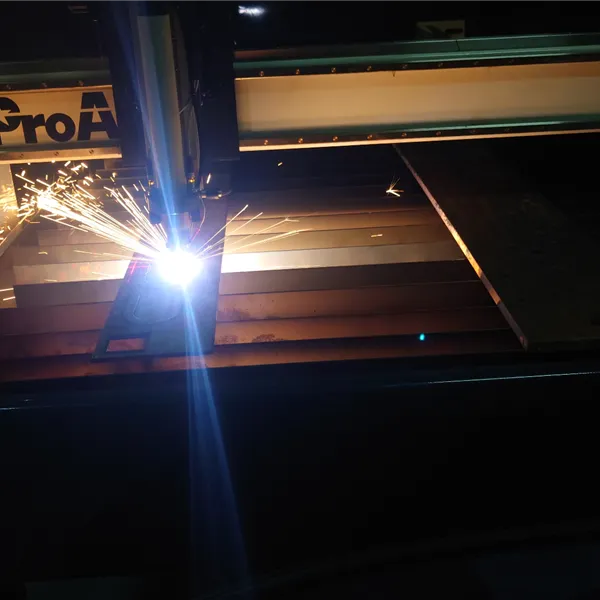

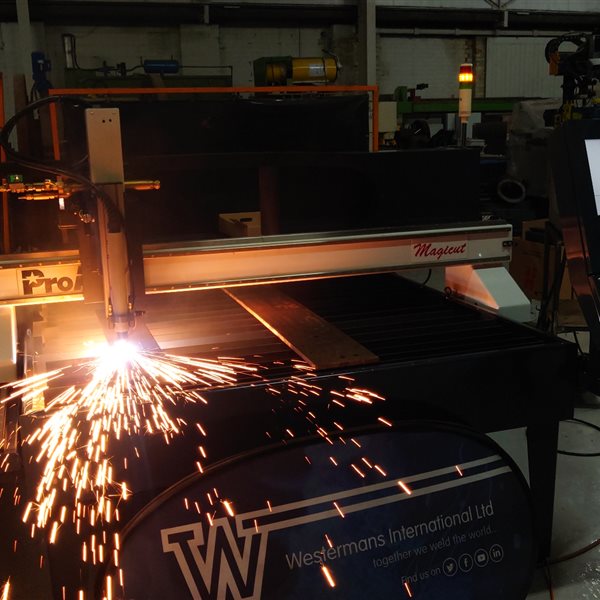

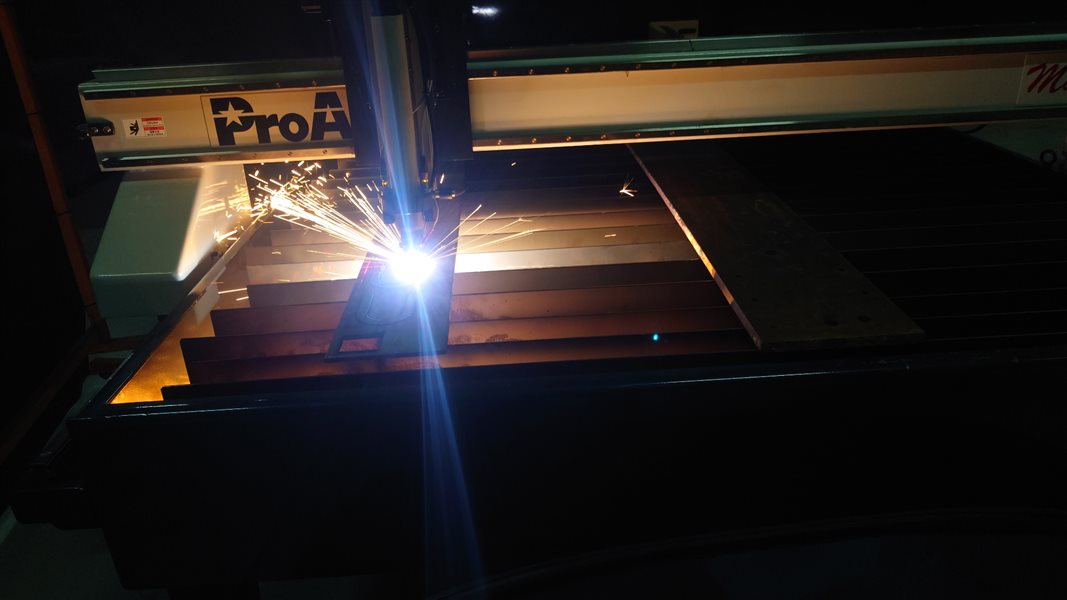

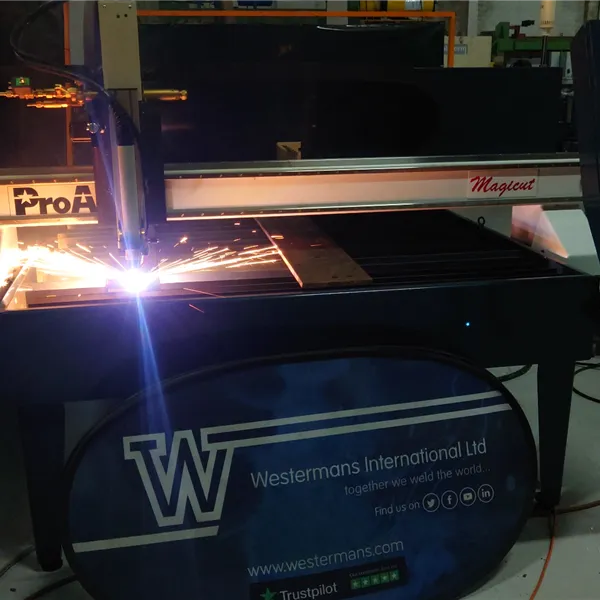

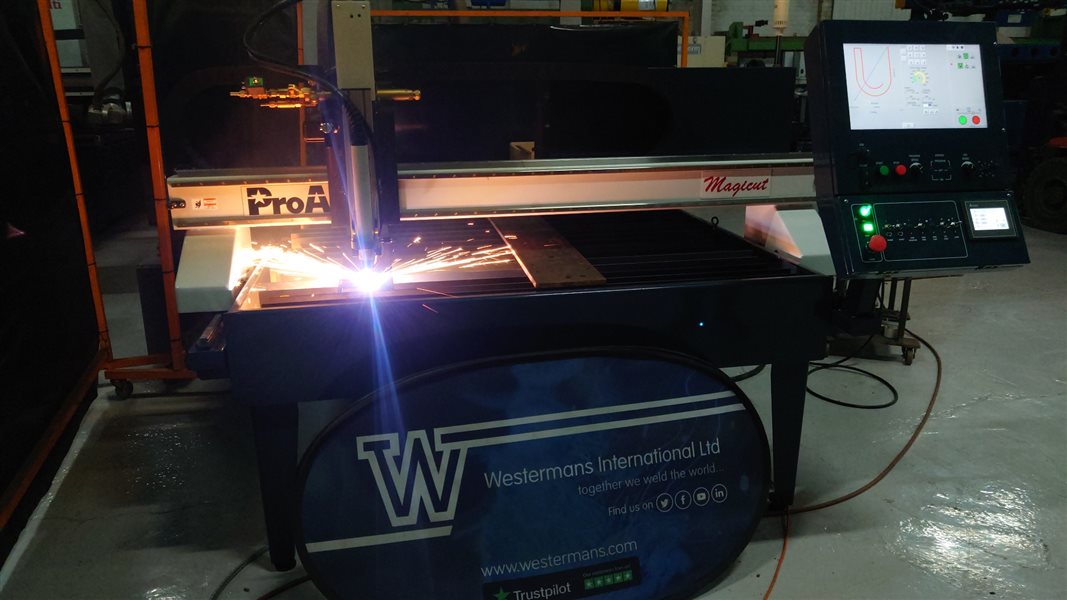

ProArc Magicut Hypertherm Edge CNC Plasma and Koike Gas Torch
This equipment is available for delivery to United States
- The new ProArc Magicut CNC dual fuel plate cutting machine is a complete package and partnered with Hypertherm and Koike

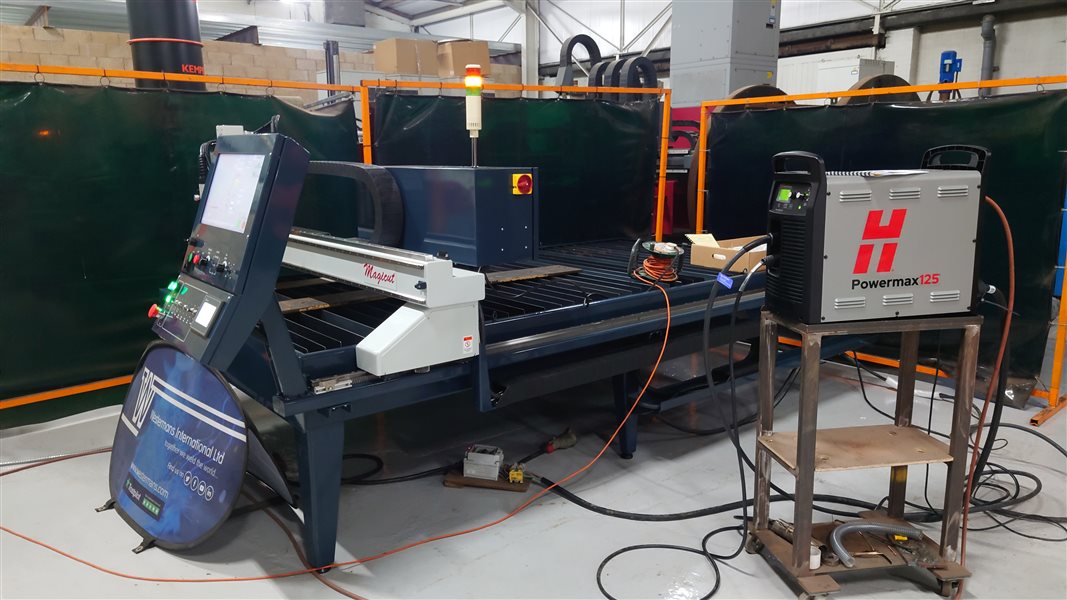

- Consists of Edge Connect CNC, Software, Hypertherm Plasma 125SYNC, Koike cutting torch, Water cutting bed. Easy to set up. Easy to move.
- Model: Magicut 1530 (5' x 10') Cutting area 1600mm x 3100mm
- Cut plate easily with the Hypertherm Powermax 125: Recommended cut 38mm. Koike Gas Torch: Maximum 50mm cut

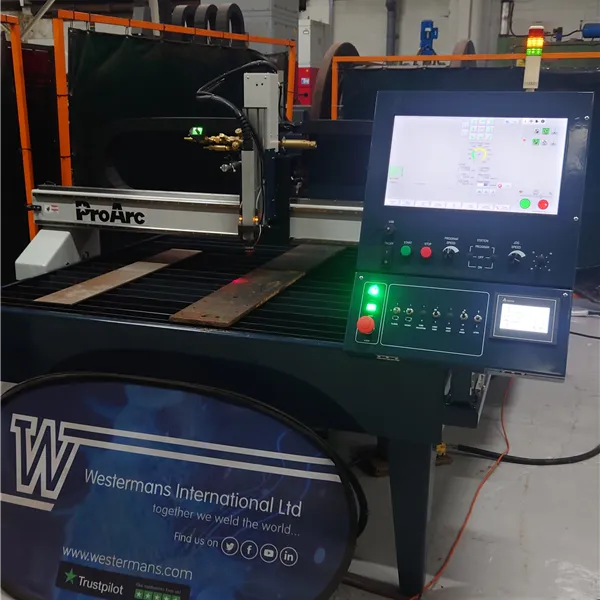

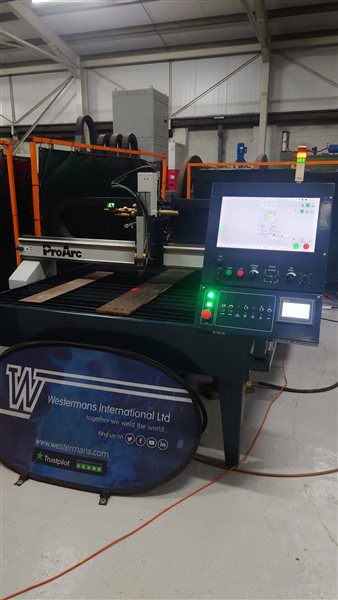

- Hypertherm Edge Connect CNC controls with 15" screen, multi-language selection, USB port and recall the last cutting point feature. Pronest LT Software

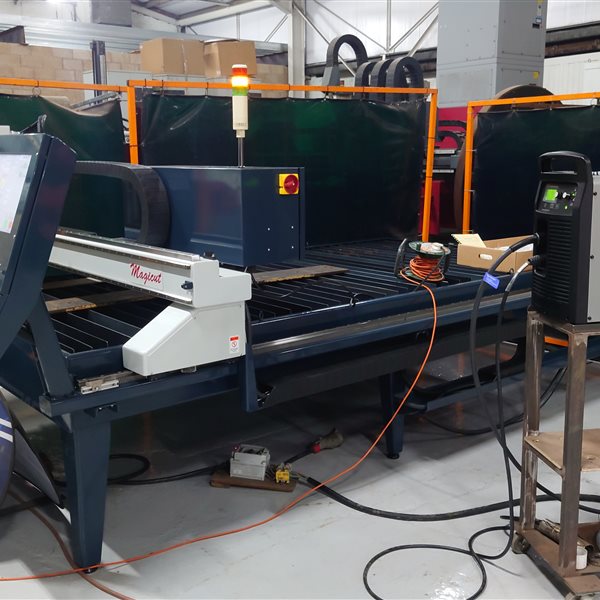

- Hypertherm Powermax 125 plasma cutting system with consumable Starter Kit. Optional: Any Hypertherm Powermax models, either single phase or 3 phase

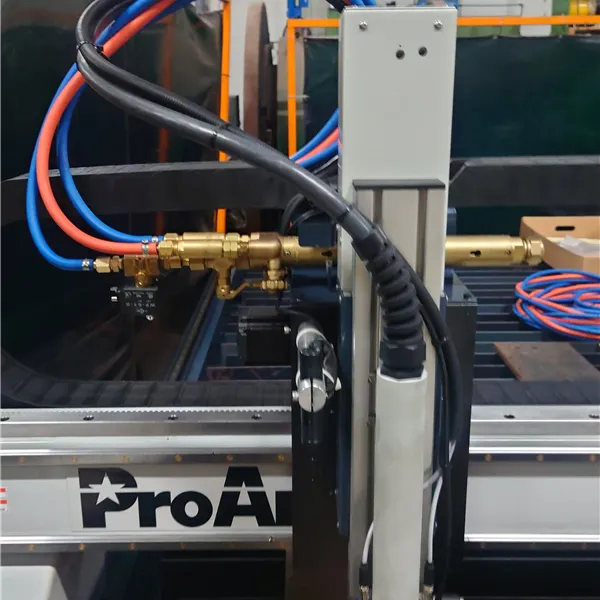

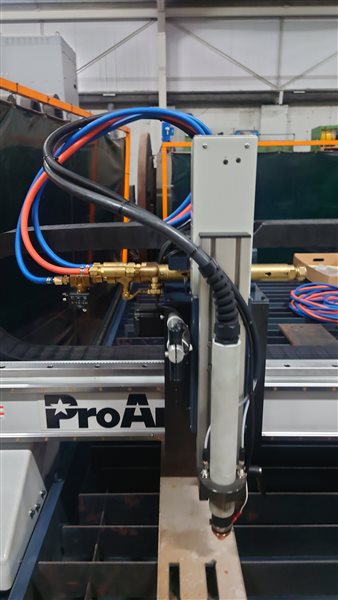

- Koike Oxy-fuel cutting torch (50mm max. thickness), nesting software
- The ProArc Magicut: Dual drive. AC servo motor with precision rack and pinion drive. Double linear roller guideway
- Water table requires approximately 900 litres of water for proper operation. Optional: Fume Extraction.
- Max. cutting speed 8 m/min (315 ipm), max. travel speed 12 m/min (472 ipm)
- Position accuracy (mm) +/- 0.1 (0.004"), repeatability (mm) +/- 0.05 (0.002")
- THC & anti-collision device
- Cutting Bed: Input: 1 ph. 200-220V, 50/60Hz, 20A

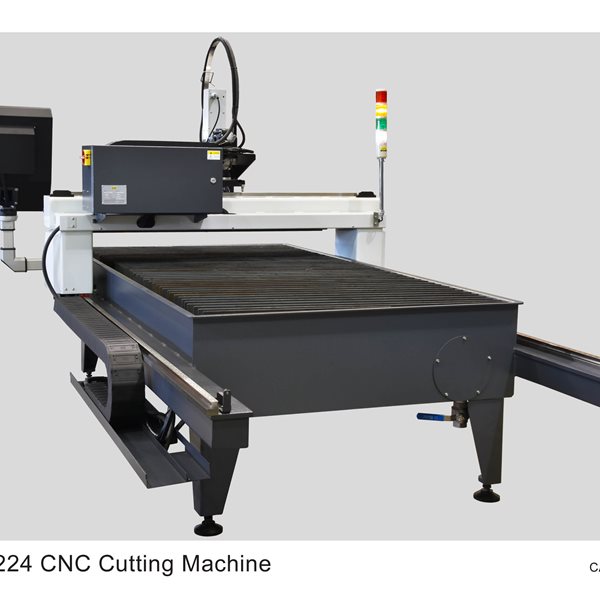

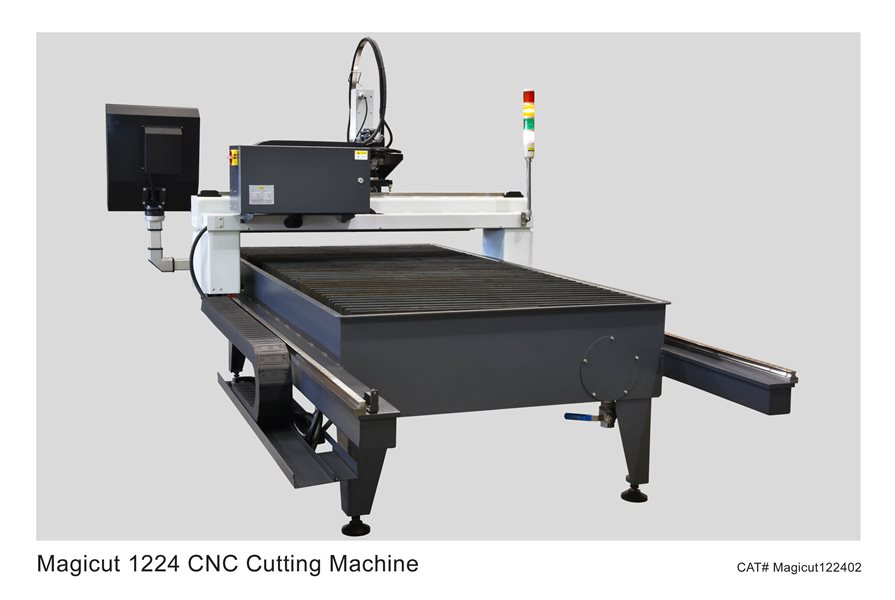

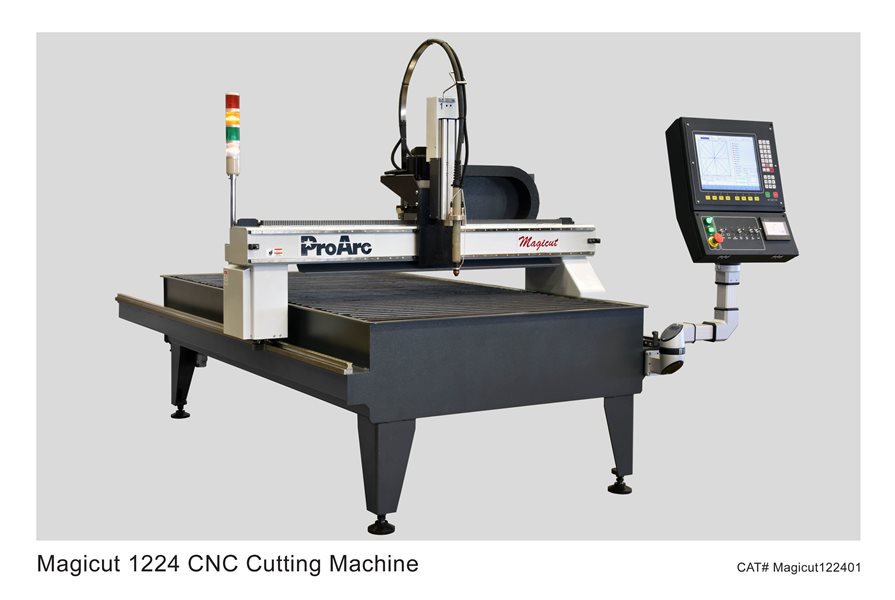

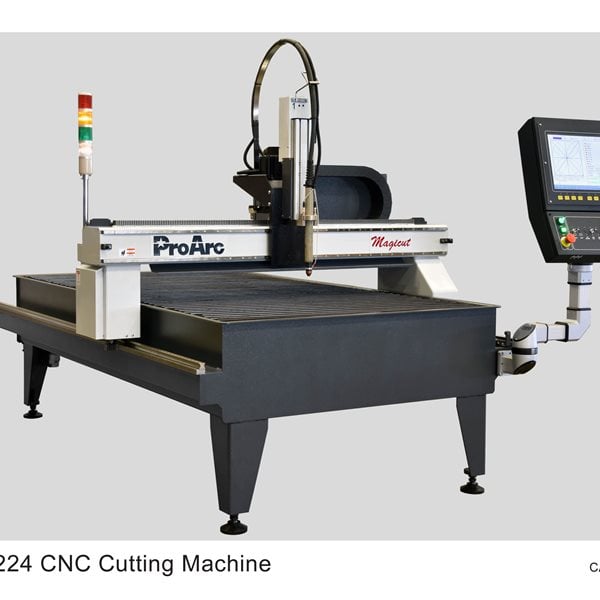

- Alternative Models Available: Magicut 1212 (4' x 4') or Magicut1224 (4'x8')
- 2 year warranty. Full specifications and technical data on PDF download
Package Includes:
- 12 month warranty
Lead Times
All used machines are serviced/refurbished to order, and lead times are dependant on current workload and machine type. The below can be used as a guide only, and is subject to change. If you have a deadline you need the equipment by, please contact us prior to ordering. We will always do what we can to try and work with your timescales where possible.
- “Sold As Seen” machines: 2-3 working days.
- “Serviced” machines: 7 working days.
- “Refurbished” machines: 2-3 weeks.
- “New” machines: subject to stock and supplier lead times where applicable.
Shipping

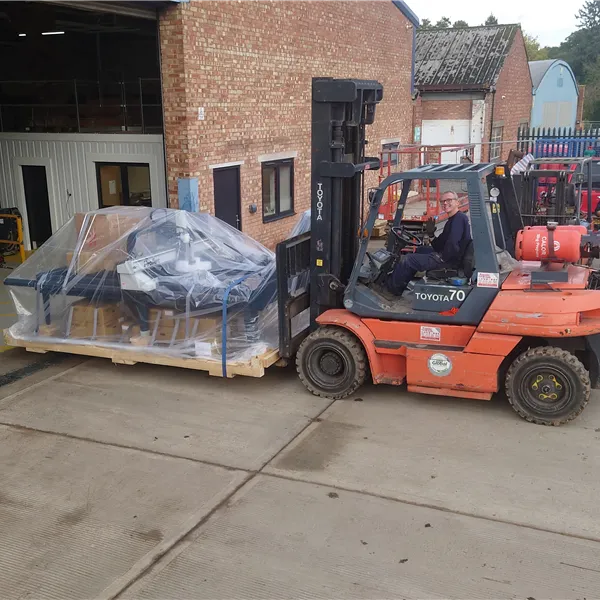

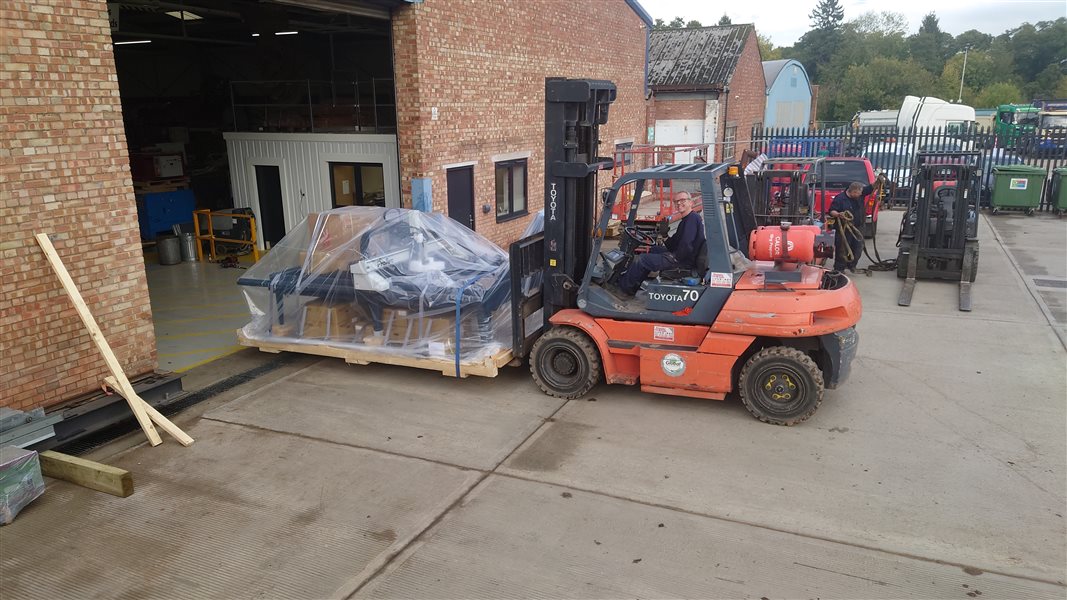

All shipping costs include packing.
