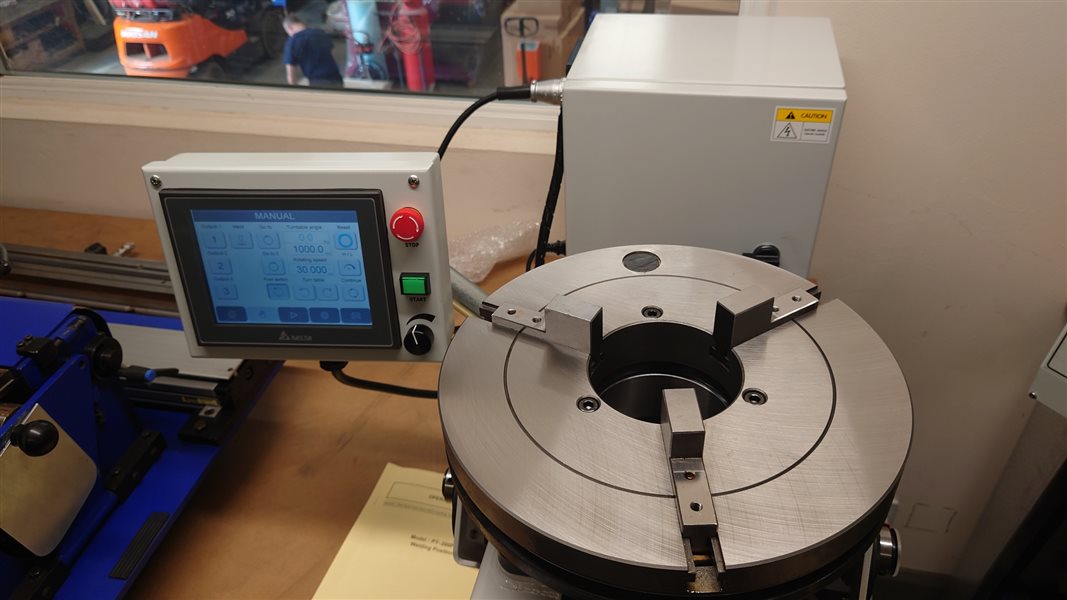

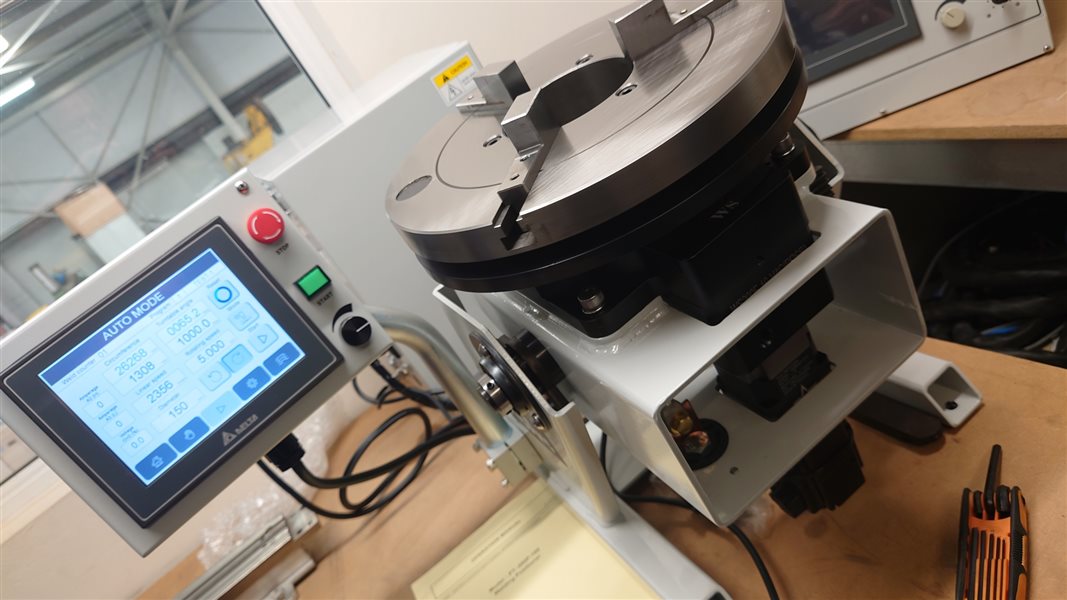

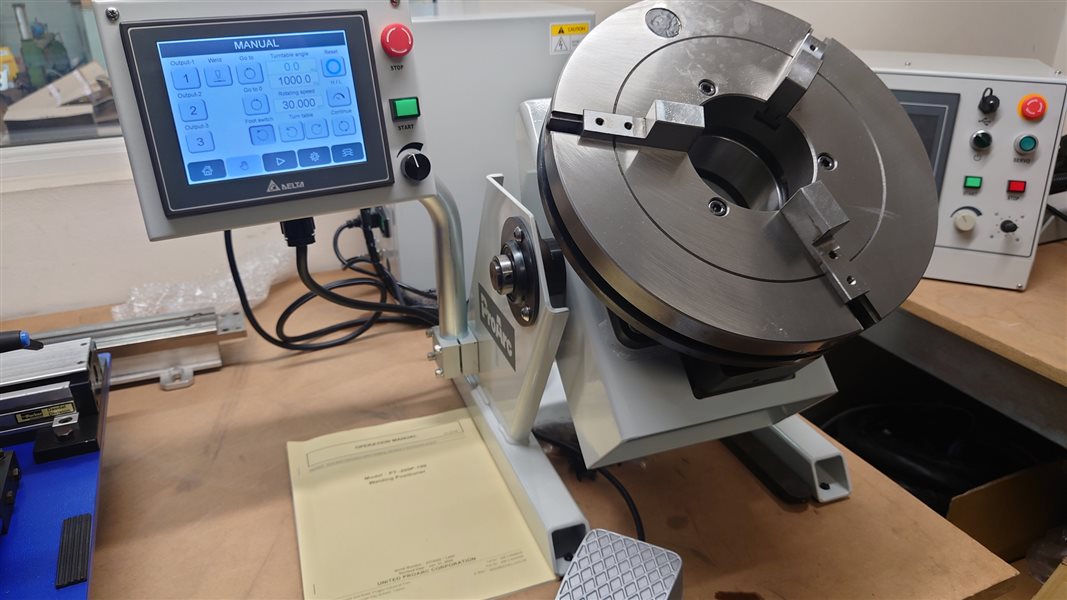

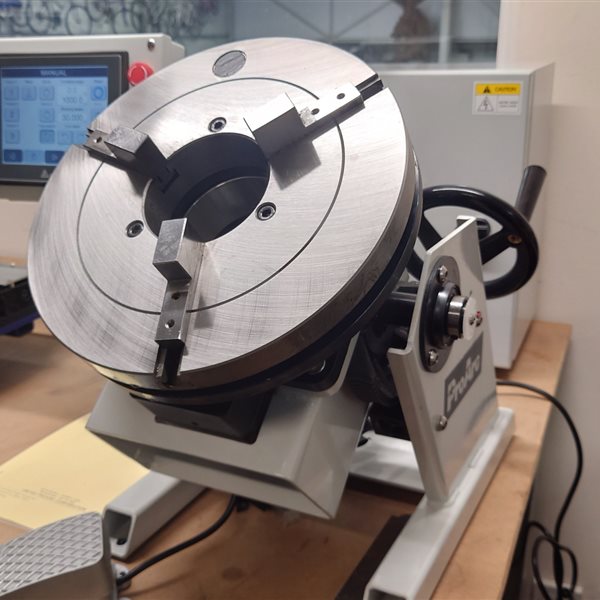

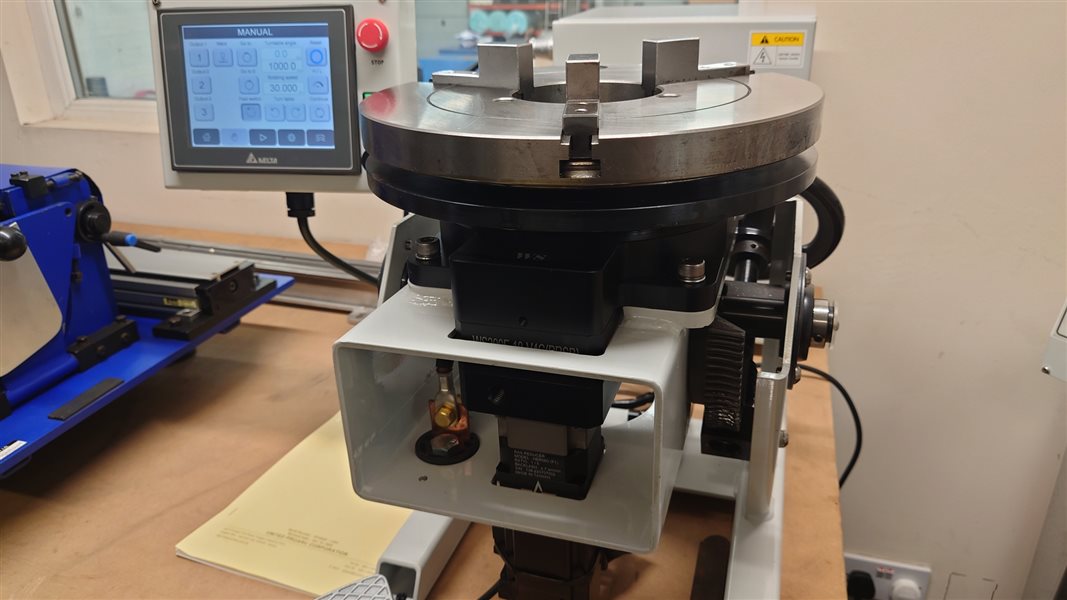

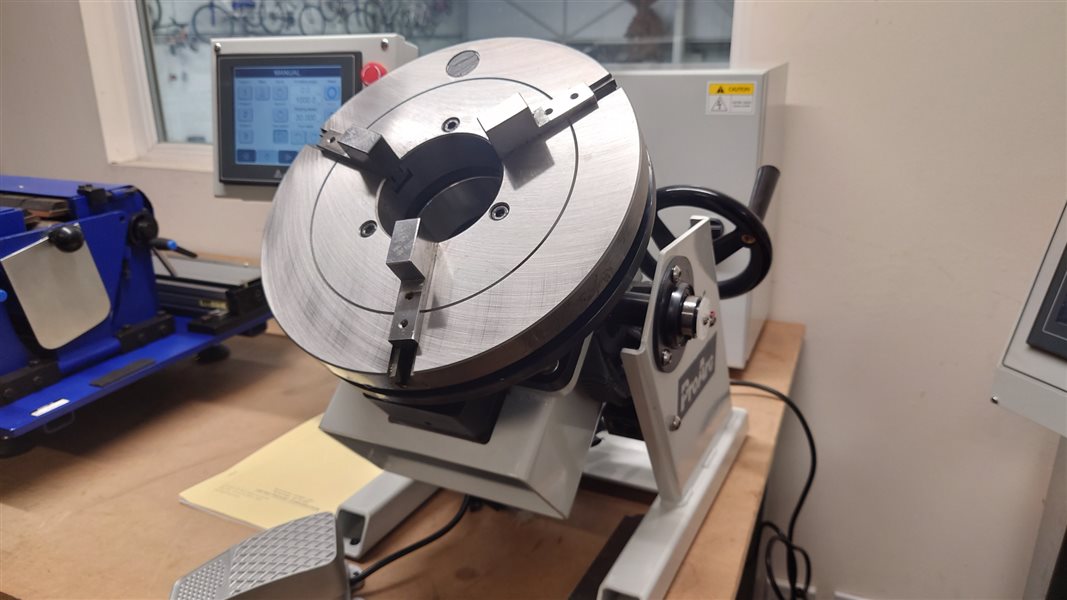

ProArc PT-200P-100 with 100mm Dia Through-Hole & CB-500 Controller

This equipment is available for delivery to United States

Enquire Now

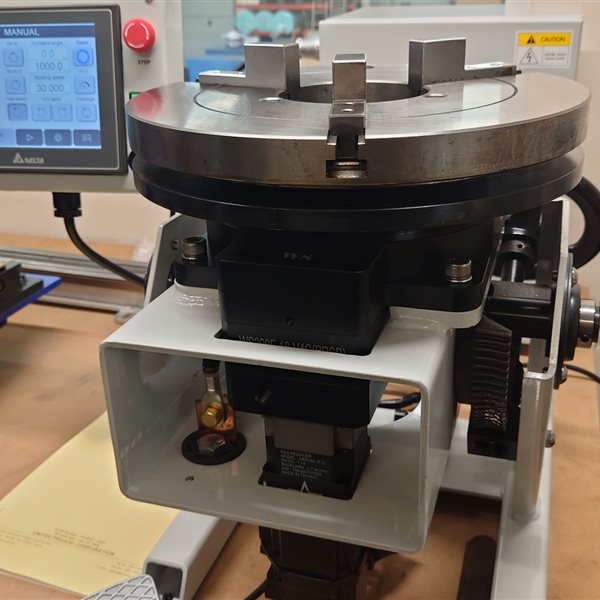

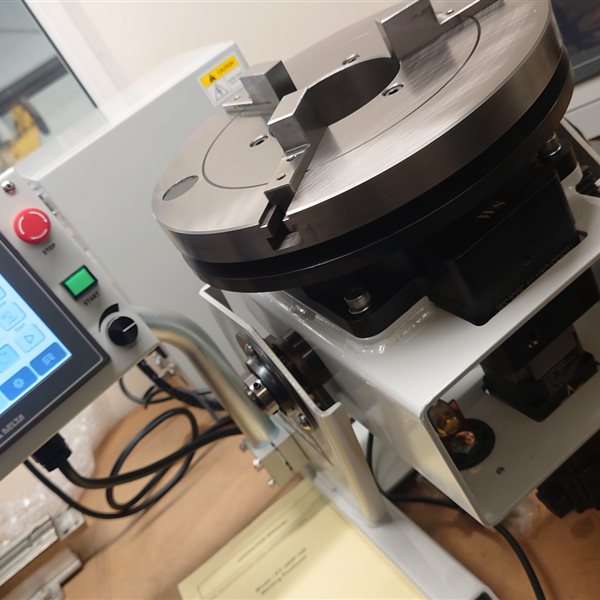

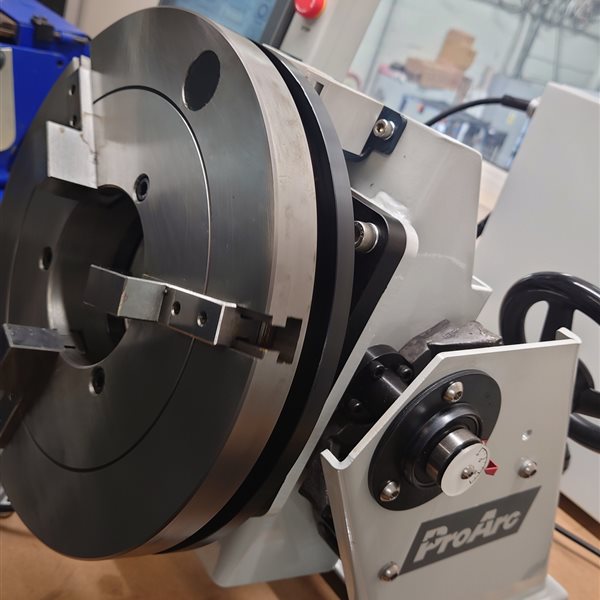

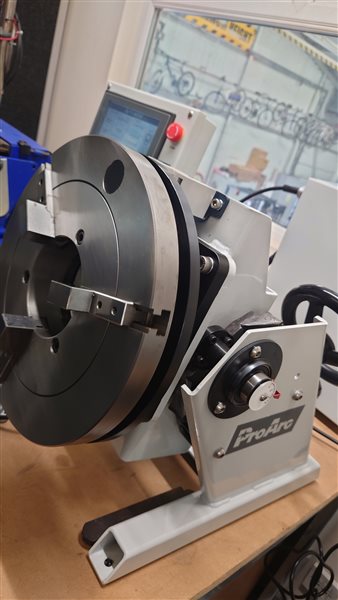

A Proarc precision, bench type welding positioner with 100mm dia hole through face plate with loading capacity at 200kg in horizontal and 130kg in vertical
Great machine for pipe welding or welding connections on to flexible pipes and tubes, equipped with an intelligent control system for welding automation maintaining production quality.
Tilting 0-120 degree
Drive motor Servo Motor
Control PLC and HMI
Rotation speed 0.01~16rpm
Program storage 100

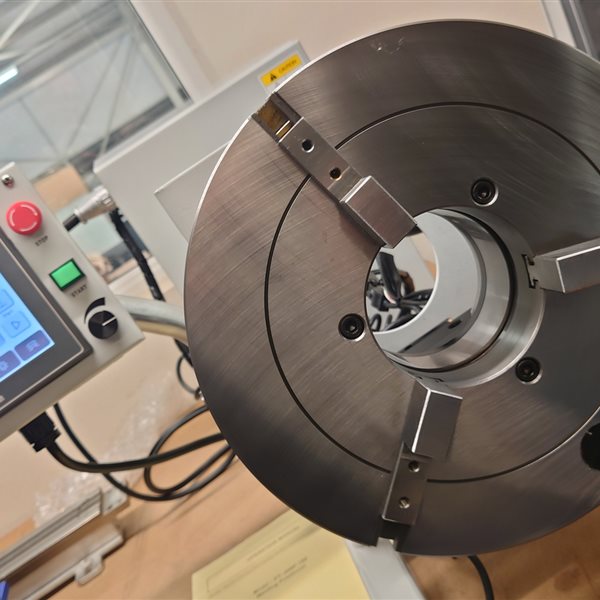

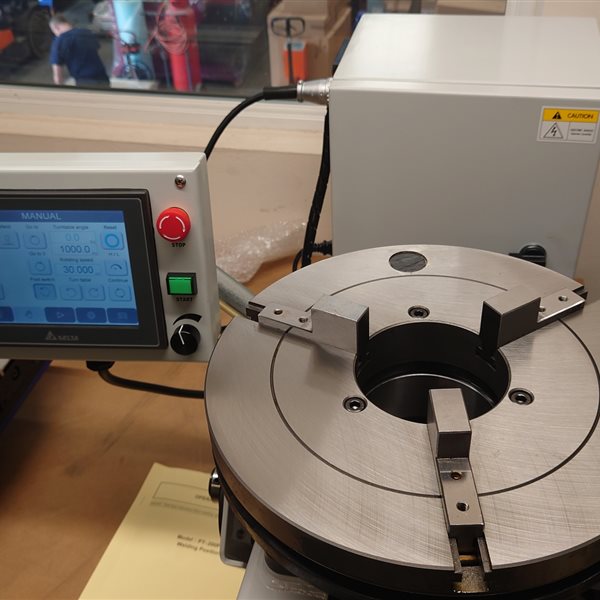

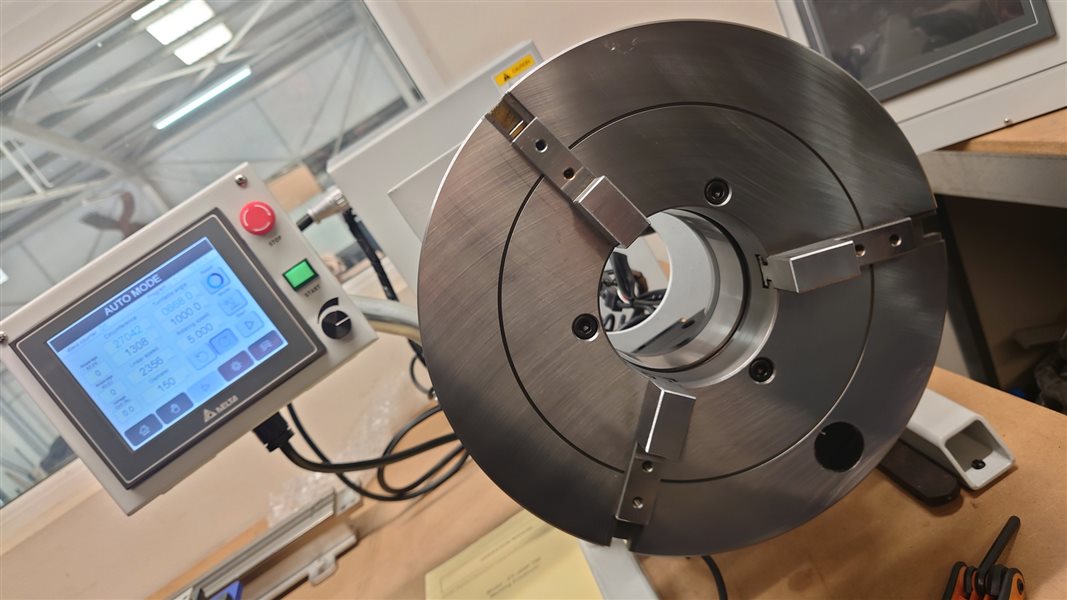

Option for face plate or additional chuck with 100mm hole. The faceplate may be excluded and have a direct mount with a three-jaw chuck.

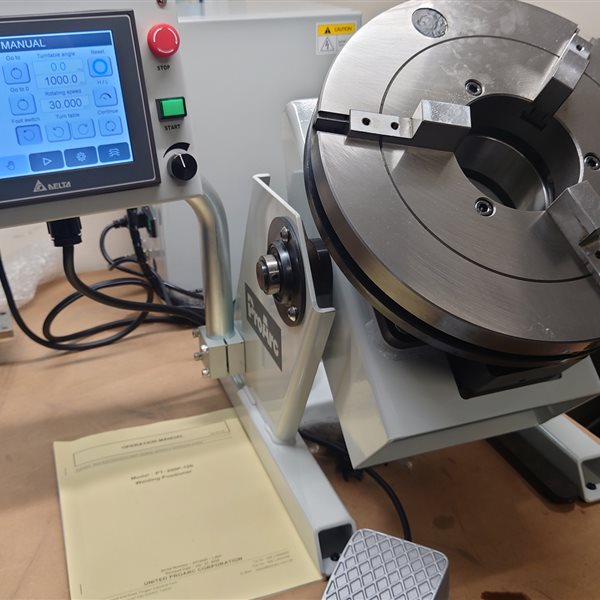

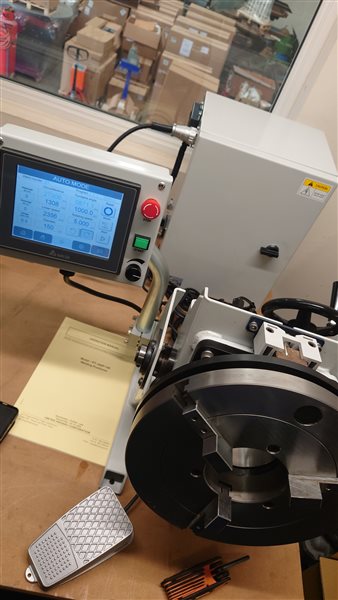

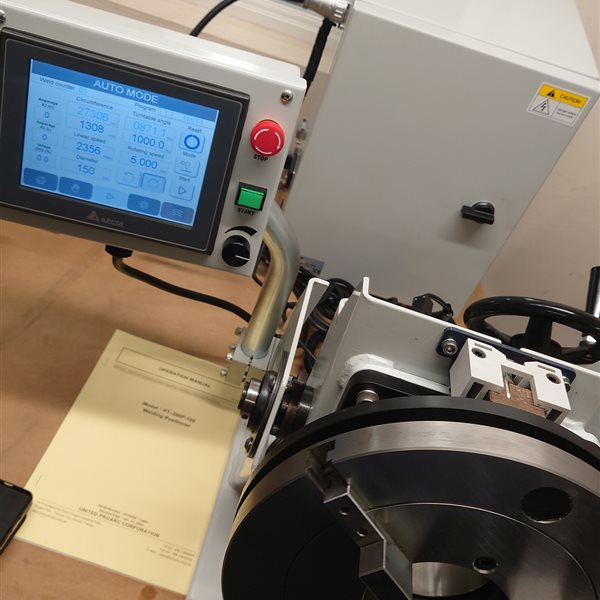

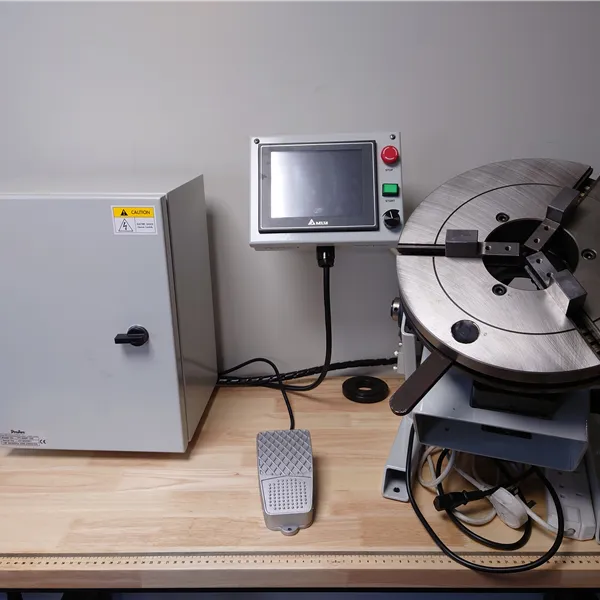

The CB-500 controller is an easy and quick to use and learn. The optimized graphical operation interface can be used by any new operators and welding engineers.
GUI - simple and intuitive operation • Automatic calculation of rotation speed and linear speed • Welding sequence can be set to optimize welding quality • Store 100 programs – including welding current, diameter, speed and sequence •
Programs can be edited • Multilingual controller - English, Spanish, German, Russian, Japanese and Chinese languages

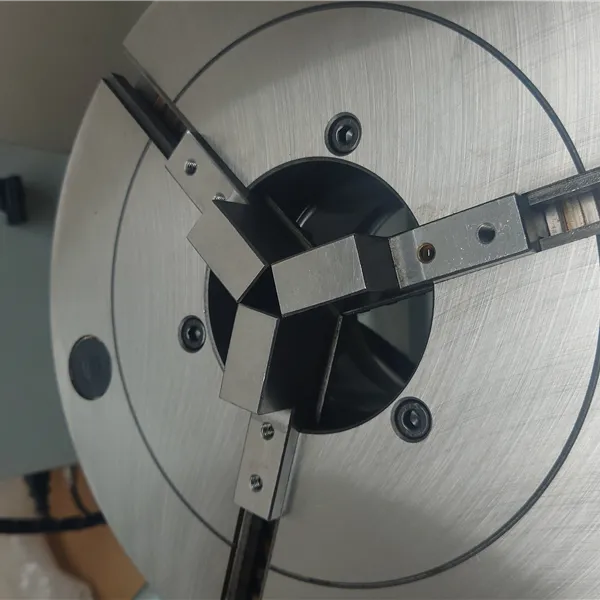

Hollow shaft with clearance through bore in shaft.
This is the largest diameter available in standard products. Any larger diameters would require customisations

Package Includes:

12 month warranty
