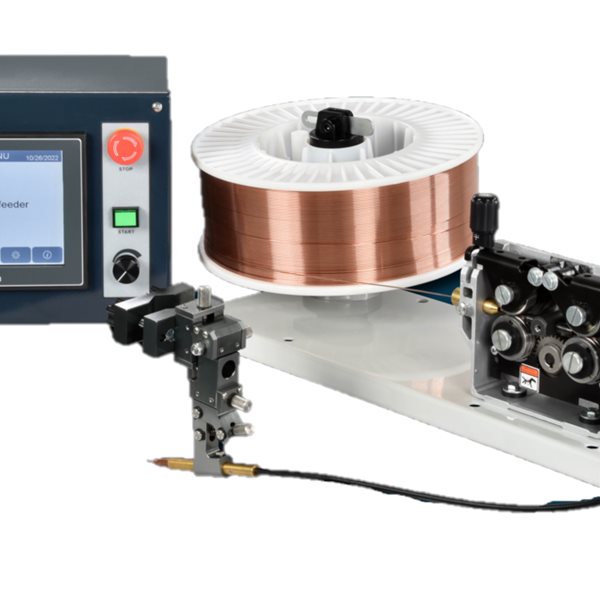

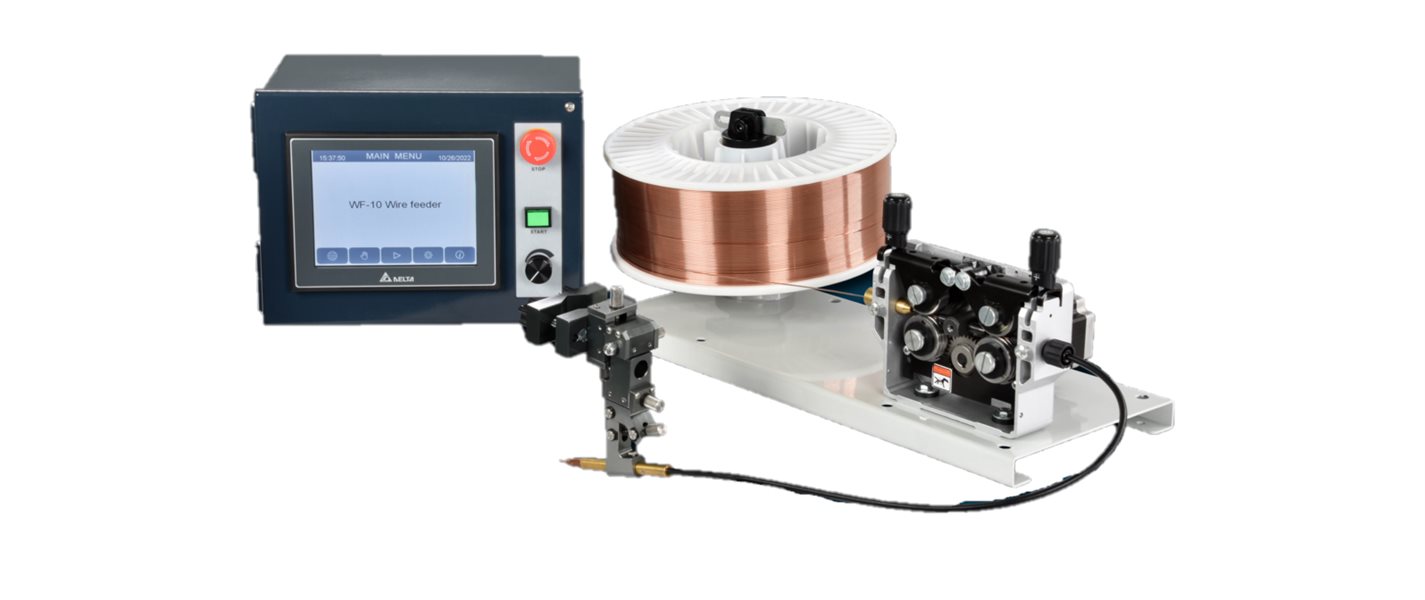

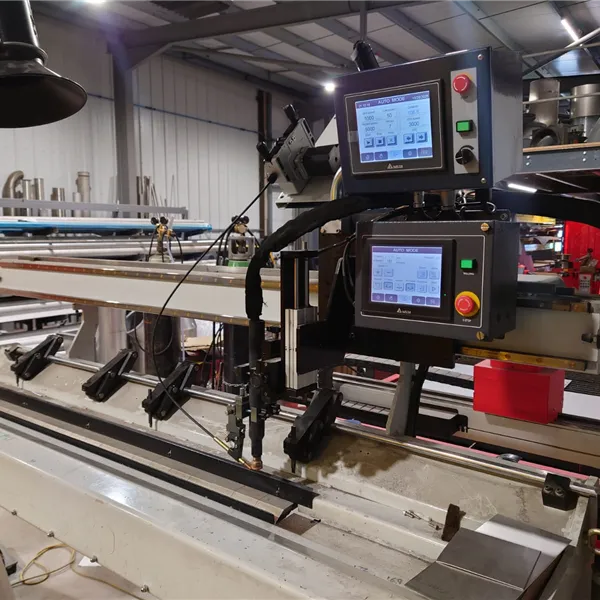

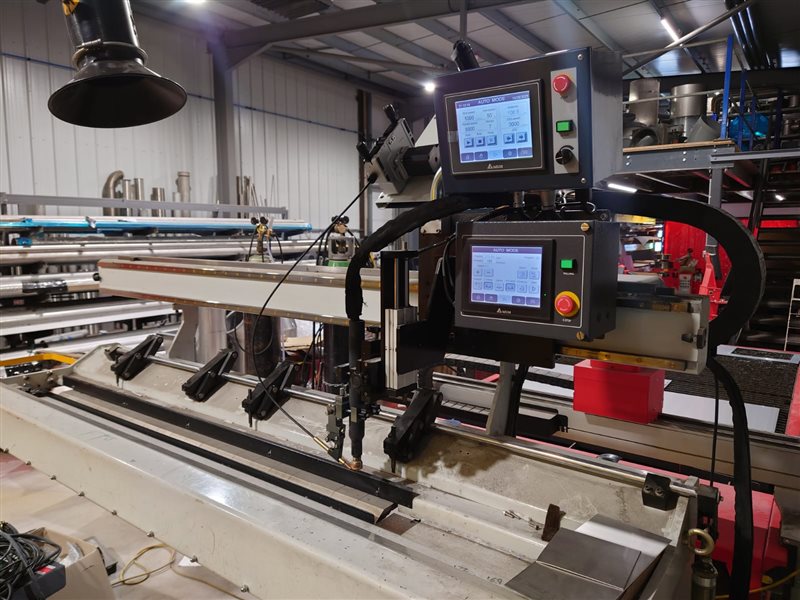

ProArc WF-10 Cold Wire Feeder for auto precision TIG

• ProArc WF-10 Cold Wire Feeder can be fitted to most TIG and Plasma welding systems either as a stand alone unit or interfaced in to the Proarc PLC for welding automation
• This precision model works with a variety of automatic welding projects. Enhance efficiency & productivity with smooth consistent wire feed for most types of welding wire
• It regulates the feeding of welding wire into the welding torch, simplifying the welding process so you can free up skilled labour.
• Feeding speed of mm/min 10 ~ 10,000
• Wire feed roller options 0.8 / 1.0 mm • 1.0 / 1.2 mm • 1.2 / 1.6 mm • 1.6 / 2.0 mm
• Features:

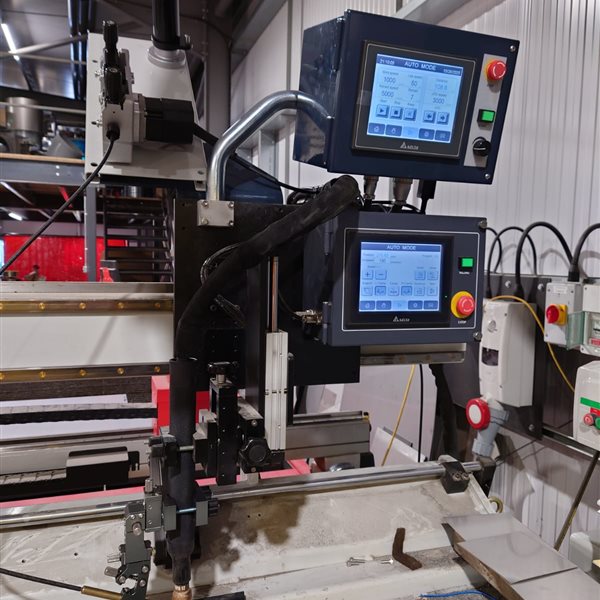

• Intuitive graphic touch controller. Wire retraction function. Digital display of wire length. Feed rate is numerically controlled.

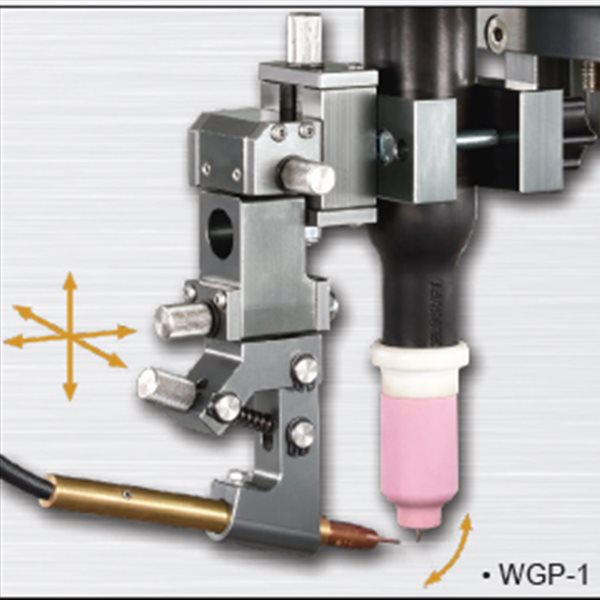

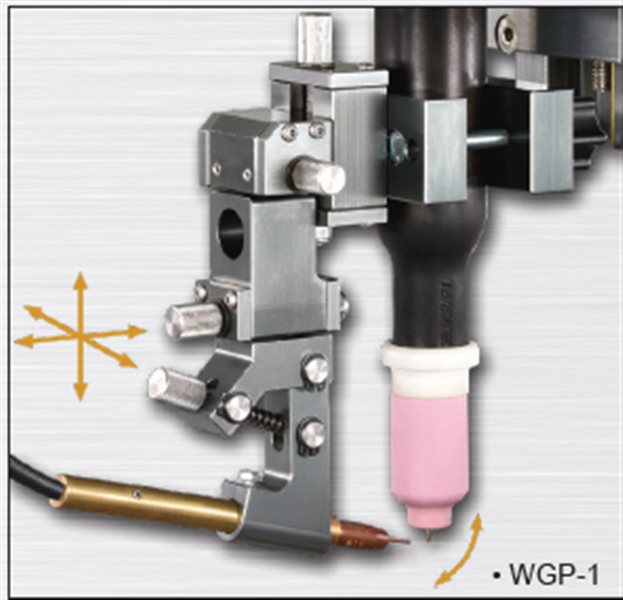

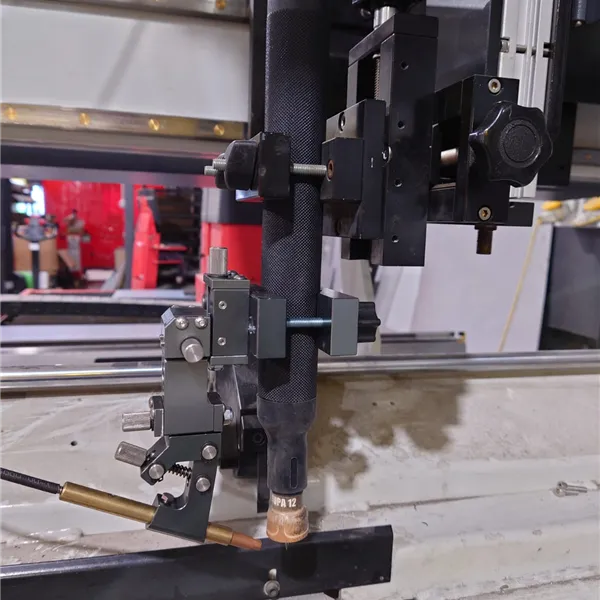

• Synchronous wire feeding with pulse. 3 start outputs to work with external devices. WGP-1 wire guides.
• Benefits:
• Wire feeders operate at high speeds, which can increase the number of welds per hour and decrease production time.
• Wire feeders control the feeding of welding wire and maintains consistent weld parameters. This can lead to higher-quality welds and improved product reliability.
• Wire feeders can reduce the need for manual labour, which can lower labour costs and free up skilled welders for other tasks.

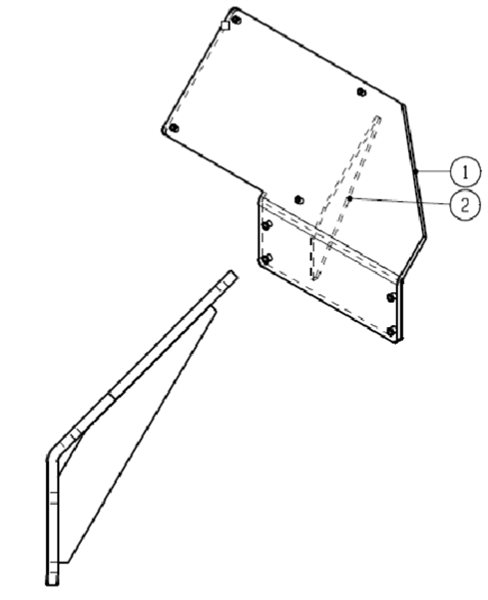

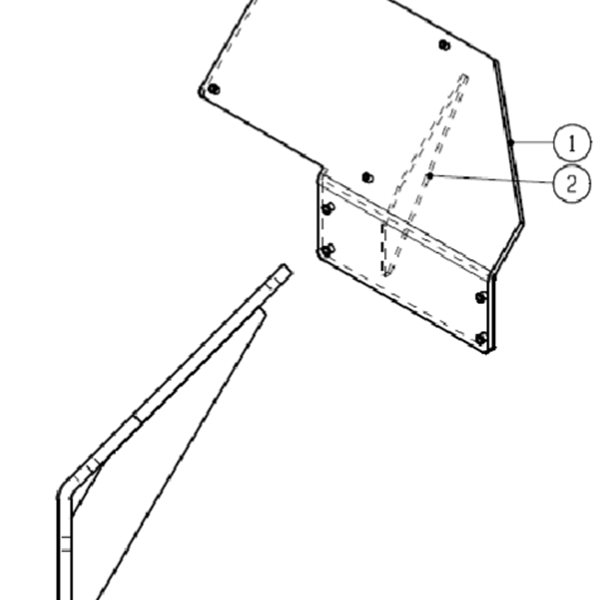

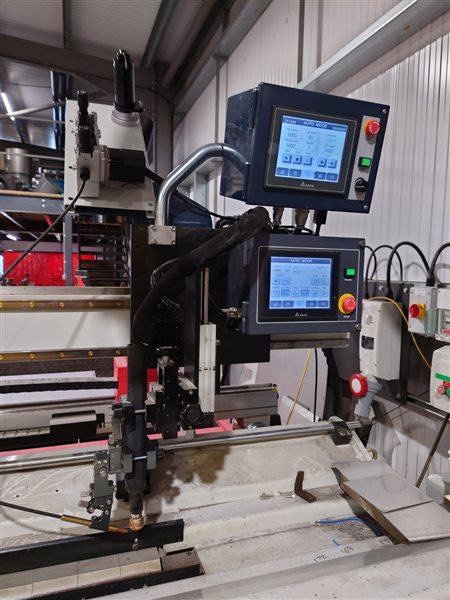

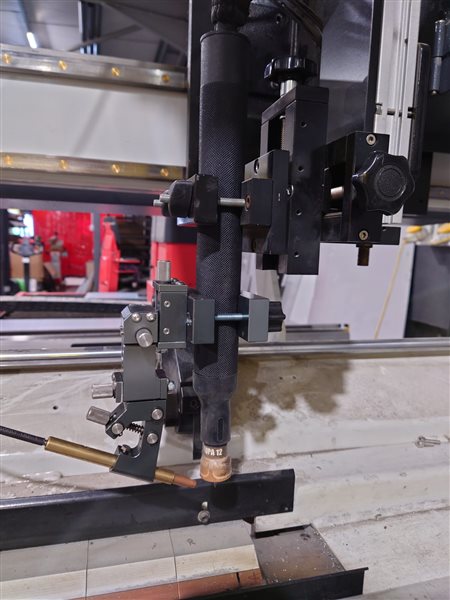

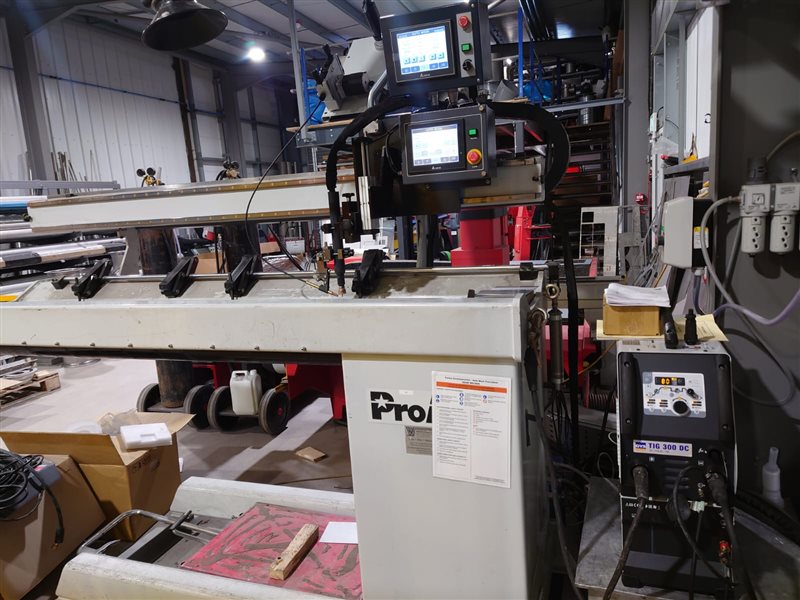

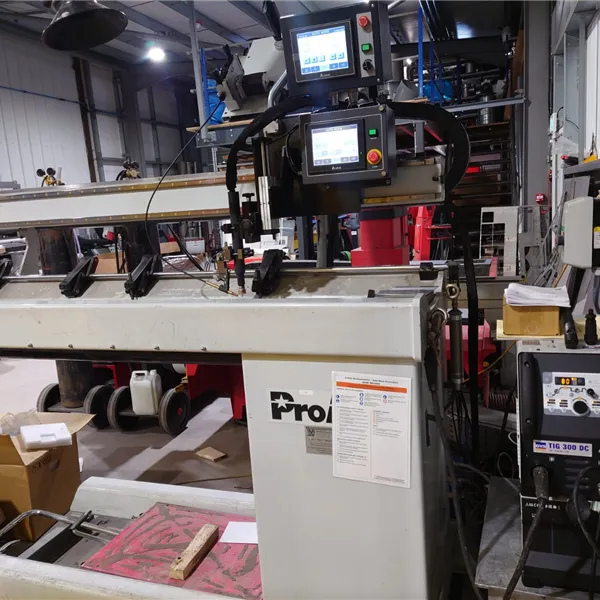

• The Proarc WF-10 comes with fixing plate for any of the range of longitudinal Proarc seam welders we supply
• Power input 1Ø 100~240VAC 50/60Hz
• Dims: 550 x 240 x 260 (mm). Weight 15kg

Package Includes:

• 12 month warranty
