Pre Heat Power Source Pre-heating and post weld heat treatment
In Stock Now

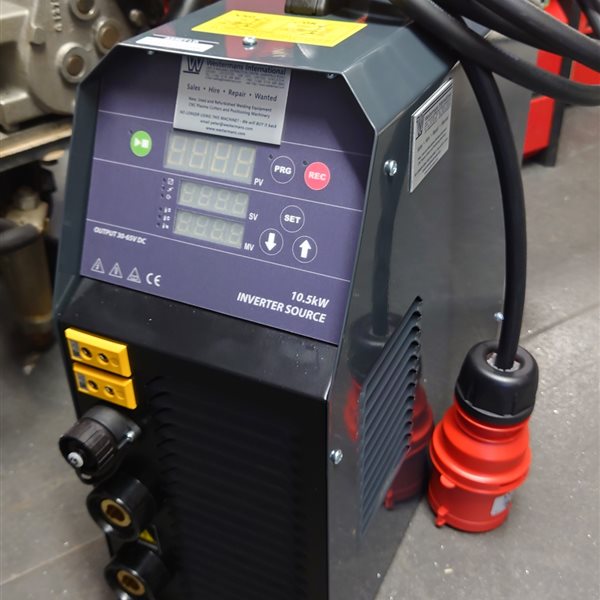

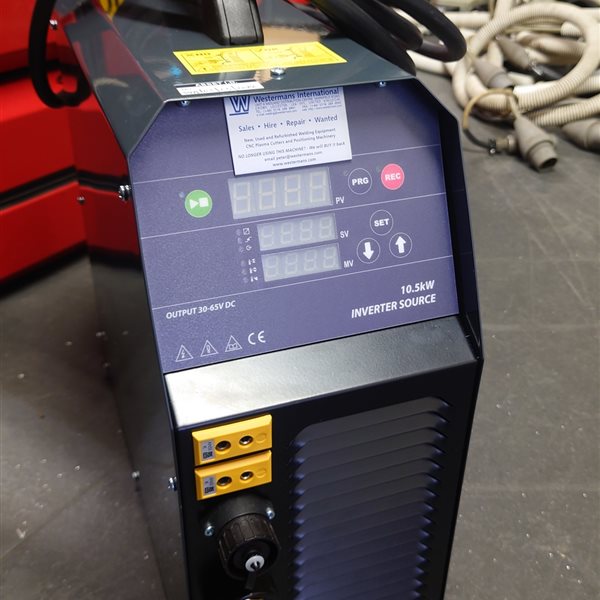

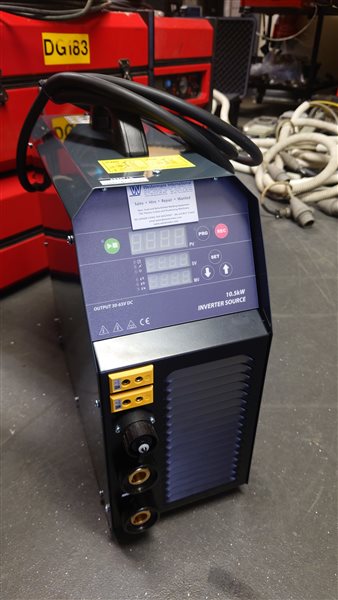

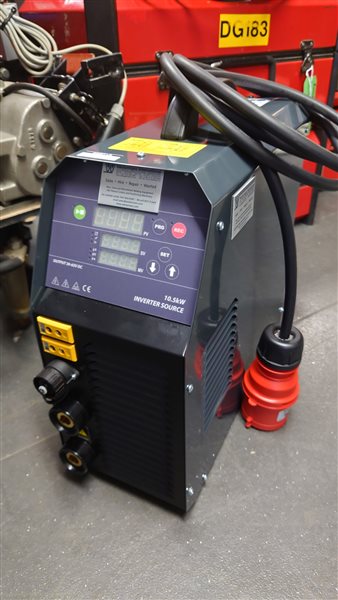

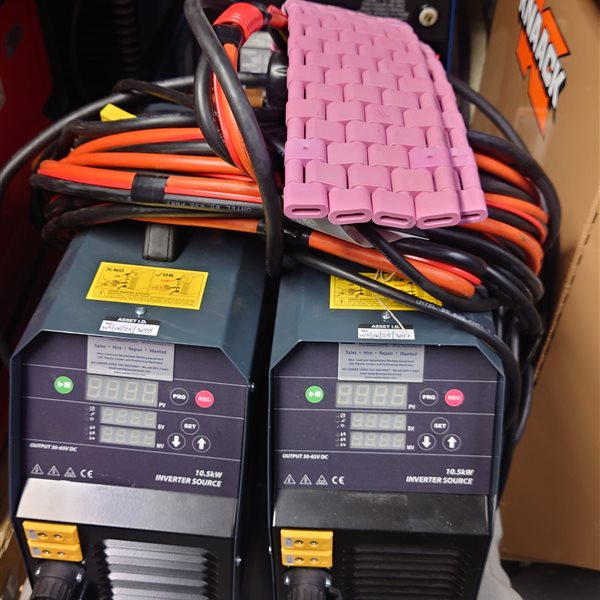

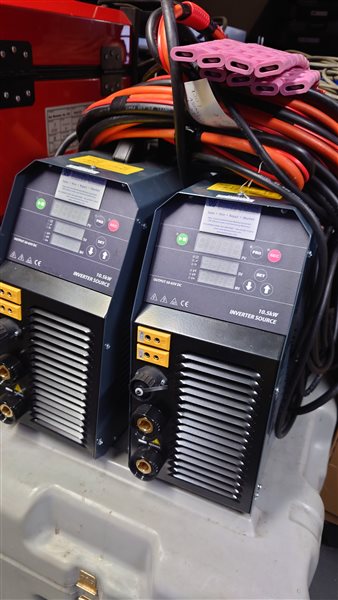

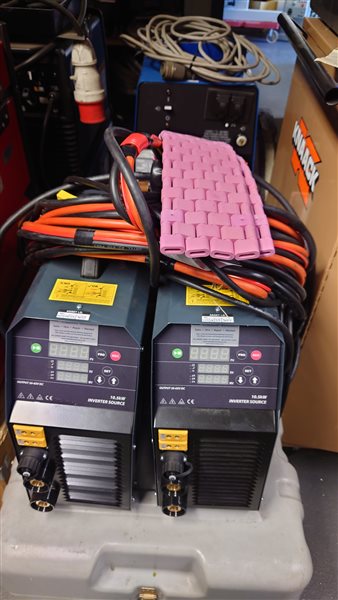

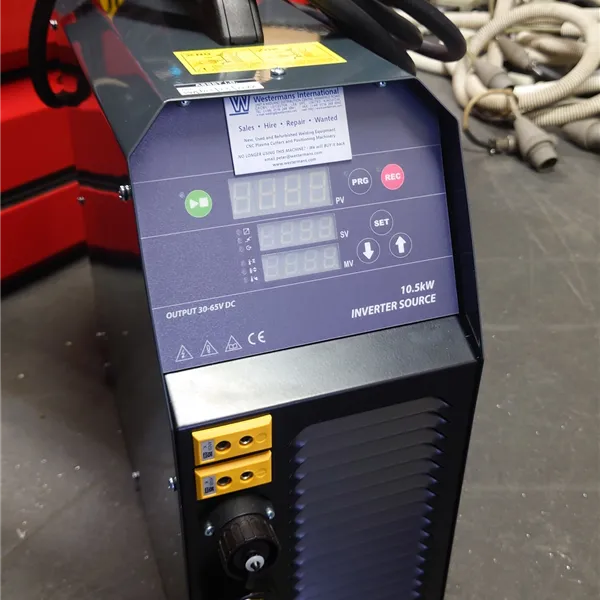

- POST WELD HEAT TREATMENT (PWHT) Portable heat treatment unit designed for powering and controlling standard 60V, 48V or 30V heating elements dependent up on the operator selected maximum output voltage setting.
- The inverter's lightweight design is ideal for smaller heat treatment jobs and areas with limited access or where transportation limitations is an issue.
- Features:
- Capacity to store up to twenty user defined heat treatment profiles - Each profile can contain up to nine ramp or hold segments.
- Integrated temperature data logger for recording and storing up to 64 hours of data - stored as a CSV file
- Includes disc containing software, instructions and USB connection cable for data.
- Auxiliary thermocouple socket for use with optional external recorder
- Option for manual temperature control via the energy regulator mode

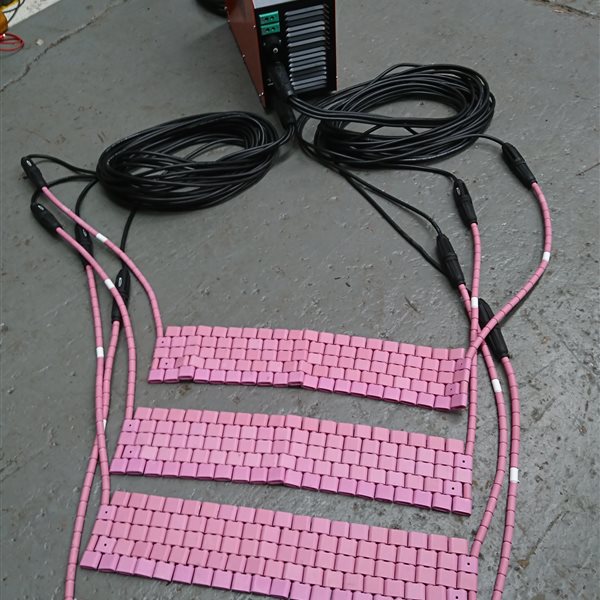

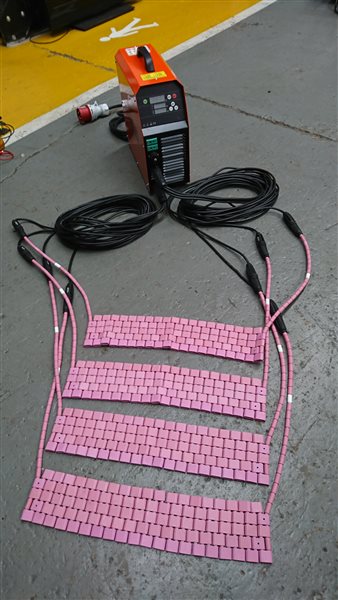

- Will power up to four standard 60V ceramic pad heating elements up to a total maximum power output of 1.5kW
- Three phase 400V, 23A +15%
- Temperature sensor - Thermocouple, type K
- Temperature control range -25° to 1200°C
- Dims - 170mm x 370mm x 405mm, 17KG
Package Includes:
- 12 month warranty
