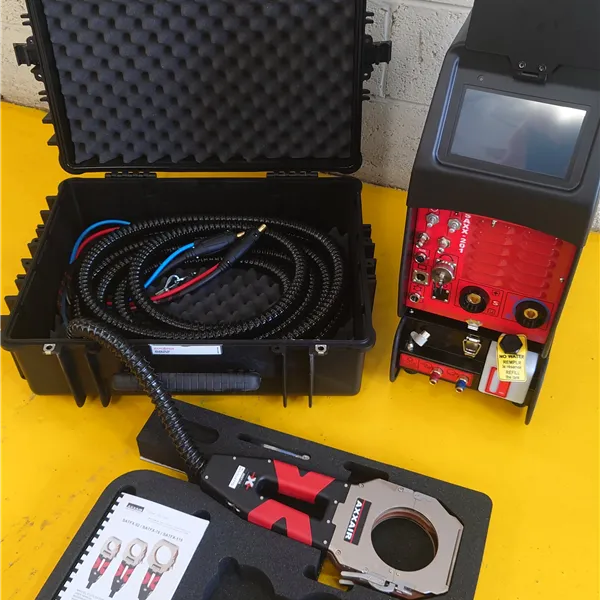

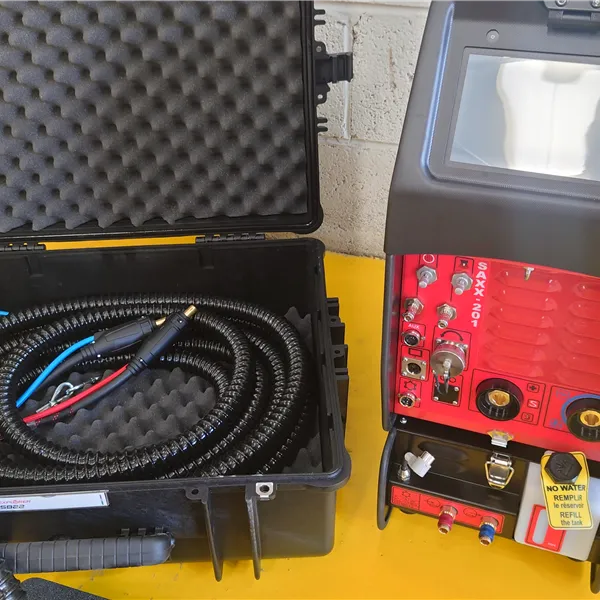

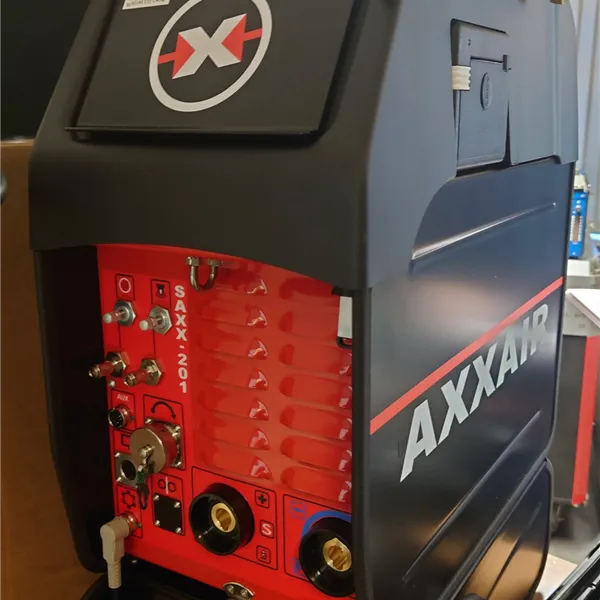

Axxair SAXX-201 Orbital TIG Power Source with SATFX Closed heads

Product: 18776

Brand: Axxair

Model: SAXX-201/SATFX

Condition: New

In Stock Now

Axxair SAXX-201 Orbital TIG Power Source with SATFX Closed heads

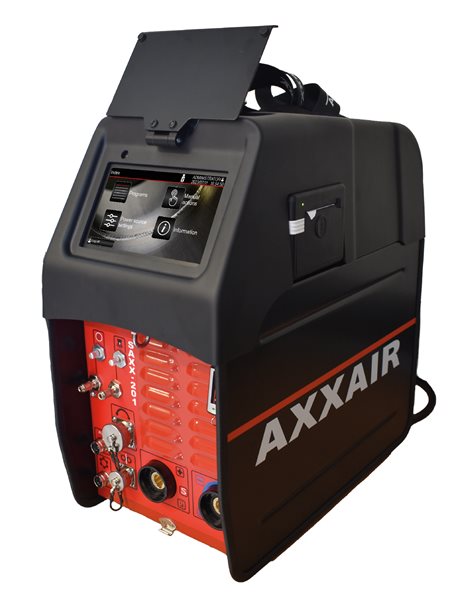

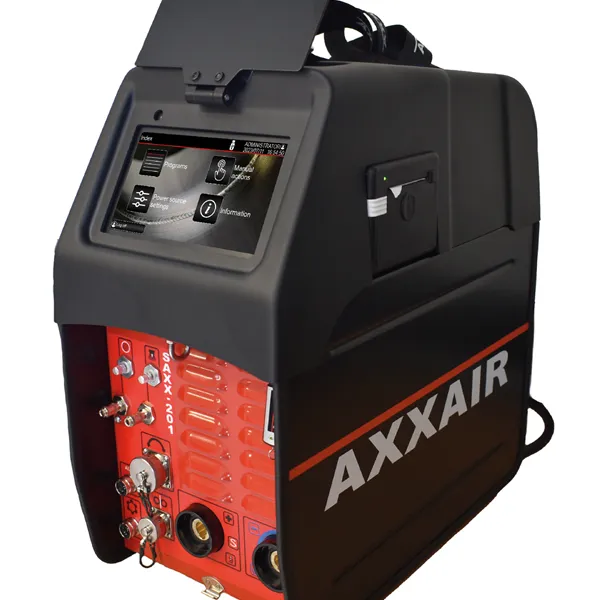

Latest generation, easy-to-use, power supply with simple, intuitive programmation and full data acquisition including weld head and internal purge gas monitoring.
Intuitive programming: automatic parameters calculation and programming assistance, 7” color touch screen, multilingual menu, 3 user’s levels (operator, welder and administrator)
Two independent gas lines with flow management: welding torch, and optional internal gas flow control
Remote control via WiFi with smartphone, tablet or via a wired remote pendant (accessory available optionally)
Many others accessories available: trolley, wire dispenser, switchbox...

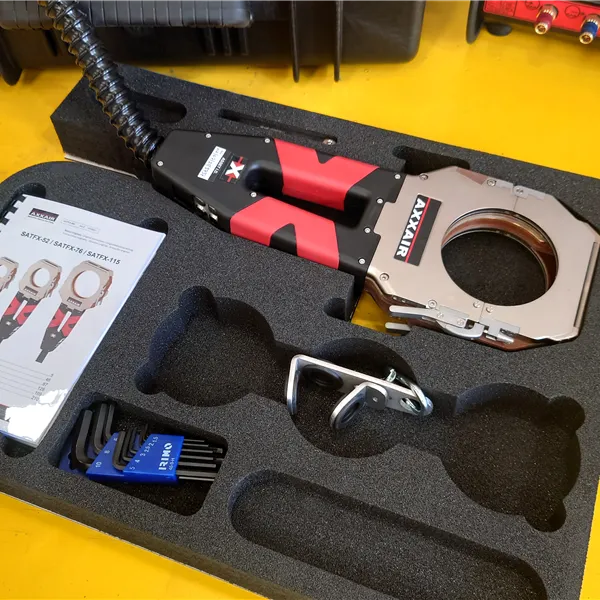

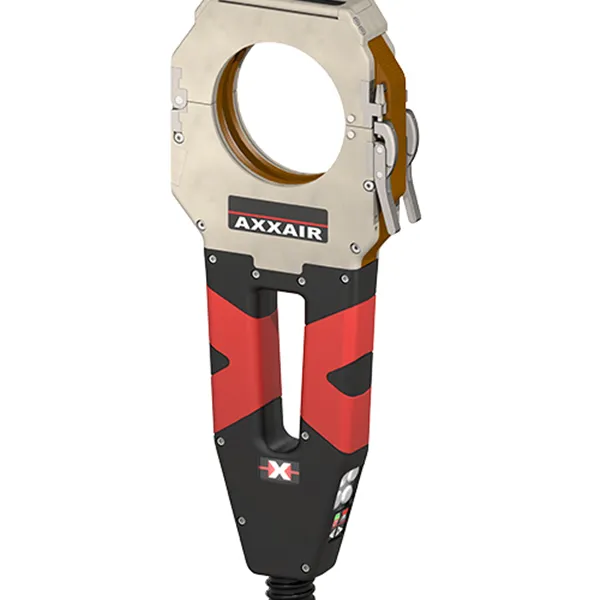

Perfect gas protection in the welding head thanks to the closed chamber: welding with very limited coloration. Easy to use: Intuitive interface and parameters adapted to the characteristics of the tubes.
Supply voltage: Single phase main with earth 110 to 230 V+/- 15% 50/60Hz - Duty cycle: 200A / 25% at 230V | 140A / 35% at 110 V 115A / 100% at 230V | 100A / 100% at 110V
Arc voltage sensors, gas flow sensors, cooling liquid sensors, inverter operation alarm, motorizations alarm (machine and wire feeder)
Multilingual menu: 13 languages
SATFX-52 ø6-ø52mm ¼” to 2”
SATFX-76 ø6-ø77mm ¼” to 3”
SATFX-115 ø12-ø115mm ½” to 4.5”

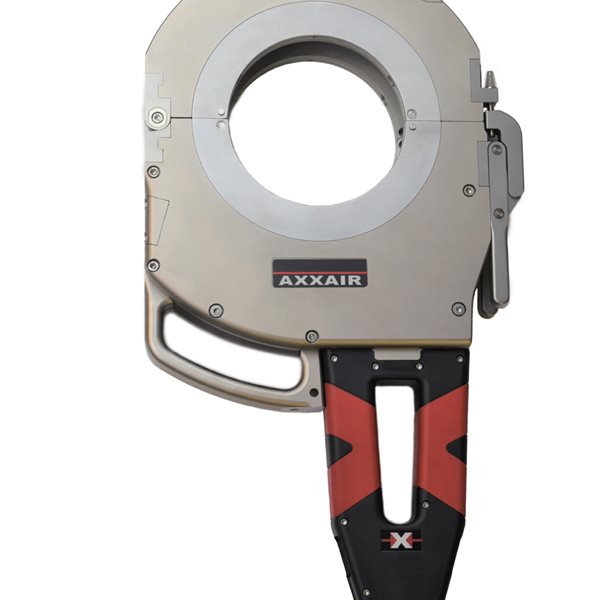

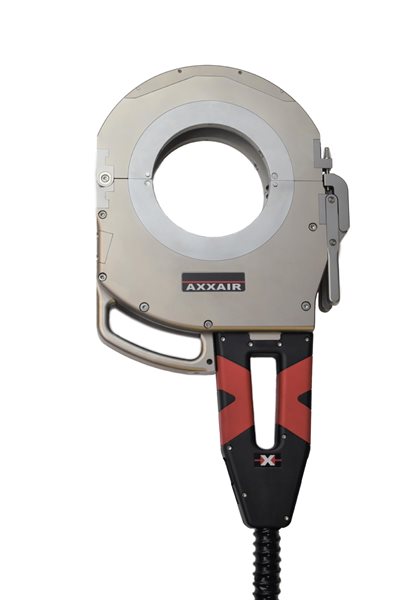

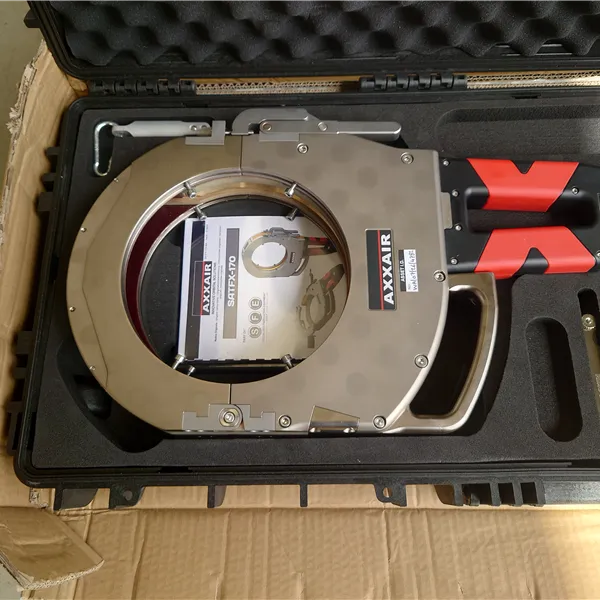

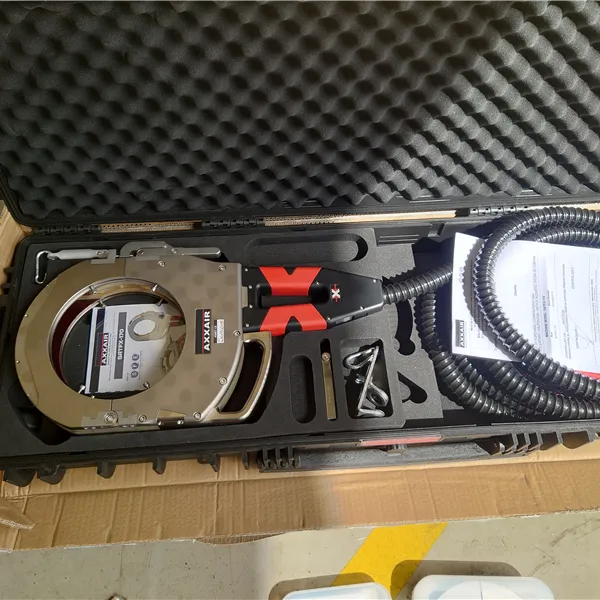

SATFX-170 Diameter ø38 - ø170mm

Package Includes:
