10,000kg Welding Positioner Fixed or Adjustable Height, WestWorld

This equipment is available for delivery to United States

Enquire Now

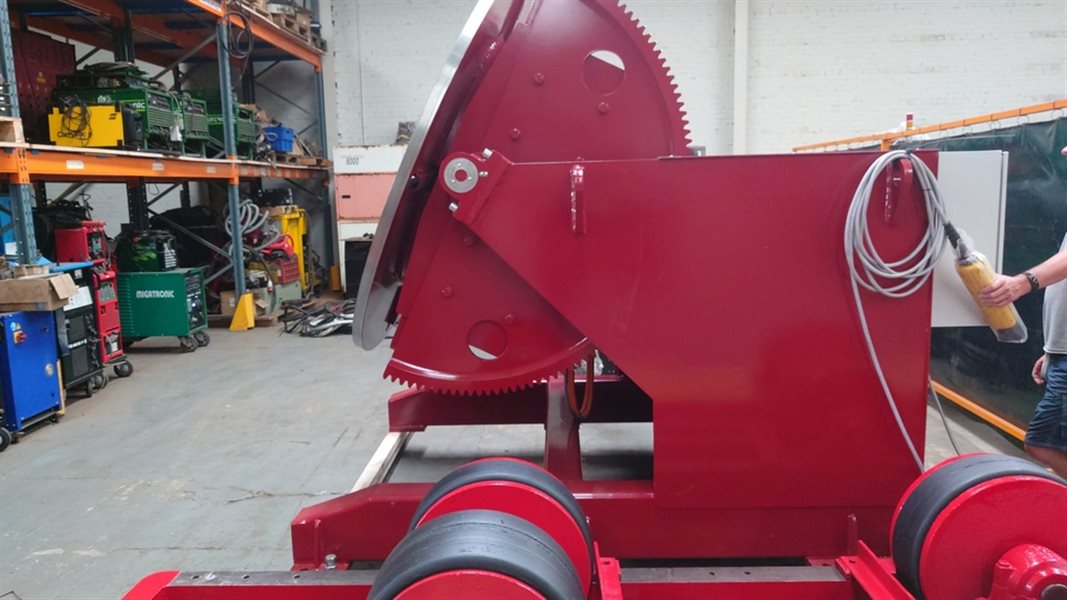

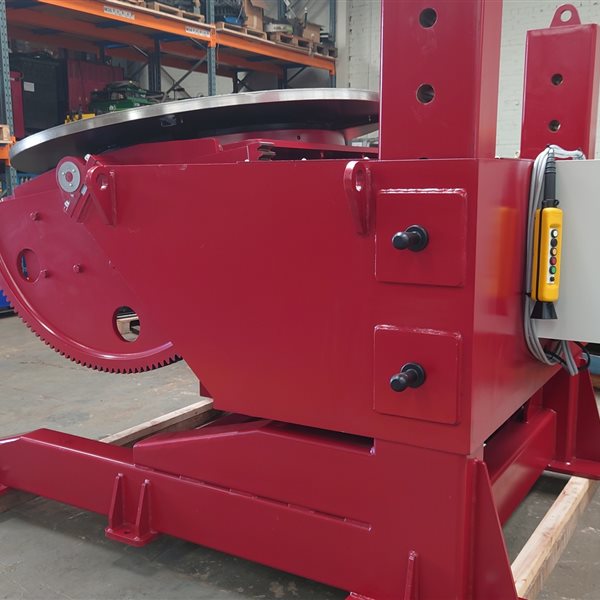

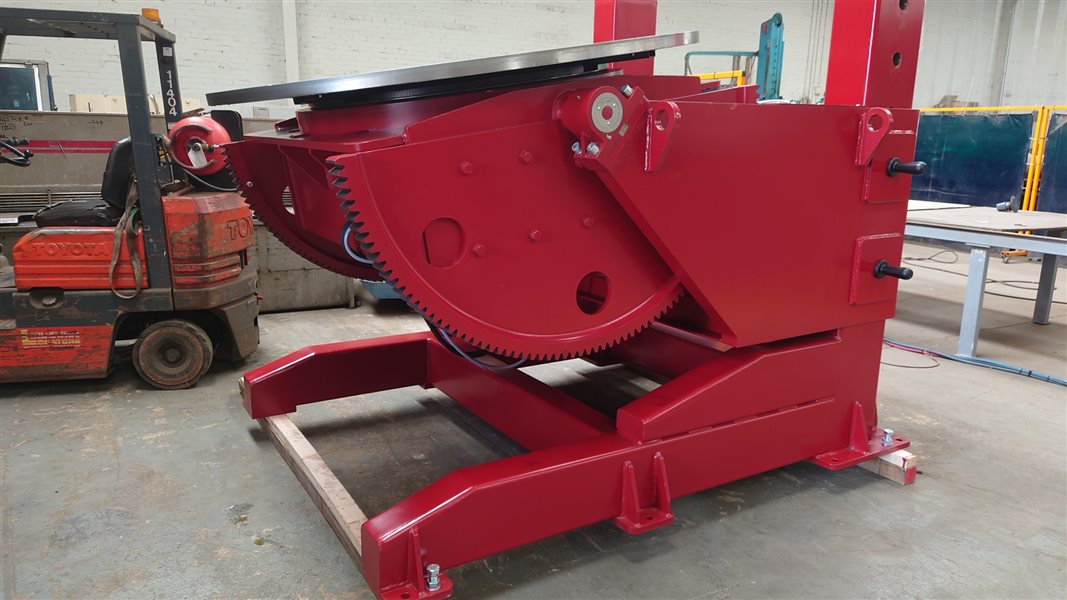

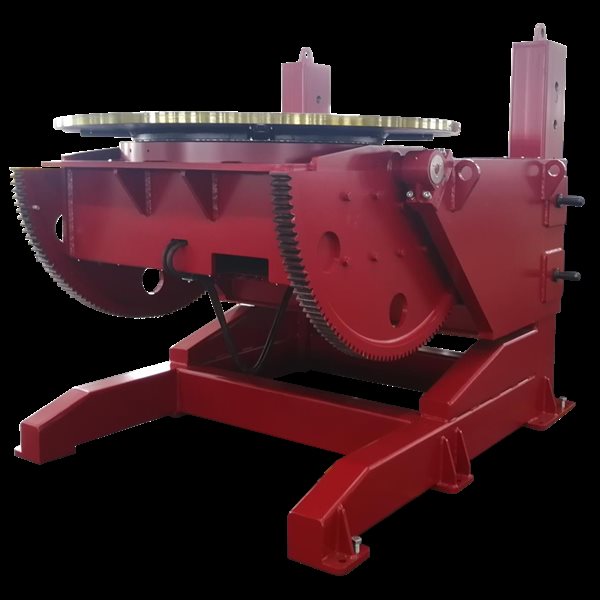

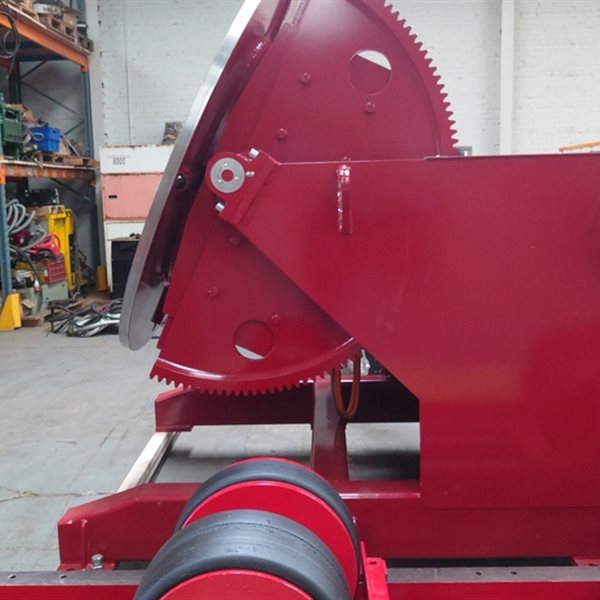

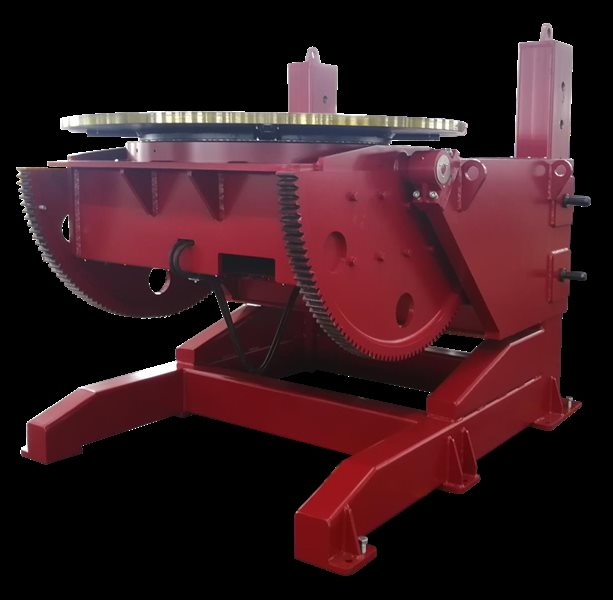

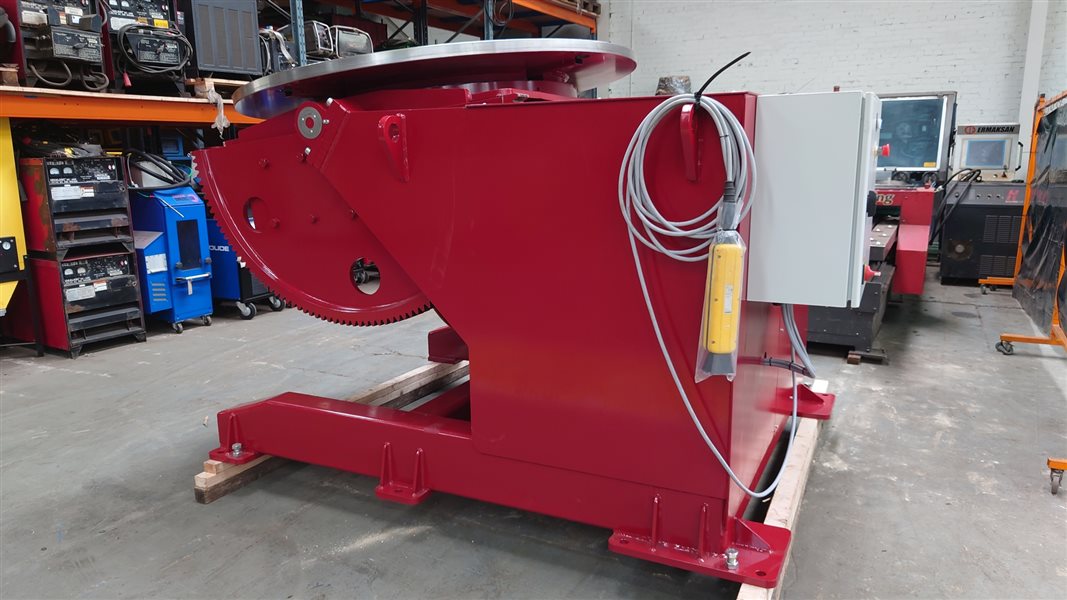

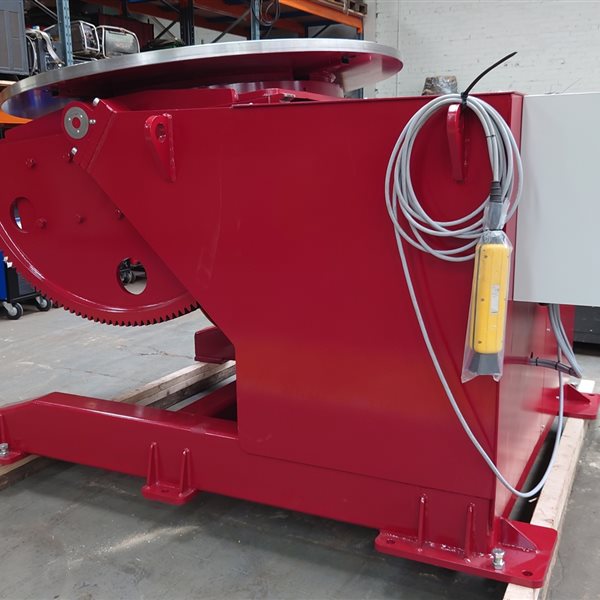

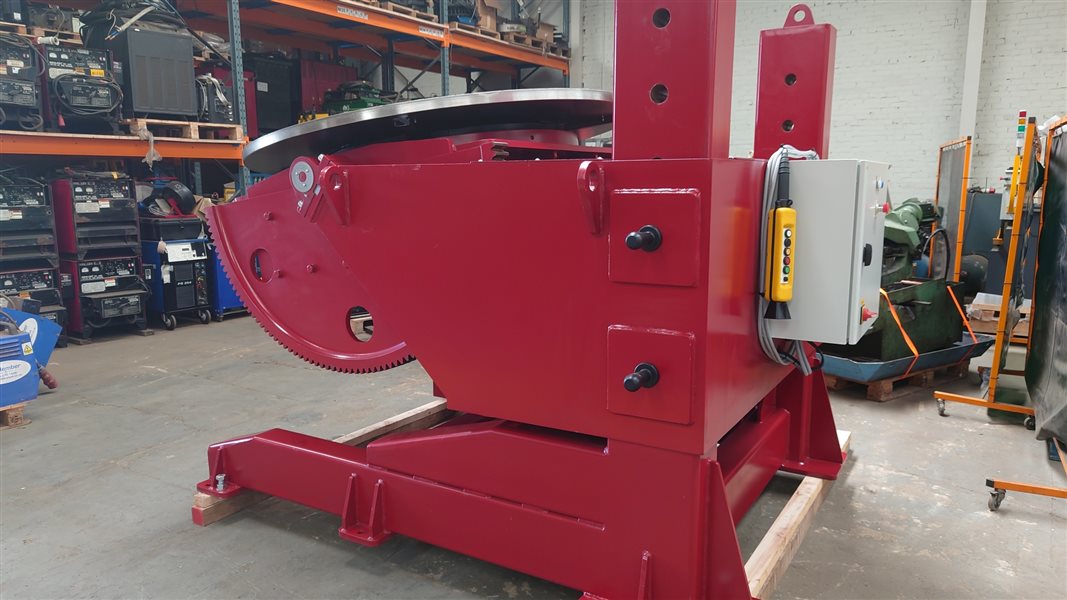

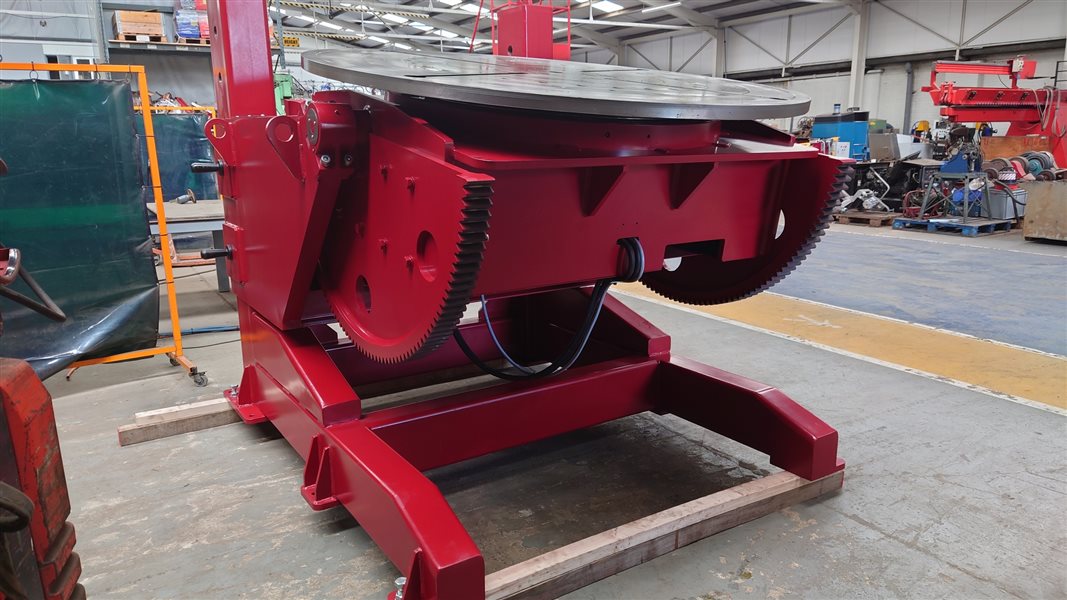

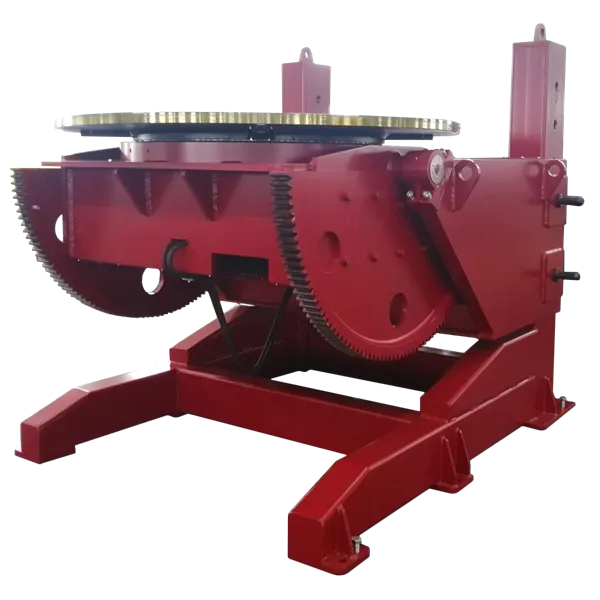

10,000kg fixed or adjustable height welding positioner provides 360° rotation and 135° tilt to allow for weldments to be positioned for better automatic or down-hand welding.

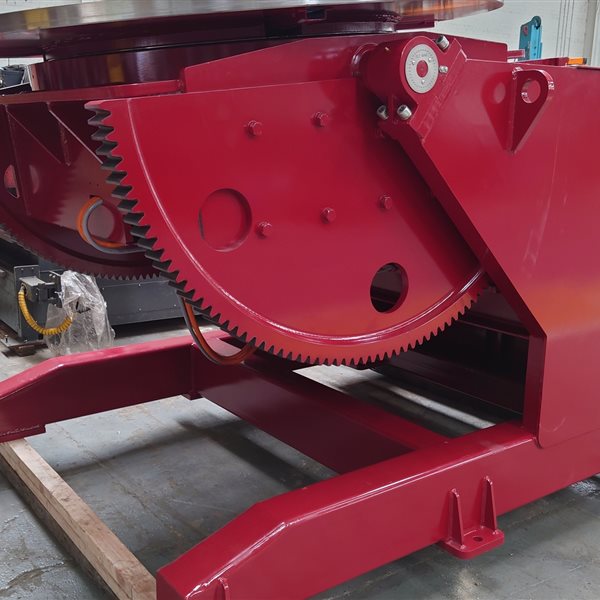

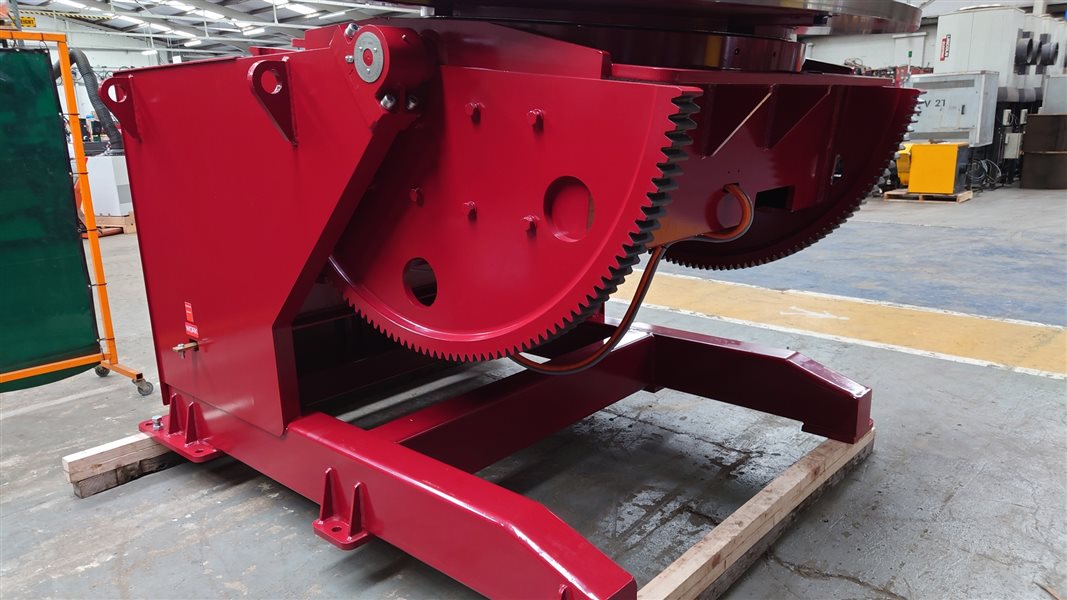

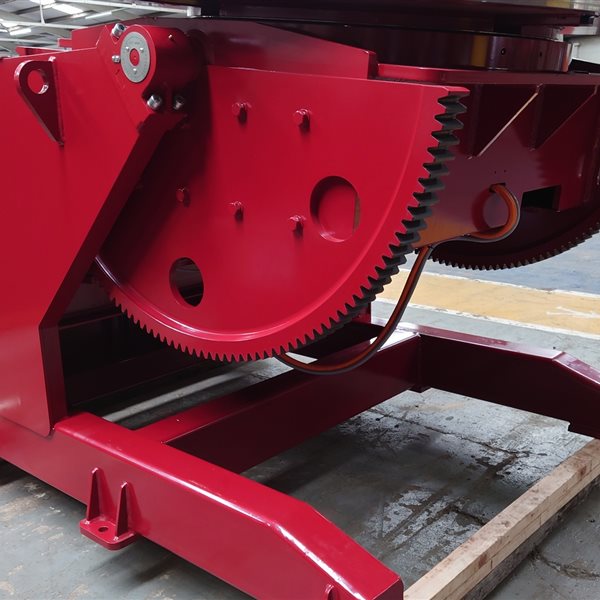

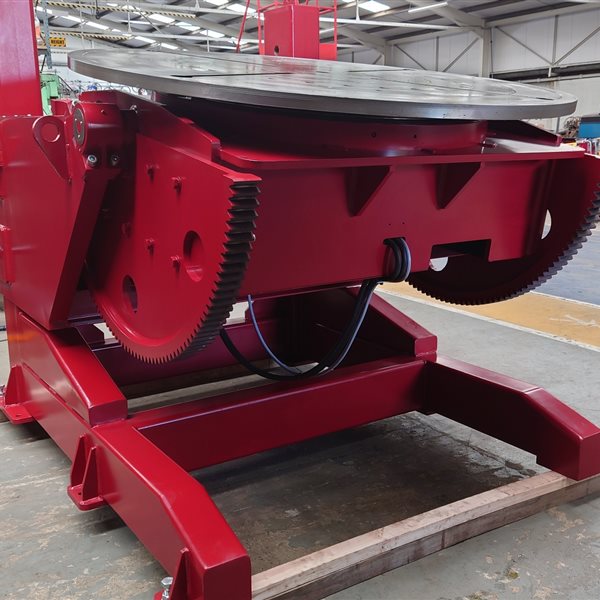

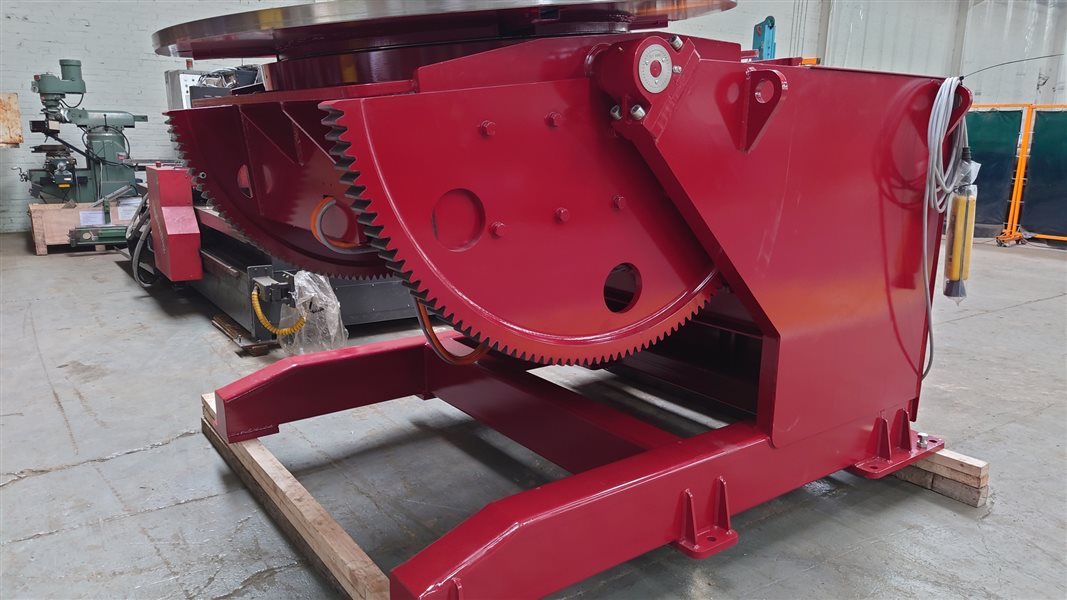

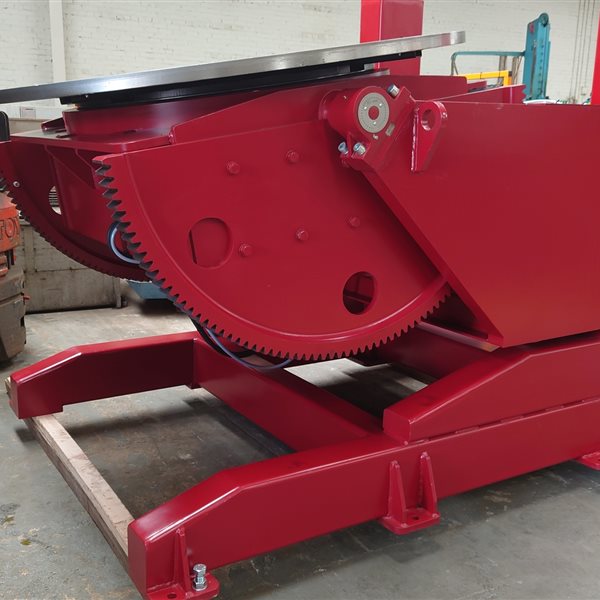

All fabricated steel frames and bases are designed with rotation and tilt spur-gears driven by worm-gear reducers to enhance safety and durability.
Table rotation speed: 0.033 - 0.66rpm
Tilting speed: 150 secs for 135°
Centre of Gravity / Eccentricity: 500mm (19.7") / 300mm (11.8")

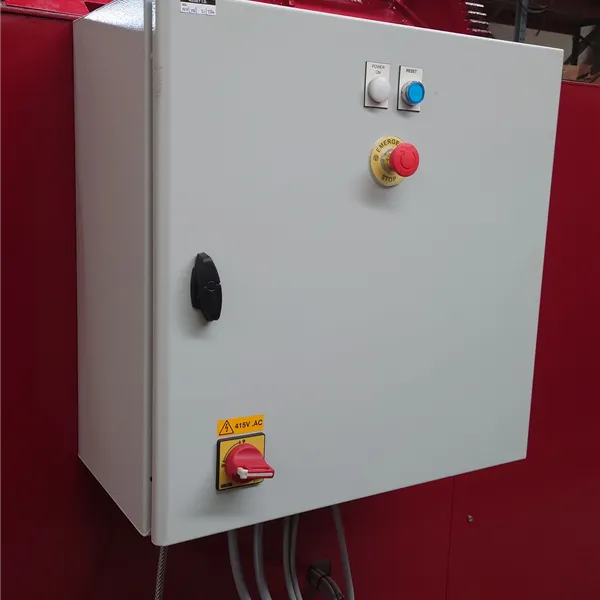

Mains supply 380 / 480V - 3 Phase - 50/60Hz
Maximum 10,000kg loading capacity
Table Diameter: 1830mm (72") with 6 x 42mm (1.65") slots
Options available for hole thru the table if required.

Package Includes:

12 month warranty
