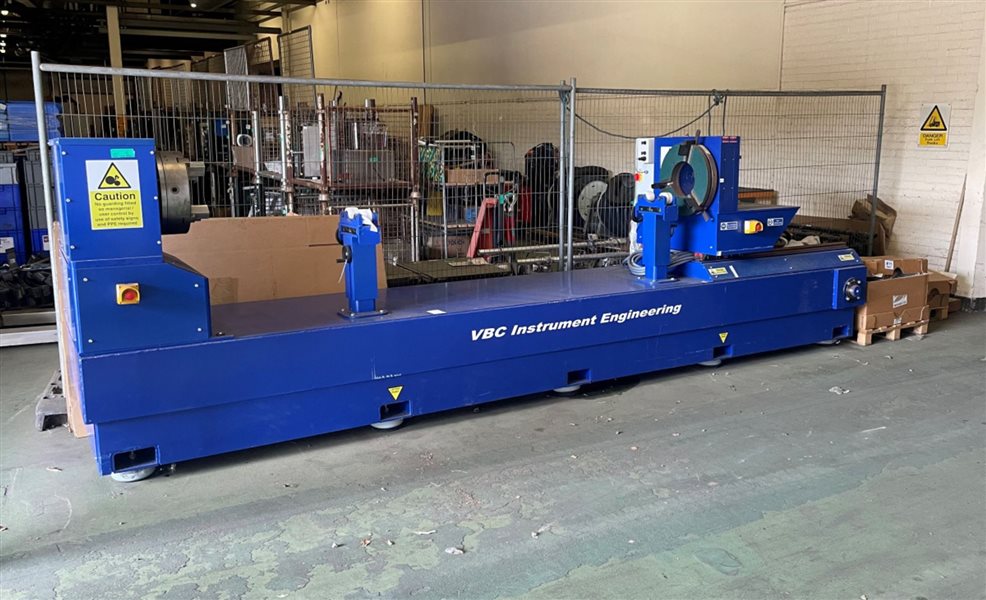

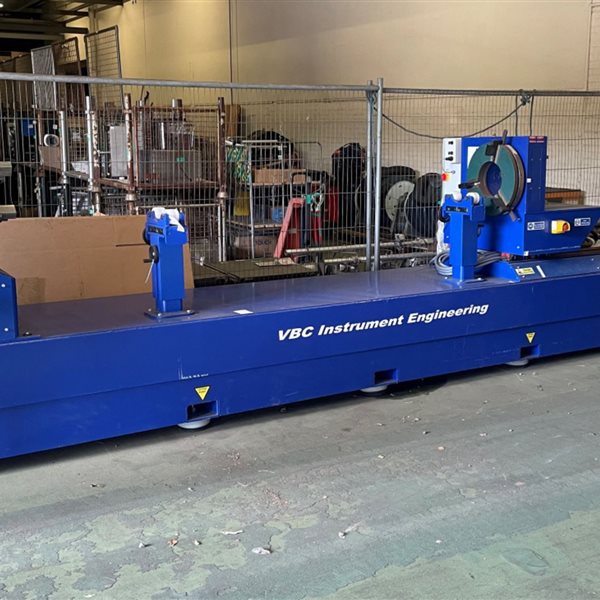

VBC Series 3 Welding Lathe with New Miller Maxstar 400amp DC TIG
This equipment is available for delivery to United States

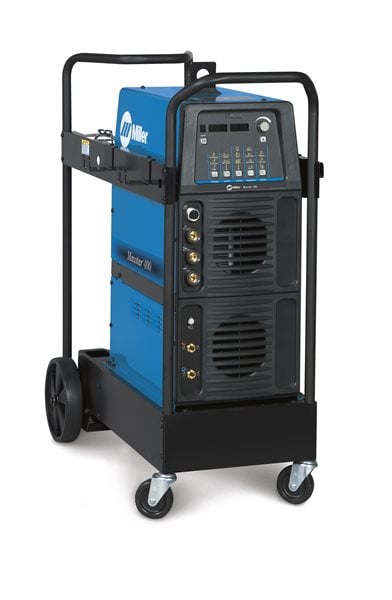

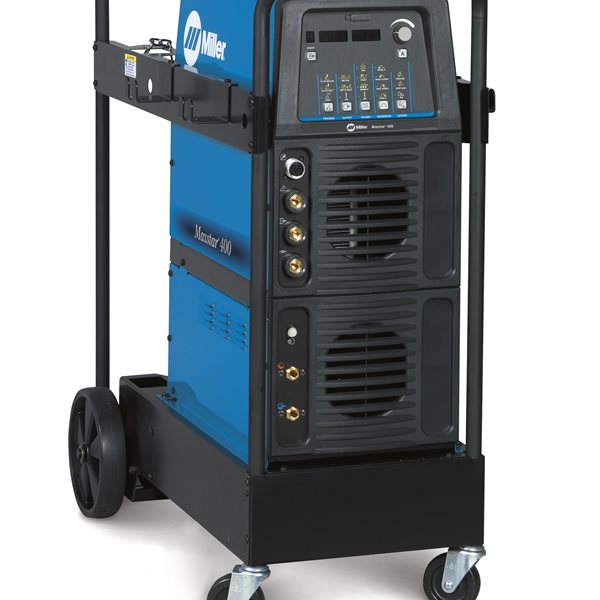

- As new a VBC Welding Lathe fitted with NEW Miller Maxstar 400 amp DC TIG welding system

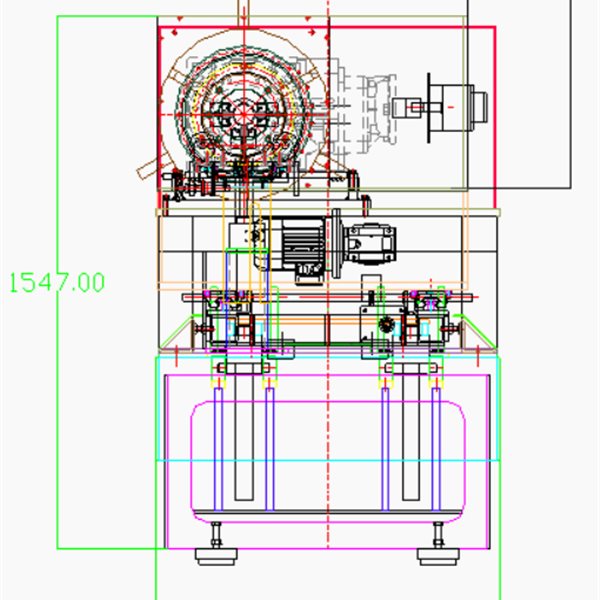

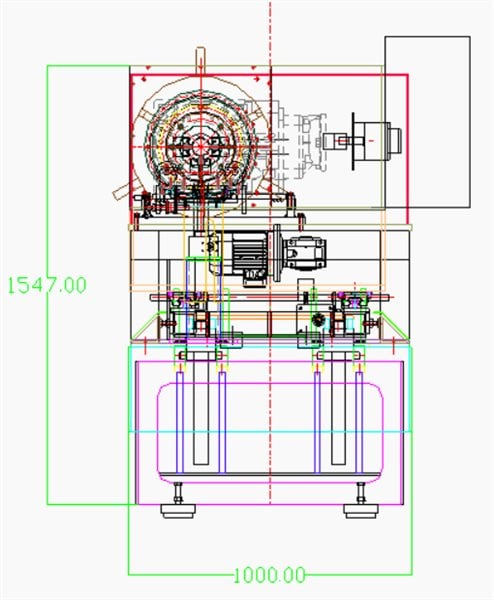

- Solid headstock supplied with a 400mm diameter Chuck. Integral Weld current return brush-gear rated at 400 amps Speed Range : 0.20 to 3.5 rpm

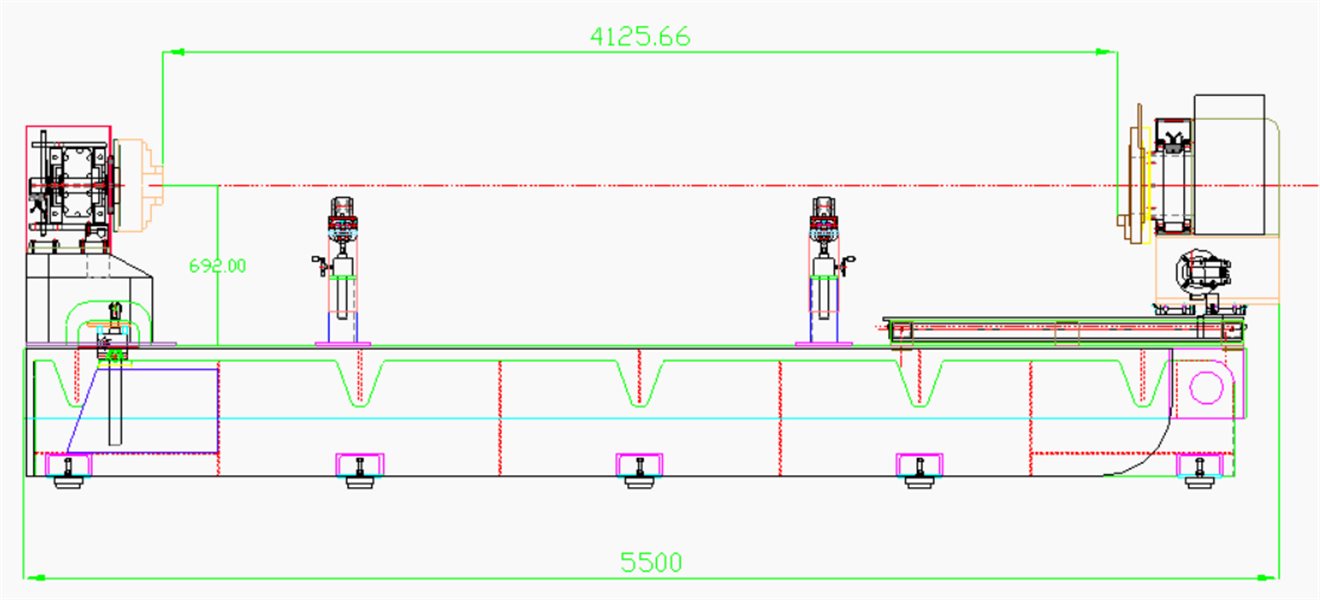

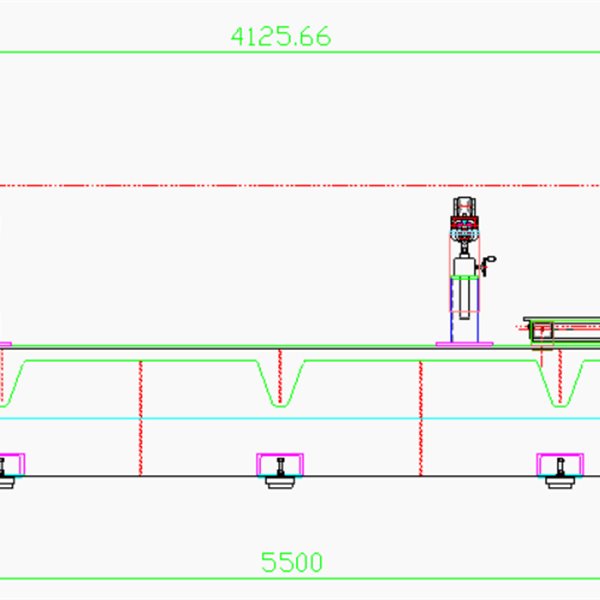

- Capacity: Maximum Component Length: 3000mm. Maximum Component Weight: 600 Kgs
- Floor standing main frame fabricated from steel RHS. Provided with adjustable feet for levelling to factory floor. Provided with lifting eyes.

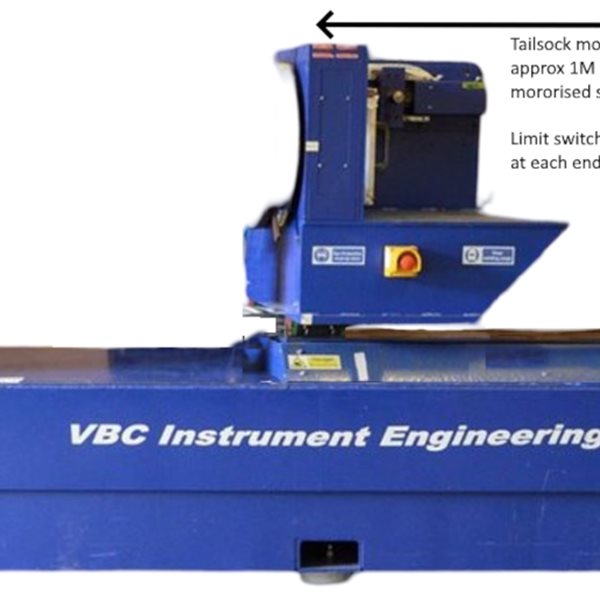

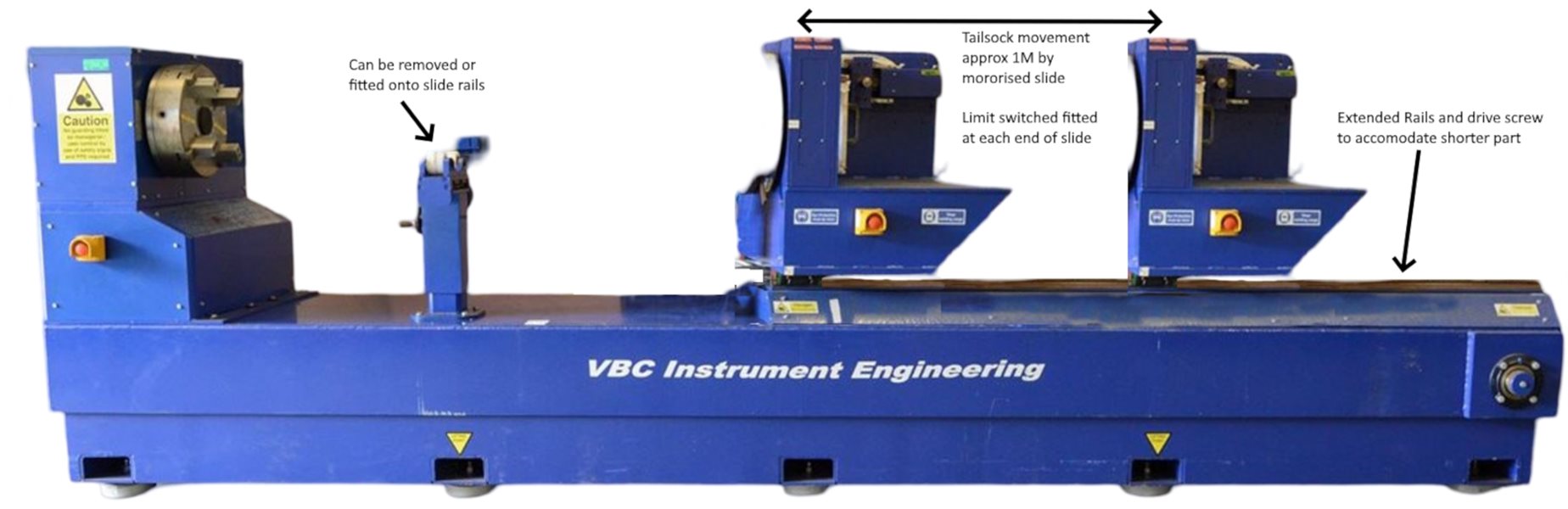

- Tailstock Sliding tailstock mounted on linear guide rail carriages running on continuously supported hardened and ground linear guide rails Lockable in any position along length of bed
- Fitted with sliding tooling faceplate arrangement controlled by pneumatic cylinder, Cylinder to exert a two stage pressure thrust force

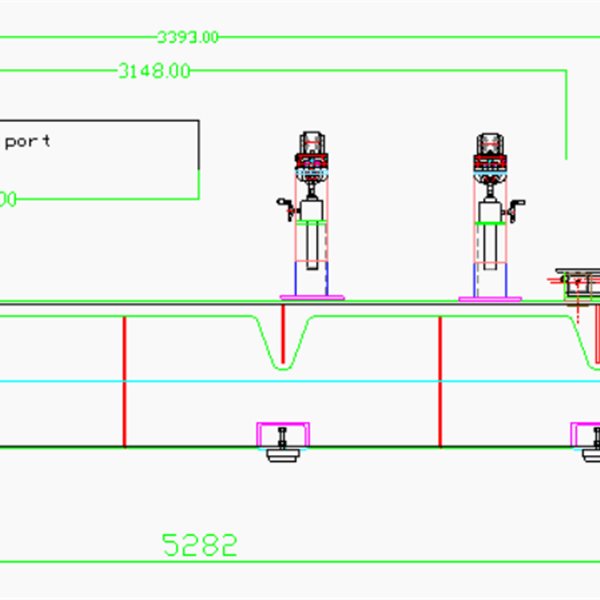

- Adjustable Idlers two adjustable Idlers supplied. Manual linear movement available between the headstock and tailstock. Each Idler can be adjusted in height to support material diameters 100mm to 150mm. Each Idler can be locked in place along the length

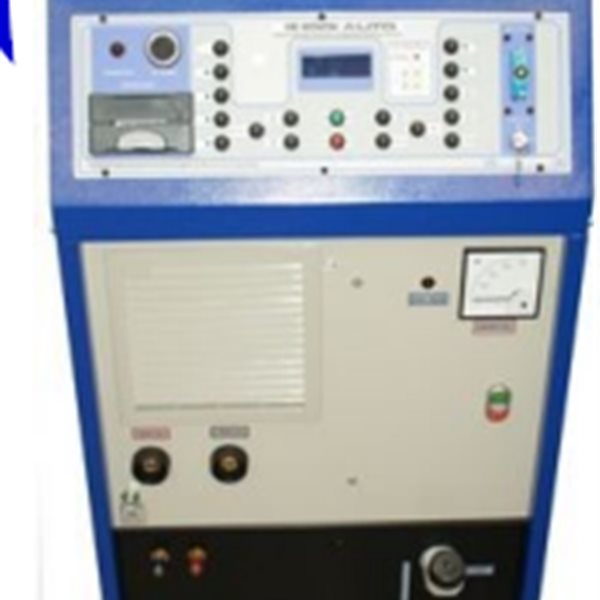

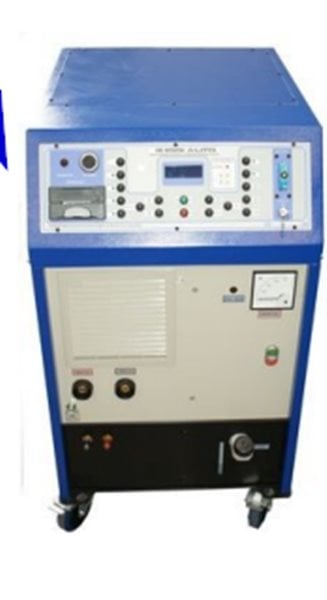

- VBC Automatic Weld Controller Easy to use intuitive control structure, Multilevel control (15 Stages)
- Supplied with PWM drive (rotation), Cold wire feeder controls, AVC controls, Rotation controls, Weld current and pulsing controls, and separate outlet for the linear drive of torch position,
- Motorised Linear slide to attach to the torch included to control weld height during your weld procedure, torch height adjustment programmed via the multilevel control program Memory upgrade to 128 programs, Fitted to remote 350A weld set and water cool
- VBCIE Arc Length Controller Automatically maintains constant weld penetration
- Torch positioning and controls mounted on the pneumatic slide to assist with loading and unloading the parts. Torch Positioner with 3 axis torch adjustment AVC with 75mm movement with touch and retract functions
- Wire Feed Parameters Pulsed or continuous feed modes. Feed Speed - range 50-2500mm/min
Package Includes:
- 12 month warranty
